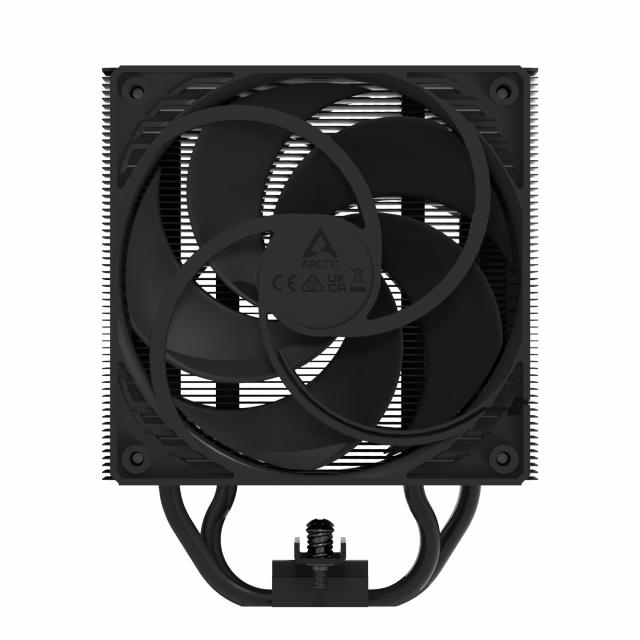

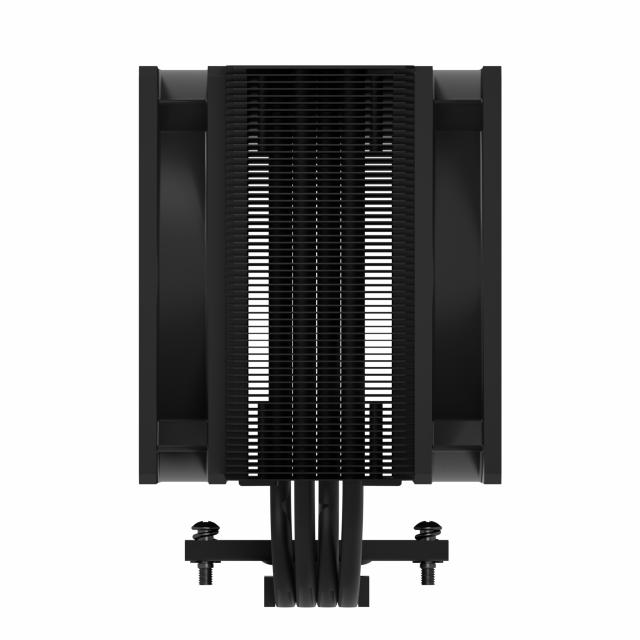

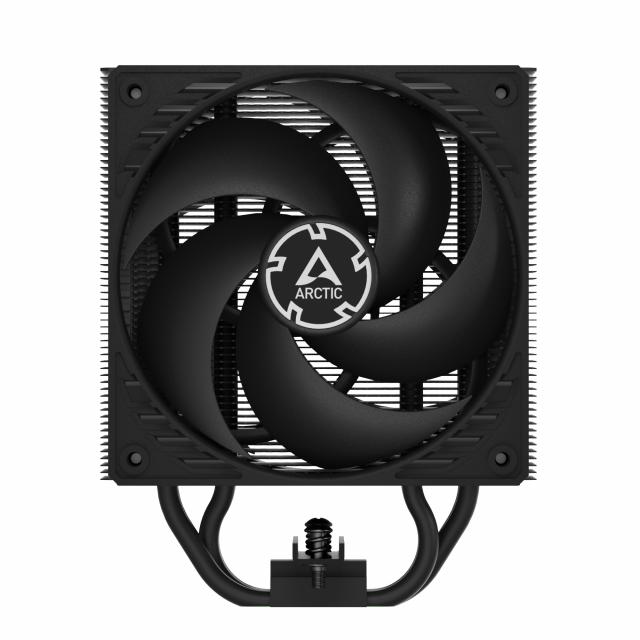

Arctic Freezer 36 Bulk (Black)

Охладител за процесор ARCTIC Freezer 36 Black - AOCPU00012A/Bulk - БЕЗ ТЕРМО ПАСТА!

Арт. номер: ARCTIC-FAN-AOCPU00012A
наличен
Виж наличност
Gplay Бургас
Gplay Велико Търново
Склад Шереметя

Запитване за Arctic Freezer 36 Bulk (Black)

безплатна доставка
на поръчки над 100 EUR
Технически характеристики
Гаранция 72 месеца
Тип Въздушно
Сокет AM4, 1700, AM5, 1851
Височина 159 мм
Обороти на вентилатора до 1800 RPM
Въздушен поток до 56.3 CFM
Ниво на шум до 23 dBA
Размер на вентилатор 120 x 25 mm x2
Конектор 4-pin PWM
Подсветка Не
Цвят Черен

Свързани продукти

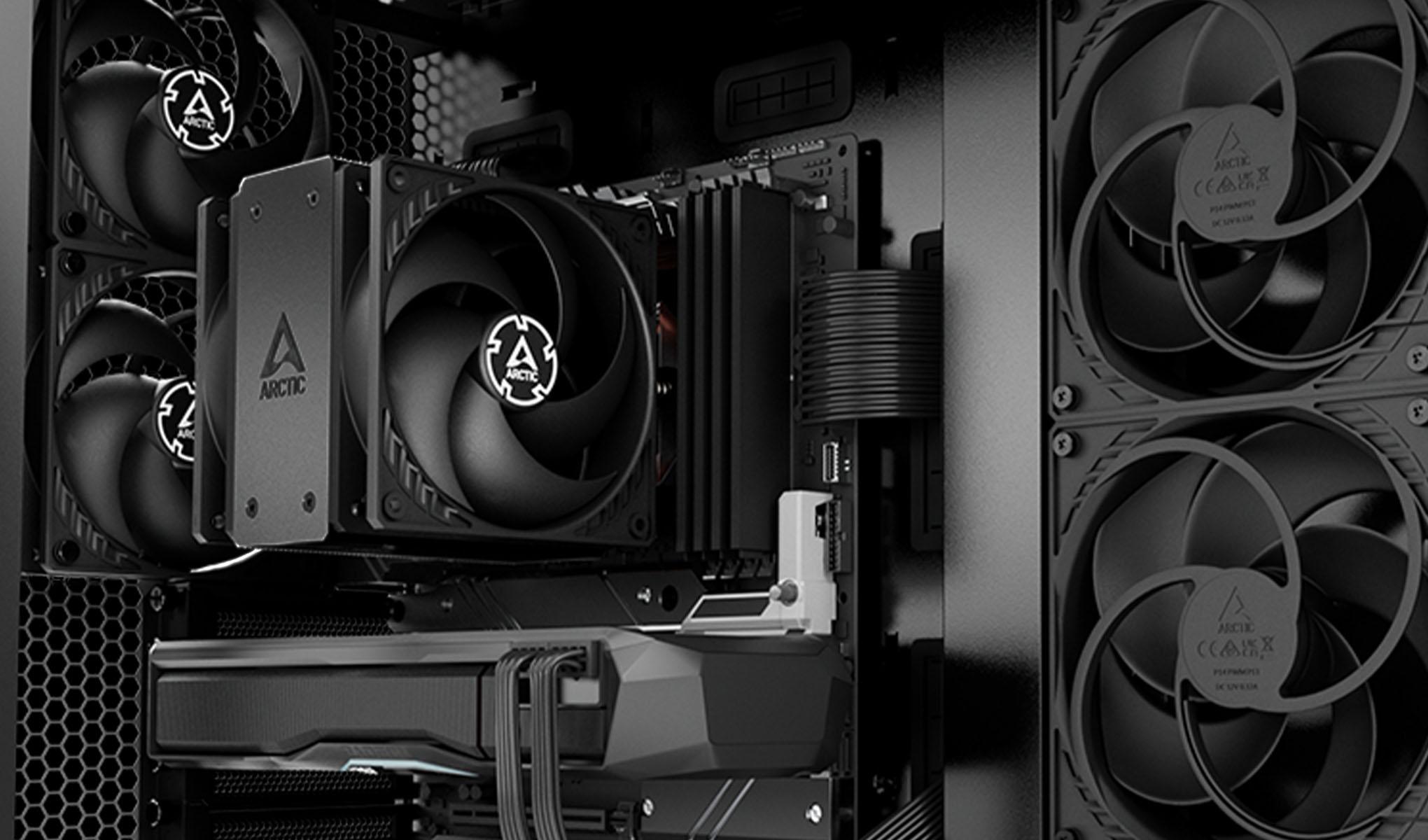

High-Class Finish with Aluminium Top Plate

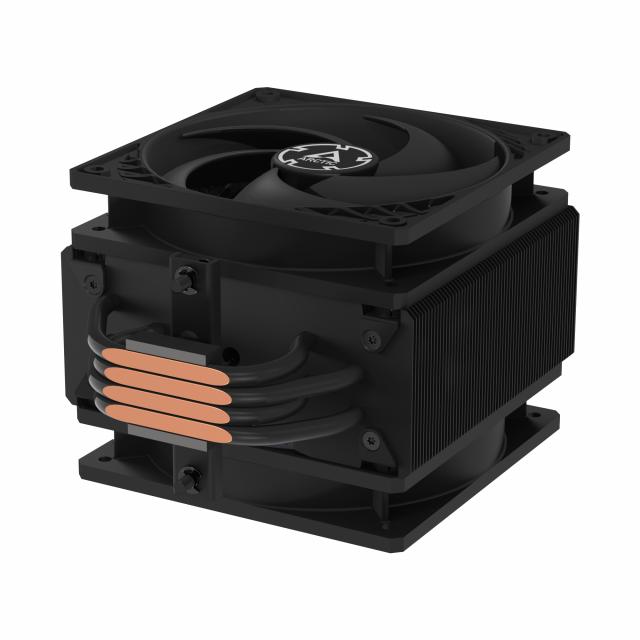

With its push-pull configuration, the Freezer 36 not only impresses with its efficient cooling performance, but also with its design. The soldered ends of the heatpipes are concealed by the screwed aluminium cover, allowing it to blend seamlessly into any PC setup and highlight both performance and appearance.







Freezer 36 – Tested and Confirmed by Intel



Intel has tested and confirmed the Freezer 36 on the i9-13900K/KF, i9-14900K/KF and i9-13900KS in the Enthusiast and Desktop category. In these tests, Intel considered both the mounting with contact frame and the cooler's performance.



Intel Product Compatibility Tool







Future-Proof Compatibility



The Freezer 36 is multi-compatible with Intel and AMD sockets. Intel will release the new Arrow Lake processors on the LGA1851 socket in the future. We guarantee full compatibility. All Freezer 36 can be used with the new LGA1851 socket from Intel without limitation.







Improved Fan Mounting



Thanks to the innovative mounting system, booth fans are effortlessly mounted in the heatsink using a click system. This mounting method eliminates the need for fan clips, making it easier to install the cooler or replace the fans, even if the cooler is already installed. The Freezer 36 is therefore compatible with most 120 mm fans.

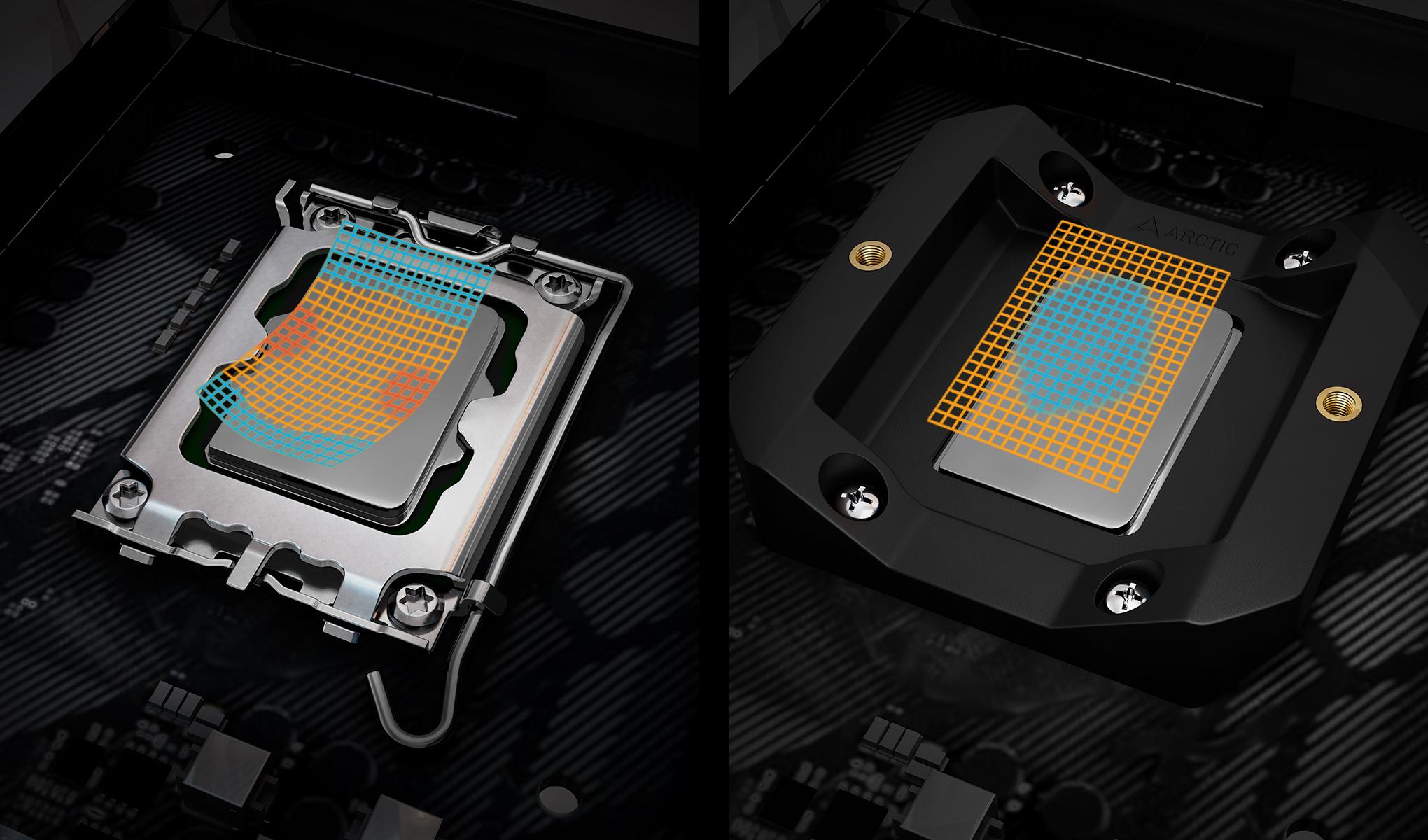

LGA1851 | LGA1700 Contact Frame



Intel's Independent Loading Mechanism (ILM) deforms the CPU by pressing it into the socket at two points with over 40 kg. This causes pressure in the PCB, the DIE and the solder layer between the DIE and IHS (Integrated Heat Spreader). With high thermal load, this can lead to long-term problems. The mounting frame from ARCTIC does not deform the CPU, reduces the mechanical load on the CPU massively, is quick and easy to install and allows the cooler to be screwed onto the CPU's backplate. As a result, mechanical stress on the mainboard and CPU is minimised, cooling performance remains consistent and installation is quick and uncomplicated.







High-Quality Bearing



Thanks to a combination of alloy and lubricant developed in Germany, friction within the bearing is minimised and greater efficiency is achieved. In addition to preventing lubricant loss, wear on the pin and sleeve is also minimised. In this way, less heat is generated, less bearing noise is produced and the service life of the fan is significantly extended.

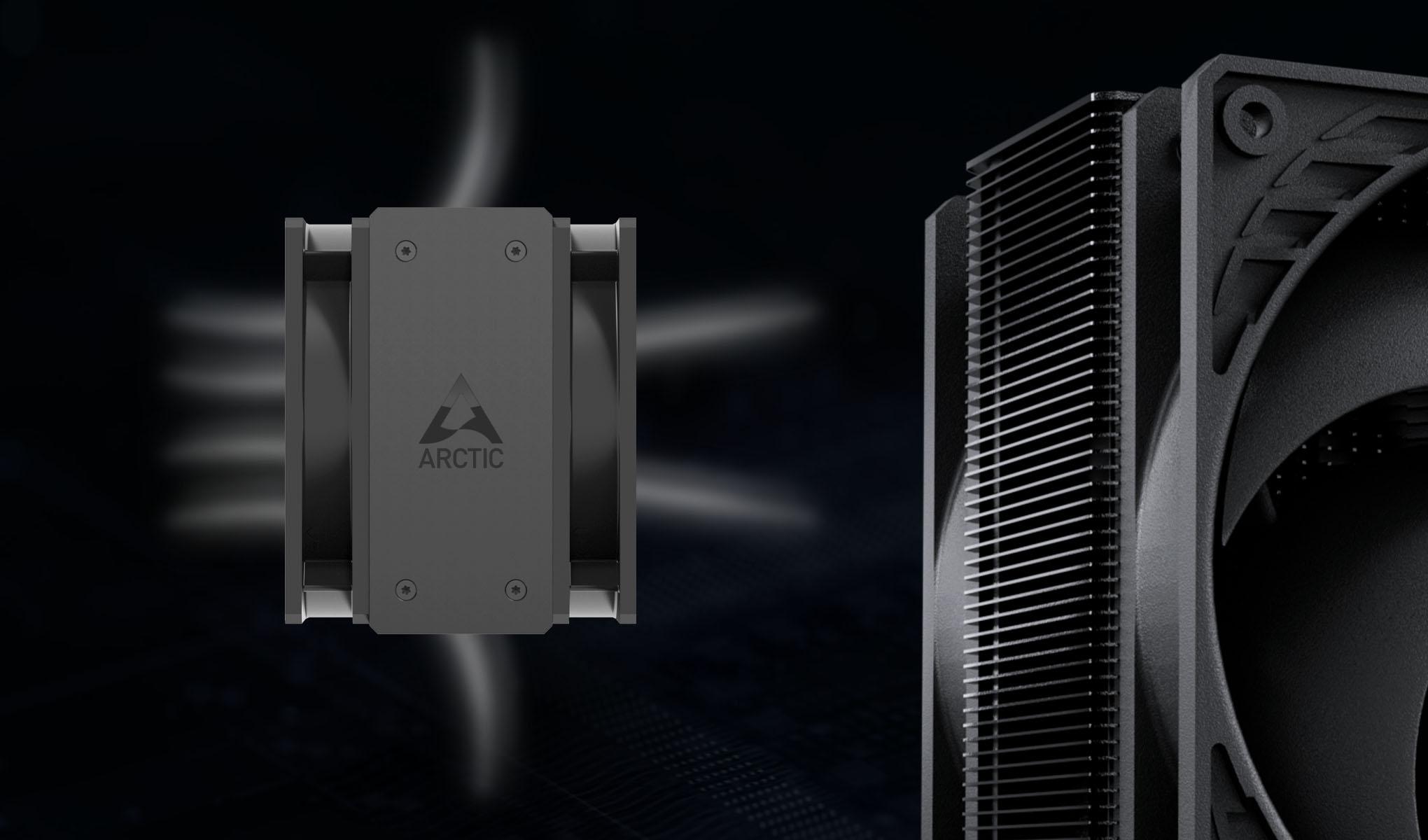

Optimised Heatsink



The fins of the heatsink are open at the side and allow the pull fan to draw additional cool air out of the pc case through the heatsink. This side-flow design achieves even more efficient ventilation.

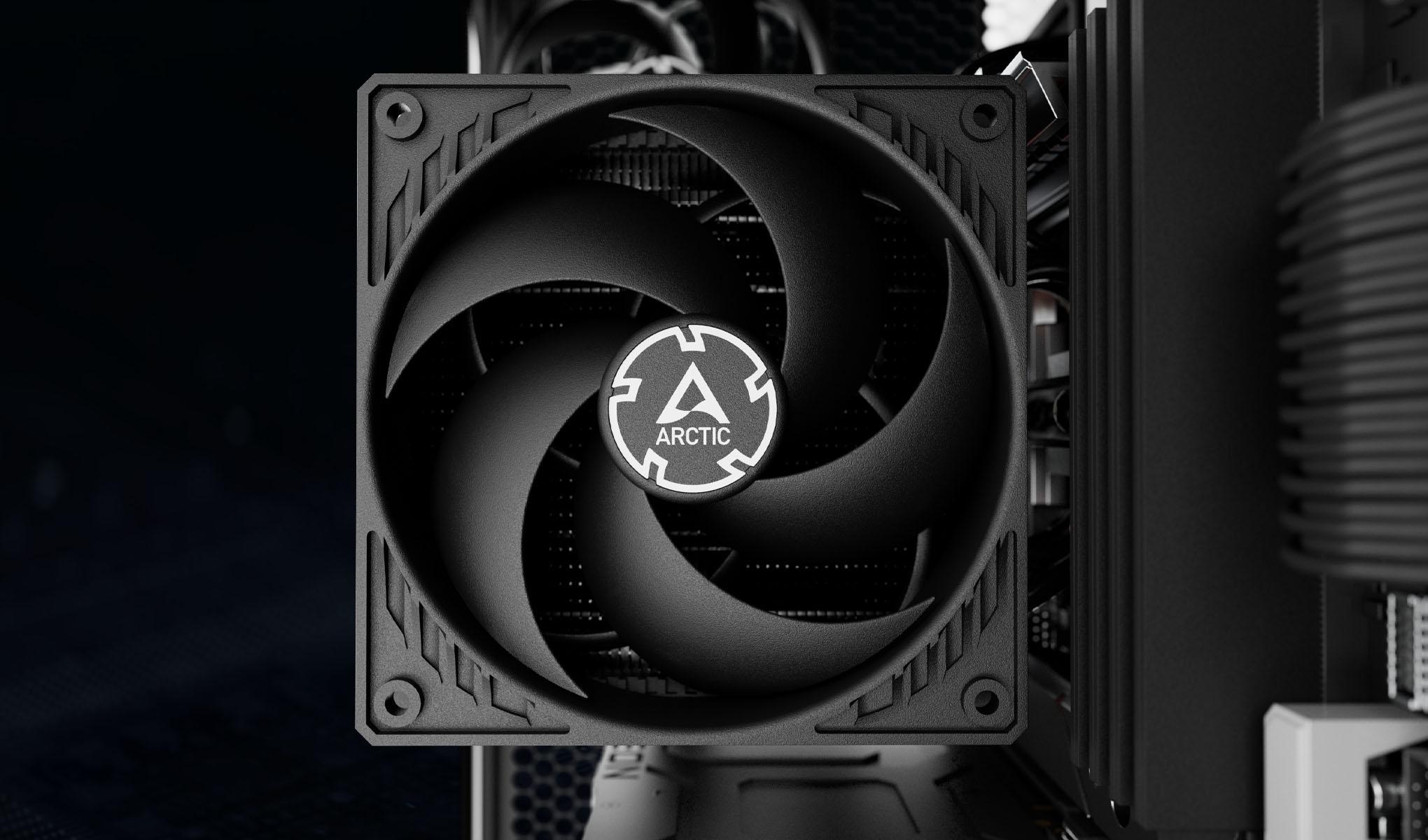

P-Fans with High Static Pressure



ARCTIC relies on the proven P fans, which are known for their powerful performance. The P series is particularly suitable for use on heat sinks and radiators. Due to the dense fin structure of heat sinks, the fans used achieve significantly better performance than fans designed for airflow thanks to their high static pressure.







Large Selection of Variants

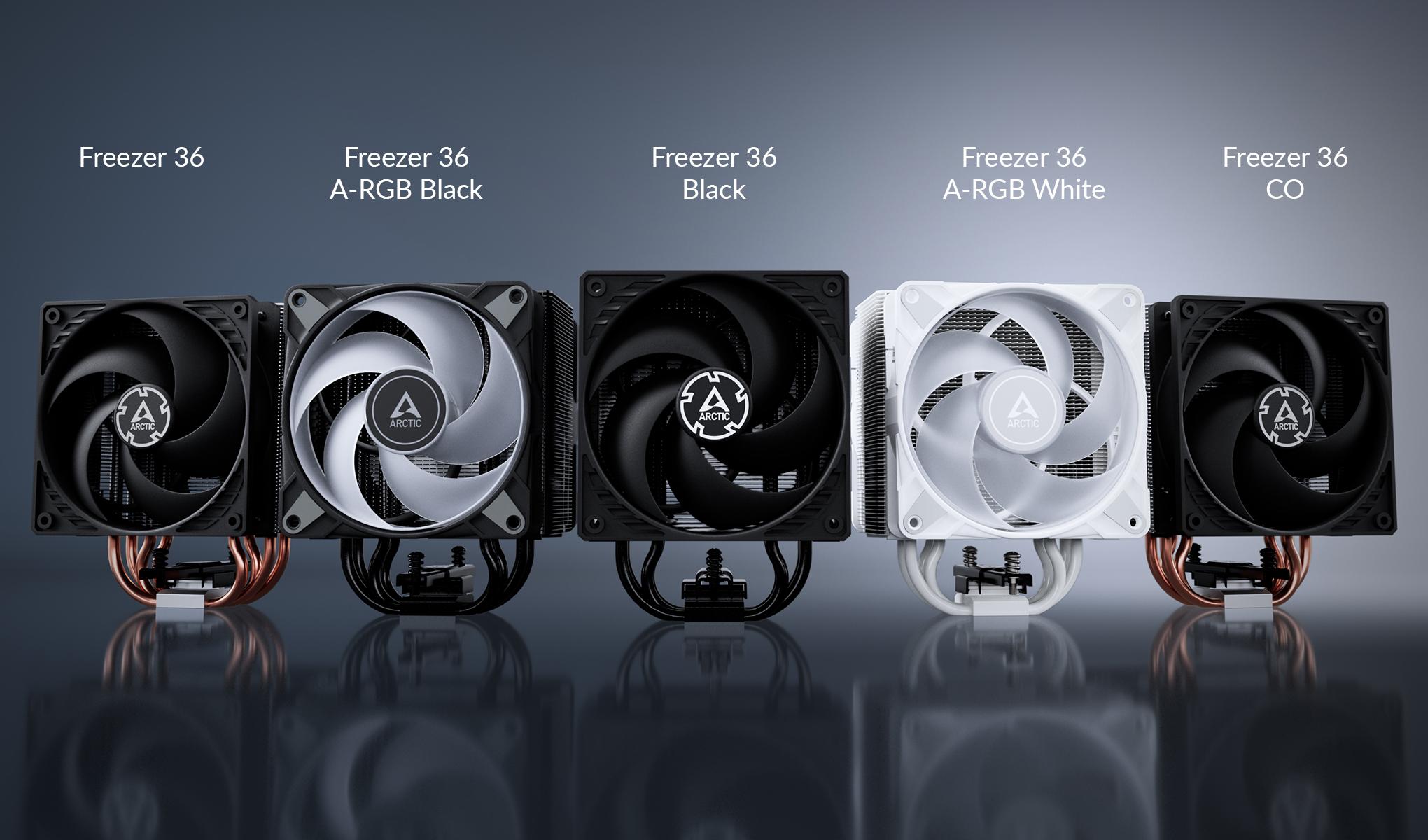

The Freezer 36 is available in five different versions, all equipped with two fans in a push-pull configuration. In addition to the standard model with aluminium heatsink design, a version with a black heatsink is also available. For continuous operation, there is also the CO version, which is equipped with fans with double ball bearings. Alternatively, users can choose between a black and a white version with A-RGB fans.

Specifications





Compatibillity

Intel LGA1851 | LGA1700 Warranty 6 Years
AMD AM5 | AM4 Operating Ambient Temperature 0—40 °C
PI | NNPI 250 | 234 Dimensions 104 (L) x 126 (W) x 159 (H) mm
TIM - Weight 890 g





Heatsink

Heatpipes 4x 6 mm Ø, Copper Fin Stack 59x 0.4 mm, Aluminium





Fans

Fan 2x P12 PWM PST Current | Voltage 0.10 A | 12 V DC
Speed 200 - 1800 rpm, PWM Controlled (0 rpm below 5 % PWM) Cable Lenght 200 mm + 80 mm Splitter Cable
Bearing Fluid Dynamic Bearing Connector 4-Pin PWM-Connector + 4-Pin Plug
