ARCTIC TP-2
Термопроводящ пад ARCTIC TP-2, 290 x 290 x 1 mm
| Гаранция | 72 месеца |
| Вид | Термо подложка |
| Дебелина | 1 мм |
Свързани продукти
Efficient Thermal Conductivity
The thermal pad, which is based on silicone and a special filler, far
outperforms generic and performance-oriented pads.
Excellent Price/Performance Ratio
In a test conducted by PC Games Hardware (11/2018), the pads‘ "excellent processability
and reusability in every respect" were praised. Because of its fair pricing and good
performance, our thermal pad was recommended as a "price-
performance recommendation".
Bridging the Gap
Thanks to its low rigidity and good compression properties, the thermal pad acts
as a perfect gap filler and easily bridges uneven surfaces and air gaps.

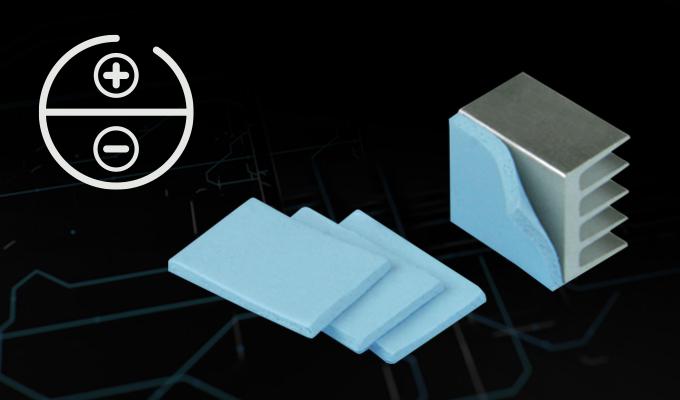

Easy Installation and Safe Handling
The ARCTIC Thermal Pads are non-adhesive and can therefore be placed precisely.
The pad contains no metal particles and is electrically insulating and not capacitive. This
makes handling them safe since contact with electrical parts does not lead to damage.

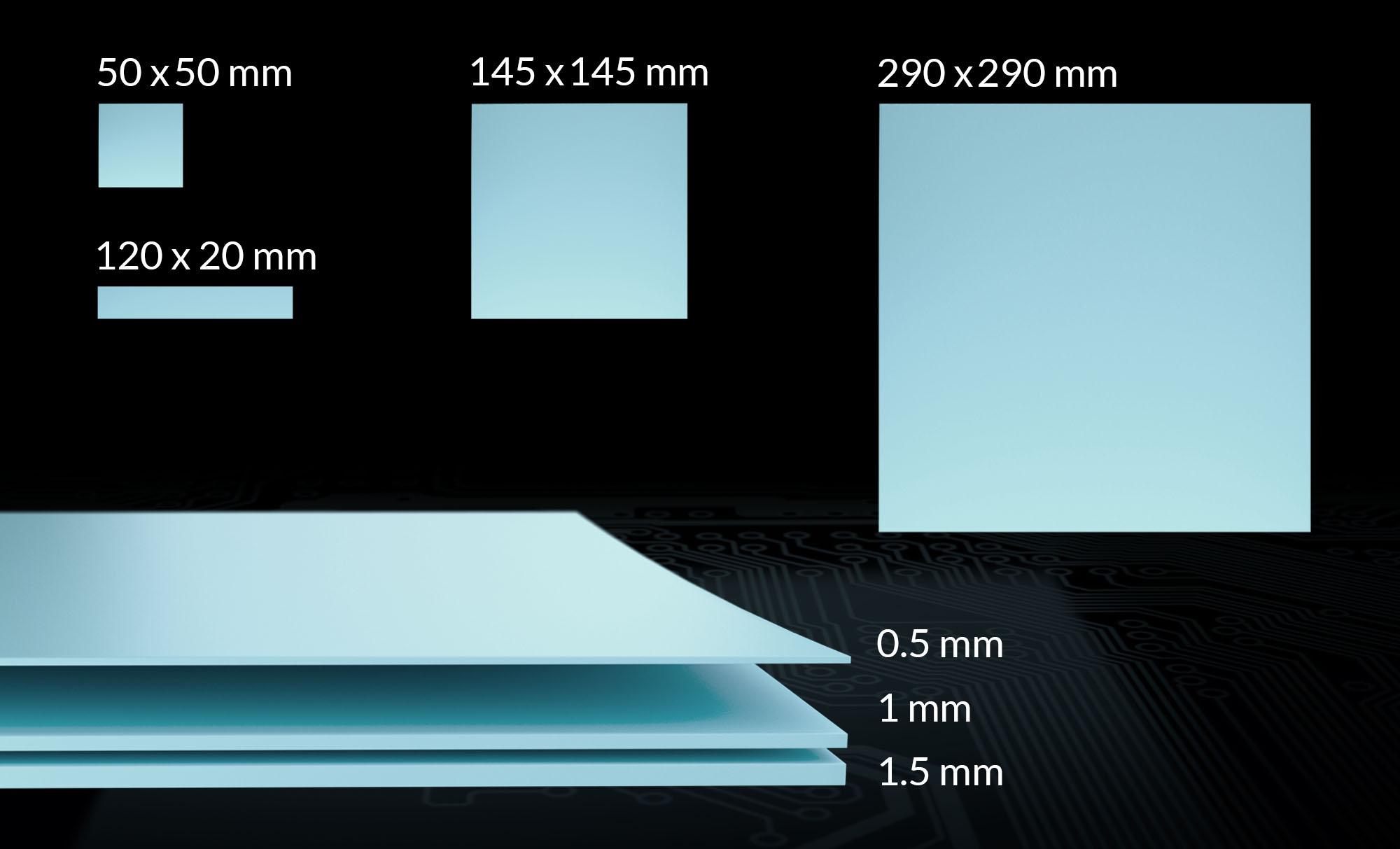

Available in Different Strengths and Sizes
Our thermal pads are available in 0.5 mm, 1.0 mm, and 1.5 mm. Its slimness makes
the 0.5 mm variant an excellent alternative to heat-conducting film. Depending on the
thickness of the pads, they are available in different sizes.
Specifications
| Material | APT2560 | Specific Gravity | 3.2 g/cm³ |
| Colour | Blue | Dielectric Constant @1MHz | 13.0264 |
| Hardness | 80 Shore OO | Volume Resistance | 1 x 1012 Ω-cm |
| Continuous Use Temperature | -40~200 °C | Flammability Rating | UL 94 V-0 |
