ASRock Intel Arc A770 Challenger 16GB OC
Видео карта ASRock Intel ARC A770 Clallenger 16G OC A770 CL 16GO
Арт. номер: ASR-VC-A770-CL-16GO
Изчерпан
Запитване за ASRock Intel Arc A770 Challenger 16GB OC
безплатна доставка
на поръчки над 100 EUR
Технически характеристики
| Гаранция | 24 месеца |
| Памет | 16 GB |
| Ядра | 512 XMX |
| Честота | 2150 MHz |
| Шина | 256 bit |
| Изходи | HDMI, DisplayPort |
| Тип на паметта | GDDR6 |
| Серия | Arc Series |
Свързани продукти
Памет:
12 GB
Ядра:
160 XMX
Честота:
2740 MHz
Шина:
192 bit
Изходи:
HDMI, DisplayPort
0% лихва за 6 месеца
Памет:
12 GB
Ядра:
160 XMX
Честота:
2800 MHz
Шина:
192 bit
Изходи:
HDMI, DisplayPort
0% лихва за 6 месеца
Памет:
8 GB
Ядра:
2048 Stream
Шина:
128 bit
Изходи:
HDMI, DisplayPort
Памет:
10 GB
Ядра:
144 XMX
Честота:
2600 MHz
Шина:
160 bit
Изходи:
HDMI, DisplayPort
Памет:
16 GB
Ядра:
2048 Stream
Честота:
2700 MHz
Шина:
128 bit
Изходи:
HDMI, DisplayPort
Памет:
16 GB
Ядра:
2048 Stream
Честота:
2780 MHz
Шина:
128 bit
Изходи:
HDMI, DisplayPort
Памет:
6 GB
Честота:
2250 MHz
Шина:
96 bit
Изходи:
HDMI, DisplayPort
0% лихва за 6 месеца
Памет:
6 GB
Честота:
2000 MHz
Шина:
96 bit
Изходи:
HDMI, DisplayPort
Памет:
16 GB
Ядра:
3584 Stream
Честота:
2070 MHz
Шина:
256 bit
Изходи:
HDMI, DisplayPort
0% лихва за 6 месеца
Памет:
16 GB
Ядра:
4096 Stream
Честота:
2400 MHz
Шина:
256 bit
Изходи:
HDMI, DisplayPort
Памет:
16 GB
Ядра:
4096 Stream
Честота:
2400 MHz
Шина:
256 bit
Изходи:
HDMI, DisplayPort
Памет:
16 GB
Ядра:
4096 Stream
Честота:
2400 MHz
Шина:
256 bit
Изходи:
HDMI, DisplayPort

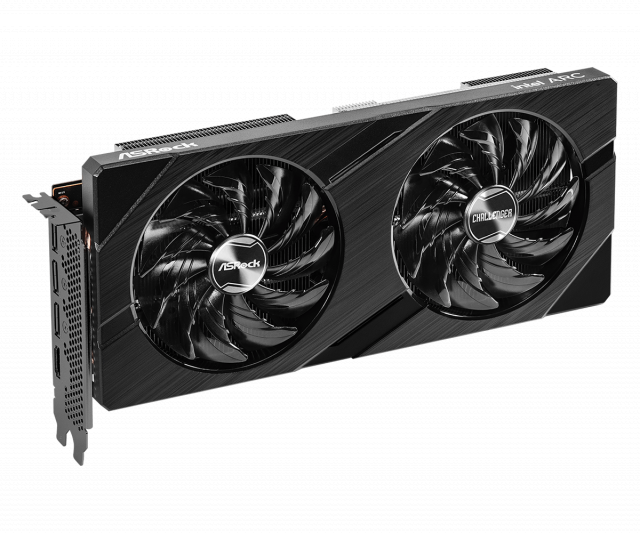

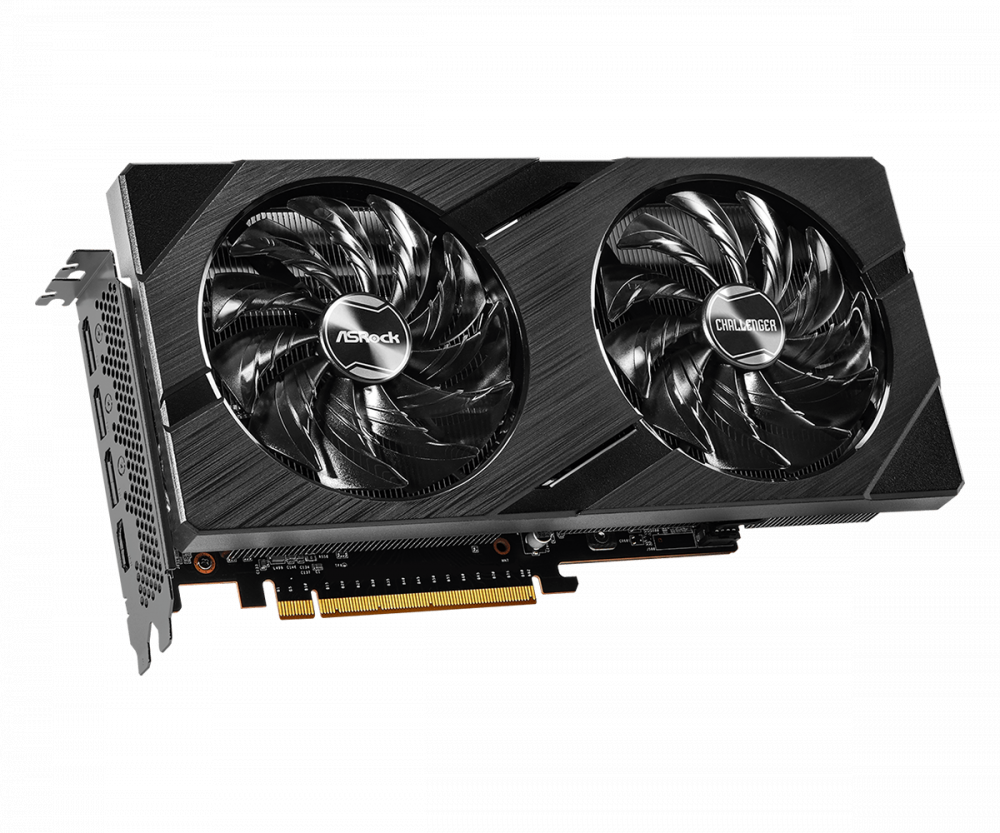

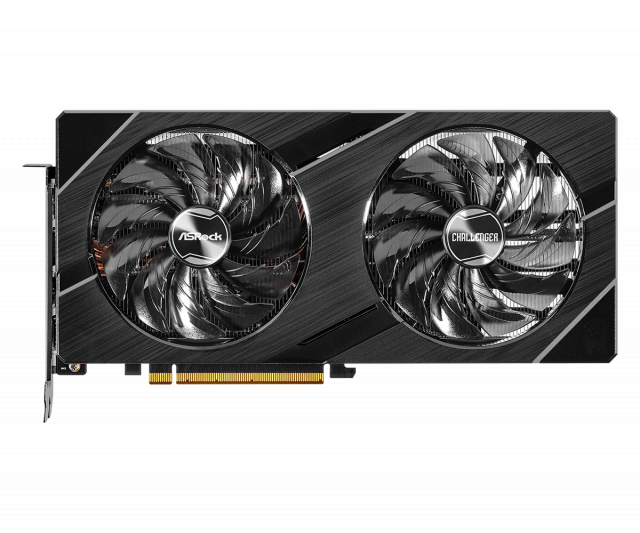

Dual Fan DesignTwo fans that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering excellent gaming experience with stylish and streamlined design.
|

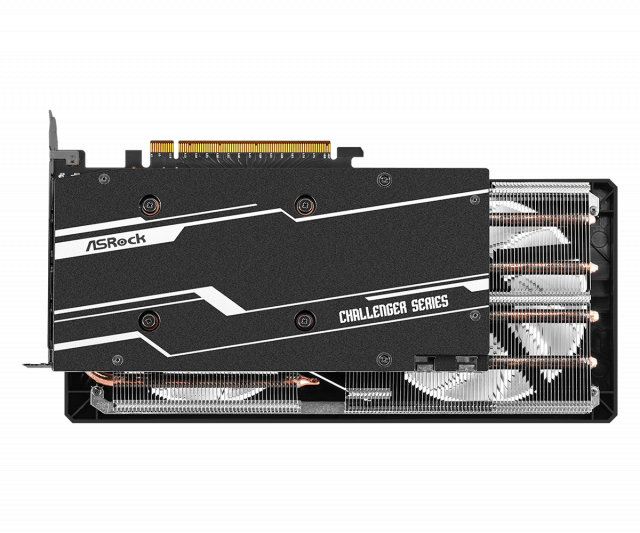

Stylish Metal BackplateSolid, Fancy, Cool.Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
|
Copper BaseMaximize GPU Contact Area.With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
|
High-density Metal WeldingImprove Heat Dissipation.Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
|
Striped Axial FanDesigned For Enhanced AirflowASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
|
|
0dB Silent CoolingSpin For Cooling, Stop For Silence.The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
|
Ultra-fit HeatpipeConsolidated to Maximize the Contact.The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
|
Nano Thermal PastePerfect Thermal Teamwork.Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
|
Premium Thermal PadBetter Heat Transfer.The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
|
Precise Screw TorqueOptimized Mounting Pressure.ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
|
SPS (Smart Power Stage) |

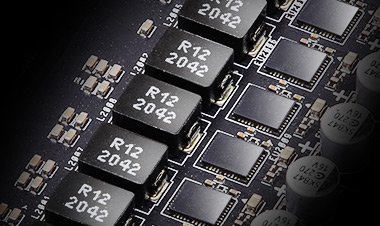

Premium 100A Power Choke |
Matte Black PCB |
 |
 |
 |
| Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the GPU with enhanced performance and OC capability. |
Compared to traditional chokes, ASRock’s premium 100A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
|
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.
|
High Density Glass Fabric PCB |
2oz Copper PCB |
|
 |
 |
|
| High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity. | Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking. |
8K Resolution SupportNot only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.
|
Supercharge your gaming.Dive into immersive, high-performance gaming with AI-enhanced XeSS upscaling and full support for DirectX* 12 Ultimate.
|
Experience advanced fast-paced gaming.Intel Arc Control gives gamers options and controls to refine their gaming experience in an intuitive and modern layout. Get seamless driver updates, optimize your favorite games, stream from your home without interruption and more.
Xe Super Sampling (XeSS)Take your gaming experience to the next level with AI-enhanced upscaling technology, enabling more performance with high image fidelity.
DirectX* 12 Ultimate SupportFully compatible with the latest breakthroughs in graphics technologies, including ray tracing, variable rate shading, mesh shading and sampler feedback - the fundamentals for next-gen gaming.
|
Unleash your creativity.Experience cutting-edge AI-accelerated content creation. With industry-first AV1 hardware encode and the advanced Intel Xe Media Engine, the most comprehensive media capabilities are at your fingertips.
|
Take center stage.Broadcast seamlessly with advanced streaming technologies enabled by Intel Arc Control software.
|
Elevate your gaming experience.Refine your gaming experience with Intel Arc Control in an intuitive and modern layout. Get seamless driver updates and optimize many of your favorite games.
|
Maximize your Intel platform.Enhance your creation, gaming and streaming experiences with Intel Deep Link Technology features by pairing Intel Core processors with Intel Arc graphics.
|
Specifications
| Graphics Engine | Intel Arc A770 Graphics | Resolution | Digital Max Resolution: 7680x4320 |

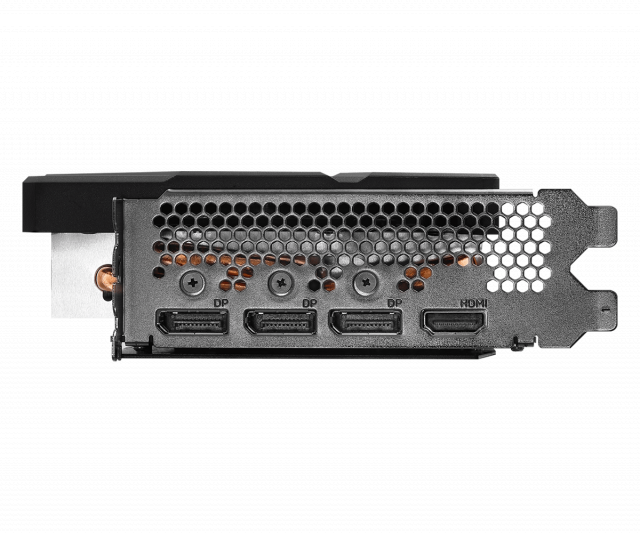

| Bus Standard | PCI Express 4.0 x16 | Interface | 3 x DisplayPort 2.0 up to UHBR 10* - 1 x HDMI 2.1 *Designed for DP 2.0, certification pending VESA CTS Release.
|
| DirectX | 12 Ultimate | HDCP | Yes |
| OpenGL | 4.6 | Multi-view | 4 |
| Memory | 16GB GDDR6 | Recommended PSU | 650W |
| Engine Clock | 2150 MHz | Power Connector | 2 x 8-pin |
| Intel XMX Engines | 512 | Accessories | 1 x Quick Installation Guide |
| Memory Clock | 17.5 Gbps | Dimensions | 271 x 132 x 48 mm, 2.4-slot |
| Memory Interface | 256-bit | Net Weight | 785 g |
