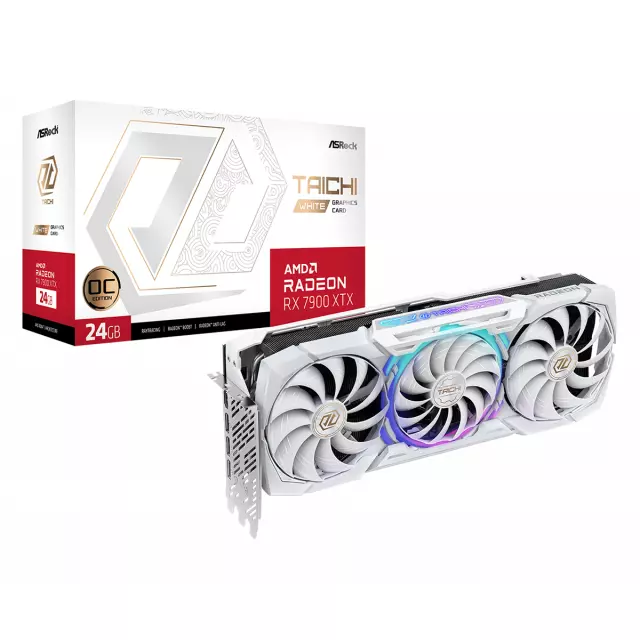

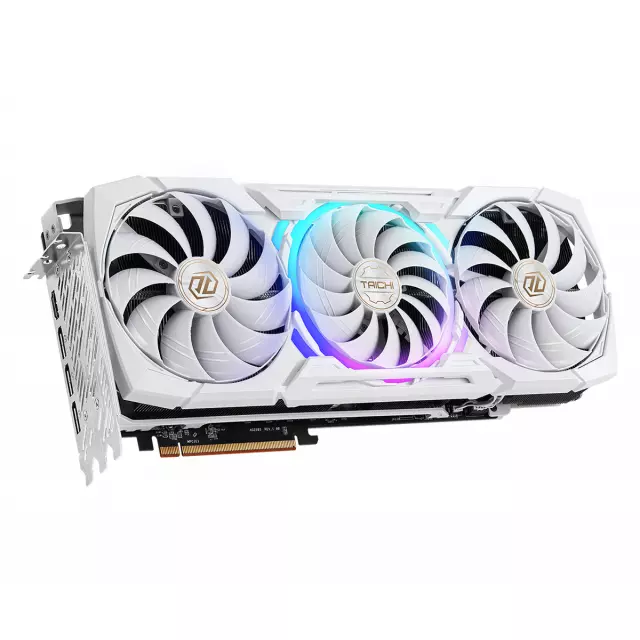

ASRock Radeon RX 7900 XTX Taichi White 24GB OC
Видео карта ASROCK AMD RADEON RX 7900 XTX Taichi White OC 24GB GDDR6, RX7900XTX TCW 24GO
Арт. номер: ASR-VC-RX7900XTX-TCW-24GO
Запитване за ASRock Radeon RX 7900 XTX Taichi White 24GB OC
безплатна доставка
на поръчки над 199 лв.
Технически характеристики
| Гаранция | 36 месеца |
| Памет | 24 GB |
| Ядра | 6144 Stream |
| Честота | 2680 MHz |
| Шина | 384 bit |
| Изходи | HDMI, DisplayPort |
| Тип на паметта | GDDR6 |
| Серия | RX 7000 Series |
Свързани продукти
Памет:
20 GB
Ядра:
5376 Stream
Честота:
2075 MHz
Шина:
320 bit
Изходи:
HDMI, DisplayPort
Памет:
24 GB
Ядра:
6144 Stream
Честота:
2455 MHz
Шина:
384 bit
Изходи:
HDMI, DisplayPort
Памет:
16 GB
Ядра:
4096 Stream
Честота:
2570 MHz
Шина:
256 bit
Изходи:
HDMI, DisplayPort
Памет:
16 GB
Ядра:
4096 Stream
Честота:
2400 MHz
Шина:
256 bit
Изходи:
HDMI, DisplayPort
Памет:
16 GB
Ядра:
4096 Stream
Честота:
2400 MHz
Шина:
256 bit
Изходи:
HDMI, DisplayPort
Памет:
16 GB
Ядра:
3584 Stream
Честота:
2070 MHz
Шина:
256 bit
Изходи:
HDMI, DisplayPort
Памет:
32 GB
Ядра:
4096 Stream
Честота:
2350 MHz
Шина:
256 bit
Изходи:
DisplayPort
Памет:
16 GB
Ядра:
2048 Stream
Честота:
2780 MHz
Шина:
128 bit
Изходи:
HDMI, DisplayPort
Памет:
16 GB
Ядра:
2048 Stream
Честота:
2700 MHz
Шина:
128 bit
Изходи:
HDMI, DisplayPort
Памет:
8 GB
Ядра:
2048 Stream
Честота:
2700 MHz
Шина:
128 bit
Изходи:
HDMI, DisplayPort
Памет:
12 GB
Ядра:
160 XMX
Честота:
2800 MHz
Шина:
192 bit
Изходи:
HDMI, DisplayPort
Памет:
8 GB
Ядра:
2048 Stream
Честота:
2320 MHz
Шина:
128 bit
Изходи:
HDMI, DisplayPort
Видео карта ASRock Radeon RX 7900 XTX Taichi White 24GB OC
Reverse Spin
The center fan spins reversely to lower turbulence and enhance air dispersion through the heatsink.

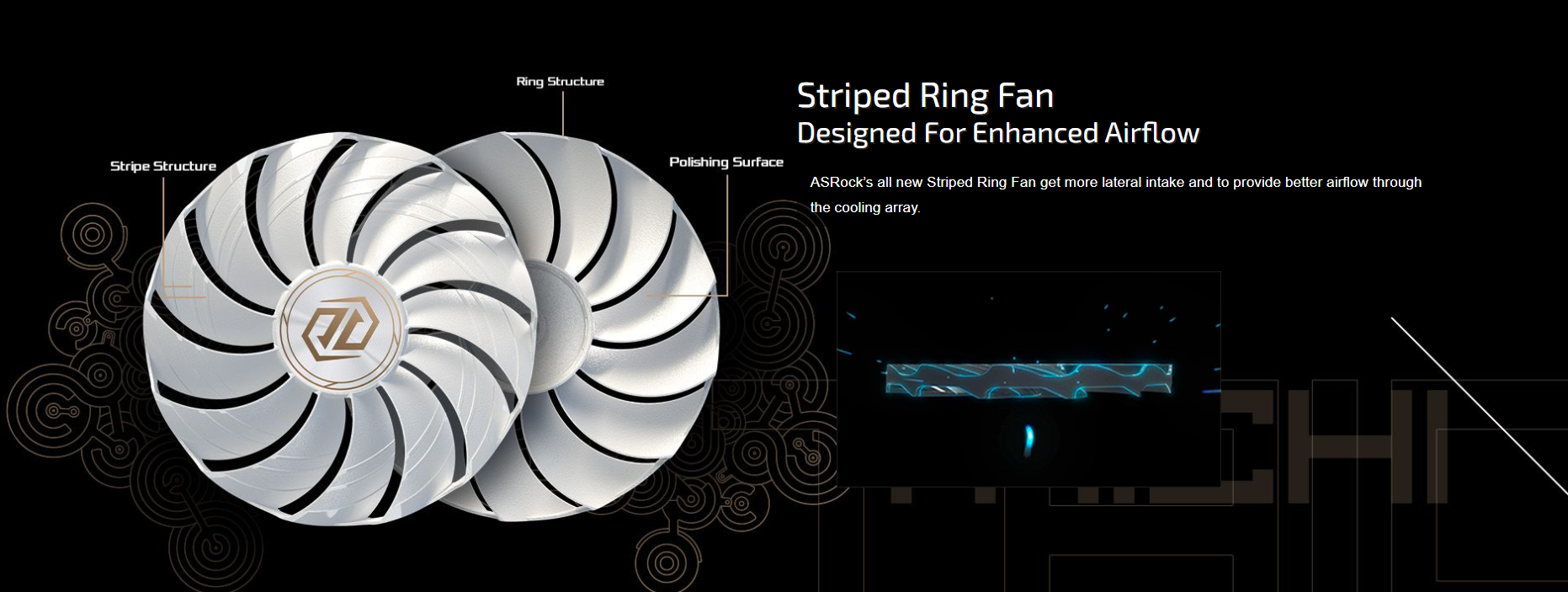

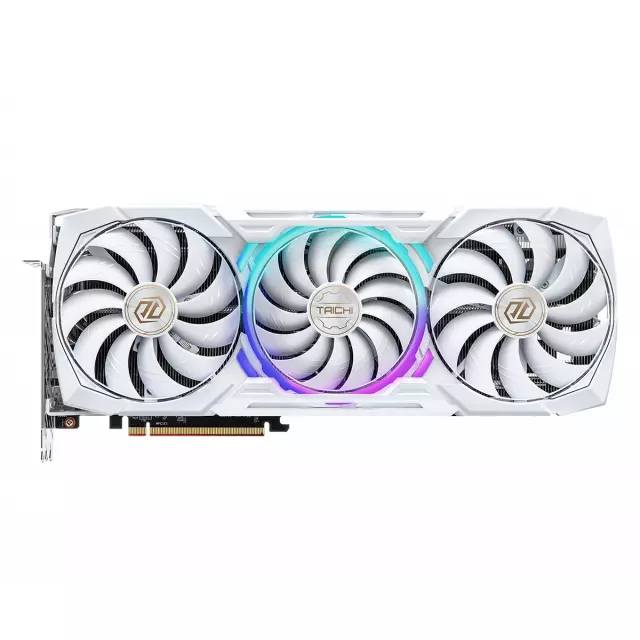

Taichi 3X Cooling System
Crafted for the best balance between the thermal efficiency and silence by all the details improved.
0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Air Deflecting Fin
Guide Airflow to Go Through Regularly & Quickly.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each
others and also the GPU baseplate for the optimized heat dissipation.
Memory Heatpipe
Designed to enhance and balance the temperature and heat dissipation for the video memory.
Nickel-plated Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the
GPU would be maximized to improve thermal transfer effectively.
High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins,
hence improve heat dissipation effectively.
Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad
Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components
to the heatsink, improving heat dissipation.
Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the
cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Polychrome SYNC
Create your own unique colorful light effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized
with your ASRock motherboards that support Polychrome SYNC.
LED On/Off Switch
On or Off? Switch as You Want.
You can switch not only the built-in ARGB LEDs but also the ARGB LEDs
equipping with the connected strips/devices at once.
ARGB Pin-header
More ARGB, More Fancy.
With the ARGB pin-header, it can connect ARGB strips/devices to
make the lighting effects more rich and vivid.
Reinforced Metal Frame
Reinforced Metal Frame
Enhances the structure to prevent the PCB from being bent.

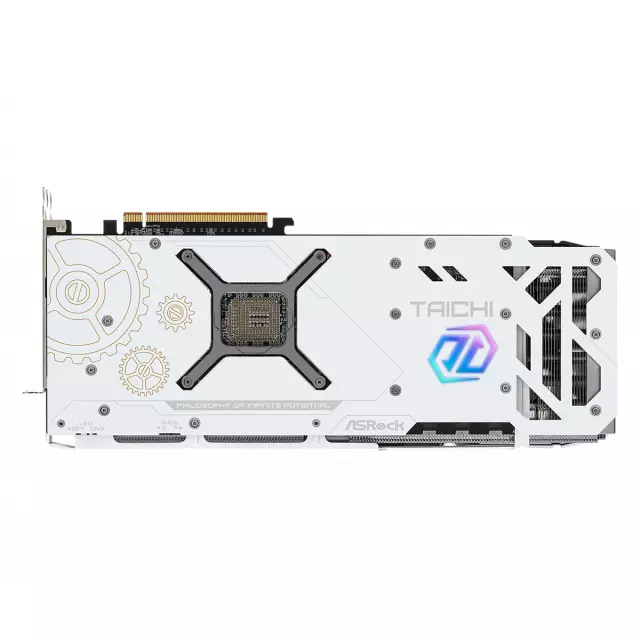

ARGB Backplate
Shining, Solid, Cool.
Designed for elegancy and to avoid PCB bending. The brand new ARGB light makes the graphic card more shining in visual.
Dual BIOS
Dual BIOS design allows users choose preferred setting by switching
between the P(Performance) BIOS and Q(Quiet) BIOS.
22 Power Phase Design
More Power Phase Equipped to Deliver More Sufficient Power.
Featuring 22 power phases with sturdy components to raise maximum current to GPU
and memory to offer enhanced performance.
Japanese SP-Cap |
SPS (Smart Power Stage) |
Premium 100A Power Choke |
 |
 |
 |
| With a high conductive polymer as the electrolyte, it has a lower equivalent series resistance (ESR) to provide outstanding electrical characteristics. In addition to that, it also has excellence in product operational life, reliability and heat resistance. | Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the GPU with enhanced performance and OC capability. | Compared to traditional chokes, ASRock’s premium 100A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card. |
2oz Copper PCB |
Matte Black PCB |
High Density Glass Fabric PCB |
 |
 |
 |
| Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking. | A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card. | High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity. |
ASRock Tweak 2.0
Pro and Easy-to-Use Tuning Utility.
Provides the smart fan speed control and instant performance tweaking.
8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation
8K video output for the ultimate visual experience.
PCI Express 4.0 Support
This graphics card features PCI Express 4.0 support, with a
throughput of 16 GT/s and enables two times the bandwidth
compared to PCI Express 3.0. Get ready for the next generation of PC gaming.
Experience unprecedented performance, visuals, and efficiency at 4K and beyond with AMD Radeon RX 7000 Series, the world’s first gaming GPUs powered by AMD RDNA 3 chiplet technology. Immerse yourself in breathtaking visuals with the pinpoint color accuracy of AMD Radiance Display Engine and boost frame rates with AMD FidelityFX Super Resolution and Radeon Super Resolution upscaling technologies. To unlock even more performance, combine AMD Radeon RX 7000 Series graphics and compatible AMD Ryzen processors to activate AMD smart technologies.
BREAKTHROUGH PERFORMANCE
AMD Radeon RX 7000 Series graphics cards set a new standard for ultra-enthusiast class
gaming performance. Featuring advanced AMD RDNA 3 compute units, blazing fast clock
speeds, and chiplet technology to enable fluid, high-refresh rate gaming experiences.
Breakthrough new levels of performance with up to 24GB of GDDR6 memory and 2nd
generation AMD Infinity Cache to deliver an incredible experience at 4K and beyond.
BREATHTAKING VISUALS
Discover new levels of fidelity and ultra-fast gameplay
with High-Performance Rendering, a combination
of compute-based AMD FideltyFX features and
upscaling technologies, to deliver world-class visuals
with remarkable performance. Further immerse yourself
with the AMD Radiance Display Engine and DisplayPort
2.1 to experience up to 68 billion colors at up to 8K 165Hz.
BETTER TOGETHER
Combine AMD Radeon RX 7000 Series graphics cards
and AMD Ryzen processors to activate AMD smart
technologies. You can unleash outstanding performance
to give you an edge in the game. Advance your AMD
Radeon RX 7000 Series GPU with the AMD Software:
Adrenalin Edition application, featuring bulletproof
drivers, for the best PC gaming experiences.
UPSIZE PERFORMANCE.
MAXIMIZE FIDELITY
AMD FidelityFX Super Resolution technology takes upscaling
technology to the next level. Providing incredible image quality
while boosting framerates in supported games.
AMD Radeon Super Resolution (RSR) leverages FSR
AMD Radeon Super Resolution (RSR) leverages FSR
technology on the driver level, giving you upscaled
performance benefits across thousands of games.
Specifications
| Graphics Engine | AMD Radeon RX 7900 XTX | Resolution | Digital Max Resolution: 7680x4320 |

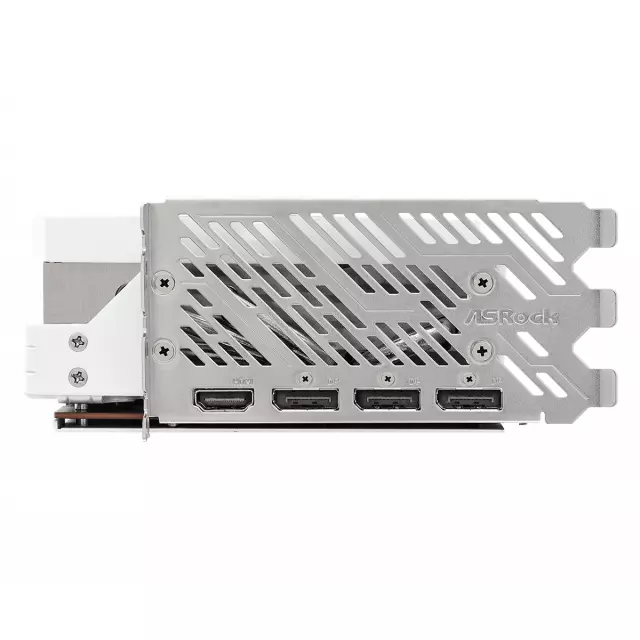

| Bus Standard | PCI Express 4.0 x16 | Interface | 3 x DisplayPort 2.1* 1 x HDMI™ 2.1 *DisplayPort (DP) 2.1 on any one or two ports. DisplayPort (DP) 1.4a on any and up to 4 ports simultaneously.
|
| DirectX | 12 Ultimate | HDCP | Yes |
| OpenGL | 4.6 | Multi-view | 4 |
| Memory | 24GB GDDR6 | Recommended PSU | 1000W |
| Engine Clock | Boost Clock*: Up to 2680 MHz Game Clock**: 2510 MHz *Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
**Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. |
Power Connector | 3 x 8-pin |
| Stream Processors | 6144 | Accessories | 1 x Quick Installation Guide 1 x Taichi White Post Card 1 x Graphics Card Stand |
| Compute Units | 96 | Dimensions | 345 x 140 x 61 mm, 3-slot |
| Memory Clock | 20 Gbps | Net Weight | 1900 g |
| Memory Interface | 384-bit |
