ASRock TRX50 WS
Дънна платка ASROCK TRX50 WS, Socket sTR5, EATX, 4xDDR5
Арт. номер: ASR-MB-TRX50-WS
Технически характеристики
| Гаранция | 36 месеца |
| Сокет | AMD sTR5 |
| Форм Фактор | Extended ATX |
| Чипсет | AMD TRX50 |
| Брой слотове за памет | 4 |
| Капацитет на RAM | до 1000 GB |
| Честота на памет | до 7600 MT/s |
| RGB Подсветка | Не |
| Поддържана памет | DDR5 |
| Вграден Wi-Fi | Да |
Свързани продукти
Сокет:
AMD AM5
Форм Фактор:
Extended ATX
Чипсет:
AMD X870E
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
AMD AM5
Форм Фактор:
Extended ATX
Чипсет:
AMD X870E
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
Intel 1851
Форм Фактор:
ATX
Чипсет:
Intel Z890
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
AMD AM5
Форм Фактор:
ATX
Чипсет:
AMD X870E
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
AMD sTR5
Форм Фактор:
EEB
Чипсет:
AMD WRX90
Брой слотове за памет:
8
Капацитет на RAM:
до 2000 GB
Сокет:
Intel 1851
Форм Фактор:
ATX
Чипсет:
Intel Z890
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
Intel 1851
Форм Фактор:
ATX
Чипсет:
Intel Z890
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
AMD AM5
Форм Фактор:
ATX
Чипсет:
AMD X870
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
Intel 1851
Форм Фактор:
ATX
Чипсет:
Intel Z890
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
AMD AM5
Форм Фактор:
ATX
Чипсет:
AMD X870
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
Intel 1851
Форм Фактор:
ATX
Чипсет:
Intel Z890
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
Intel 1851
Форм Фактор:
ATX
Чипсет:
Intel Z890
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB

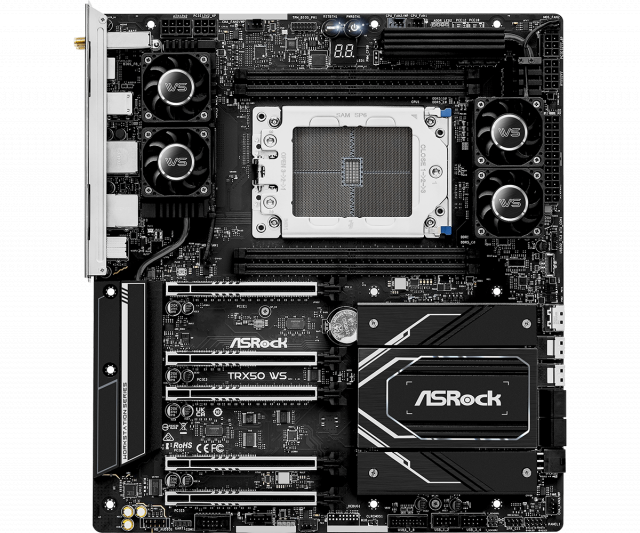

Дънна платка ASROCK TRX50 WS
- Supports AMD Ryzen Threadripper PRO 7000 and AMD Ryzen Threadripper 7000 Series Processors
- 18+3+3 Power Phase Design, 110A SPS for VCore
- Supports 4 DIMMs DDR5 ECC Registered memory
- 3 PCIe 5.0 x16, 2 PCIe 4.0 x16
- Realtek ALC1220 7.1 CH HD Audio, Nahimic Audio
- 4 SATA3,
1 Blazing M.2 (PCIe Gen5 x4),
1 Hyper M.2 (PCIe Gen4 x4),
1 MCIO (PCIe Gen5 x4),
2 SlimSAS (PCIe Gen4 x4 / 4 SATA3) - 1 USB 3.2 Gen2x2 Type-C (Rear),
2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),
4 USB 3.2 Gen2 Type-A (Rear),
4 USB 3.2 Gen1 (2 Rear, 2 Front),
4 USB 2.0 (Front) - Marvell 10 GbE LAN,
Realtek 2.5 Gigabit LAN - 802.11ax WiFi 6E + Bluetooth
|
Dependable and Versatile Workstations Motherboard.
Designed to deliver powerful performance, manageability
and reliability for high speed computing workstations. |
Specifications
| Unique Feature | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Quad Channel DDR5 Rock-Solid Durability - Ultra Low-Loss PCB - 18+3+3 Power Phase, 110A SPS for VCore - Pre-Installed I/O Shield - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity - 10G LAN, 2.5G LAN, 802.11ax Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer |
| CPU | - Supports AMD Ryzen Threadripper PRO 7000 and AMD Ryzen Threadripper 7000 Series Processors - Supports AMD Socket sTR5 - Supports ASRock Hyper BCLK Engine |
| Chipset | - AMD TRX50 |
| Memory | - Quad Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS) up to 7600+(OC) - Max. capacity of system memory: 1TB |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | - n/a |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Nahimic Audio |
| LAN | 1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell AQC113) - Support Wake-On-LAN - Support PXE 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Wireless LAN | - 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band support* - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 + High speed class II - Supports MU-MIMO *Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.
A 6GHz compatible router is required for 6E functionality. |
| Slots | CPU: - 3 x PCIe 5.0 x16 Slots (PCIE1/PCIE3 at x16; PCIE4 at x8)* - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode* - 1 x PCIe 4.0 x16 Slot (PCIE5), supports x8 mode* Chipset: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slots * Supports NVMe SSD as boot disks
|
| Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 mode* - 1 x MCIO PCIe Gen5x4 Connector - 2 x SlimSAS SFF-8654 Connectors (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s) Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 mode* - 4 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks
|
| RAID | - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* * Requires additional M.2 NVMe expansion cards to support RAID 10
|
| USB | CPU: - 1 x USB 3.2 Gen2x2 Type-C (Rear) - 4 x USB 3.2 Gen2 Type-A (Rear) Chipset: - 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front) - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) - 4 x USB 2.0 (Front) * All USB ports support ESD Protection
|
| Connector | - 2 x Thermistor Cable Headers - 1 x SPI TPM Header - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 2 x Addressable LED Headers* - 1 x CPU Fan Connector (4-pin)** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 3 pin ATX Power Connector***** - 2 x 8 pin ATX 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)****** - 2 x 6 pin PCIe 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)****** - 1 x 6 pin Graphics 12V Power Connector (Hi-Density Power Connector) (for PCIe card)******* - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED * Support in total up to 5V/3A, 15W LED Strip
** CPU_FAN1 supports the fan power up to 1A (12W). *** CPU_FAN2/WP supports the fan power up to 2A (24W). **** CHA_FAN1~3/WP support the fan power up to 2A (24W). ***** Plug the Multi PSU Adaptor Cable that comes with the package to ATX_CON1 if you use a secondary PSU. ****** It is required to connect both ATX12V1 and ATX12V2; otherwise, the system may not boot up properly. ****** It is required to connect all 8 pin and 6 pin 12V Power Connectors when overclocking. ******* It is required to connect a 6 pin PCIE 12V Power Cable to GFX_12V1; otherwise, the system may not boot up properly. |
| Rear Panel I/O | - 2 x Antenna Ports - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) - 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Type-A Ports - 2 x RJ-45 LAN Ports - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) |
| Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
|
| Accessories | - 1 x User Manual - 4 x SATA Data Cables - 1 x ASRock WiFi 2.4/5/6 GHz Antenna - 2 x Thermistor Cables - 1 x Multi PSU Adaptor Cable - 2 x Screws for M.2 Sockets - 2 x Standoffs for M.2 Sockets |
| Form Factor | -EATX Form Factor: 12.0-in x 10.9-in, 30.5 cm x 27.7cm -12 Layer PCB -2oz Copper PCB |
| OS | -Microsoft Windows 11 64-bit |
| Certifications | -FCC, CE -ErP/EuP ready (ErP/EuP ready power supply is required) |
