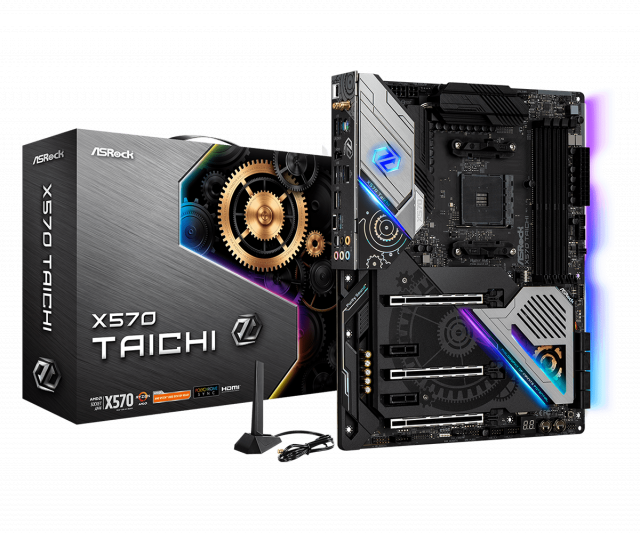

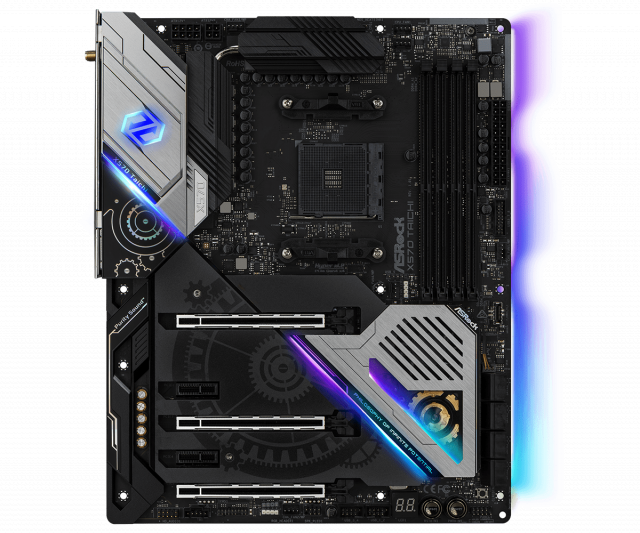

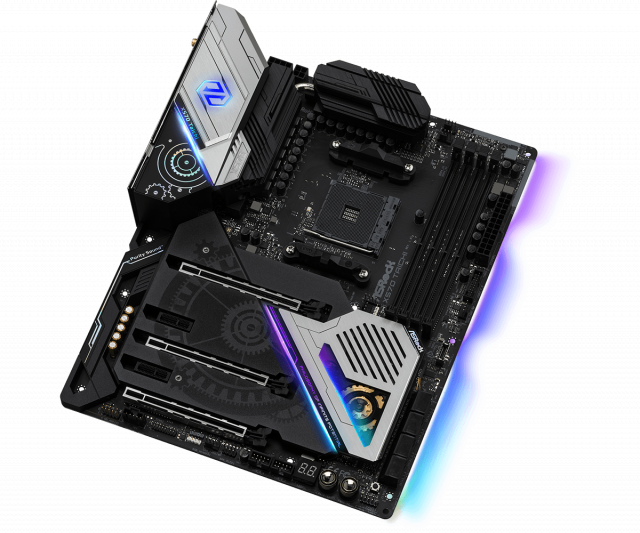

ASRock X570 Taichi
Дънна платка ASRock X570 Taichi
Арт. номер: ASR-MB-X570-TAICHI
Изчерпан
Запитване за ASRock X570 Taichi
безплатна доставка
на поръчки над 100 EUR
Технически характеристики
| Гаранция | 36 месеца |
| Сокет | AMD AM4 |
| Форм Фактор | ATX |
| Чипсет | AMD X570 |
| Брой слотове за памет | 4 |
| Капацитет на RAM | до 128 GB |
| Честота на памет | до 4666 MT/s |
| RGB Подсветка | Да |
| Поддържана памет | DDR4 |
| Вграден Wi-Fi | Да |
Свързани продукти
0% лихва за 6 месеца
Сокет:
AMD AM5
Форм Фактор:
ATX
Чипсет:
AMD X870E
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
0% лихва за 6 месеца
Сокет:
Intel 1851
Форм Фактор:
ATX
Чипсет:
Intel Z890
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
0% лихва за 6 месеца
Сокет:
AMD AM5
Форм Фактор:
ATX
Чипсет:
AMD X870
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
0% лихва за 6 месеца
Сокет:
Intel 1851
Форм Фактор:
ATX
Чипсет:
Intel Z890
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
0% лихва за 6 месеца
Сокет:
AMD AM5
Форм Фактор:
ATX
Чипсет:
AMD X870
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
0% лихва за 6 месеца
Сокет:
Intel 1851
Форм Фактор:
ATX
Чипсет:
Intel Z890
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
0% лихва за 6 месеца
Сокет:
AMD AM5
Форм Фактор:
Extended ATX
Чипсет:
AMD X870E
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
0% лихва за 6 месеца
Сокет:
AMD AM5
Форм Фактор:
ATX
Чипсет:
AMD X870
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
0% лихва за 6 месеца
Сокет:
Intel 1851
Форм Фактор:
ATX
Чипсет:
Intel Z890
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
0% лихва за 6 месеца
Сокет:
Intel 1851
Форм Фактор:
ATX
Чипсет:
Intel Z890
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
0% лихва за 6 месеца
Сокет:
Intel 1851
Форм Фактор:
ATX
Чипсет:
Intel Z890
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
0% лихва за 6 месеца
Сокет:
AMD AM5
Форм Фактор:
ATX
Чипсет:
AMD X870
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
ASROCK X570 Taichi, socket AM4, Wi-Fi 6, RGB Polychrome, PCIE 4.0
- Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors
- Intel® Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.0
- Supports DDR4 4666+ (OC)
- 3 PCIe 4.0 x16, 2 PCIe 4.0 x1
- NVIDIA® NVLink™, Quad SLI™, AMD 3-Way CrossFireX™
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound™ 4 & DTS Connect
- 8 SATA3, 2 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)
- 3 USB 3.2 Gen2 (Rear Type A+C, Front Type-C), 8 USB 3.2 Gen1 (2 Front, 6 Rear)
- Intel® Gigabit LAN
- ASRock Polychrome SYNC
Unique Feature |
ASRock USB 3.2 Gen2 - ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 60A Power Choke - 50A Dr.MOS - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) - Combo Caps (Nichicon 12K Black Caps) - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - I/O Armor - Matte Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB Intel® 802.11ax WiFi ASRock Steel Slots ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4 & SATA3) ASRock Ultra USB Power ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
CPU |
- Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors - Intersil Digital PWM - 14 Power Phase design - Capable of providing extra 300W for CPU - Supports ASRock Hyper BCLK Engine II |
Chipset |
- AMD X570 |
Memory |
- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Vermeer) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Cezanne) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Renoir) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* - Max. capacity of system memory: 128GB** - Supports Extreme Memory Profile (XMP) memory modules - 15μ Gold Contact in DIMM Slots *For Ryzen Series APUs (Picasso, Cezanne and Renoir), ECC is only supported with PRO CPUs.
Please refer to below table for AMD non-XMP memory frequency support. For more details. **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
|
BIOS |
- 256Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, Voltage Multi-adjustment |
Graphics |
- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.0 - Supports HDCP 2.2 with HDMI 2.0 Port - Supports 4K Ultra HD (UHD) playback with HDMI 2.0 Port - Supports Microsoft® PlayReady *Actual support may vary by CPU
**The Max shared memory 16GB requires 32GB system memory installed. |
Audio |
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Supports Purity Sound™ 4 - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) - Pure Power-In - Direct Drive Technology - PCB isolate shielding - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Gold Audio Jacks - 15μ Gold Audio Connector - Supports DTS Connect |
LAN |
- Gigabit LAN 10/100/1000 Mb/s - GigaLAN Intel® I211AT - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
Wireless LAN |
- Intel® 802.11ax WiFi Module - Supports IEEE 802.11a/b/g/n/ax - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 2.4Gbps - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 + High speed class II - Supports MU-MIMO |
Slots |
AMD Ryzen series CPUs (Vermeer, Matisse) - 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))* AMD Ryzen series CPUs (Cezanne, Renoir, Pinnacle Ridge) - 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))* AMD Ryzen series CPUs (Picasso) - 1 x PCI Express 3.0 x16 Slot (x8 (PCIE1))* AMD X570 Chipset - 1 x PCI Express 4.0 x16 Slot (x4 (PCIE5))* - 2 x PCI Express 4.0 x1 Slots - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™** - Supports NVIDIA® Quad SLI™ and SLI™*** - Supports NVIDIA® NVLink™ with dual NVIDIA® GeForce RTX series graphics cards*** - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module (on the rear I/O) - 15μ Gold Contact in VGA PCIe Slot (PCIE1) *When Picasso is installed, this motherboard supports single graphics card on either PCIE1 or PCIE5 only.
Supports NVMe SSD as boot disks **3-Way CrossFireX™ is only supported with Ryzen Series CPUs (Vermeer, Matisse, Cezanne, Renoir and Pinnacle Ridge). ***NVIDIA® NVLink™ Bridge does not come with the package. Please purchase it from NVIDIA® if necessary. This feature is only supported with Ryzen Series CPUs (Vermeer, Matisse, Cezanne, Renoir and Pinnacle Ridge). |
Storage |
- 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso)* - 1 x Hyper M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso)* - 1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso)* *If M2_3 is occupied, PCIE5 slot will be disabled
Supports NVMe SSD as boot disks Supports ASRock U.2 Kit Support RAID 0/1/10 |
Connector |
- 1 x Power LED and Speaker Header - 1 x AMD Fan LED Header* - 1 x RGB LED Header** - 1 x Addressable LED Header*** - 1 x CPU Fan Connector (4-pin)**** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***** - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x AMD LED Fan USB Header - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC Card R2.0 only) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button with LED - 1 x Clear CMOS Button - 1 x SPI TPM Header******* *The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.
**Supports in total up to 12V/3A, 36W LED Strip ***Supports in total up to 5V/3A, 15W LED Strip ****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. *****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use. *******Please refer to the link for further information: https://asrock.com/mb/spec/product.asp?Model=TPM-SPI |

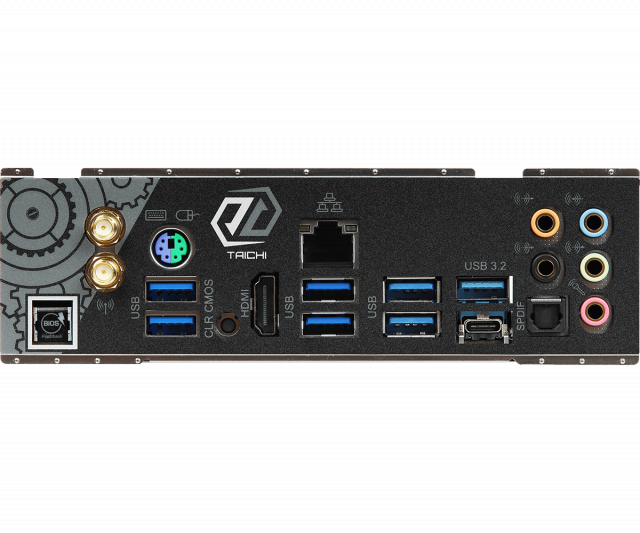

Rear Panel I/O |
- 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)* - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x Clear CMOS Button - 1 x BIOS Flashback Button - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) *Ultra USB Power is supported on USB3_5_6 ports.
ACPI wake-up function is not supported on USB3_5_6 ports. |
Software and UEFI |
Software - ASRock A-Tuning - ASRock Polychrome SYNC - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
|
Support CD |
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
Accessories |
- Quick Installation Guide, Support CD - 4 x SATA Data Cables - 1 x ASRock SLI_HB_Bridge_2S Card - 1 x ASRock WiFi 2.4/5 GHz Antenna - 1 x ASRock Screwdriver - 3 x Screws for M.2 Sockets - 2 x Standoffs for M.2 Sockets |
Hardware Monitor |
- Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans - Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDP |
Form Factor |
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB |
OS |
- Microsoft® Windows® 10 64-bit / 11 64-bit |
Certifications |
- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
