BIOSTAR Z590 VALKYRIE

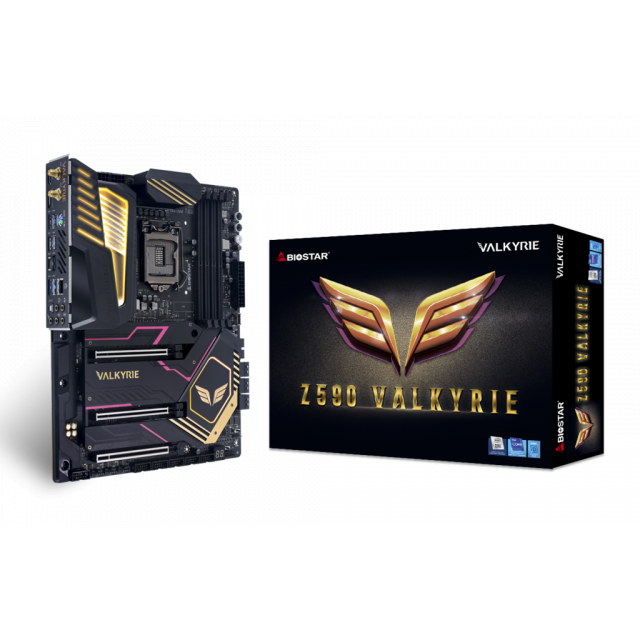

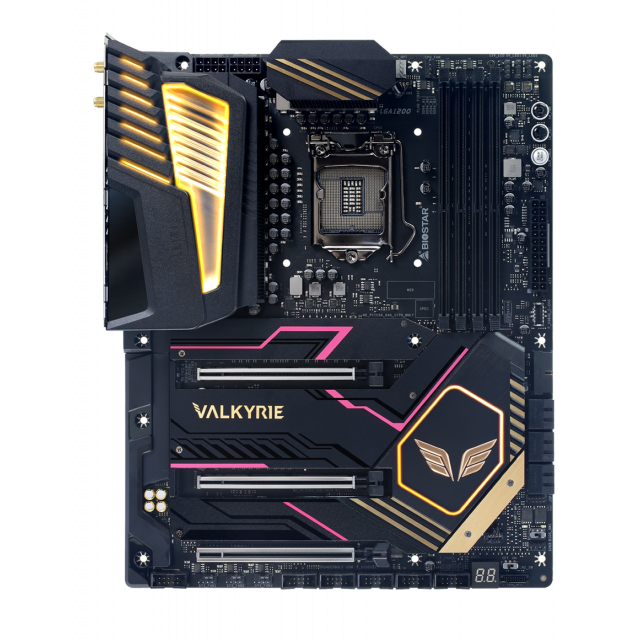

Дънна платка BIOSTAR Z590 VALKYRIE, WI-FI 6, ATX, socket 1200

Арт. номер: BIO-MB-Z590-VALKYRIE

не е в наличност

Запитване за BIOSTAR Z590 VALKYRIE

безплатна доставка

на поръчки над 199 лв.

Технически характеристики

Гаранция	36 месеца
Сокет	Intel 1200
Форм Фактор	ATX
Чипсет	Intel Z590
Брой слотове за памет	4
Капацитет на RAM	до 128 GB
Честота на памет	до 5000 MT/s
RGB Подсветка	Да
Поддържана памет	DDR4
Вграден Wi-Fi	Да

Свързани продукти

BIOSTAR Z590I VALKYRIE

Сокет: Intel 1200

Форм Фактор: Mini-ITX

Чипсет: Intel Z590

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

BIOSTAR H610MH D5

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel H610

Брой слотове за памет: 2

Капацитет на RAM: до 96 GB

BIOSTAR H410MHG

Сокет: Intel 1200

Форм Фактор: Micro ATX

Чипсет: Intel H410

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

BIOSTAR Z590MHP

Сокет: Intel 1200

Форм Фактор: Micro ATX

Чипсет: Intel Z590

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

BIOSTAR B550MHP

Сокет: AMD AM4

Форм Фактор: Micro ATX

Чипсет: AMD B550

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

BIOSTAR TB360-BTC PRO

Сокет: Intel 1151

Форм Фактор: ATX

Чипсет: Intel B360

Брой слотове за памет: 2

Капацитет на RAM: до 32 GB

BIOSTAR H81MHV3

Сокет: Intel 1150

Форм Фактор: Micro ATX

Чипсет: Intel H81

Брой слотове за памет: 2

Капацитет на RAM: до 16 GB

BIOSTAR H61MHV3

Сокет: Intel 1155

Форм Фактор: Micro ATX

Чипсет: Intel H61

Брой слотове за памет: 2

Капацитет на RAM: до 16 GB

BIOSTAR H510MHP 2.0

Сокет: Intel 1200

Форм Фактор: Micro ATX

Чипсет: Intel H510

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

BIOSTAR A520MHP

Сокет: AMD AM4

Форм Фактор: Micro ATX

Чипсет: AMD A520

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

Supports 10^th/11^th Generation Intel Core™ Processor
Intel Z590 single chip architecture
Supports 4-DIMM DDR4- 2133/ 2400/ 2666/ 2800/ 2933 3200/ 3600(OC)/ 3733(OC)/ 3800(OC)/ 3866(OC)/ 4000(OC)/ 4133(OC)/ 4266(OC)/ 4333(OC)/ 5000+(OC) up to 128 GB Memory
Supports PCIe 4.0
Supports PCIe M.2 4.0 (64Gb/s)
Supports Intel Optane Technology
Supports Display Port 5K
Supports 2.5 GbE LAN
Supports USB 3.2 Gen2x2 Type C
Supports WiFi 6 module (No WiFi 6 card included)

Chipset	Intel Z590
CPU SUPPORT	Support for 10th/ 11th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package Supports Intel Turbo Boost Max 3.0 Technology * Please refer to www.biostar.com.tw for CPU support list.
MEMORY	Supports Dual Channel DDR4 5000+(OC)/ 4333(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory Each DIMM supports non-ECC 4/ 8/ 16/ 32GB DDR4 module Support Intel Extreme Memory Profile (XMP) memory modules * Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO	By CPU model Supports DX12 Supports HDCP
STORAGE	-- Total supports 3 x M.2 socket and 6x SATA III (6Gb/s) ports 6 x SATA III (6Gb/s) Connector : Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology 1 x M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY): Supports M.2 Type 2280 SSD module Supports PCIe 4.0 x 4 (64Gb/s) Support 11th Gen processor only 1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA_RST_1): Supports M.2 Type 2280/ 22110 SSD module Supports PCIe 3.0 x4 (32Gb/s) & SATA III (6Gb/s) SSD Supports Intel Rapid Storage Technology and Intel Optane Technology 1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA_RST_2): Supports M.2 Type 2242/ 2260/ 2280/ 22110 SSD module Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6Gb/s) SSD Supports Intel Rapid Storage Technology and Intel Optane Technology * M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY) support 11th Gen Rocket Lake-S CPU only. * When using SATA SSD module on M.2 slot (M2_PCIEG3_32G_SATA_RST_1), the SATA_5 connector will be disabled. * When using SATA SSD module on M.2 slot(M2_PCIEG3_32G_SATA_RST_2), the SATA_6 connector will be disabled.
LAN	Realtek RTL8125B 10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC	ALC1220 7.1 Channels, High Definition Audio, Hi-Fi(Front + Rear)
USB	2 x USB 3.2 (Gen2x2) Type-C port (1 on rear I/O and 1 via internal header) 5 x USB 3.2 (Gen2) port (5 on rear I/Os) 4 x USB 3.2 (Gen1) port (2 on rear I/Os and 2 via internal header) 4 x USB 2.0 port (4 via internal header)
EXPANSION SLOT	1 x PCIe 4.0 x 16 Slot (x16 or x8 mode) 1 x PCIe 4.0 x 16 Slot (x8 mode) 1 x PCIe 3.0 x 16 Slot (x4 mode) * The PCIe x 16 (PCIE4X16) slot speed is changed to x 8 mode in the following situations: 1. The use of the PCIe x16 (PCIE4X16) slot and PCIe x 8 (PCIE4X8) slot simultaneously. 2. When using AMD Crossfire™ technology. * According to different CPUs will have different speeds. * PCIe 4.0 speed only for INTEL 11th Gen CPUs.
REAR I/O	2 x WIFI Antenna Ports 1 x PS/2 Keyboard/ Mouse Port 1 x HDMI Port (HDMI2.0) 1 x DP Port (DP1.4) 1 x USB 3.2 (Gen2x2) Type-C Port 5 x USB 3.2 (Gen2) Ports 2 x USB 3.2 (Gen1) ports 1 x 2.5 GbE LAN port 5 x Audio Jack 1 x SPDIF_Out
INTERNAL I/O	6 x SATA III Connectors (6Gb/s) 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel® CNVi 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x USB 3.2 (Gen2x2) Type-C Port (each header supports 1 USB 3.2 (Gen2x2) port) 2 x 8-Pin Power Connectors 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x CPU water cooling connector (CPU_OPT) 3 x System Fan Connectors 2 x MOSFET Fan Connectors 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Switch Button 1 x Power Switch Button 1 x Reset Switch Button 1 x COM Port Header 1 x TPM Header 1 x Thunderbolt 3 Header 2 x LED Header (5V) 1 x LED Header (12V) 1 x IO LED Header 1 x SB LED Header * M.2 (E key) Wi-Fi card is not provided
H/W MONITORING	CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring
DIMENSION	ATX Form Factor Dimension: 30.5 cm x 24.4 cm ( W x L )
OS SUPPORT	Supports Windows 10(64bit) / 11(64bit) ※Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE	BullGuard AURORA Utility
ACCESSORIES	4 x SATA Cable 1 x DVD Driver 1 x User Manual 1 x Smart Connector
FEATURES	VIVID LED DJ M.2 Cooling Protection Touch Button Dual BIOS Tweak Tech Rapid Debug3 BIO-FLASHER A.I FAN LED ROCK ZONE RGB Memory Sync BIOS EZ Mode /Advanced Mode Intel Optane technology
