Corsair RM White Series RM750 750W
Захранване Corsair RM750 White, 80+ GOLD 750W, Fully Modular
Запитване за Corsair RM White Series RM750 750W
| Мощност | 750W |
| Сертификат | 80+ Gold |
| Ефективност | 90 % |
| Тип | Модулярно |
| Форм Фактор | ATX |
| Спецификация | ATX 2.4 |
| PCIe Gen5 | Не |
| RGB Подсветка | Не |
| Цвят | Бял |
| Гаранция | 120 месеца |
Свързани продукти
GOLD-CERTIFIED QUIET
POWER
CORSAIR RM Series Fully Modular Ultra-Low Noise Power Supplies
with multiple EPS12V connectors deliver consistent 80 PLUS Gold
efficient power to your PC and have all the connections needed to
power today’s most demanding PC upgrades.

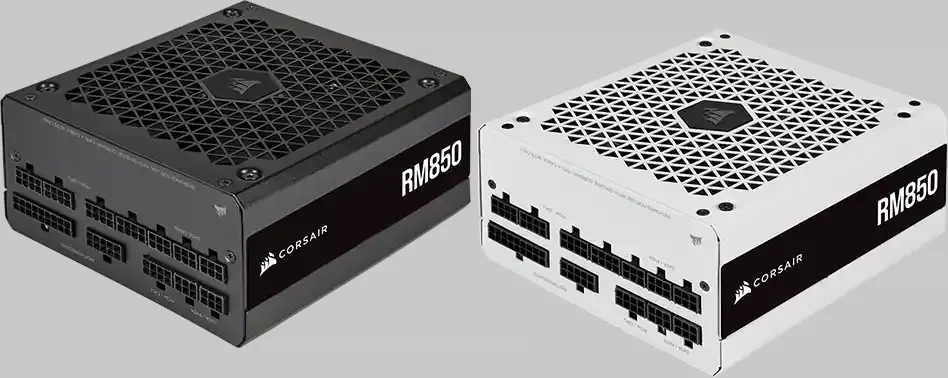

AVAILABLE IN BLACK OR WHITE
Going for a stealthy look or modern minimalism? RM Series PSUs
are available in black or white variants to fit your build style.

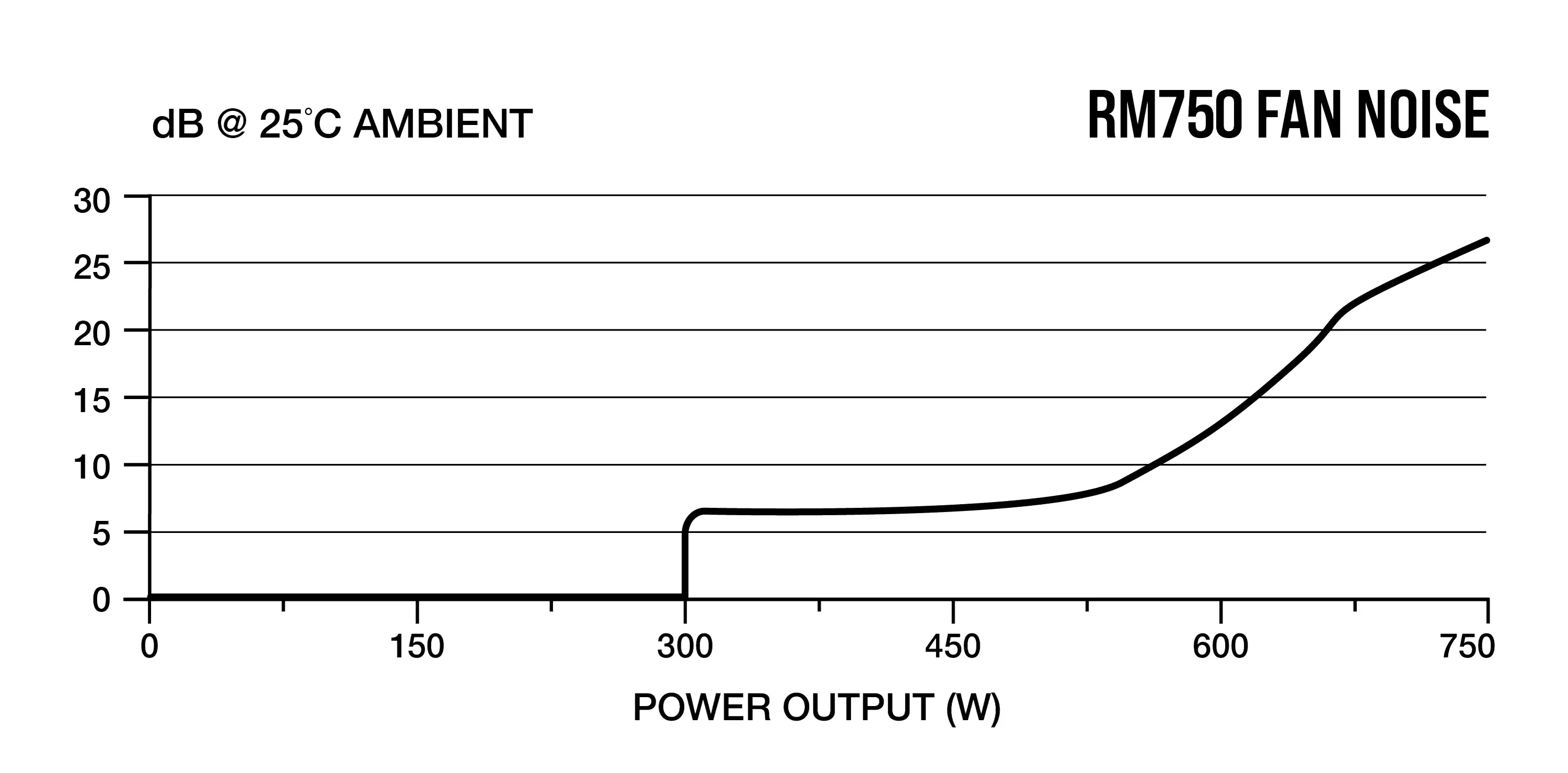

TUNED FOR LOW NOISE
OPERATION

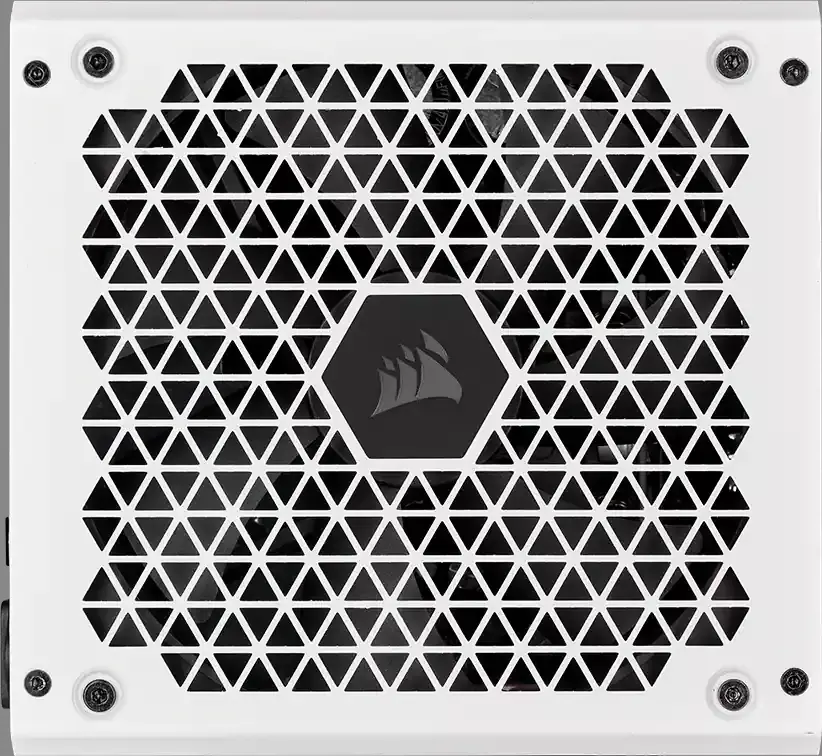

A 140mm rifle bearing fan with a specially calculated fan curve
ensures that fan noise is kept to a minimum, even at full load.

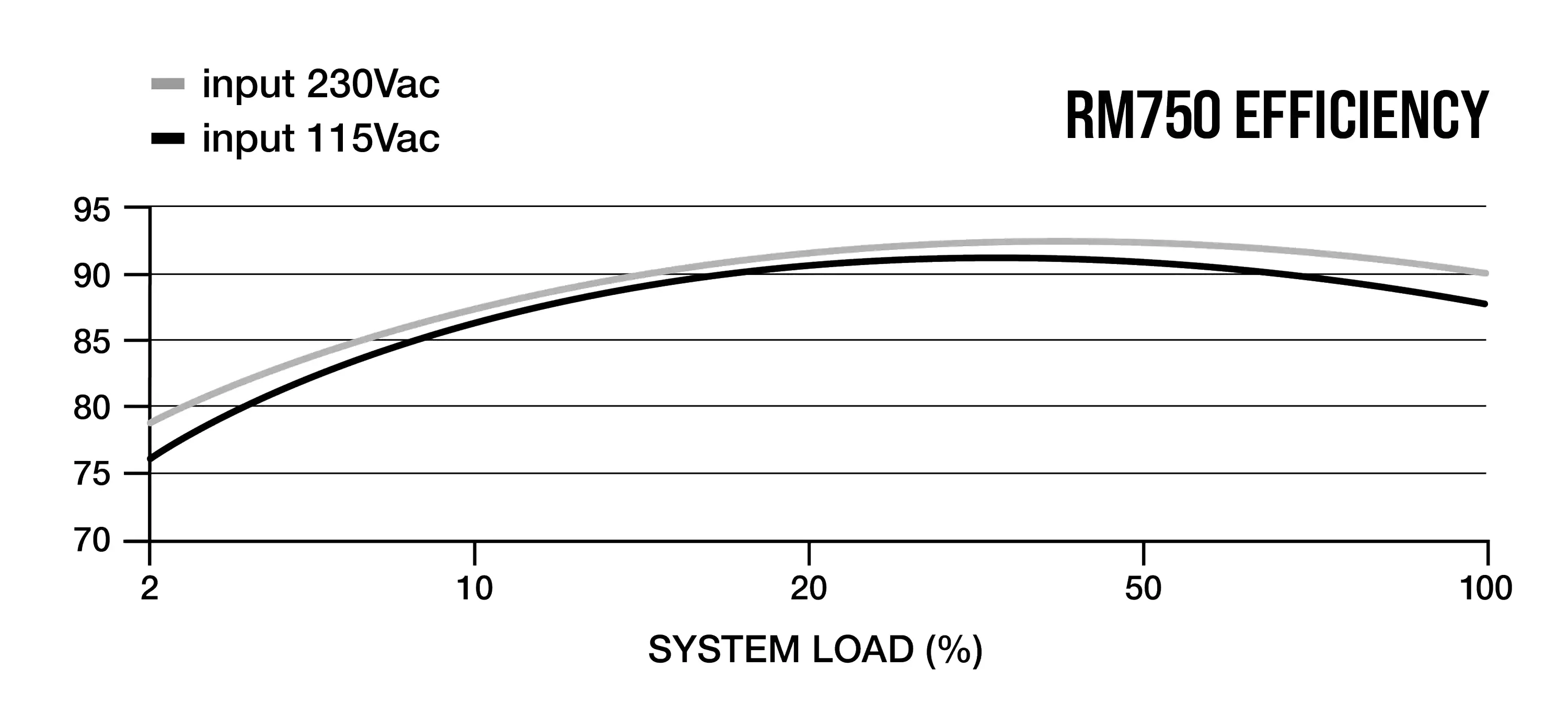

HIGH EFFICIENCY
With upwards of 90% peak efficiency, RM produces less noise and
less heat, which means less time worrying and more time gaming.

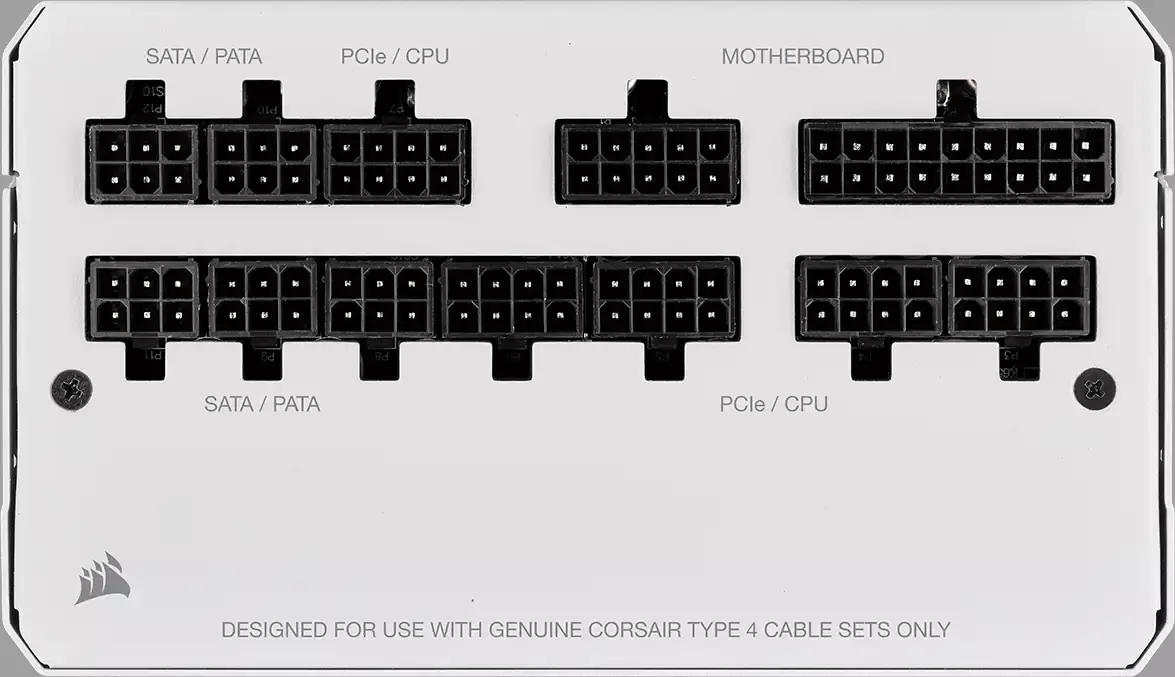

FULLY MODULAR WITH
MULTIPLE EPS12V
CONNECTORS
Completely modular cables means you only connect the cables
your system needs, and the wide range of included cables adds
broad compatibility with modern graphics cards and
motherboards.
Also compatible with the CORSAIR 12-pin GPU power cable for
the hottest new GPUs.
ZERO RPM FAN MODE
At low and medium loads the cooling fan switches off entirely for
near-silent operation. Once the action picks up, the fan activates,
ensuring critical component temps stay in check.
TECHNOLOGY AND
RELIABILITY

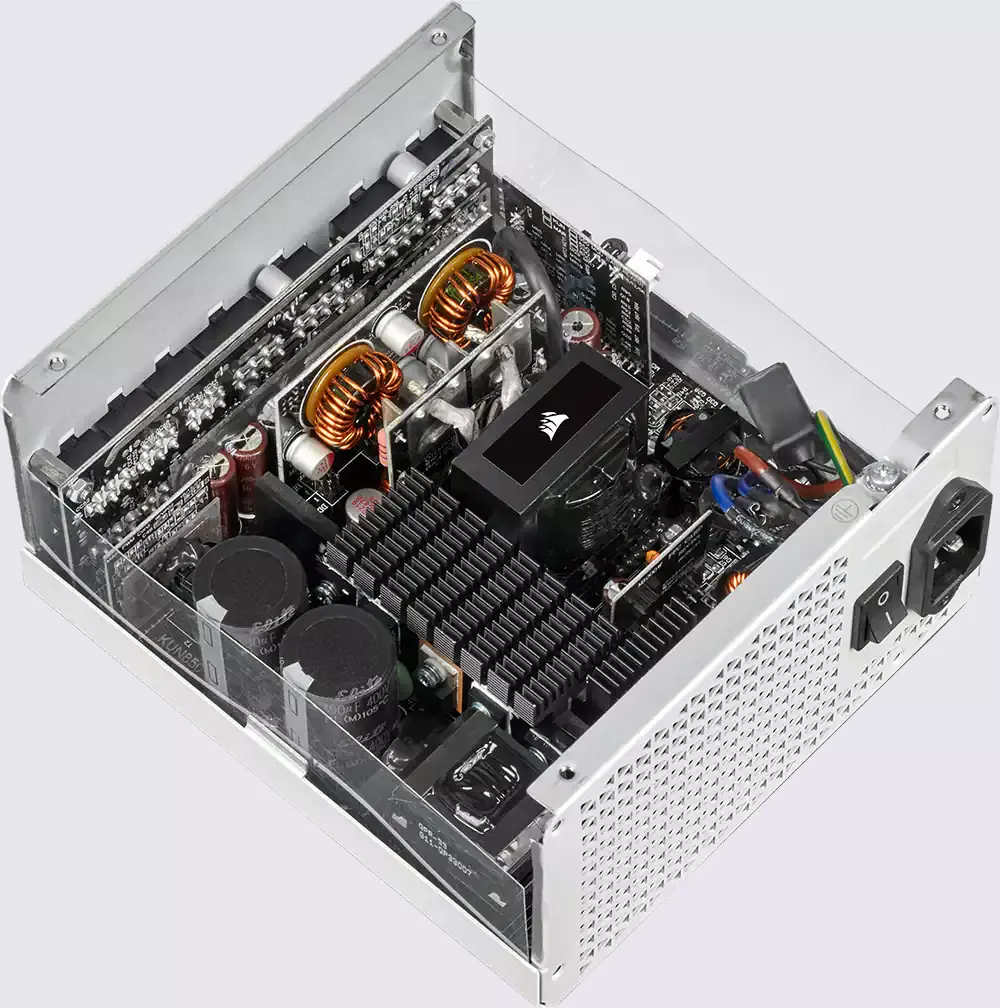

For consistent, reliable power and superb electrical performance,
each RM Series power supply features a robust resonant LLC
topology with DC-DC conversion and 105°C rated industrial-grade
capacitors. With precise timings, RMx supports Microsoft Modern
Standby, ensuring extremely fast wake-from-sleep times and
better low-load efficiency.
115V


230V


CERTIFICATIONS
The Cybenetics organization measures efficiency and noise levels
across the PSU’s entire operational range, using more than 1,450
different load combinations.
The "Gold" efficiency rating is defined as ≥87% to <91%
(depending on input voltage).
The "A-" noise level test is measured in those same configurations
to be ≥25 dBA & <30 dBA under noise data averaging.

TEN-YEAR WARRANTY
CORSAIR provides a ten-year warranty on all RM Series power supplies; your guarantee of reliable operation that will last across several system builds. If you need help, CORSAIR customer service and tech support are always on hand.

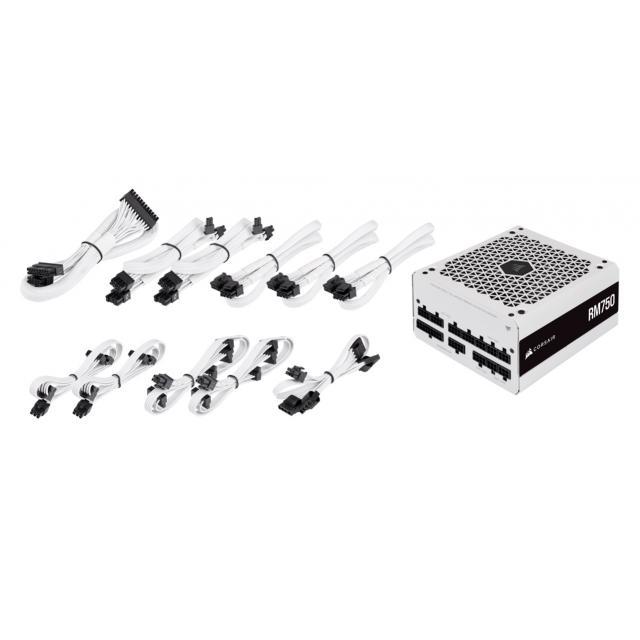

YOUR BUILD, YOUR WAY
Every fully modular CORSAIR PSU is compatible with a wide
range of CORSAIR accessories. From individually sleeved cables
in a variety of color combinations to 12-pin micro-fit GPU cables
and 12VO motherboard cables, complete your build your way.
RM750 POWER TABLE
| MODEL | RPS0119 | |
|---|---|---|
| PART NO. | CP-9020231/75-004582 | |
| AC Input Rating | ||
| AC INPUT | 100–240V | |
| INPUT CURRENT | 10A-5A | |
| FREQUENCY | 47~63Hz | |
| Max Load | Max Output | |
| +3.3V | 20A | 150W |
| +5V | 20A | |
| +12V | 62.5A | 750W |
| -12V | 0.3A | 3.6W |
| +5VSB | 3A | 15W |
| TOTAL POWER | 750W | |
RM750 DC CABLE LISTING
| QTY | CABLE | CONNECTORS PER CABLE |
TOTAL CONNECTORS |
CONNECTOR SPACING |
TOTAL LENGTH | CABLE TYPE | CAP |
|---|---|---|---|---|---|---|---|
| 1 |
ATX Cable 24-pin (24) ![]() |
1 | 1 | - | 610mm (± 10mm) |
Sleeved | No |
| 3 |
EPS/ATX12V Cable 8 pin (4+4) ![]() |
1 | 3 | - | 650mm (± 10mm) |
Sleeved | No |
| 2 |
PCIe Cable 8 Pin (6+2) ![]() |
2 | 4 | 600mm, 150mm | 750mm (± 10mm) |
Sleeved | No |
| 2 |
SATA Cable (3 SATA - Right Angle) ![]() |
3 | 6 | 520mm, 115mm, 115mm | 750mm (± 10mm) |
Flat | No |
| 2 |
SATA Cable (4 SATA - Right Angle) ![]() |
4 | 8 | 505mm, 115mm, 115mm, 115mm | 850mm (± 10mm) |
Flat | No |
| 1 |
PATA CABLE (4-PIN) ![]() |
4 | 4 | 450mm, 100mm, 100mm, 100mm | 750mm (± 10mm) |
Flat | No |
