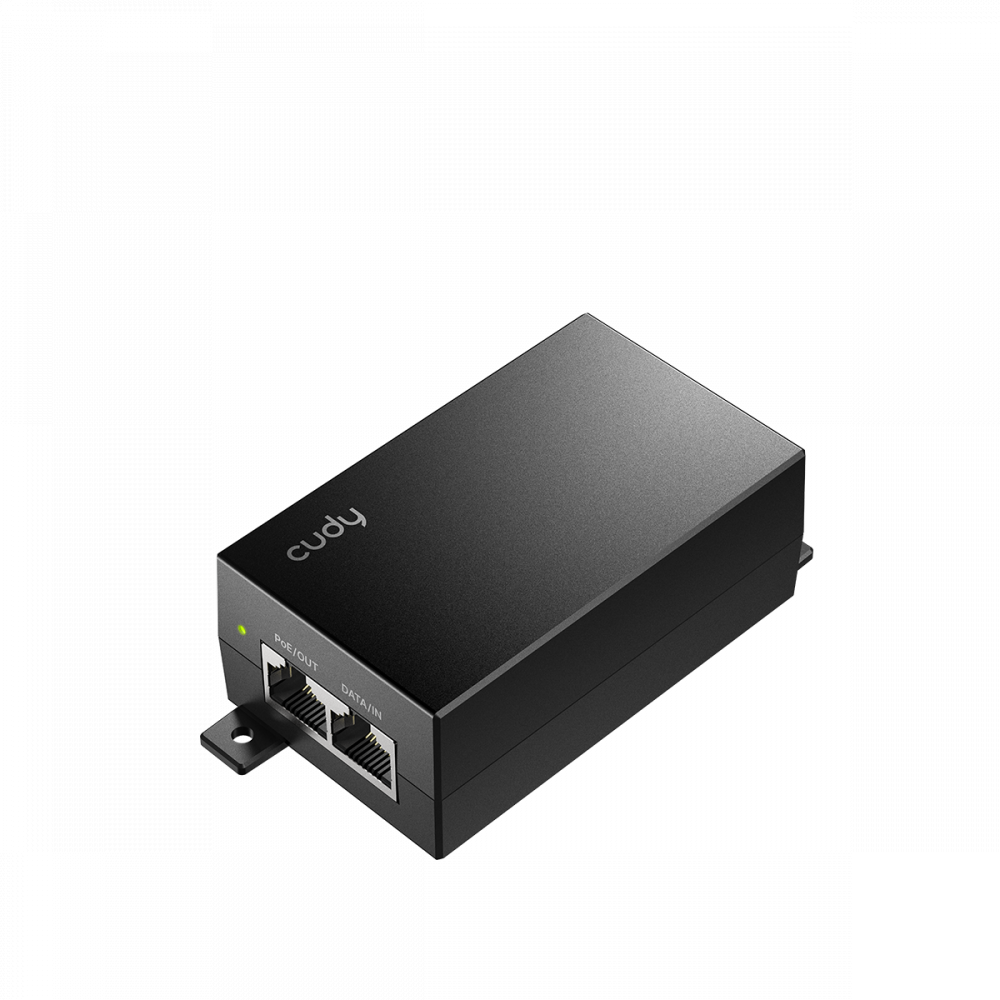

Cudy PoE48-18W

PoE адаптер Cudy POE48-18W, Gigabit PoE, 18W, 2 x 10/100/1000Mbps

Арт. номер: CUDY-INJ-POE48-18W
наличен
Виж наличност
Gplay Велико Търново
Склад Шереметя

Запитване за Cudy PoE48-18W

безплатна доставка
на поръчки над 100 EUR
Технически характеристики
Гаранция 24 месеца
Тип PoE инжектор
Скорост на трансфер (LAN) 1 Gbps
LAN портове 2 бр.

Свързани продукти



Exceptional Built-Quality for Stable Operation

Protect Clients with Outstanding EMC

Robust EMC design protects itself and clients from power surges and ESD.

  • ESD: Contact 6kV; Air 8kV
  • Surge: Power DM 2kV, CM 2kV; RJ45 CM 4kV

Built to Last Longer with High-Quality Capacitors

Equipped with high-quality capacitors rated for 1.6× longer lifespan than the industry average, making the PoE adapter more resistant to aging and wear.

Three-Prong Plug for Reliable Grounding

Unlike many products that use only a two-prong plug, Cudy PoE adapter uses three-prong plug for proper grounding and reliable operation.

Wallmount Ready

Features two mounting holders, allowing you to firmly mount it on the walls.

Specifications



Model Version POE48-18W 1.0
Protocols 802.3 Protocols
  • 802.3i 10 Mbps over Twisted Pair
  • 802.3u 100 Mbps over Twisted Pair
  • 802.3ab 1 Gbps over Twisted Pair
PoE

Uplink Stream 1× GbE
Downlink Stream 1× GbE, Passive PoE
Downlink Pin Assignment Mode B
Transimission Distance
  • Cat. 5e or higher cable: 100 meters at Gigabit
  • Note: Total cable length from the uplink switch through the PoE adapter to the downlink device is measured as one segment
Buttons and LEDs LED

Power

Power Power Input Type AC Inlet
Power Methods AC
Power Input 100-240V~ 50/60Hz 0.5A
Max Power Output (W) 18W, 48V⎓0.38A

Reliability
Power Protection
  • Surge Protection
  • ESD Protection
  • Overvoltage Protection
  • Short-Circuit Protection
EMC IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 3 Surge: Power: DM 2kV, CM 2kV; RJ45: CM 4kV
Grounding Methods Three-Prong Plug
Safety IEC/EN 62368
Environment Ambient Operating Temperature: 0~40 ℃ (32~104 ℉)
Storage Temperature: -40~70 ℃ (-40~158 ℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 10%~95% non-condensing
Mechanical Dimension Main Part:
80.1×48.9×31.9 mm
3.15×1.93×1.26 inches
Each Bracket:
9 mm
0.35 inches
Product Weight 83.5 g (2.95 oz.)
Casing Material Plastic
Installation
  • Desktop
  • Wall-mount
Package Content
  • POE48-18W
  • Power Cord
  • Mounting Kit
  • Installation Guide
Certifications FCC, CE, CCC
Compatibility Compatible Products AP3000 1.0, AP3000 Outdoor 1.0, AP3000_P 1.0, AP1300 Wall 1.0, AP3000 Wall 1.0, AP3000E Wall 1.0, AP3600 1.0, AP1300E Wall 1.0, AP6500 1.0, AP3000S 1.0
