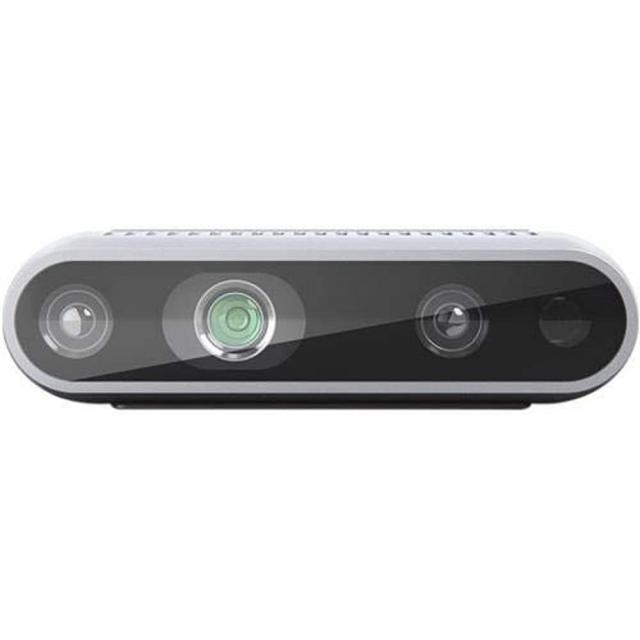

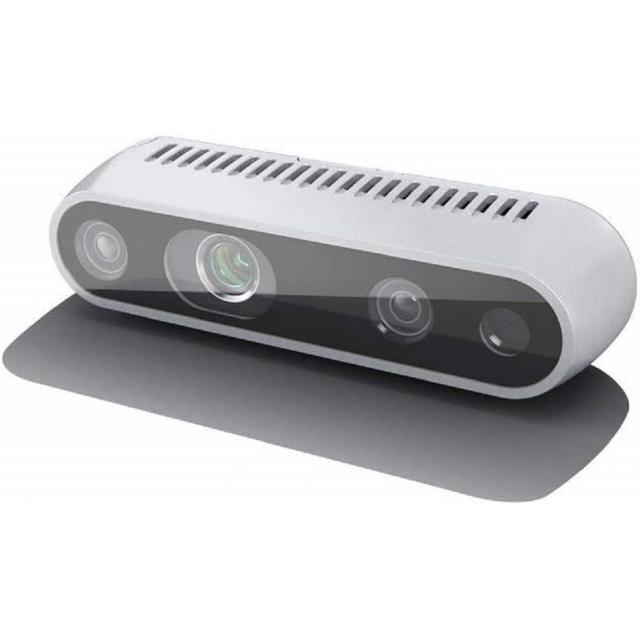

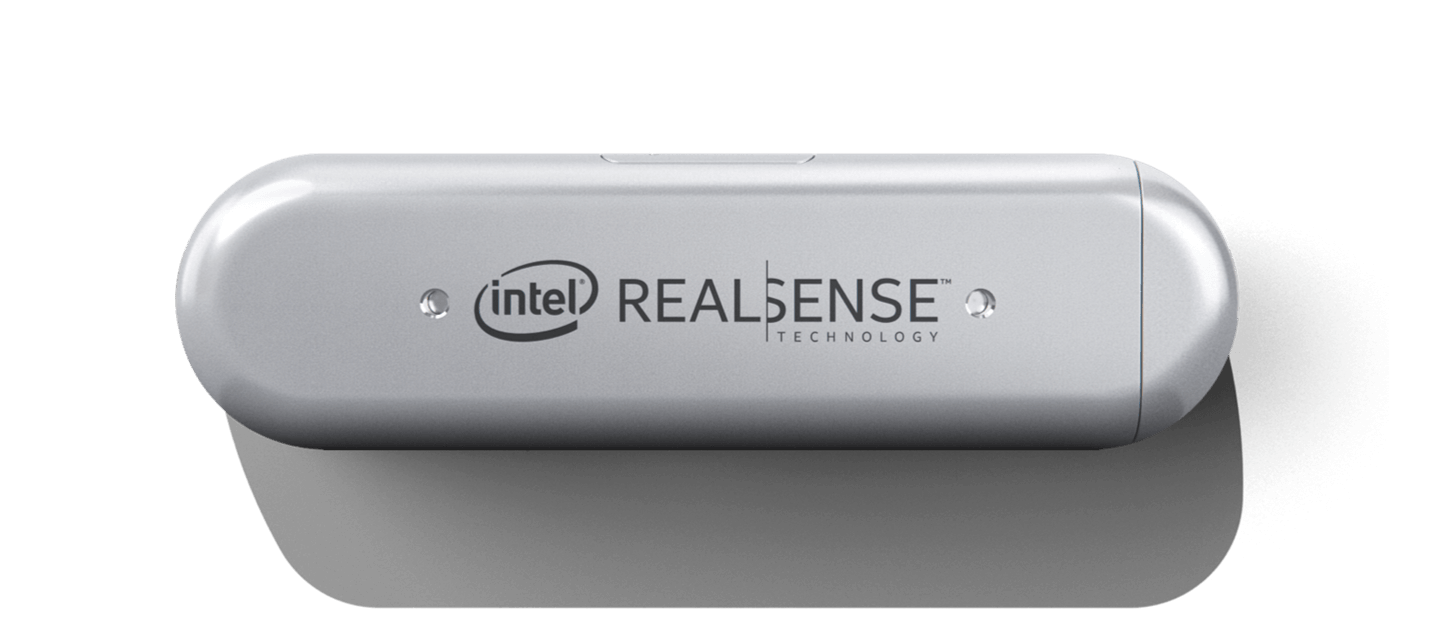

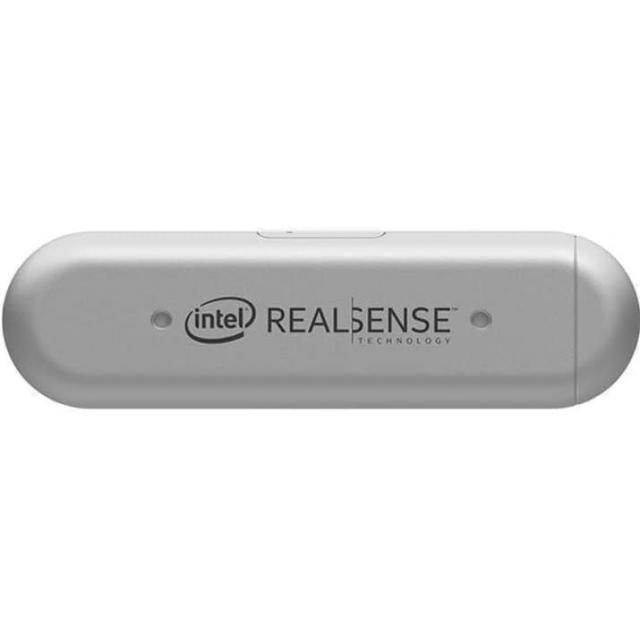

INTEL REALSENSE DEPTH CAMERA D435
Камера Intel RealSense Depth Camera D435, 1920 x 1080, USB-C
Арт. номер: INTEL-CAM-D435
Изчерпан
Запитване за INTEL REALSENSE DEPTH CAMERA D435
безплатна доставка
на поръчки над 100 EUR
Технически характеристики
| Гаранция | 24 месеца |
| Резолюция | 1080p@30, 720p@90 |
Kамера Intel RealSense D435 е стерео решение, предлагащо качествене наблюдение в дълбочина за различни приложения.
Широкото и зрително поле е подходчщо за роботика или разширена и виртуална реалност, където виждането на възможно
най-голяма част от сцената е жизненоважно. С обхват до 10 метра, тази камера с малък размер може да бъде интегрирана
във всяко решение с лекота и се предлага в комплект с приложение Intel RealSense SDK 2.0 поддръжащо различни платформи.
Употреба: Вътрешна/Външна
Най-добър обхват: 0.3m до 3m
Дълбочина:
Технология на дълбочината: Стереоскопична
Зрителното поле (FOV): 87° × 58°
Минимално разстояние (Min-Z) при максимална разделителна способност: ~28 cm
до 1280 x 720 дълбочина Разделителна способност
до 1920 x 1080 RGB-резолюция
Честота на кадрите: До 90 fps
Свързване: USB‑C 3.1 Gen 1

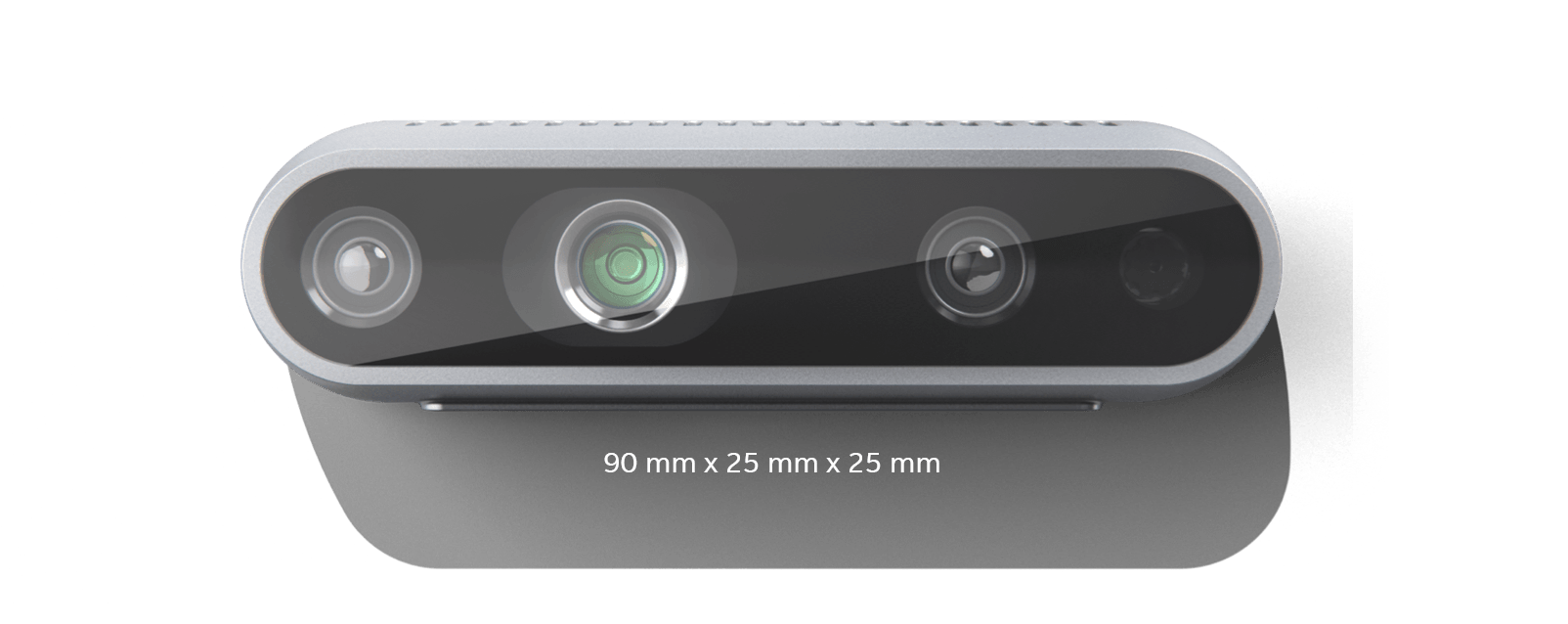

Размери: 90 × 25 × 25 mm
Depth Camera D435
The Intel® RealSense™ D435 offers the widest field of view of all our cameras, along with a global shutter on the depth sensor that is ideal for fast moving applications.
A Powerful, Full‑featured Depth Camera
The Intel RealSense depth camera D435 is a stereo solution, offering quality depth for a variety of applications. It's wide field of view is perfect for applications such as robotics or augmented and virtual reality, where seeing as much of the scene as possible is vitally important. With a range up to 10m, this small form factor camera can be integrated into any solution with ease, and comes complete with our Intel RealSense SDK 2.0 and cross-platform support.
Combined Solution for Development & Productization
The D435 continues our commitment to developing cutting-edge vision sensing products. Combining an Intel module and vision processor together into a small form factor yields a solution ideal for both development and rapid product creation. Paired with highly customizable software, the D435 provides a low cost solution that is lightweight and powerful, enabling development of next-generation sensing solutions that can understand and interact with their surroundings.
Ideal for Low Light and Wide Field of View
The combination of a wide field of view and global shutter sensor on the D435 make it the preferred solution for applications such as robotic navigation and object recognition. The global shutter sensors provide great low‑light sensitivity allowing robots to navigate spaces with the lights off.
Complete Suite for Simple Integration
Depth camera D435 is part of the Intel RealSense
D400 series of cameras, a lineup that takes Intel’s latest depth‑sensing hardware and software packages them into easy‑to‑integrate products. Perfect for developers, makers, and innovators looking to bring depth sensing to devices, Intel RealSense D400 series cameras offer simple out‑of‑the‑box integration and enable a whole new generation of intelligent vision‑equipped devices.
On-Chip Calibration in SecondsIntel RealSense SDK 2.0 now provides an on-chip self-calibration option for your D400 stereo camera. This allows camera calibration in less than 15 seconds without the need for specialized targets. Hassle free!
|

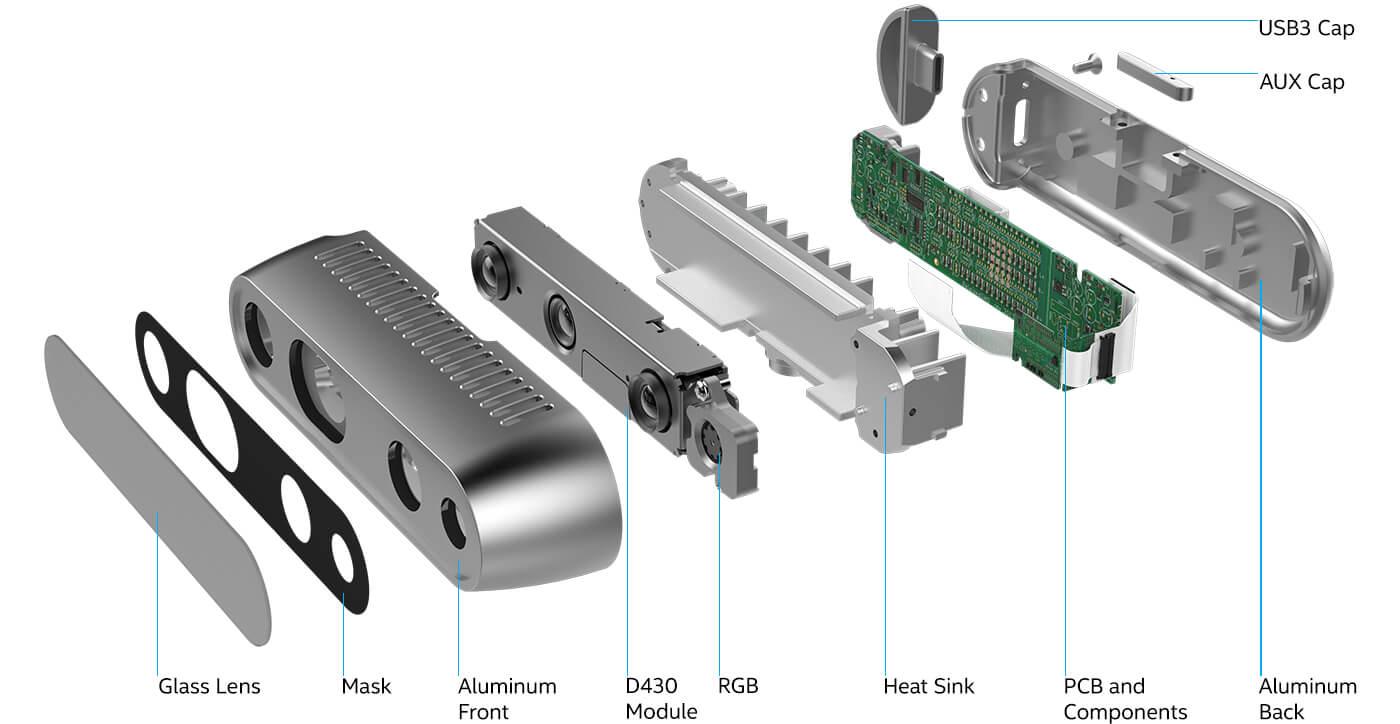

See What’s Inside
Get powerful image processing, depth perception, and more with the Intel RealSense D400 series depth cameras.
|
HOW DEPTH TECHNOLOGY IS HELPING AETHON CREATE INNOVATIVE MOBILE DELIVERY SOLUTIONS
|
Tech Specs
Features
Use enviroment: |
Indoor/Outdoor |
Ideal range: |
.3 m to 3m |
Depth
Depth technology: |
Stereoscopic |
Minimum depth distance (Min‑Z) at max resolution: |
~28 cm |
Depth Accuracy: |
<2% at 2 m |
Image sensor technology: |
Global Shutter |
Depth Field of View (FOV): |
87° × 58° |
Depth output resolution: |
Up to 1280 × 720 |
Depth frame rate: |
Up to 90 fps |
RGB
RGB frame resolution: |
1920 × 1080 |
RGB frame rate: |
30 fps |
RGB sensor technology: |
Rolling Shutter |
RGB sensor FOV (H × V) |
69° × 42° |
RGB sensor resolution |
2 MP |
Major Components
Camera module |
Intel RealSense Module D430 + RGB Camera |
Vision processor board |
Intel RealSense Vision Processor D4 |
Physical
Form factor: |
Camera Peripherial |
Length x Depth x Height |
90 x 25 x 25 mm |
Connectors |
USB-C 3.1 Gen 1 |

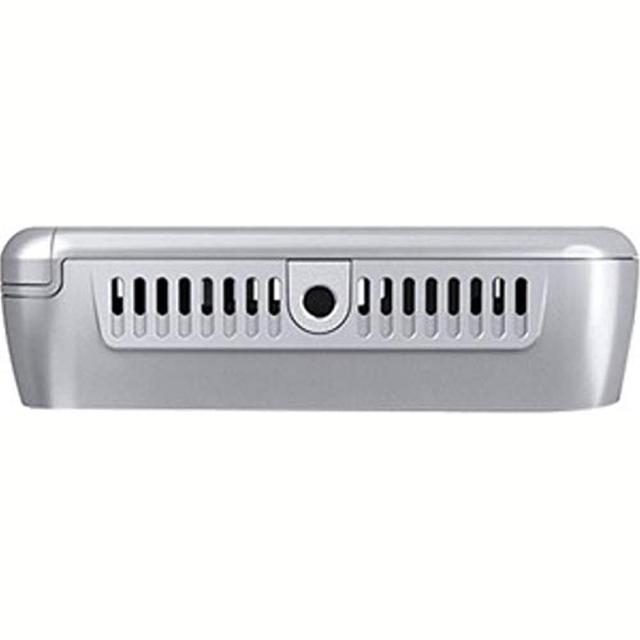

Mounting mechanism |
– Two M3 thread mounting points. |
