Lian Li GALAHAD II 360 Trinity SL-INF
Охладител за процесор Lian Li GALAHAD II 360 Trinity SL-NF ARGB - White
Арт. номер: LL-FAN-WASE-741
безплатна доставка
на поръчки над 199 лв.
Технически характеристики
| Гаранция | 60 месеца |
| Тип | Водно |
| Сокет | 1150, 1151, 1155, 1156, AM4, 1200, 1700, AM5 |
| Обороти на вентилатора | до 2100 RPM |
| Въздушен поток | до 61.3 CFM |
| Ниво на шум | до 29 dBA |
| Размер на вентилатор | 120 x 25 mm x 3 |
| Конектор | USB Header, 4-pin PWM, SATA Power |
| Подсветка | ARGB |
| Цвят | Бял |
Свързани продукти
Тип:
Водно
Сокет:
1150, 1151, 1155, 1156, AM4, 1200, 1700, AM5
Обороти на вентилатора:
до 2100 RPM
Въздушен поток:
до 61.3 CFM
Тип:
Водно
Сокет:
AM4, 1700, AM5
Обороти на вентилатора:
до 2500 RPM
Въздушен поток:
до 73.14 CFM
Тип:
Водно
Сокет:
AM4, 1700, AM5
Обороти на вентилатора:
до 2500 RPM
Въздушен поток:
до 73.14 CFM
Тип:
Водно
Сокет:
AM4, 1700, AM5, 1851
Обороти на вентилатора:
до 2600 RPM
Въздушен поток:
до 72 CFM
Тип:
Водно
Сокет:
AM4, 1700, AM5, 1851
Обороти на вентилатора:
до 2600 RPM
Въздушен поток:
до 72 CFM
Тип:
Водно
Сокет:
1150, 1151, 1155, 1156, AM4, 1200, 1700, AM5
Обороти на вентилатора:
до 2450 RPM
Въздушен поток:
до 79.9 CFM
Тип:
Водно
Сокет:
1150, 1151, 1155, 1156, AM4, 1200, 1700, AM5
Обороти на вентилатора:
до 2450 RPM
Въздушен поток:
до 79.9 CFM
Тип:
Водно
Сокет:
AM4, 1700, AM5, 1851
Обороти на вентилатора:
до 2600 RPM
Въздушен поток:
до 90.1 CFM

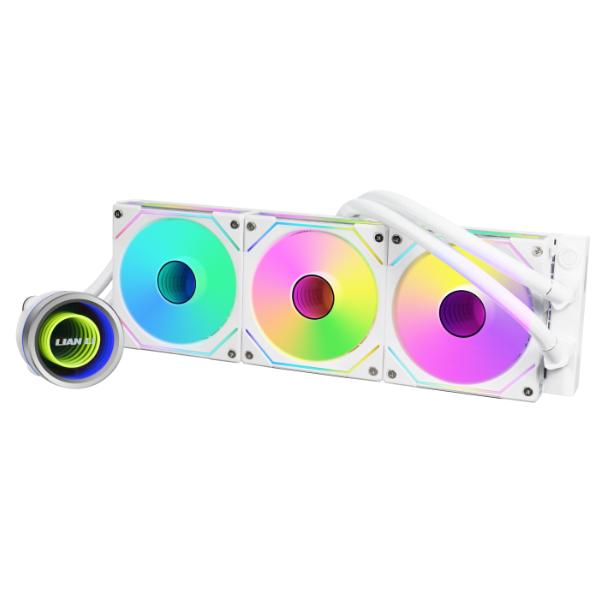

Охладител за процесор Lian Li GALAHAD II 360 Trinity SL-NF ARGB
- 3 взаимозаменяеми вида на помпата, които могат да бъдат персонализирани с L-Connect 3
- Фабрично инсталиран с ARGB последователно свързани вентилатори на радиатора или UNI FAN SL-INF
- Скоростта на въртене на помпата достига до 3200RPM
- Включва ново проектирана медна плоча и създава изправен път на течния охладител
- 45-градусов тръбен конектор с вътрешен диаметър на тръбите, увеличен до 7 мм
GALAHAD II
TRINITY AIO
RGB Version
REDEFINE YOUR STYLE
MAXIMIZE YOUR PERFORMANCE
 |
 |
 |
 |
|
EXTREME COOLING
|
3 TYPES OF PUMP COVER
|
45° ROTARY FITTINGS
|
PRE-INSTALLED DESIGN
|
 |
 |
 |
 |
| SINGLE STACK FIN RADIATOR | ARGB FAN | L-CONNECT 3 CONTROL | 5 YEARS WARRANTY |
AVAILABLE IN TWO FAN OPTIONS
TWO SIZES /TWO COLORS
The Galahad II Trinity series comes with pre-installed fans on the radiator for your convenience. The RGB version is available with 2 kinds of fans:
①
With High Performance RGB Fan
Pushing air through the radiator effectively while maintaining the stunning looks of RGB fans.
②
With UNI FAN SL-INF
Easily match the AIO fans to your case fans with this visually stunning option
Note:
The UNI FAN SL-INF controller included in Galahad II Trinity SL-INF version allows expansion of UNI FAN SL-INF single pack (no triple pack).
IMPROVED DESIGNS, IMPROVED PERFORMANCE
Compared to the Galahad AIO, the Galahad ll Trinity series shows significant improvement in cooling performance thanks to the many design changes that were introduced.
Coolant Pathway
Staightened
To reduce waterflow Resistance
Pump motor speed goes up to 3200RPM

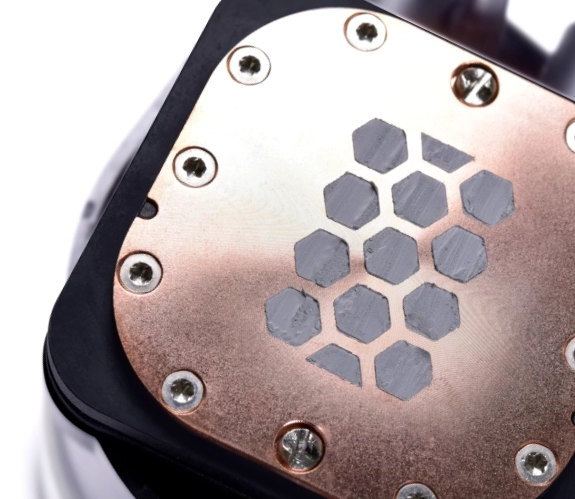

Copper plate seal with straightened coolant pathway, reducing resistance
Copper Plate Fin Spacing
13% larger
To prevent substance buildup over time.
Tube diameter
20% bigger
To increase waterflow for faster heat dissipation.
7 blade impeller for strong water flow
Revised the fin thickness/ height/ distance for better diffusion of the coolant over the entire surface area of the copper plate.
CHOOSE PREFERABLE LOOK
The Galahad II Trinity series’ pump cap has three interchangeable designs, each with a unique look and two rings of colors that can be individually controlled with different lighting effects.

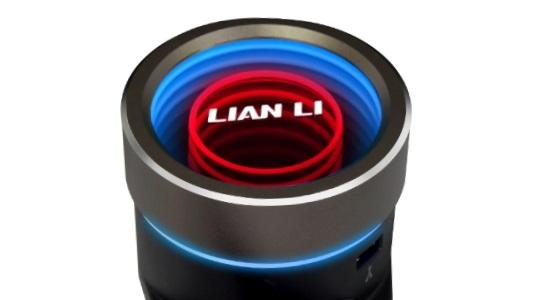

DUO- INFINITY
An aluminum housing cap with duo infinity mirror rings and a Lian Li logo at the center.
DAZZLE
An entirely shining pump cap that brings the most vivid lighting to your build.
SINK-HOLE
The combination of diffuser and infinity mirror creates the sinkhole effect.
HIGH DENSITY ALUMINUM RADIATOR
This 27mm thick radiator features single-wave radiator fins with 20 FPI (fins per inch), which is less airflow restrictive and can result in greater thermal performance.
DAISY-CHAINABLE ARGB FAN
The ARGB PWM fans can be daisy-chained by a single short cable which can be hidden inside the frame of the fan. The 120mm fan is 25mm thick and is equipped with fluid dynamic bearings for stable and quiet operations while effectively providing airflow to the radiator.
|
Maximum Static Pressure 3.26 mmH2O |
Maximum Airflow 89.1 CFM |
MOUNT IN ANY WAY
This innovative 45° tubing connector gives the tubes the freedom of 360° rotation, allowing the Galahad ll Trinity series to be installed in many different ways. The Galahad ll Trinity series can be flexibly installed in ways such as:
Top Mount
Side Mount
Front Mount
Note: Do not apply heavy pressure or strike on the connector.
 |
To make things even better, it also comes with a leather strap to help with organizing the tubes. |
INSTALATION MADE EASY, FOR YOU
The Galahad II Trinity series introduces redesigned mounting backplates to provide a hassle-free installation to users while maintaining compatibility with most mainstream CPU sockets. The backplates have a one-piece design with fixed struts to make installation easier.
 |
 |
It also comes with a thermal paste control film and spreader to help ensure the right amount of thermal paste is applied for effective heat dissipation.
SEAMLESS SOFTWARE
Control and preview with precision the lighting effect and real time motor speed of the Galahad II Trinity Pump and fans with the L-Connect 3.
|
➊ Preview of pump header status and lighting effects |
➋ Apply the fan and pump speed |
➌ Set personalized lighting effects |
Control connected ARGB device lighting effects
Set and monitor fan and pump speed with a real time curve
SIMPLE CONNECTION
The controller is built in the pump and the fan can be connected to the pump to control via L-Connect 3.
|
ARGB and fan extension input cable |
 |
5V ARGB |
|
SATA Cable For power
|
USB Cable Plug into a motherboard 9-pin USB header for L-Connect 3 support
|
4-PIN PWM Cable Required for RPM control
|
5 YEAR WARRANTY
Built with quality, the Galahad II Trinity AIO is proudly backed by a 5-year warranty, including the fans and controller. Damage of other components from leakage will be backed up to 3 years after we closely inspect the cause of leakage. |
Specifications
PRODUCT NAME |
GALAHAD II TRINITY SL-INF |
PUMP NOISE |
16.59 dBA |
MODEL |
GA2T36INW |
FAN SIZE |
120mm x 120mm x 25mm |
COLOR |
White |
FAN SPEED |
2100 RPM (Max.) |
TYPE |
360mm |
STATIC PRESSURE |
2.66mmH2O (Max.) |
PUMP SPEED |
3200 RPM |
AIRFLOW |
61.3CFM (Max.) |
RADIATOR FINS |
Single wave |
ACOUSTIC NOISE |
29 dB(A) |
RADIATOR SIZE |
397.5mm x 119.2mm x 27mm |
BEARING TYPE |
Fluid Dynamic Bearing (FDB) |
PUMP SIZE |
74mm x 74mm x 69mm |
COMPATIBLE CPU SOCKETS |
Intel: LGA 1700 / 1200 / 115x AMD: AM5 / AM4 |
INCLUDED PUMP BLOCK CAPS |
Dazzle Mode, Sink Hole, Duo-Infinity |
WARRANTY |
5 years |
TUBE LENGTH |
385mm |
