Lian Li SUP01

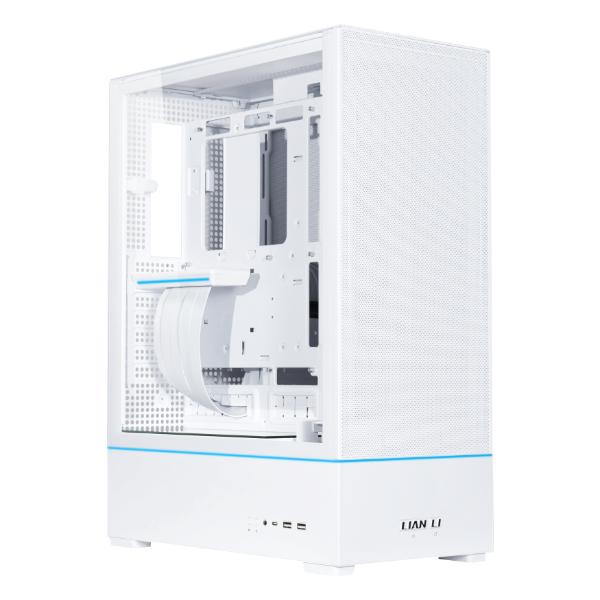

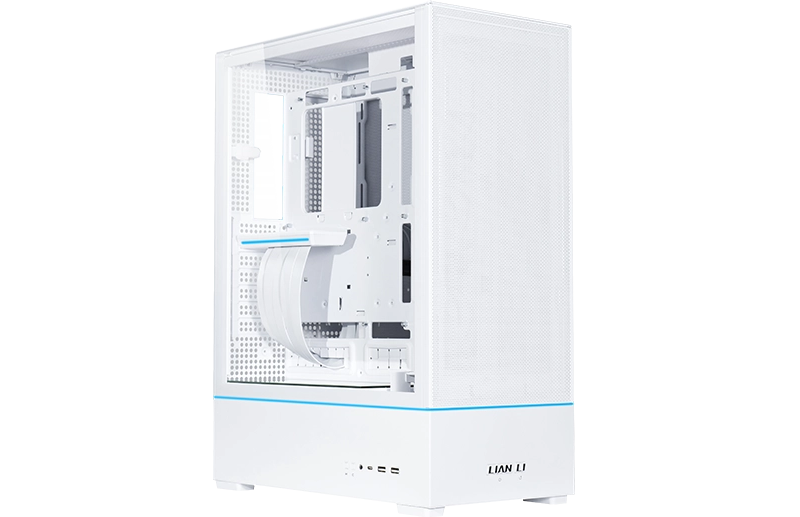

Кутия Lian-Li SUP01W Mid-Tower, Tempered Glass, Бяло
Арт. номер: LL-CASE-GELI-952
Технически характеристики
| Форм Фактор | Mid Tower |
| Формат | ATX, Micro ATX, Mini ITX |
| Включени вентилатори | 3x 120 mm |
| Преден панел | USB 3.0, USB 3.1 Gen 2 (Type-C) |
| Цвят | Бял |
| Дължина | 404 мм |
| Широчина | 212 мм |
| Височина | 534 мм |
| Максимална височина на въздушен охладител | 88 мм |
| Максимална дължина на видеокарта | 400 мм |
| Екстри | Бутони за контрол на подсветката |
| Поддържани вентилатори отзад | 1x 120mm |
| Поддържани вентилатори отстрани | 3x 120mm, 2x 140mm |
| Поддържани водни охладители отстрани | 1x 280mm, 1x 360mm |
| Преден Mesh панел | Да |
Свързани продукти
Форм Фактор:
Mini Tower
Формат:
ATX, Micro ATX, Mini ITX, EATX
Включени вентилатори:
1x 120mm, 2x 140mm
Преден панел:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Цвят:
Черен
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX
Включени вентилатори:
3x 120 mm
Преден панел:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Цвят:
Черен
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX, EATX
Включени вентилатори:
2x 120mm, 1x 140mm, 2x 170mm
Преден панел:
USB 3.0, Audio In & Out, Type-C
Цвят:
Черен
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX, EATX
Включени вентилатори:
1x 140mm, 2x 160mm
Преден панел:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Цвят:
Бял
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX, EATX
Включени вентилатори:
2x 120mm, 1x 140mm, 2x 170mm
Преден панел:
USB 3.0, Audio In & Out, Type-C
Цвят:
Бял
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX, EATX
Включени вентилатори:
1x 140mm, 2x 160mm
Преден панел:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Цвят:
Черен
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX
Включени вентилатори:
2x 120mm, 2x 140mm
Преден панел:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Цвят:
Черен
Форм Фактор:
Mini Tower
Формат:
ATX, Micro ATX, Mini ITX, EATX
Включени вентилатори:
1x 120mm, 2x 140mm
Преден панел:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Цвят:
Бял
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX, EATX
Включени вентилатори:
Не
Преден панел:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Цвят:
Черен
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX, EATX
Включени вентилатори:
Не
Преден панел:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Цвят:
Бял
Форм Фактор:
Mini Tower
Формат:
ATX, Micro ATX, Mini ITX
Включени вентилатори:
5x 120mm
Преден панел:
USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C
Цвят:
Бял
Форм Фактор:
Mini Tower
Формат:
ATX, Micro ATX, Mini ITX
Включени вентилатори:
5x 120mm
Преден панел:
USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C
Цвят:
Черен
Case Lian-Li SUP01W Mid-Tower, Tempered Glass, White
- 45-liter stand-up platform case for a minimal footprint
- Front-facing GPU installation with adjustable mounting brackets for a unique visual and cooling approach
- Independent chambered direct cooling design that brings the most effective heat dissipation for all core components
- Includes 510mm PCIe 4.0 riser cable with an RGB lighting cover that shares the same lighting effects with the case ARGB strip
- Includes an exterior 120mm fan mounting bracket at the rear to push fresh air into the chassis
- Includes 3 x 120mm performance fans at the side for GPU exhaust
- Supports 360mm/280mm AIO with a maximum pump height of 88.2mm
- Supports standard motherboards up to ATX size and back-connect ATX motherboards
Optimize your desktop with the LIAN LI SUP01, the stand-up platform design
not only minimizes footprint but also ensures impeccable hardware
compatibility and superior cooling efficiency.
AVAILABLE IN 2 COLORS
The SUP01 comes in two colors: the classic luxury of black and the refreshing elegance of white,
ensuring a perfect match for your style.
BLACK
WHITE

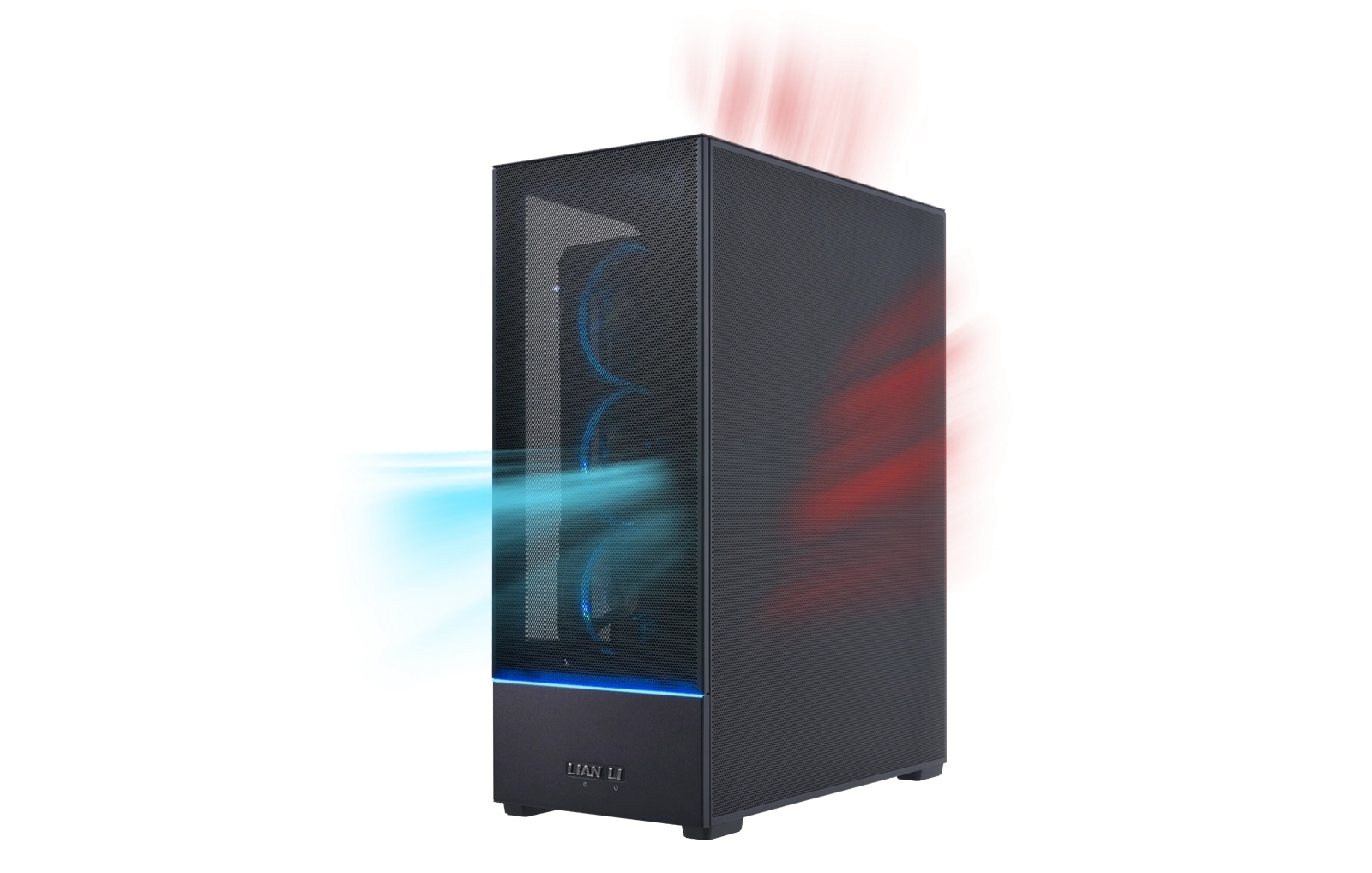

INDEPENDENT CHAMBERED DIRECT COOLING
Differing from traditional cases, the SUP01 offers independent intake and exhaust for all core components.
Note: Removing dust filters will enhance the cooling performance of both the GPU and CPU.
DIRECT COOLING FOR GPU
The GPU intakes direct cool air through the front mesh panel
and expels heat through the side with three pre-installed
120mm fans, significantly enhancing thermal dissipation.
DIRECT COOLING FOR AIO
Mounting the radiator on the side of the chassis in the 2nd
chamber allows it to draw cool air directly from the rear opening,
efficiently expelling CPU heat through the side mesh panel.
*Cooling performance is better when the radiator is positioned outside against
the mesh panel.
DIRECT COOLING FOR MOTHERBOARD COMPONENTS
The 120mm fan installed at the rear exterior intakes fresh air,
cooling M.2 storage, VRM modules, and memory directly for
efficient heat dissipation through the top mesh panel, free
from obstruction by radiators or components.
For balance airflow management and peak performance, configure all right-side fans for exhaust and
the rear fan for intake, while relying on the GPU’s built-in fan for intake air.

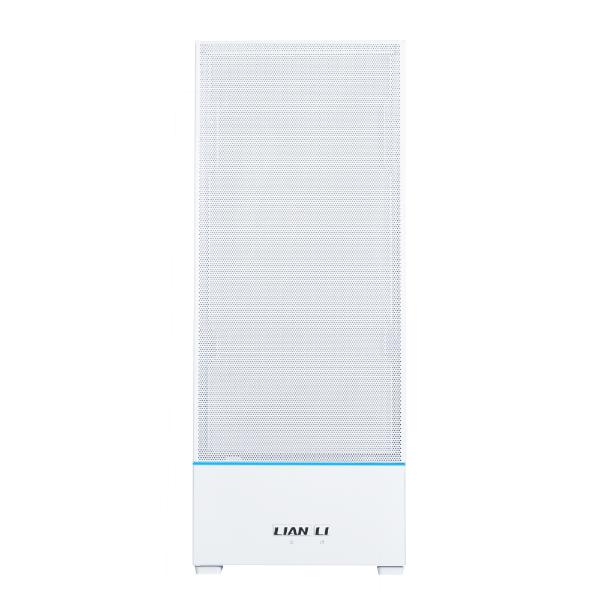

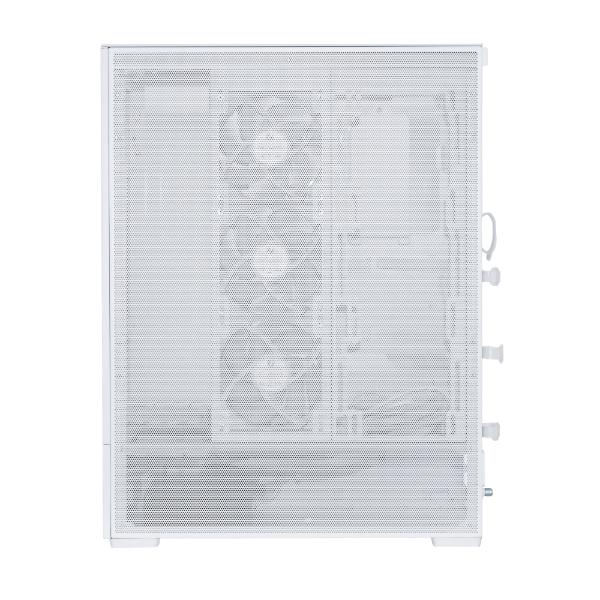

UNPARALLELED 3 SIDE MESH PANELS AIRFLOW
Featuring exquisite mesh panels on its front, side, and top, the SUP-01 offers seamless ventilation for
optimized cooling.
It is also equipped with three dust filters (magnetic filter on the top and front, tray filter on the bottom)
for environments prone to dust accumulation.
FRONT-FACING GPU INSTALLATION
The SUP01 displays your GPU at the forefront of the build for improved GPU thermal efficiency and a
different aesthetic.

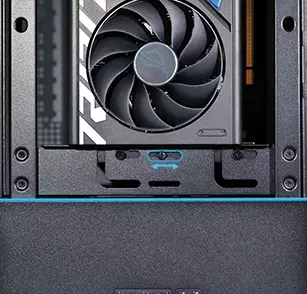

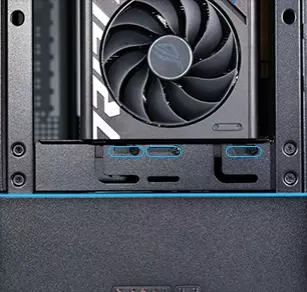

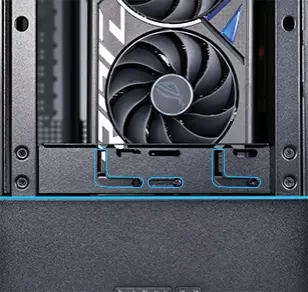

FLEXIBLE INSTALLATION BRACKET
The GPU bracket is designed for vertical and horizontal adjustment to accommodate GPUs of different
lengths and sizes.
GPU length 400mm Max
GPU length 380mm Max
Centerlized or Right alignment
for closer exhaust
SPECIFICATIONS
| MODEL NAME | SUP01 | INCLUDED FAN | 3 x 120mm PWM |
| MODEL NO. | SUP01W WHITE | FAN SUPPORT | Side 1: 3 x 120mm Side 2: 3 x 120mm or 2 x 140mm Rear exterior: 1 x 120mm |
| COLOR | White | RADIATOR SUPPORT | Side 2: 360mm or 280mm |
| CASE TYPE | Small Tower Case | DRIVE SUPPORT | Drive Cage: 2 × 2.5” SSD or 2 × 3.5” HDD Above PSU shroud:2 × 2.5” SSD |
| DIMENSION | (D) 403.45mm x (W) 212mm x (H) 534mm (D) 403.45mm x (W) 212mm x (H) 524mm (w/o feet) |
GPU LENGTH CLEARANCE | Max 400mm |
| CAPACITY | 44.8L | CPU HEIGHT CLEARANCE | Max 88.2mm |
| MATERIAL | Steel 4.0mm Tempered Glass |
EXPANSION SLOTS | 7 (for low profile card) 4 (for standard profile card with extension cable) |
| RISER CABLE TYPE | PCIE 4.0 | I/O PORTS | 1 x Power Button 1 x Reset Button 2x USB 3.0 TYPE-A 1x USB 3.1 TYPE-C 1x Mic 1 x Light Color Button (C) 1 x Light Mode Button (M) |
| MOTHERBOARD SUPPORT | ATX/M-ATX/ITX ATX Back Connect |
DUST FILTER | 1 x bottom tray 1 x front magnatic 1 x top magnatic |
| PSU SUPPORT | ATX (Max 220mm) | WARRANTY | 2 years |
