Lian Li UNI Fan SL-INF Reverse Blade

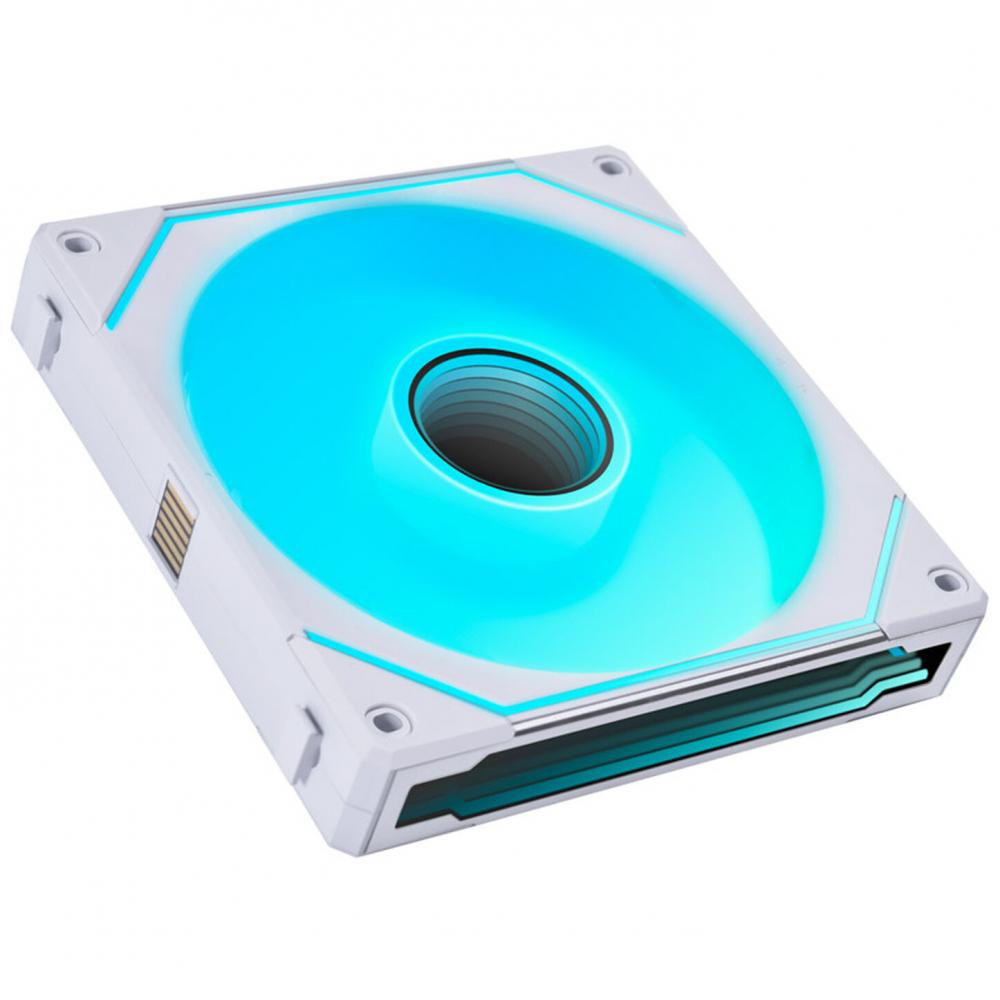

Вентилатор Lian-Li UNI SL-INF Reverse Blade, 140 ARGB PWM, Бял
Арт. номер: LL-FAN-LULI-086
Запитване за Lian Li UNI Fan SL-INF Reverse Blade
безплатна доставка
на поръчки над 199 лв.
Технически характеристики
| Гаранция | 24 месеца |
| Размери | 140 x 140 x 25 mm |
| Обороти | до 1600 RPM |
| Ниво на шум | до 28.6 dBA |
| Въздушен поток | до 71.6 CFM |
| Конектор | 4-pin PWM, 3-pin 5V ARGB |
| Reverse | Да |
| Цвят | Бял |
| Подсветка | ARGB |
Свързани продукти
Размери:
120 x 120 x 25 mm
Обороти:
до 2100 RPM
Ниво на шум:
до 29 dBA
Въздушен поток:
до 61.3 CFM
Подсветка:
ARGB
Размери:
120 x 120 x 25 mm
Обороти:
до 2100 RPM
Ниво на шум:
до 29 dBA
Въздушен поток:
до 61.3 CFM
Подсветка:
ARGB
Размери:
120 x 120 x 28 mm
Обороти:
до 2000 RPM
Ниво на шум:
до 28.7 dBA
Въздушен поток:
до 77.3 CFM
Подсветка:
ARGB
Размери:
120 x 120 x 25 mm
Обороти:
до 2100 RPM
Ниво на шум:
до 32 dBA
Въздушен поток:
до 63.6 CFM
Подсветка:
ARGB
Размери:
120 x 120 x 25 mm
Обороти:
до 2100 RPM
Ниво на шум:
до 32 dBA
Въздушен поток:
до 63.6 CFM
Подсветка:
ARGB
Размери:
140 x 140 x 25 mm
Обороти:
до 1600 RPM
Ниво на шум:
до 28.6 dBA
Въздушен поток:
до 71.6 CFM
Подсветка:
ARGB
Размери:
120 x 124.5 x 28 mm
Обороти:
до 2000 RPM
Ниво на шум:
до 28.5 dBA
Въздушен поток:
до 69.8 CFM
Подсветка:
ARGB
Размери:
120 x 124.5 x 28 mm
Обороти:
до 2000 RPM
Ниво на шум:
до 28.5 dBA
Въздушен поток:
до 69.8 CFM
Подсветка:
ARGB
Размери:
120 x 124.5 x 28 mm
Обороти:
до 2000 RPM
Ниво на шум:
до 31 dBA
Въздушен поток:
до 69.5 CFM
Подсветка:
ARGB
Размери:
120 x 124.5 x 28 mm
Обороти:
до 2000 RPM
Ниво на шум:
до 31 dBA
Въздушен поток:
до 69.5 CFM
Подсветка:
ARGB
Размери:
140 x 140 x 25 mm
Обороти:
до 1600 RPM
Ниво на шум:
до 26.8 dBA
Въздушен поток:
до 81.6 CFM
Подсветка:
ARGB
Размери:
140 x 140 x 28 mm
Обороти:
до 1800 RPM
Ниво на шум:
до 29 dBA
Въздушен поток:
до 103.9 CFM
Подсветка:
ARGB
UNI FAN SL-INF REVERSE BLADE
• Infinity mirror look all around
• Reversed Blade fan that intakes air while seeing the infinity effect
• Only one cable is required for a cluster of fans
• Embedded magnetic Fluid Dynamic Bearing to provide stability, durability, and longevity
• 40 LEDs in each fan
• Quick PIN connection to provide ease of installation
• Optimized for mounting at the bottom of the case or on top of the radiator
Infinity Mirror ARGB Fan
Introducing a new look to PC fans and a new level of installation simplicity and light effect customizability.
 |
 |
 |
 |
 |
 |
||
Infinity
|
Daisy-Chain
|
Silence at High Fan Speed |
L-Connect 3
|
Start/ Stop
|
Reversed
|
AVAILABLE IN TWO COLORS
140 Black
140 White
CONSISTENT APPEARANCE
No matter intake or exhaust SL-INF fans
INFINITY MIRROR FAN
A combination of the original UNI FAN SL and AL with a touch of infinity
mirror, the SL-Infinity fans glow clear with multi-layer effects from any
visible angle.
CENTERED INFINITY MIRROR ARGBThe circular-shaped infinity mirror at the center |
SIDE FRAME ARGBFollowing the iconic angular lighting style of SL fans, |
ALUMINUM TRIM SURROUNDED
|
REAR RIM OF LED AROUND THE ALUMINUM LOGO
The circular-shaped infinity mirror at the center of the fan is
tuned to have multiple layers spaced 0.5mm apart.

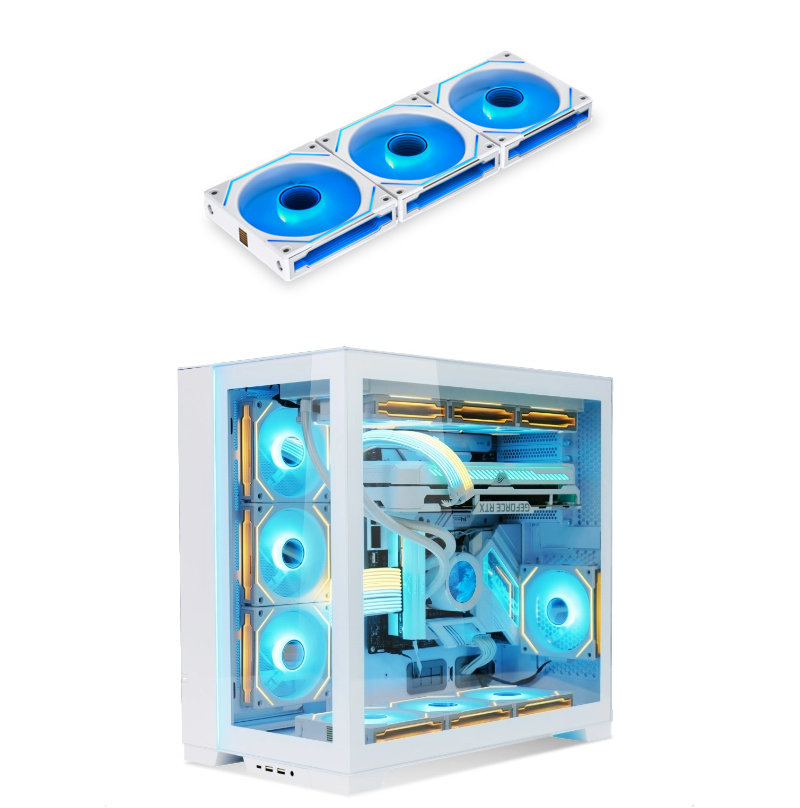

UNPRECEDENTED MODULARITY
The 2nd generation of UNI FAN SL revisits the interlocking style that can connect up to 4 fans
in a cluster and makes cable management simpler and improves compatibility with radiators
fittings.
DAISY CHAIN FAN
A pin-to-pad contact point passes the signal and power
through the fan cluster.
REMOVABLE KEYLOCK
The interlocking key on each fan is now removable to improve
compatibility with radiators fittings.

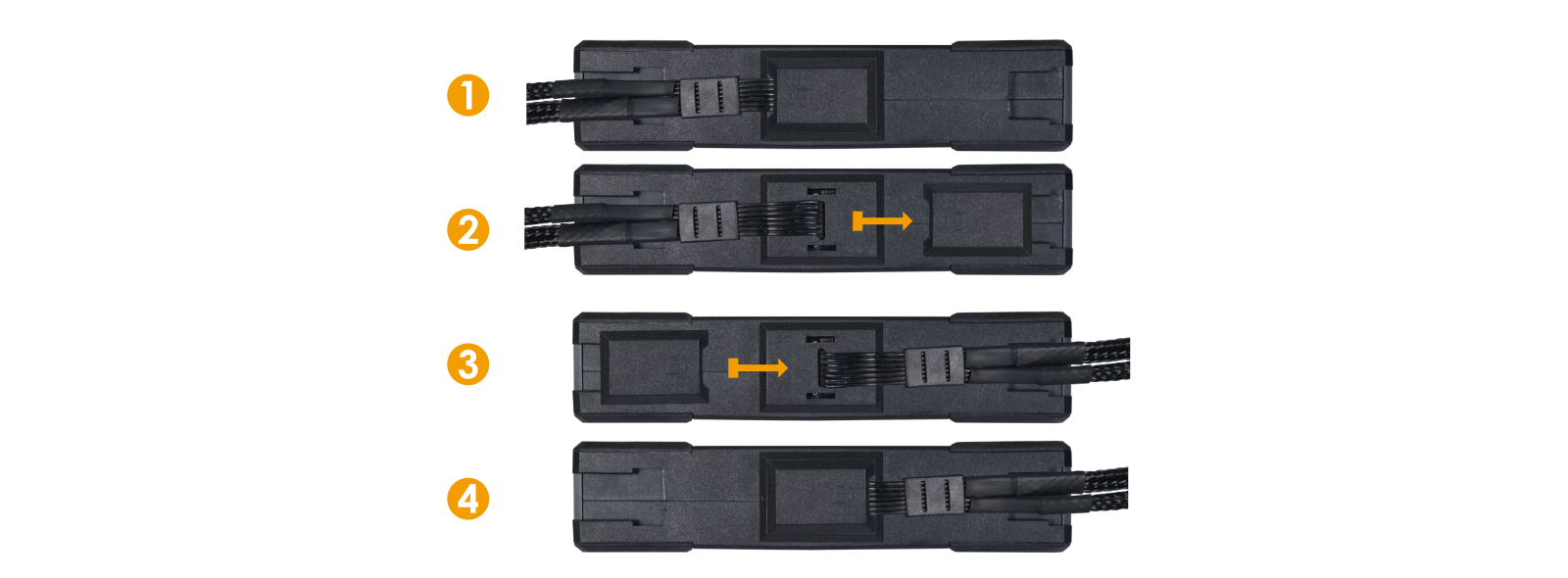

REVERSIBLE CABLE MODULE
The cable module is now placed at the center of the fan and can switch orientation to reduce
clearance issues with the radiator inlet and outlet.
UNCOMPROMISED PERFORMANCE
The UNI FAN SL-INF Reverse blade operates with a slightly higher noise level with a better
airflow (63.6 CFM Max) comparing to the original UNI FAN SL-INF.

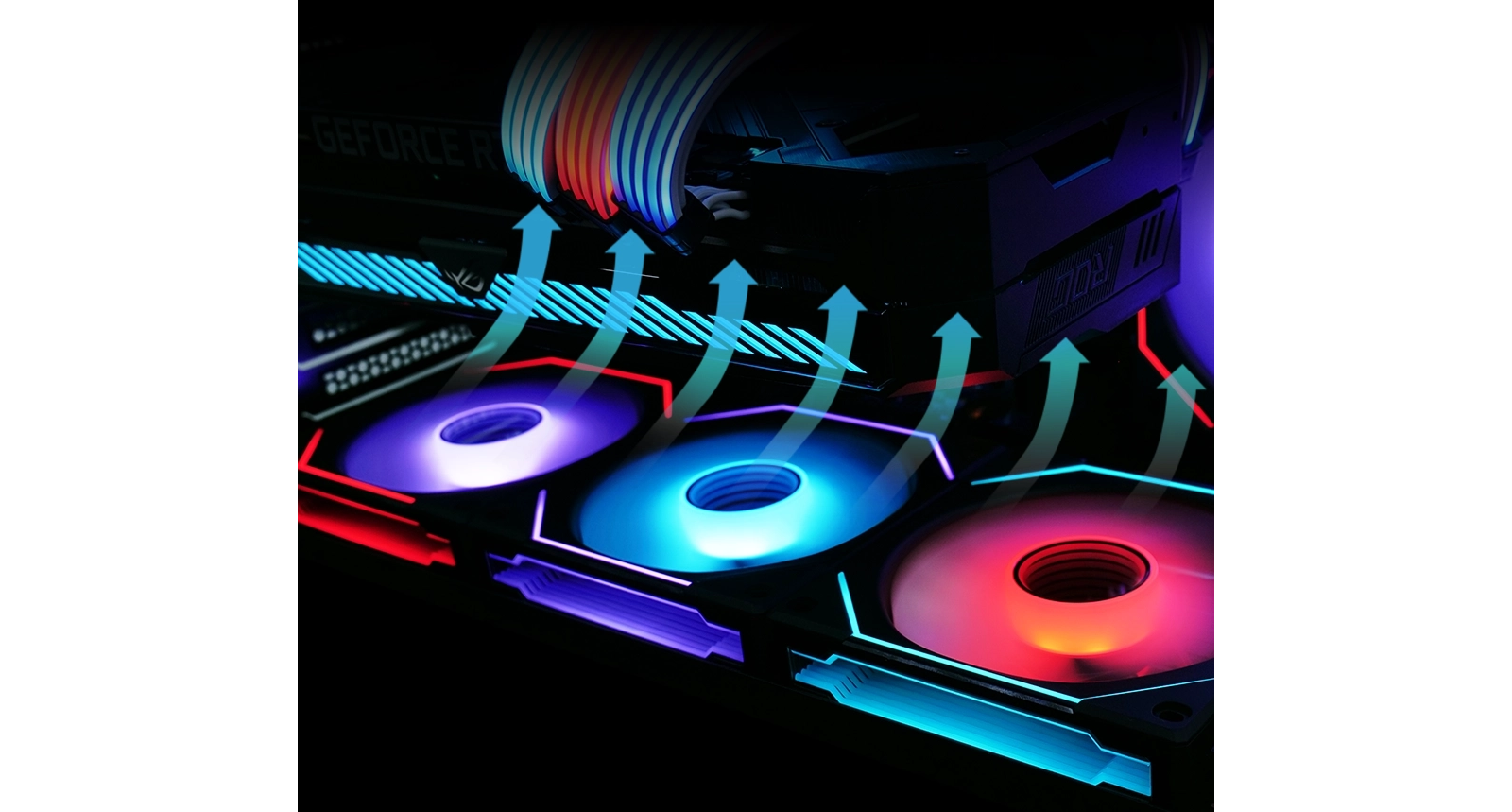

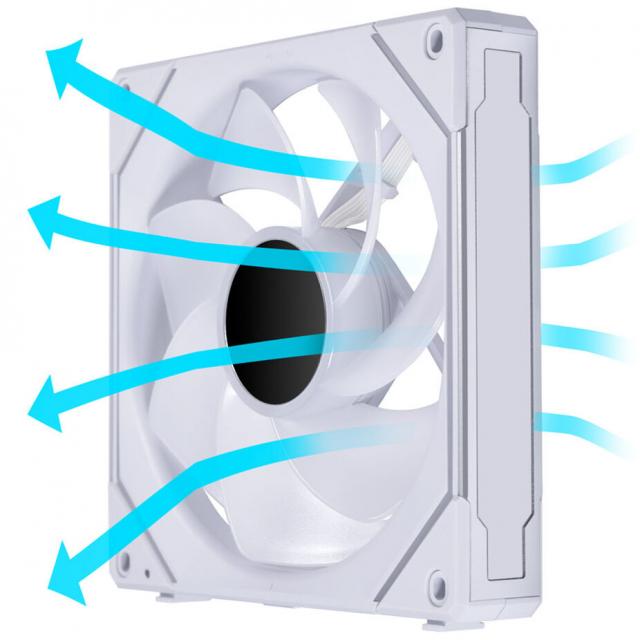

LOWER WIND NOISE
When installed as intake fan with the reverse blade, the wind noise is lower than the regular
blade.
Note: More obvious when installed on a radiator
THE SAME CONTROLLER AS SL-INF
16 FANS IN ONE GO FOR EACH GROUP OF FANS
The included controller is in the SLIN120 Triple Pack,supporting up to 16 fans (4 fans in each
group) and 2 SM-type connecting devices.
L-CONNECT 3 SOFTWARE TO CONTROL SL-INF FANS
Control and preview with precision the lighting effect of the SL-Infinity fans with the new L-
Connect interface.
Note: Only available when connecting via a UNI FAN SL-INFINITY controller, controller is sold
separately or included in triple pack regular fan.
| ❶ Select lighting effect of blades / fan frame / both LED | ❷ Set personalized color / brightness / speed / direction |
ENDLESS LIGHTING EFFECTS
Similar to the AL fans, L-Connect 3 can set the lighting effects of the SL-Infinity fans for both
the fan blades and the fan frame inner edges separately, or go with pre-set combined lighting
effects.
Option 1. Set the fan blade and inner fan frame lighting modes individually to achieve a custom look.
Fan Blade & Center Infinity Mirror LED
Angle Fan Frame & Side Infinity Mirror LED
Fan Blade & Center Infinity Mirror + Angle
Fan Frame & Side Infinity Mirror LED
Option 2. Select the combining lighting mode
Electric Current
Mixing
Tide

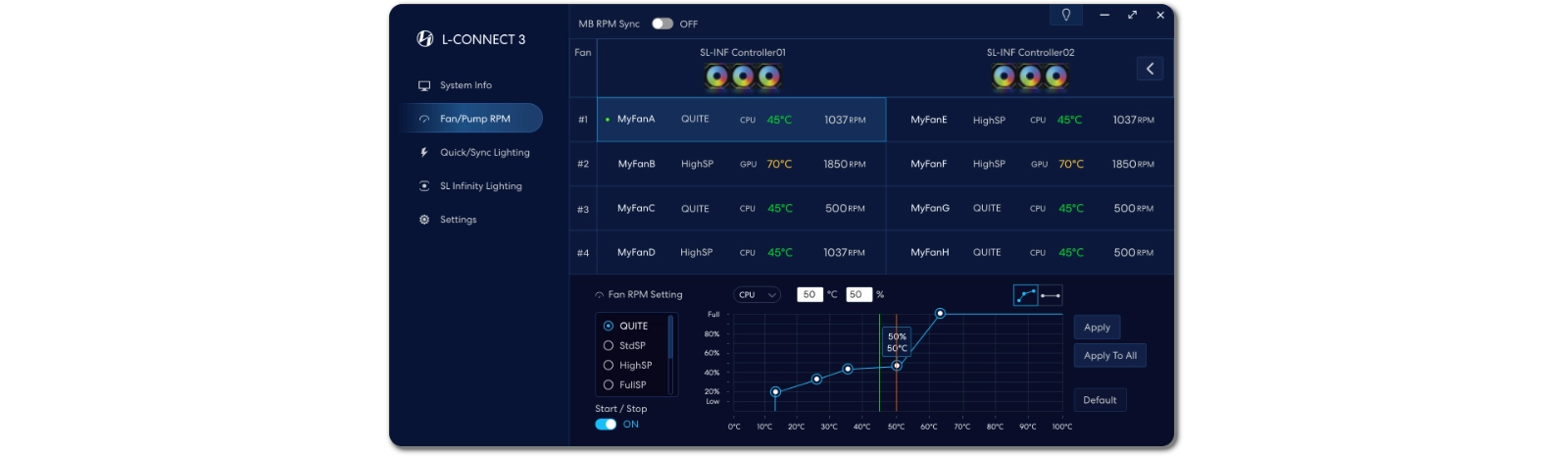

INTELLIGENT START/ STOP FAN
Unique to the SL-Infinity fans, L-Connect 3 features a Start/ Stop mode to completely stop the
fan when the CPU or GPU is running below your set temperature (the maximum 50°C),
achieving minimal acoustic levels when the system is at low temperature.

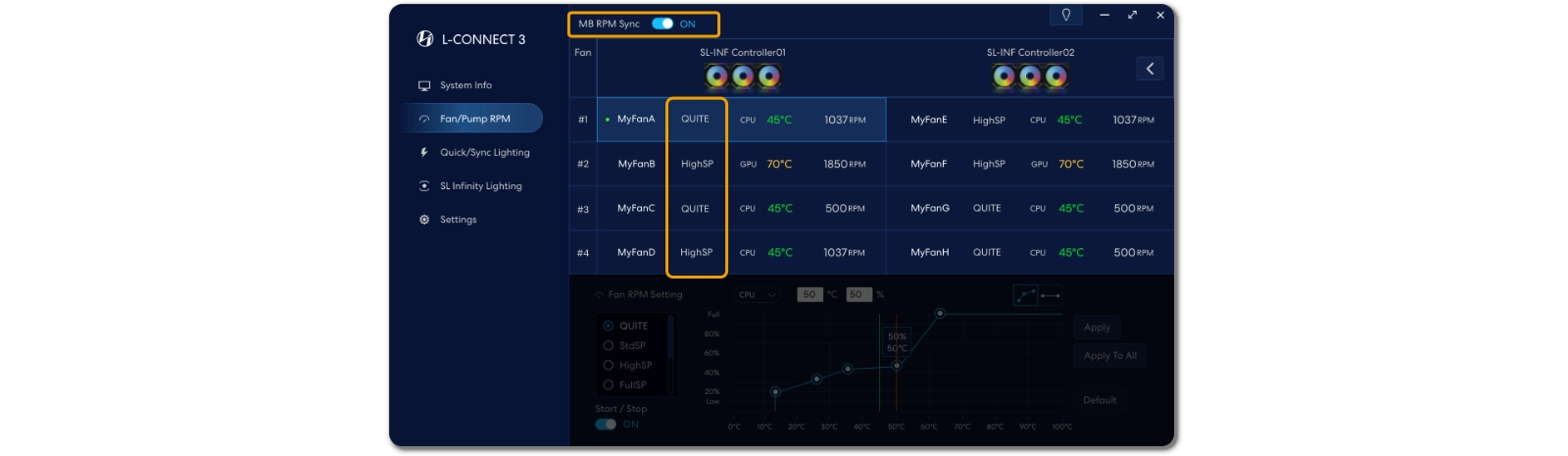

SYNC FAN SPEED TO MOTHERBOARD
L-Connect 3 now offers an option to sync fan speed to the motherboard, also known as the PWM mode in the
earlier L-Connect version.
∎ Click to pass fan speed control to motherboard

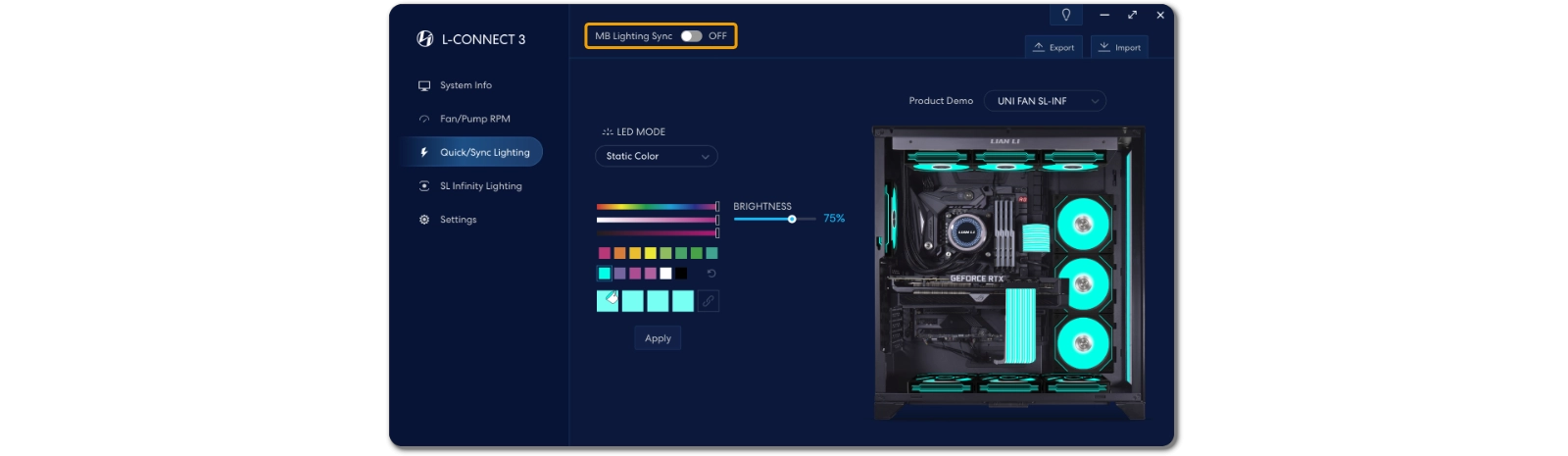

QUICK SYNC LIGHTING WITH UNI FAN SL/ AL AND STRIMER PLUS V1/V2
The quick sync function saves time to synchronize all LIAN LI device lighting effects with one
click. Moreover, synchronize all devices to the motherboard software with one click.
∎ Click to pass lighting control to motherboard

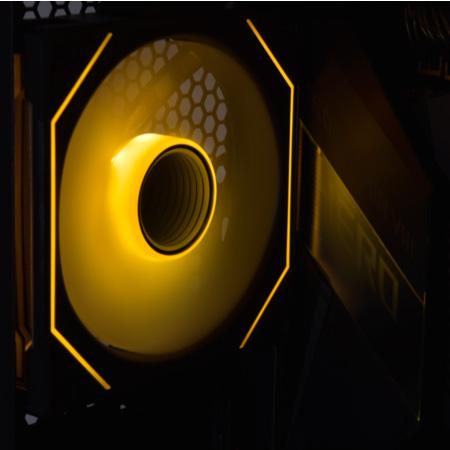

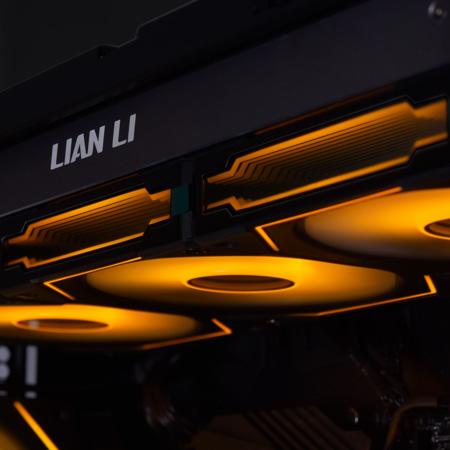

DAZZLING AT ALL ANGLE
Specifications
| PRODUCT NAME | UNI FAN SL-INF 140 REVERSE BLADE | AIR PRESSURE | 2.95 mmH2O (Maximum) |
| MODEL | 14RSLIN1W WHITE | AIRFLOW | 71.6 CFM (Maximum) |
| COLOR | White | ACOUSTIC NOISE | 28.6 dB(A) |
| NUMBER OF FANS | 1 | LOCKED CURRENT | ≦390mA |
| CONTROLLER | No | BEARING TYPE | Fluid Dynamic Bearing (FDB) |
| MATERIAL | PBT/PC/Aluminum | OPERATION VOLTAGE | DC 12V & 5V |
| FAN DIMENSION | 140 X 142 X 25 ( mm ) | START-UP VOLTAGE | ≦6V |
| RATED VOLTAGE | DC 12V (FAN) & 5V (LED) | INPUT CURRENT | 130mA (FAN) /600mA (LED) |
| FAN SPEED | 0, 200-1600 RPM | INPUT POWER | 4.56W |
