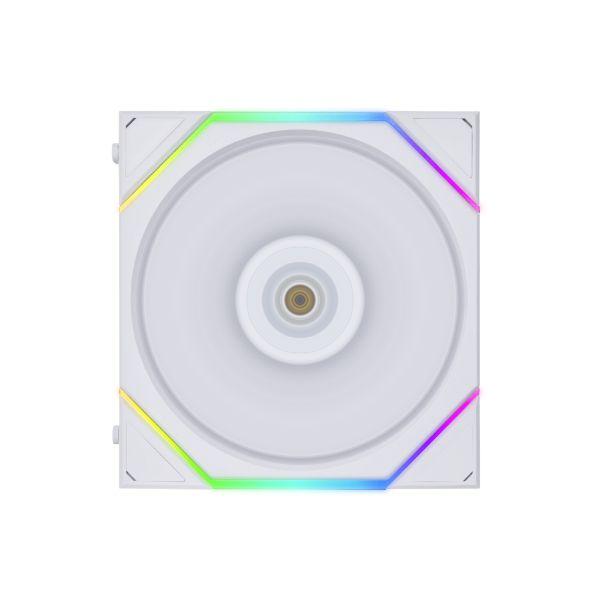

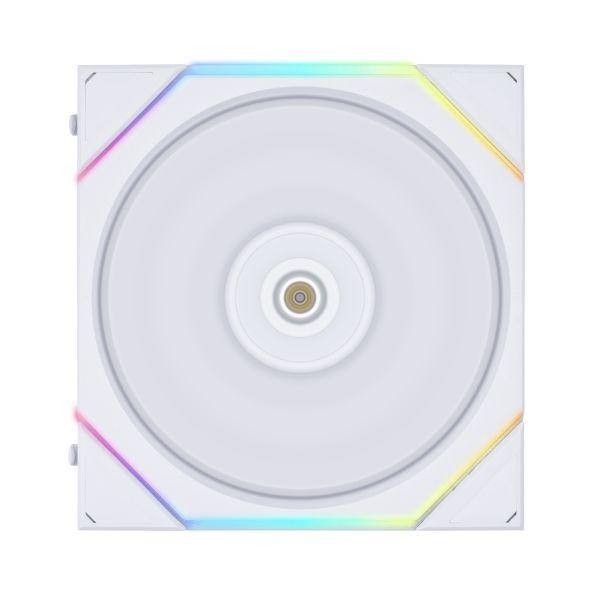

Lian Li UNI FAN TL 120 White Triple Pack
Комплект 3 броя Вентилатор Lian Li UNI FAN TL 120mm - White
Арт. номер: LL-FAN-LULI-068
Запитване за Lian Li UNI FAN TL 120 White Triple Pack
безплатна доставка
на поръчки над 199 лв.
Технически характеристики
| Гаранция | 24 месеца |
| Размери | 120 x 120 x 28 mm |
| Обороти | до 2600 RPM |
| Ниво на шум | до 33 dBA |
| Въздушен поток | до 90.1 CFM |
| Конектор | USB Header, 4-pin PWM, 3-pin 5V ARGB |
| Reverse | Не |
| Цвят | Бял |
| Подсветка | ARGB |
Свързани продукти
Размери:
120 x 120 x 25 mm
Обороти:
до 2100 RPM
Ниво на шум:
до 29 dBA
Въздушен поток:
до 61.3 CFM
Подсветка:
ARGB
Размери:
120 x 120 x 25 mm
Обороти:
до 2100 RPM
Ниво на шум:
до 29 dBA
Въздушен поток:
до 61.3 CFM
Подсветка:
ARGB
Размери:
120 x 120 x 28 mm
Обороти:
до 2000 RPM
Ниво на шум:
до 28.7 dBA
Въздушен поток:
до 77.3 CFM
Подсветка:
ARGB
Размери:
120 x 120 x 28 mm
Обороти:
до 2200 RPM
Ниво на шум:
до 32.2 dBA
Въздушен поток:
до 69.7 CFM
Подсветка:
ARGB
Размери:
120 x 120 x 28 mm
Обороти:
до 2300 RPM
Ниво на шум:
до 29.2 dBA
Въздушен поток:
до 67 CFM
Подсветка:
ARGB
Размери:
120 x 120 x 28 mm
Обороти:
до 2300 RPM
Ниво на шум:
до 29.2 dBA
Въздушен поток:
до 67 CFM
Подсветка:
ARGB
Размери:
120 x 120 x 28 mm
Обороти:
до 2200 RPM
Ниво на шум:
до 32.2 dBA
Въздушен поток:
до 69.7 CFM
Подсветка:
ARGB
Размери:
120 x 124.5 x 28 mm
Обороти:
до 1900 RPM
Ниво на шум:
до 29.5 dBA
Въздушен поток:
до 58.08 CFM
Подсветка:
ARGB
Размери:
120 x 124.5 x 28 mm
Обороти:
до 1900 RPM
Ниво на шум:
до 29.5 dBA
Въздушен поток:
до 58.08 CFM
Подсветка:
ARGB
Размери:
120 x 124.5 x 28 mm
Обороти:
до 2000 RPM
Ниво на шум:
до 31 dBA
Въздушен поток:
до 69.5 CFM
Подсветка:
ARGB
Размери:
120 x 124.5 x 28 mm
Обороти:
до 2000 RPM
Ниво на шум:
до 31 dBA
Въздушен поток:
до 69.5 CFM
Подсветка:
ARGB
Размери:
120 x 120 x 28 mm
Обороти:
до 2600 RPM
Ниво на шум:
до 32.1 dBA
Въздушен поток:
до 92 CFM
Подсветка:
Не

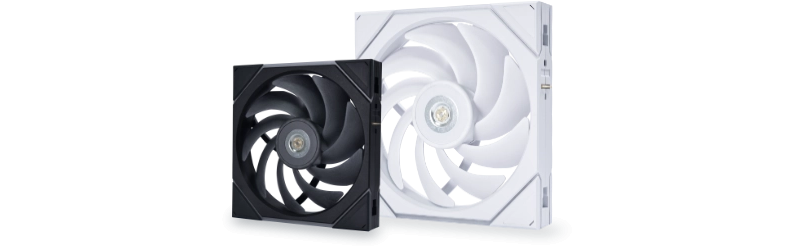

AVAILABLE IN TWO COLORS/ TWO SIZES/ TWO ORIENTATIONS
Elevate the PC setup with UNI FAN TL black and white fans, available in 120mm and 140mm sizes with normal and reverse
blades.
Normal Blade
Reverse Blade
Meet all kinds of configuration needs with our full lineup.
NEXT GENERATION OF UNI FAN
Building on the design success of the UNI FAN series, the UNI FAN TL series takes clutter-free setups to the next level.
Durable Daisy-Chain Solution
Experience a hassle-free setup with the slide-in daisy-chaining
mechanism, securely holding the fans in place and ensuring a
snug fit for easy configuration.
Seamless Connection
Featuring both male and female ends, the cable can be
connected to both sides of the fan, providing enhanced
flexibility and ease of installation.
Note: To ensure the correct lighting effect direction, set the orientation
in L-Connect 3 under Settings > Device.
Well-Adapted for all Configuration
Besides the removing interlocking key, the TL fans includes connection covers the exposed connections at the end to prevent
short circuits while improving compatibility.
10 fans in a Row and up to 16 fans
Enable connection of up to 10 fans to a controller port using
the extension cable, which offers ability to create up to 4
clusters in a chain, with each cluster support a maximum of 4
fans for individual customization of fan RPM and lighting,
allowing a truly personalized build setup such as having 3 fans
on the top, 3 on the side, 3 on the bottom, and 1 on the rear.
Power till the end
Offering an extra power adapter in triple pack to
connect to SATA for consistent fan speed and LED color throughout.
Note: Use when daisy-chaining 6 fans in a row.
ENGINEERED MOTOR, STURDY STRUCTURE
UNI FAN TL is engineered for high performance with minimal friction and vibration, ensuring quiet operation even at high
speeds.
|
LIQUID-CRYSTAL POLYMER
Ensure tolerance for high-speed |
METAL BEARING SHELL
To securely hold the impeller |
MAGNETIC FRAME
To provide extra support for |
STATOR
To provide a rotating magnetic field |
|
BRAZZ NUTTo Prevent oil leaks |
FLUID DYNAMIC BEARING (FDB)To effectively reduce the internal |
COPPER SHIELDINGTo reinforce the shaft and ensure |
THICKER FAN FRAME28mm thick fan frame helps deliver |
|
RUBBER PADSTo reduce vibrations and maintain |
ULTIMATE COOLING
Crafted with LCP material, the UNI FAN TL has a larger 9-blade impeller, with tight clearance to the fan frame, which ensures
efficient airflow while minimizing acoustic levels for cooling.
CUSTOMISABLE FAN SPEED
Able to set different fan speeds for each fan cluster to optimize different scenarios of
use providing flexibility for radiator or case fan needs with L-Connect 3.
Note: The L-Connect 3 fan speed chart are the same for TL120 and TL120 Reverse, therefore the fan speed of TL120 Reverse reaches the maximum ceiling at
approximately 80%.
COMBINATION OF PERFORMANCE AND AESTHETICS
Redefining the visual appeal of high-performance cooling, the UNI FAN TL fans
integrate the elements of SL-INF and P28, ensuring a striking look without
compromising on performance.
SOPHISTICATED CONTINUOUS RGB LIGHTING
Each UNI FAN TL fan has 26 LEDs with an elegant side diffuser on the 2 sides of the fan
frame that wraps around the edges of the anti-vibration pad.
DAZZLE WITH INFINITY MIRROR
Illuminate your setup with the UNI FAN TL’s enlarged infinity mirror (30% larger than
UNI FAN SL-INF on the side) on both sides of the frame, showcasing clear and 0.7mm
gap multi-layer lighting effects.
INDIVIDUAL LIGHTING EFFECTS
Easily customize different lighting effects on the two sides of the LED strips using L-
Connect 3 for a unique setup. You can also sync your TL fans and apply the same
lighting effect you like across all of them.
SMOOTH APPEARANCE
Cover the screws with anti-vibrate rubber pads for a seamless and uninterrupted
aesthetic appeal.
SEAMLESS SOFTWARE
L-Connect 3 offers complete control over the UNI FAN TL series, including the lighting
effects, fan speed, and LCD screen.
Note: Please update firmware at Settings > Device for the first time use.
TWO FANS, ONE CONTROLLER
UNI FAN TL and TL LCD share the same controller, enabling the connection of up to 16 TL and TL LCD fans simultaneously, with a
maximum of 6 TL LCD fans.
Note: TL and TL LCD share the same controller but use different controller cables. Do not mix the controller cables.
Fan Group Signal
Each port supports a maximum of 10 TL fans or 3 TL LCD fans
Note: The 1st port doesn’t support TL LCD.
|
Power PCIe CablePower up the connected fans |
USB CablePlug directly into a motherboard 9-pinUSB header |
5V ARGB / 4 PIN PWM CableRequired for motherboard sync function |
Note: Do not use a splitter; plug directly for a
stable signal
Note: The controller is available separately or in a triple pack only. UNI FAN TL series fans without the controller will not be functional.
SPECIFICATIONS
| PRODUCT NAME | UNI FAN TL 120 | MAX. AIR PRESSURE | 3.97 mmH2O (Maximum) |
| MODEL | 12TL3W | MAX. AIRFLOW | 90.1 CFM (Maximum) |
| COLOR | White | ACOUSTIC NOISE | 33 dB(A) Max |
| NUMBER OF FANS | 3 | INPUT POWER | 5.8W |
| CONTROLLER | Yes | MATERIAL | PA66 / LCP |
| CONNECTOR TYPE | UNI FAN Controller Cable x 1 (P-7P) Extension Cable x 1 (P-P) Power Adapter Cable x 1 (P-SA) |
RATED VOLTAGE | DC 12V (FAN) & 5V (LED) |
| FAN DIMENSION | 124 x 120 x 28 mm | BEARING TYPE | Fluid Dynamic Bearing (FDB) |
| FAN SPEED | 0, 200~2600 RPM | OPERATE VOLTAGE | DC12V & 5V |
