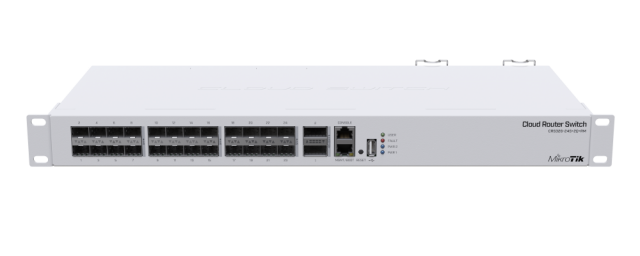

MikroTik CRS326-24S+2Q+RM
Суич MikroTik CRS326-24S+2Q+RM, 24 x Gigabit Ethernet ports, 2 x SFP
Запитване за MikroTik CRS326-24S+2Q+RM
| Гаранция | 12 месеца |
| Тип | Управляем суич |
| Скорост на трансфер (LAN) | 100 Mbps |
| LAN портове | 1 бр. |
| USB Порт | Да |
| SFP портове | 2x 40G QSFP+, 24x SFP+ |
Свързани продукти
If you are working with substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.
Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.

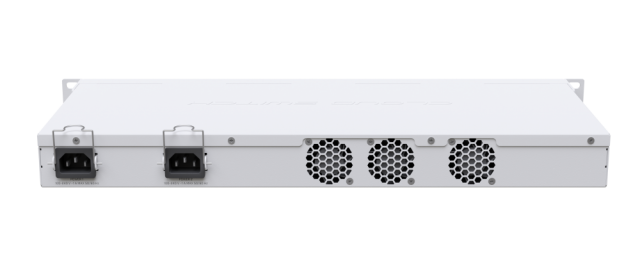

CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!
You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS
Specifications
| Product code | CRS326-24S+2Q+RM | RouterOS license | 5 |
| Architecture | MIPSBE | Operating System | RouterOS v7 / SwitchOS |
| CPU | QCA9531 | Size of RAM | 64 MB |
| CPU core count | 1 | Storage size | 16 MB |
| CPU nominal frequency | 650 MHz | Storage type | FLASH |
| Switch chip model | 98DX8332 | MTBF | Approximately 200'000 hours at 25C |
| Dimensions | 443 x 200 x 44 mm | Tested ambient temperature | -20°C to 60°C |
Powering
| Number of AC inputs | 2 | Max power consumption without attachments | 42 W |
| AC input range | 100-240 | Cooling type | 3 fans |
| Max power consumption | 69 W |
Ethernet
| 10/100 Ethernet ports | 1 |
Fiber
| SFP+ ports | 24 | Number of 40G QSFP+ ports | 2 |
Peripherals & Certification
| Serial console port | RJ45 | USB slot type | USB type A |
| Number of USB ports | 1 | Max USB current (A) | 1 |
| USB Power Reset | Yes | Certification | CE, EAC, ROHS |
