Seasonic PRIME PX ATX 3.1 1600W
Захранване Seasonic PRIME PX-1600P, 1600W
Арт. номер: SS-PS-SSR-1600PD2-GEN5
безплатна доставка
на поръчки над 199 лв.
Технически характеристики
| Мощност | 1600W |
| Сертификат | 80+ Platinum |
| Ефективност | 92 % |
| Тип | Модулярно |
| Форм Фактор | ATX |
| Спецификация | ATX 3.0 |
| PCIe Gen5 | Да |
| RGB Подсветка | Не |
| Цвят | Черен |
| Гаранция | 144 месеца |
Свързани продукти
Мощност:
1300W
Сертификат:
80+ Titanium
Ефективност:
94 %
Тип:
Модулярно
Форм Фактор:
ATX
Мощност:
1000W
Сертификат:
80+ Titanium
Ефективност:
94 %
Тип:
Модулярно
Форм Фактор:
ATX
Мощност:
1600W
Сертификат:
80+ Titanium
Ефективност:
94 %
Тип:
Модулярно
Форм Фактор:
ATX
Мощност:
1200W
Сертификат:
80+ Platinum
Ефективност:
92 %
Тип:
Модулярно
Форм Фактор:
ATX
Мощност:
2200W
Сертификат:
80+ Platinum
Ефективност:
92 %
Тип:
Модулярно
Форм Фактор:
ATX
Мощност:
700W
Сертификат:
80+ Titanium
Ефективност:
94 %
Тип:
Модулярно
Форм Фактор:
ATX
Мощност:
1000W
Сертификат:
80+ Platinum
Ефективност:
92 %
Тип:
Модулярно
Форм Фактор:
ATX
Мощност:
850W
Сертификат:
80+ Platinum
Ефективност:
92 %
Тип:
Модулярно
Форм Фактор:
ATX
Мощност:
1200W
Сертификат:
80+ Gold
Ефективност:
90 %
Тип:
Модулярно
Форм Фактор:
ATX
Мощност:
1000W
Сертификат:
80+ Gold
Ефективност:
90 %
Тип:
Модулярно
Форм Фактор:
ATX
Мощност:
750W
Сертификат:
80+ Platinum
Ефективност:
92 %
Тип:
Модулярно
Форм Фактор:
ATX
Мощност:
1000W
Сертификат:
80+ Gold
Ефективност:
90 %
Тип:
Модулярно
Форм Фактор:
ATX
PRIME PX ATX 3.0
The Seasonic PRIME PX ATX 3.0 Series is built on top of all the great features of PRIME PX platform with added ATX 3.0 and PCIe 5.0 compatibility. Currently the
1600 W is equipped with native 12VHPWR connectors and Digital Fan Control, and 105°C-rated Japanese electrolytic capacitors guarantee unwavering power
delivery and long-term durability. All these qualities make this power supply perfect to welcome the newest high power graphic cards and processors on the
market.
80 PLUS PLATINUM
The PRIME PX ATX3.0 Series achieves 80
PLUS Platinum certification with its 92 %
efficiency at 50 % system load.
PLUS Platinum certification with its 92 %
efficiency at 50 % system load.

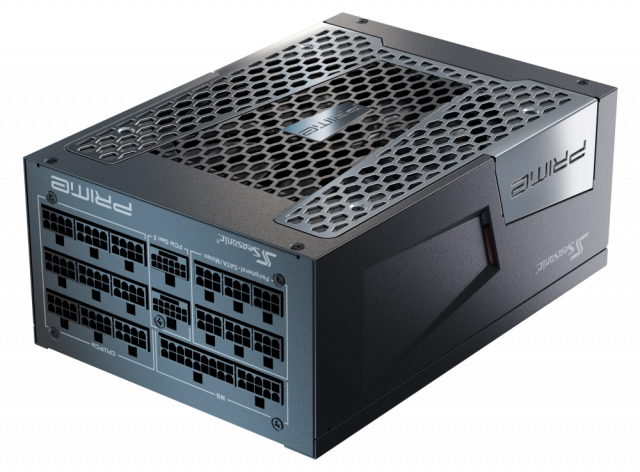

Fully Modular
Cabling
Dimensions
210 mm (L) x 150 mm (W) x 86 mm (H)
ATX 3.0 and 16-Pin PCIe Gen 5
Cable (12VHPWR)
Seasonic’s latest PRIME ATX 3.0 Series is designed and built to power new PC components requiring the
new ATX 3.0 and PCIe 5.0 standards.

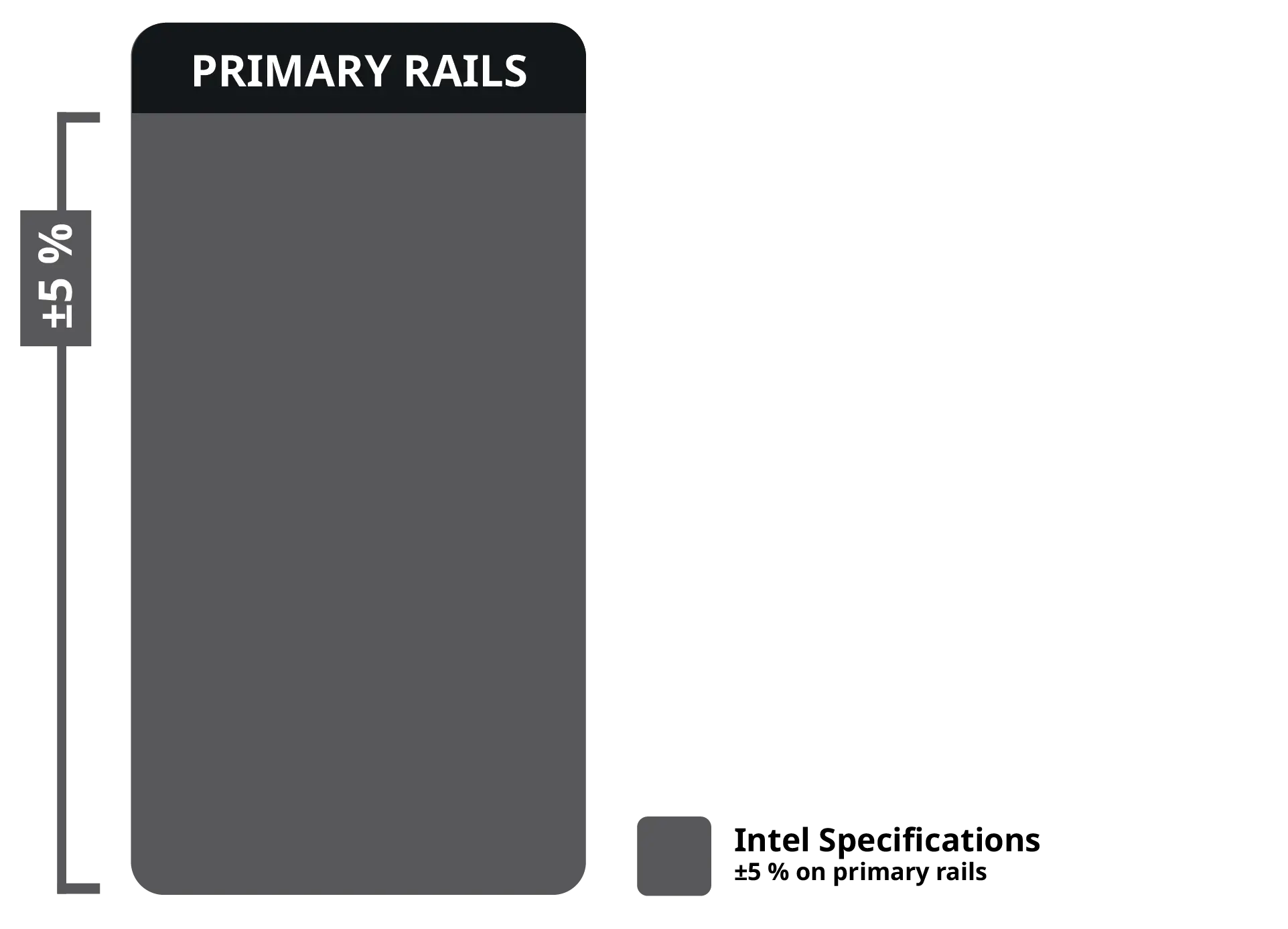

Micro Tolerance Load Regulation
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This
impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.
Digital Hybrid Fan Control
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was
translated into the development of Hybrid Mode; a state-of-the-art digital fan control that enables users
to keep the overall fan noise at the lowest possible level.
Note: The Digital Hybrid Fan Control chart is provided for reference only. The shape of the curve can look
different due to the variability in ambient temperature, system set-up, air flow, and other unpredictable
factors.

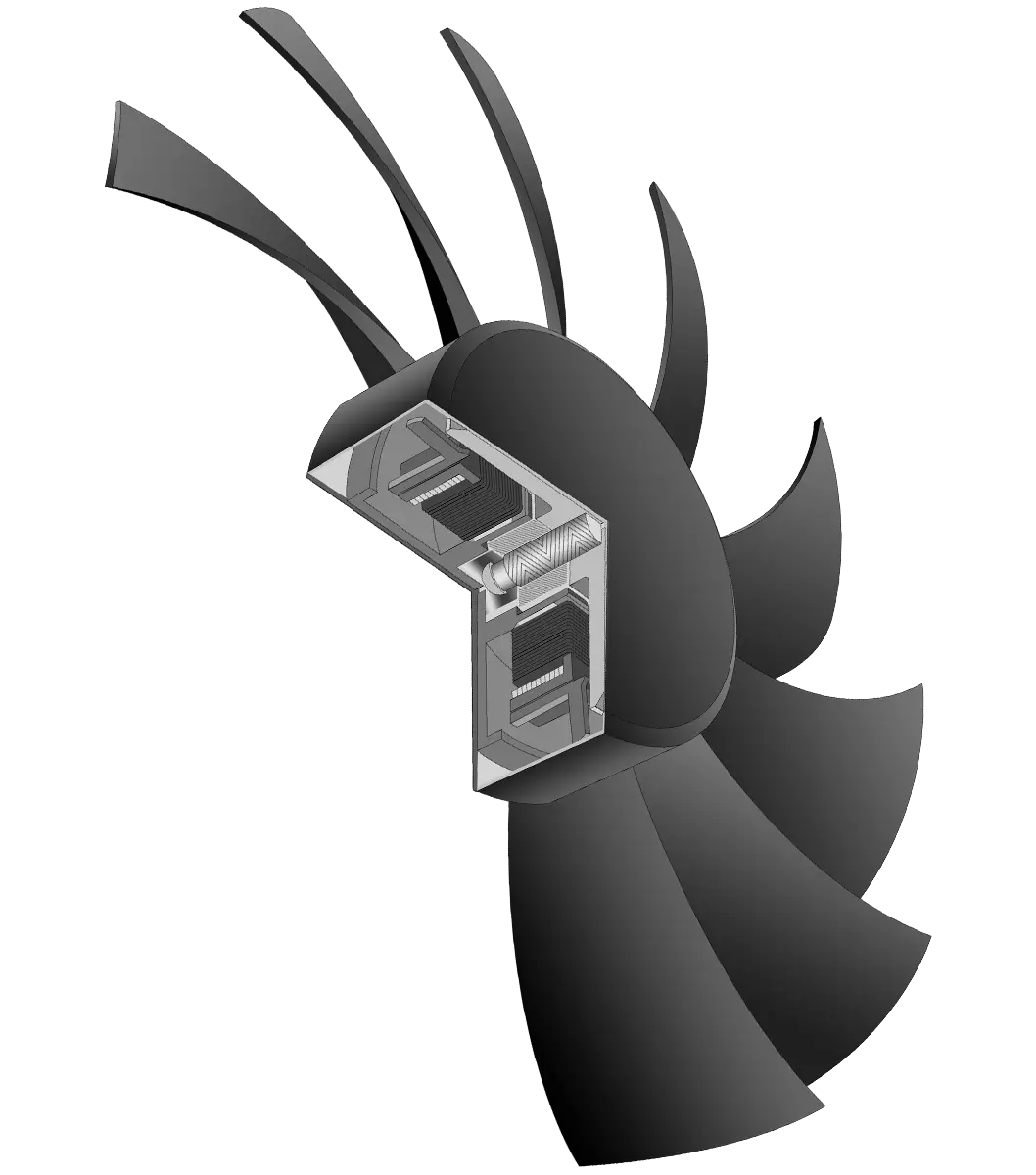

Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces.
As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
Technical Specifications
| 80PLUS | Platinum | |
| Cybenetics Efficiency Level | Titanium | |
| Cybenetics Noise Level | A- | |
| Form Factor | ATX/EPS | |
| Dimensions | 210 × 150 × 86 mm | |
| Fan Information | Fan Size | 135 mm |
| Fan Control | Digital Hybrid Fan Control | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Individual Black Cables with Braided Pattern | |
| Electrical Features | Operating Temperature | 0 - 50 °C |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 12 Years | |
Power Output
| AC Input | Voltage: 100 V - 240 V | |||||
| Current: 15 - 10 A | ||||||
| Frequency: 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 25 A | 25 A | 133.3 A | 0.5 A | 3 A | |
| 125 W | 1600 W | 6 W | 15 W | |||
| Total continuous power | 1600 W 115-240Vac, 1300 W 100-240 Vac | |||||
