Начало Гейминг хардуер NAS Synology DiskStation DS423+

Synology DiskStation DS423+

Мрежов сторидж Synology NAS DS423+, за 4 диска, Intel Celeron J4125, 2GB DDR4

Арт. номер: SYNOLOGY-NAS-DS423PLUS

последна бройка

Виж наличност

Склад Шереметя

Запитване за Synology DiskStation DS423+

безплатна доставка

на поръчки над 199 лв.

Технически характеристики

Гаранция	24 месеца
Брой дискове	4 бр.
Максимален капацитет (общо)	до 72 TB
Интерфейс	SATA III, M.2 PCIe
Екстри	2x USB 3.2 Gen1, 2x 1GbE LAN, 2x M.2 NVMe SSD

Свързани продукти

Synology DiskStation DS725+

Брой дискове: 2 бр.

Максимален капацитет (общо): до 40 TB

Интерфейс: SATA III, M.2 PCIe

Екстри: 1x 1GbЕ LAN, 1x USB 3.2 Gen1, 1x USB Type-C, 1x 2.5GbE LAN

Synology DiskStation DS723+

Брой дискове: 2 бр.

Максимален капацитет (общо): до 40 TB

Интерфейс: SATA III, M.2 PCIe

Екстри: 2x 1GbE LAN, 1x USB 3.2 Gen1

Synology DiskStation DS425+

Брой дискове: 4 бр.

Максимален капацитет (общо): до 80 TB

Интерфейс: SATA III, M.2 PCIe

Екстри: 1x 1GbЕ LAN, 2x USB 3.2 Gen1, 1x 2.5GbE LAN

Synology DiskStation DS925+

Брой дискове: 4 бр.

Максимален капацитет (общо): до 80 TB

Интерфейс: SATA III, M.2 PCIe

Екстри: 2x USB 3.2 Gen1, 2x 2.5GbE LAN, 1x USB Type-C

Synology DiskStation DS225+

Брой дискове: 2 бр.

Максимален капацитет (общо): до 40 TB

Интерфейс: SATA III

Екстри: 1x 1GbЕ LAN, 2x USB 3.2 Gen1, 1x 2.5GbE LAN

Synology DiskStation DS223

Брой дискове: 2 бр.

Максимален капацитет (общо): до 36 TB

Интерфейс: SATA III

Екстри: 1x 1GbЕ LAN, 3x USB 3.2 Gen1

Synology DiskStation DS1525+

Брой дискове: 5 бр.

Максимален капацитет (общо): до 100 TB

Интерфейс: SATA III, M.2 PCIe

Екстри: 2x USB 3.2 Gen1, 2x 2.5GbE LAN, 2x USB Type-C

Synology DiskStation DS223j

Брой дискове: 2 бр.

Максимален капацитет (общо): до 36 TB

Интерфейс: SATA III

Екстри: 1x 1GbЕ LAN, 2x USB 3.2 Gen1

Synology DiskStation DS124

Брой дискове: 1 бр.

Максимален капацитет (общо): до 108 TB

Интерфейс: SATA III

Екстри: 1x 1GbЕ LAN, 2x USB 3.2 Gen1

Synology DiskStation DS1821+

Брой дискове: 8 бр.

Максимален капацитет (общо): до 108 TB

Интерфейс: SATA III, M.2 PCIe

Екстри: 4x 1GbЕ LAN, 2x eSATA, 4x USB 3.2 Gen1

Synology DiskStation DS1825+

Брой дискове: 8 бр.

Максимален капацитет (общо): до 160 TB

Интерфейс: SATA III, M.2 PCIe

Екстри: 3x USB 3.2 Gen1, 2x 2.5GbE LAN, 2x USB Type-C

Synology DiskStation DS3622xs+

Брой дискове: 12 бр.

Максимален капацитет (общо): до 200 TB

Интерфейс: SATA III

Екстри: 2x USB 3.2 Gen1, 2x 1GbE LAN, 2x 10GbE LAN

Процесор: Intel Celeron J4125
Капацитет: 2GB DDR4
Management:

Google Chrome
Mozila Firefox
Safari

Брой хард дискове:

4 x SATA
2 x M.2 2280 NVMe SSD

Операции RAID: 0, 1, 5, 6, 10, JBOD
Портове:

2 x RJ-45 10/100/1000
2 x USB 3.2 Gen 1

Мрежа: 1 x RJ-45 1GbE
Сигурност:

SSL
HTTPS
SSH
TLS

Размери: 223 x 199 x 166 мм
Включени Хард Дискове: Не
Networking protocols:

AFP
CalDAV
FTP
NFS
SNMP
SSH
Telnet
WebDAV
SMB
VPN

Охлаждане: 2 x Вентилатор 92 x 92 мм
Захранване: 100-240 V / 50-60 Hz
Backup solutions: Cloud Backup
Други: Показател LED
Работна температура: 0-40°C
Влажност: 5-95%

DiskStation DS423+

A compact storage hub with 100% data ownership

Conquer home office data chaos

Capable and compact

Powerful functionality packed into a 4-bay chassis

Consolidate and share

Store, organize, and share up to 72 TB of data.

Integrated data protection

Contains hardware and software safeguards engineered to protect your data — trusted by millions.

A capable all-around performer

The versatile DS423+ can serve as a central storage device as well as a multimedia hub.

Up to

226/224 MB/s

read/write

2 x M.2

NVMe

SSD slots

2 x

1GbE

LAN ports

Btrfs: advanced file system for data protection

The Synology DiskStation Manager (DSM) operating system that powers DS423+ uses the advanced Btrfs file system, which safeguards your data against corruption and allows for the reversal of any unintended or malicious changes through the use of snapshot technology.

Store, share, and protect

Manage all your documents, photos, and other files, back up applications and devices, and protect your physical assets with professional video surveillance.

Private cloud for seamless data access

A private cloud for all your devices

Store, sync, access, and share data from any device, wherever you are. Work seamlessly between different platforms and devices, and access your files through mobile apps, desktop clients, and a browser-based interface. Quickly and easily roll back files in case of accidental deletion, mistakes, malware, etc., with the versioning feature.

Keep your photos organized

Efficiently back up and organize photos and videos with management tools for amateurs and professionals. Automatically organize your content into albums and create secure share links for family, friends, or clients.

Effortlessly keep multiple Synology NAS in sync

Collaborate with minimal downtime using site-to-site file syncing, which can be configured to automatically synchronize individual files or folders between Synology devices, allowing seamless file access.

Share data with power of the cloud

Reduce your on-site storage footprint and benefit from data center network speeds with hybrid cloud technology. The optional Hybrid Share service provides efficiently storage of cold data in the cloud, while keeping frequently accessed files cached locally on your DS423+ and accessible at LAN speeds.

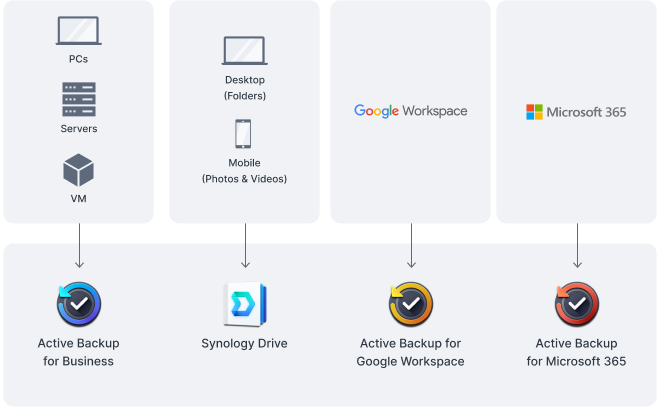

Multi-layered backup

Back up PCs, smartphones, cloud apps, and more

Consolidate and automate backup tasks for PCs, file servers, VMs, SaaS applications, and more with Active Backup Suite. Administer device backups remotely through a centralized portal and quickly restore specific files or entire devices to keep your business up and running. Take advantage of built-in remote backup solutions designed to protect your data with seamless 3-2-1 backup configurations.

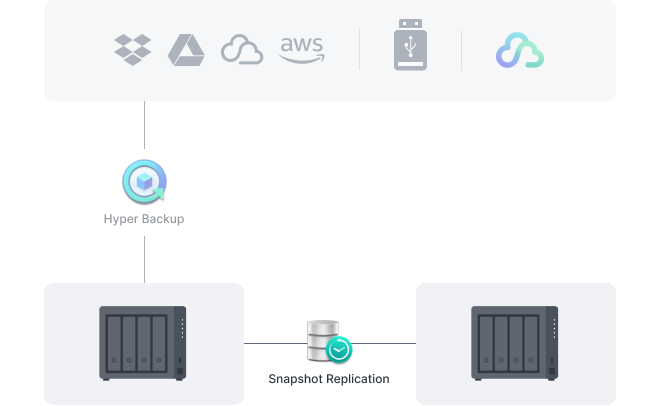

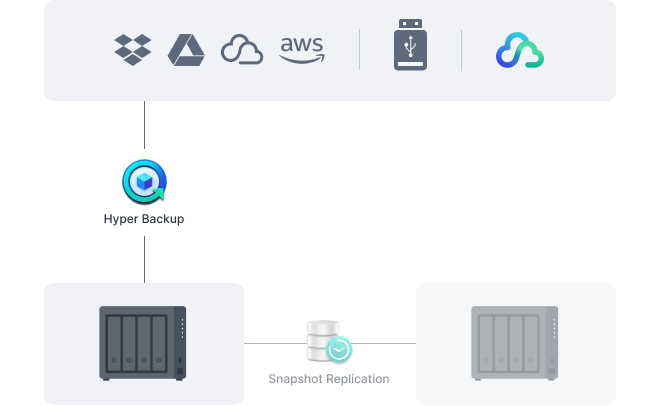

Perform full Synology system backups

Protect all data, applications, and configurations on your Synology systems with comprehensive scheduled backups to local and remote servers, external drives, or cloud storage destinations including Synology C2 Storage.

Protect folders and LUNs with snapshots

Configure efficient point-in-time snapshots of shared folders and LUNs at intervals as short as 5 minutes. Allow users to easily restore previous versions of files unassisted, quickly recover VMs, and copy snapshots to another server to benefit from rapid storage failover.

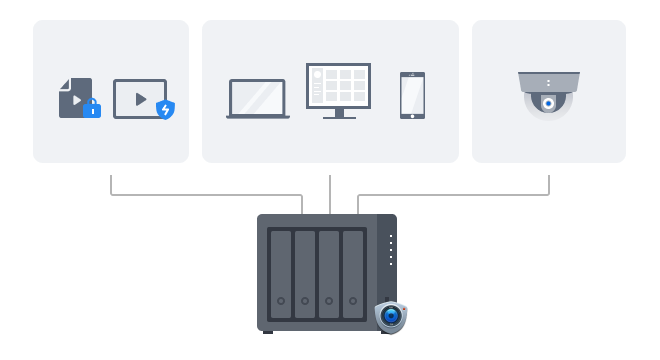

Smart surveillance

Synology Surveillance Station

Protecting your business has never been easier, with centralized management, support for over 8,300 IP camera models, and remote monitoring and playback. Synology’s video management system provides all the tools you need for live monitoring, investigation, management, and backup.

Dual recording to the cloud

C2 Surveillance allows you to keep access to surveillance footage if your recording server is disabled by recording to your local server as well as C2 cloud. End-to-end encryption protects streams against unauthorized access while low latency recording lets you review the crucial last few seconds before the recording server was lost.

Get more with DiskStation Manager

Take advantage of a host of native productivity, management, and security solutions available in the web-based Synology DSM operating system.

Central Management System

Conveniently manage your fleet of Synology NAS from a centralized console.

Security

Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.

Synology High Availability

Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.

Hardware Specs

CPU

CPU Model	Intel Celeron J4125
CPU Quantity	1
CPU Architecture	64-bit
CPU Frequency	4-core 2.0 (base) / 2.7 (burst) GHz
Hardware Encryption Engine (AES-NI)

Memory

System Memory	2 GB DDR4 ECC SODIMM
Total Memory Slots	1
Maximum Memory Capacity	6 GB (2 GB + 4 GB)
Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.

Storage

Drive Bays	4
M.2 Drive Slots	2 (NVMe)
*Compatible Drive Type (See all supported drives)**	3.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe SSD
Hot Swappable Drive*
Notes	The hot swappable drive feature is not supported by M.2 SSD slots. "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

External Ports

RJ-45 1GbE LAN Port	2 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port*	2
Notes	This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

File System

Internal Drives	Btrfs EXT4
External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT

Appearance

Size (Height x Width x Depth)	166 mm x 199 mm x 223 mm
Weight	2.18 kg

Others

System Fan	92 mm x 92 mm x 2 pcs
Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
Brightness Adjustable Front LED Indicators
Power Recovery
Noise Level	19.8 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter	90 W
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption	28.3 W (Access) 8.45 W (HDD Hibernation)
British Thermal Unit	96.5 BTU/hr (Access) 28.81 BTU/hr (HDD Hibernation)
Notes	For more information on how power consumption is measured, refer to this article. Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two GRAS 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI VCCI RCM UKCA EAC CCC KC
Warranty	3-year hardware warranty, extendable to 5 years with Extended Warranty Plus Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions. The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Adapter X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2 Quick Installation Guide X 1

Software Specs

Storage Management

Maximum Single Volume Size*	108 TB
Maximum Internal Volume Number	64
M.2 SSD Storage Pool Support*
SSD Read / Write Cache
SSD TRIM
Supported RAID Type	Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
Volume Expansion with Larger HDDs	Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10
Volume Expansion by Adding a HDD	Synology Hybrid RAID JBOD RAID 5
Global Hot Spare Supported RAID Type	Synology Hybrid RAID RAID 1 RAID 5
Notes	Creating M.2 storage pools requires the use of Synology-verified SSDs, which are rigorously tested under extreme temperature conditions. Thermal parameters for SSDs and NAS units are fine-tuned to ensure optimal management of thermal conditions under I/O-intensive environments. (Learn more) Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored. Actual maximum storage pool and volume sizes depend on drive sizes used, the number of drive bays available, and the RAID configuration.

File Services

File Protocol	SMB/AFP/NFS/FTP/WebDAV
Maximum Concurrent SMB/AFP/FTP Connections	500
Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion)	1500
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
Notes	Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM. The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.

Account & Shared Folder

Maximum Local User Accounts	2,048
Maximum Local Groups	256
Maximum Shared Folder	512
Maximum Shared Folder Sync Tasks	8

Hybrid Share

Hybrid Share Folder Number

Hyper Backup

Folder and Package Backup
Entire System Backup
Notes	Full-system backup requires DSM 7.2 or later.

High Availability

Synology High Availability

Log Center

Syslog Events per Second

800

Virtualization

VMware ESXi 6.5 and VAAI
Windows Server 2022
Citrix Ready
OpenStack

General Specifications

Networking Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers	Google Chrome Firefox Microsoft Edge Safari
Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
Notes	For an updated list of supported browser versions, check the DSM Technical Specifications.

Synology Chat

Maximum Number of Concurrent Users	100
Notes	Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds. When applicable, tested systems are configured with maximum memory and set to allow the maximum number of connections.

Document Viewer

Download Station

Maximum Concurrent Download Tasks

SAN Manager

Maximum iSCSI Target Number	128
Maximum LUN	256
LUN Clone/Snapshot, Windows ODX

Synology MailPlus / MailPlus Server

Free Email Accounts	5
Maximum Number of Concurrent Users	100
Maximum Server Performance	1,224,000 emails per day, approx. 37GB
Notes	Models with more than 4 bays were installed with two SSDs for SSD cache. For tested models with expandable memory, the maximum amount of RAM was installed. The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers. Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).

Media Server

DLNA Compliance

Synology Photos

Facial Recognition
Object Recognition

Snapshot Replication

Maximum Snapshots per Shared Folder	1,024
Maximum of System Snapshots	65,536

Surveillance Station

Maximum IP cam	40 (including 2 Free License)
Total FPS (H.264)	1200 FPS @ 720p (1280x720) 800 FPS @ 1080p (1920x1080) 350 FPS @ 3M (2048x1536) 280 FPS @ 5M (2591x1944) 170 FPS @ 4K (3840x2160)
Total FPS (H.265)	1200 FPS @ 720p (1280x720) 1200 FPS @ 1080p (1920x1080) 600 FPS @ 3M (2048x1536) 480 FPS @ 5M (2591x1944) 200 FPS @ 4K (3840x2160)
Notes	Maximum IP cameras and FPS figures are tested with the device fully populated with drives and under a continuous recording setup. Actual system capabilities may differ depending on system configuration, drive performance, number of features enabled, and if additional workloads are present.

Synology Drive

Recommended Number of Concurrent Sync Clients	350 (the number of connections that can be maintained when the recommended number of hosted files was reached)
Recommended Number of Hosted Files	5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Notes	Exceeding the recommended numbers above will not block application operations, but may result in longer response time. Utilizing SSD cache can significantly improve performance. For tested models with expandable memory, the maximum amount of RAM was installed. Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.

Synology Office

Maximum Users	1,200
Notes	Multiple files were opened for testing and each file was edited by 30 users simultaneously. For tested models with expandable memory, the maximum amount of RAM was installed. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM

Video Station

Virtual Machine Manager

Recommended Virtual Machine Instances	2
Recommended Virtual DSM Number	2
Notes	The specifications vary depending on system configuration and memory size.

VPN Server

Maximum Connections
