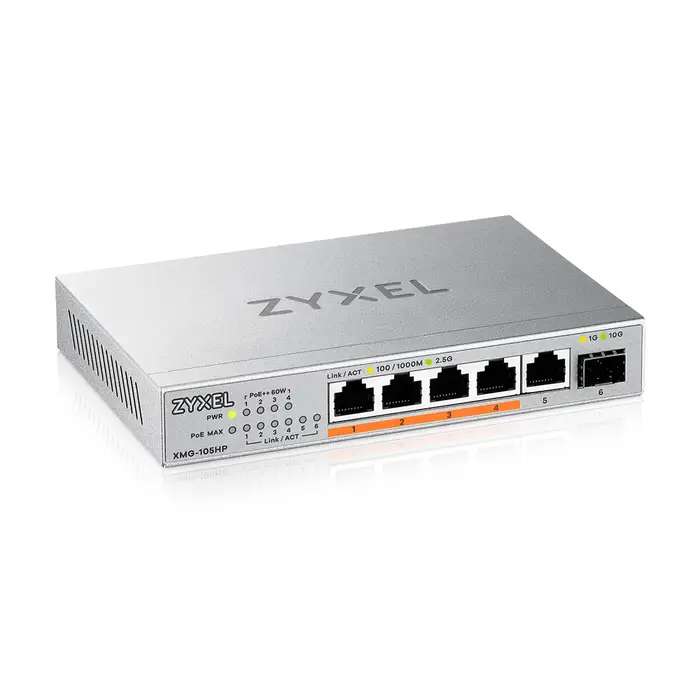

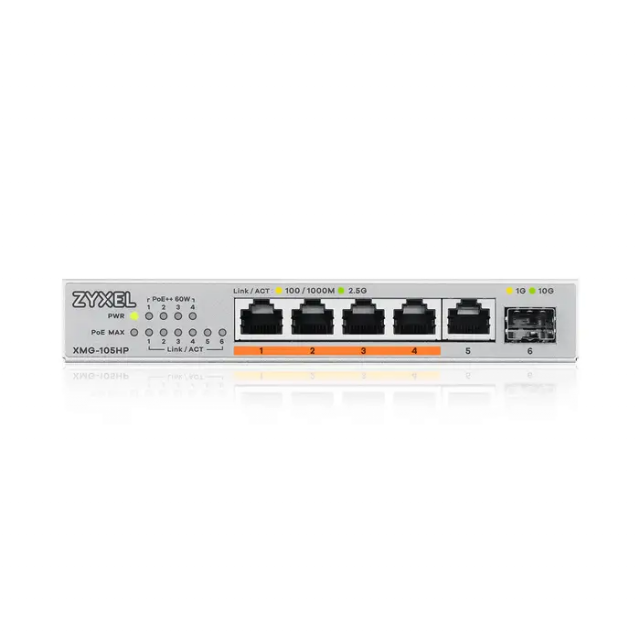

ZYXEL XMG-105HP
Суич ZYXEL XMG-105HP 5 портов 2,5Gb + 1xSFP+, 4 порта 70W PoE++, неуправляем
Арт. номер: ZYXEL-XMG-105HP
Технически характеристики
| Гаранция | 60 месеца |
| Тип | PoE, Неуправляем суич |
| Скорост на трансфер (LAN) | 2.5 Gbps |
| LAN портове | 5 бр. |
| SFP портове | 1x 10G SFP+ |
Свързани продукти
Тип:
Access Point, PoE
WI-FI Стандарт:
AX1200
Скорост на трансфер (Wi-Fi):
до 1775 Mbps
Скорост на трансфер (LAN):
1 Gbps
LAN портове:
1 бр.
Тип:
Access Point, PoE
WI-FI Стандарт:
AX3000
Скорост на трансфер (Wi-Fi):
до 2975 Mbps
Скорост на трансфер (LAN):
1 Gbps, 2.5 Gbps
LAN портове:
1 бр.
Тип:
Управляем суич
Скорост на трансфер (LAN):
1 Gbps
LAN портове:
24 бр.
SFP портове:
2x SFP
Тип:
Access Point, PoE
WI-FI Стандарт:
AX3000
Скорост на трансфер (Wi-Fi):
до 2975 Mbps
Скорост на трансфер (LAN):
1 Gbps, 2.5 Gbps
LAN портове:
1 бр.
Тип:
Access Point
WI-FI Стандарт:
AX3000
Скорост на трансфер (Wi-Fi):
до 2975 Mbps
Скорост на трансфер (LAN):
1 Gbps
LAN портове:
3 бр.
Тип:
PoE, Неуправляем суич
Скорост на трансфер (LAN):
1 Gbps
LAN портове:
8 бр.
SFP портове:
2x SFP
Double Your Network Speed
XMG-100 Series 2.5G Unmanaged Switch with 10G Uplink

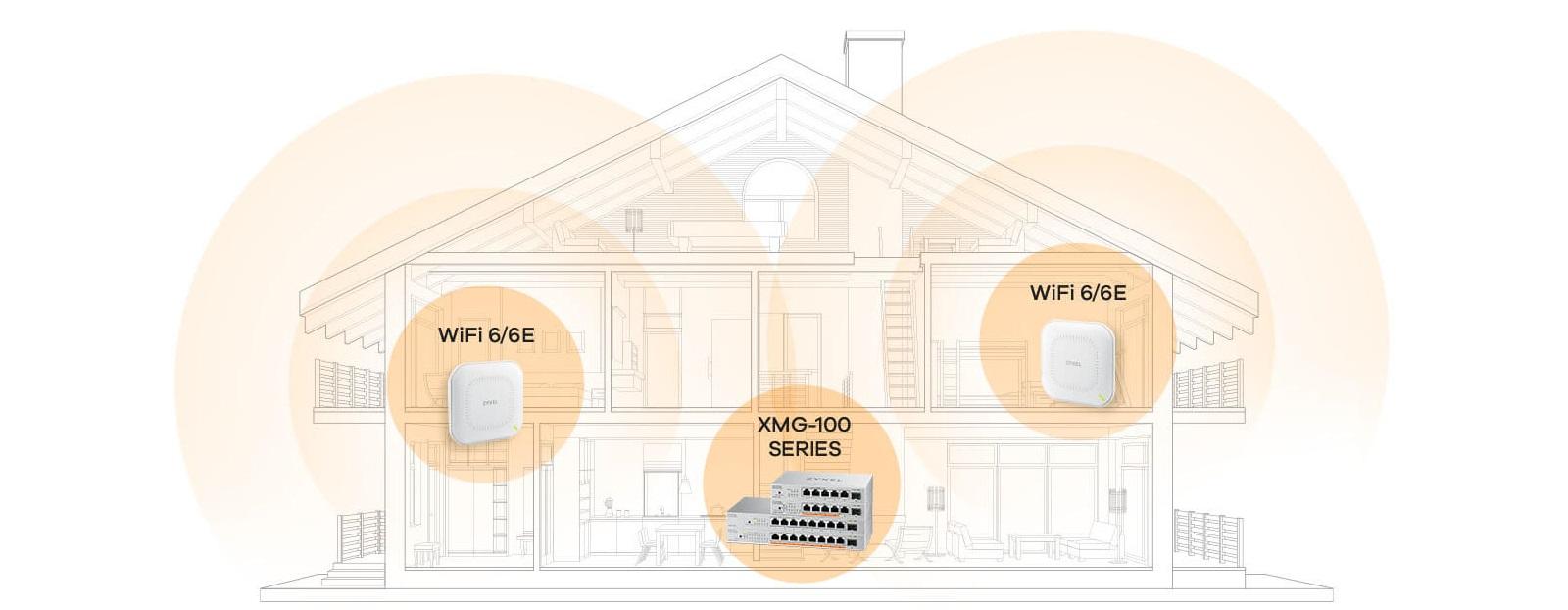

Plug-and-play to Upgrade Your
Network to WiFi 6/6E

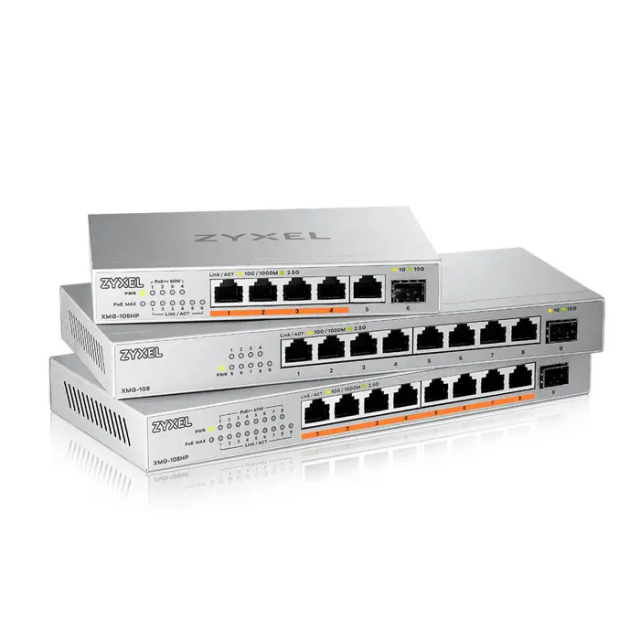

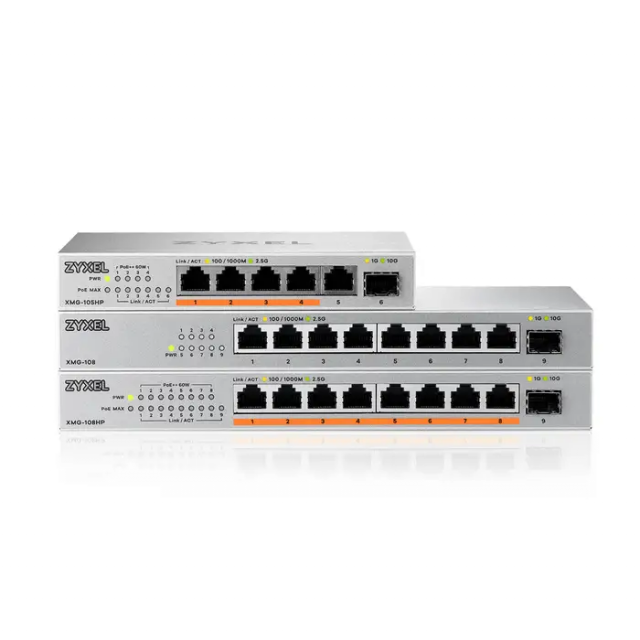

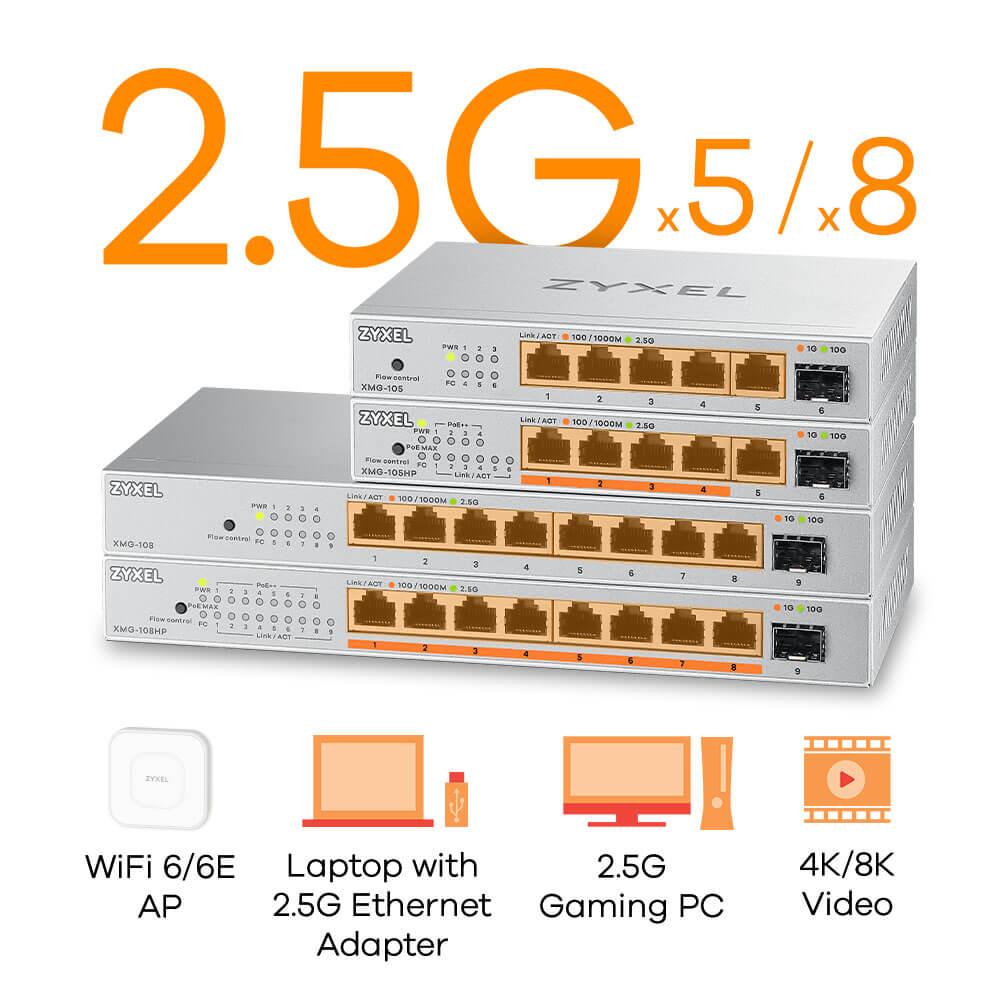

The XMG-100 Series of 2.5G switches includes 5- and 8-port
models with or without PoE options. These switches are
equipped with multi-gig ports supported up to 2.5G and
can easily be connected to the latest 2.5G–capable
network devices including WiFi 6/6E APs, 2.5G CPE, 2.5G
storage, 4K/8K TV, PC with 2.5G NIC and gaming consoles.
This streamlined plug-and-play technology enables high-
performance networking and a smoother home
entertainment or multi-media creation experience.
Extra 10G Port to Streamline Large
File Transfers
The 10-Gigabit SFP+ model increases the network speed
for quicker uploads and downloads through a NAS and
server, allowing content creators or self-media individuals
to work more efficiently. Large files, such as high-resolution
videos or images, can be transferred in significantly less
time, saving valuable production hours.

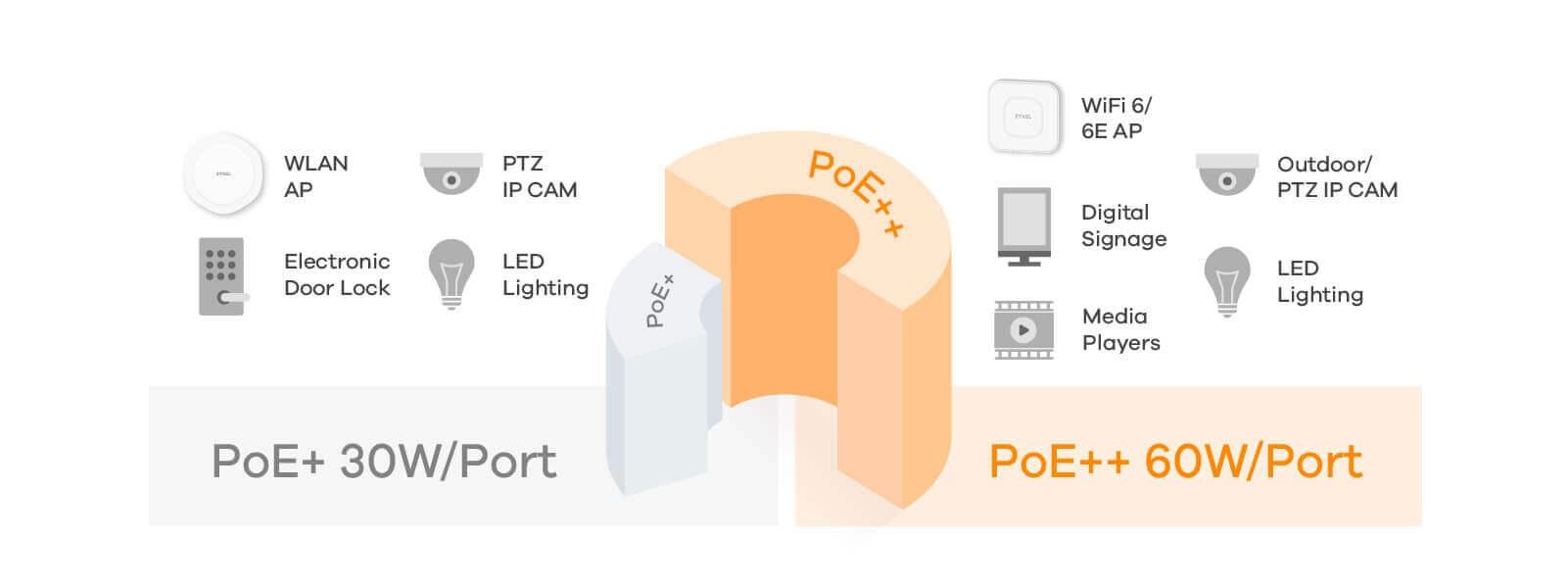

Single Cable for Both Power and Data
PoE models come with either 4 or 8 uninterrupted PoE++ (60W) ports and a budget-friendly PoE budget of 70W or 100W –
deploying PoE devices like WiFi 6/6E APs, PTZ cameras and IoT devices has never been easier.
2.5G Super-Fast Speeds Without
Re-cabling
You can use your current Cat 5e cables to increase your
home networking speed from 1Gbps to 2.5Gbps, eliminating
the need for any costly re-cabling.
Silent Operation and Flexible Deployment
The XMG-100 Series has a robust and fanless design for stable and silent operation, and is perfect for noise-
free environments in the home or studio. Its compact design offers the flexibility to place the switch on a
desktop or mount it on a wall.
Accelerate your Networking Experience
The XMG-100 Series offers home or SOHO users who need lag-free and non-intermittent network services for their online
gaming or multimedia streaming services, a faster, more secure connection.
Specifications
Port Density
| Total port count | 6 | 1G SFP/10G SFP+ | 1 |
| 2.5GBASE-T | 5 |
PoE
| IEEE 802.3bt (PoE++, 60 W) | 4 | Total PoE budget (watts) | 70 |
Performance
| Switching capacity (Gbps) | 45 | MAC address table | 4 K |
| Forwarding rate (Mpps) | 33.5 | Jumbo frame (byte) | 12 K |
| Packet buffer (byte) | 1 MB |
Power
| Input | 100 - 240 V AC, 50/60 Hz | Max. power consumption (watts) | 90 |
| Power supply | External | Min. power consumption (watts) | 1.62 |
Physical Specifications
| Dimensions (WxDxH)(mm/in.) |
160 x 110 x 26/6.30 x 4.33 x 1.02 | Weight (kg/lb.) |
0.492/1.09 |
Environmental Specifications
| Operating |
Temperature: -20°C to 40°C/-4°F to 104°F Humidity: 10% to 95% (non-condensing) |
MTBF (hr) | 1,255,904 |
| Storage |
Temperature: -40°C to 70°C/-40°F to 158°F Humidity: 5% to 95% (non-condensing) |
Heat dissipation (BTU/hr) | 56.27 |
