Arctic P12
Вентилатор ARCTIC P12, 120mm, 1800RPM, 3-Pin
| Гаранция | 72 месеца |
| Размери | 120 x 120 x 25 mm |
| Обороти | до 1800 RPM |
| Ниво на шум | до 23.5 dBA |
| Въздушен поток | до 56.3 CFM |
| Конектор | 3-pin |
| Reverse | Не |
| Цвят | Черен |
| Подсветка | Не |
Свързани продукти

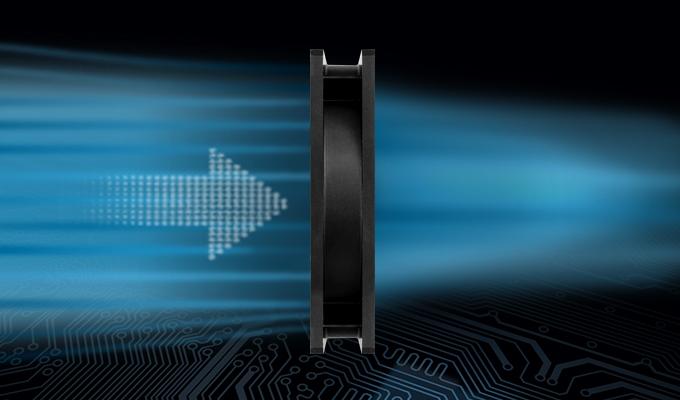

Optimised for Static Pressure
During the development of the new P12, special emphasis was placed on a focused
airstream and thus a high static pressure. The fan guarantees extremely efficient
cooling, even with increased air resistance. Therefore, the P12 is particularly suitable
for use on heatsinks and radiators.
Strong Cooling Performance
Numerous improvements, such as an updated engine technology and a newly
developed fan design, have noticeably increased the performance of P-fans. In internal
performance tests leveled to 28 dB (A), the new P-fans left many competitors behind.

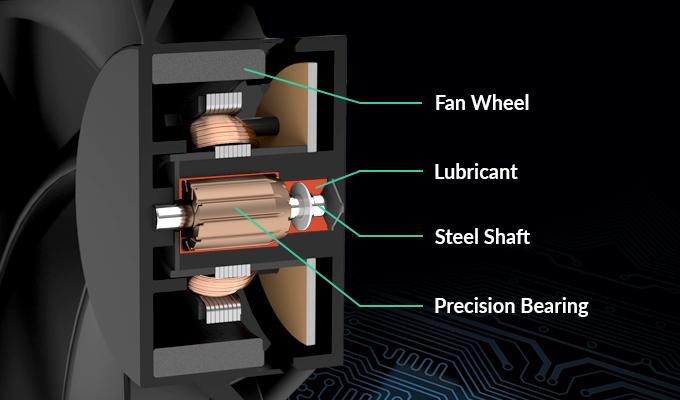

High-Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the
bearing is reduced and greater efficiency is achieved. As a result, there is less heat
development as well as less bearing noise, which means you can enjoy a longer service
life from your fan.
Two Way Installation
- Push warm air out of the case
- Pull cool air into your case
Quality You Can Rely On
To ensure the longevity of our products, we carry out long-term tests under different,
sometimes very adverse conditions. In this way, we learn how to improve our products
for our customers. In addition, the excellent results of long-term testing give us the
assurance that our products are not only outstanding in terms of quality but also
durability. It's a certainty that we are happy to pass on to our customers, which is why
we give a 6-year manufacturer's guarantee on the P12.
Specifications
Performance
| Fan Speed | 1800 rpm | Static Pressure | 2.20 mmH2O |
| Airflow | 56.3 cfm | 95.7 m³/h | Noise Level | 0.3 Sone |
Fan
| Fan Frame | Standard | Fan Bearing | Fluid Dynamic Bearing |
| Control Type | Fixed Speed | Operating Ambient Temperature | 0-40°C |
| Connector | 3-Pin Connector | Warranty | 6 Years |
Electric Characteristics
| Typical Voltage | 12 V DC | Current | Voltage | 0.16 A | 12 V DC |
| Starting Voltage | 2.8 V | Cable Length | 400 mm |
Size & Weight
| Length | 120 mm | Height | 25 mm |
| Width | 120 mm | Weight | 139 g |
