ARCTIC P14
Вентилатор ARCTIC P14, 4-pin, 140 mm
| Гаранция | 72 месеца |
| Размери | 140 x 140 x 27 mm |
| Обороти | до 1700 RPM |
| Ниво на шум | до 23 dBA |
| Въздушен поток | до 72.8 CFM |
| Конектор | 3-pin |
| Reverse | Не |
| Цвят | Черен |
| Подсветка | Не |
Свързани продукти
Вентилаторът гарантира изключително ефективно охлаждане, дори и при повишено въздушно съпротивление. Следователно P14
е особено подходящ за използване върху радиатори.
Optimised for Static Pressure
During the development of the new P14, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 is particularly suitable for use on heatsinks and radiators.

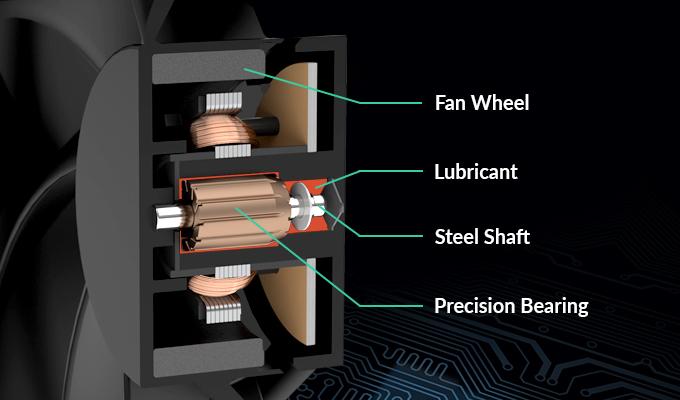

High-Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Two Way Installation
- Push warm air out of the case
- Pull cool air into your case
Quality You Can Rely On
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how to improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality but also durability. It's a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee on the P14.
Specifications
Performance
| Fan Speed | 1700 rpm | Static Pressure | 2.40 mmH2O |
| Airflow | 72.8 cfm | 123.76 m³/h | Noise Level | 0.3 Sone |
Fan
| Fan Frame | Standard | Fan Bearing | Fluid Dynamic Bearing |
| Control Type | Fixed Speed | Operating Ambient Temperature | 0-40°C |
| Connector | 3-Pin Connector | Warranty | 6 Years |
Electric Characteristics
| Typical Voltage | 12 V DC | Current | Voltage | 0.15 A | 12 V DC |
| Starting Voltage | 2.1 V | Cable Length | 400 mm |
Size & Weight
| Length | 140 mm | Height | 27 mm |
| Width | 140 mm | Weight | 191 g |
