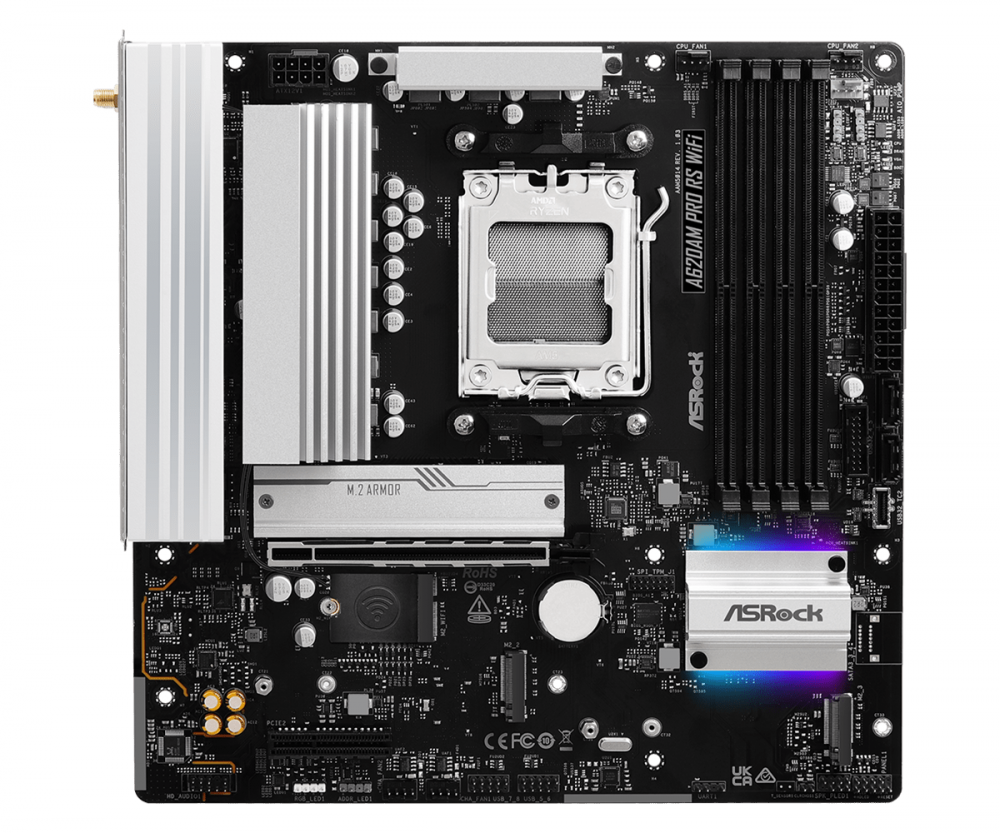

ASRock A620AM Pro RS WiFi
Дънна платка ASRock A620M PRO RS WIFI, AM5
Арт. номер: ASR-MB-A620AM-PRO-RS-WIFI
безплатна доставка
на поръчки над 199 лв.
Технически характеристики
| Гаранция | 36 месеца |
| Сокет | AMD AM5 |
| Форм Фактор | Micro ATX |
| Чипсет | AMD A620A |
| Брой слотове за памет | 4 |
| Капацитет на RAM | до 256 GB |
| Честота на памет | до 7200 MT/s |
| RGB Подсветка | Да |
| Поддържана памет | DDR5 |
| Вграден Wi-Fi | Да |
Свързани продукти
Сокет:
AMD AM5
Форм Фактор:
Micro ATX
Чипсет:
AMD B850
Брой слотове за памет:
2
Капацитет на RAM:
до 128 GB
Сокет:
Intel 1851
Форм Фактор:
Micro ATX
Чипсет:
Intel B860
Брой слотове за памет:
2
Капацитет на RAM:
до 128 GB
Сокет:
Intel 1700
Форм Фактор:
Micro ATX
Чипсет:
Intel B760
Брой слотове за памет:
4
Капацитет на RAM:
до 192 GB
Сокет:
AMD AM5
Форм Фактор:
Micro ATX
Чипсет:
AMD A620A
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
AMD AM5
Форм Фактор:
Micro ATX
Чипсет:
AMD B650
Брой слотове за памет:
2
Капацитет на RAM:
до 128 GB
Сокет:
Intel 1700
Форм Фактор:
ATX
Чипсет:
Intel B760
Брой слотове за памет:
4
Капацитет на RAM:
до 192 GB
Сокет:
AMD AM5
Форм Фактор:
Micro ATX
Чипсет:
AMD B850
Брой слотове за памет:
2
Капацитет на RAM:
до 128 GB
Сокет:
AMD AM5
Форм Фактор:
Micro ATX
Чипсет:
AMD A620A
Брой слотове за памет:
2
Капацитет на RAM:
до 128 GB
Сокет:
Intel 1851
Форм Фактор:
Micro ATX
Чипсет:
Intel B860
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
AMD AM4
Форм Фактор:
Micro ATX
Чипсет:
AMD B550
Брой слотове за памет:
4
Капацитет на RAM:
до 128 GB
Сокет:
AMD AM5
Форм Фактор:
Micro ATX
Чипсет:
AMD A620A
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
AMD AM5
Форм Фактор:
Micro ATX
Чипсет:
AMD B650
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering
lower temperature and higher energy efficiency for memory overclocking!
Thus, it's able to support the latest memory modules with most extreme memory performance!
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details.
This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles.
Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
* There are certain risks involved with memory overclocking and may affect your system’s stability.
Please realize that overclocking should be done at your own risk and expense.
EXPO/XMP profile support may vary by different system configuration, memory modules and motherboard models.
Please refer to Memory QVL for the completed support list.
Wi-Fi 6E 802.11axe
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic.
In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements
of home networking, content creators, online gamers and high-quality streaming media.
Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet,
you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Specifications

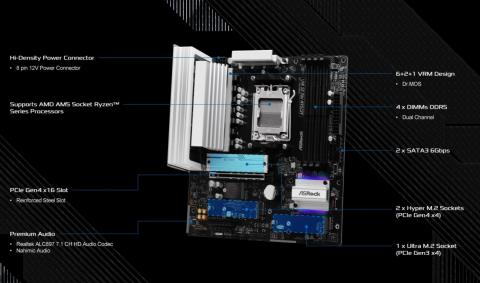

| Unique Feature | Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 6+2+1 Power Phase, Dr.MOS - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| CPU | - Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors |
| Chipset | - AMD A620A |
| Memory | - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC) - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Wireless LAN | - 802.11axe Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe - Supports Dual-Band 2x2 with extended 6GHz band* support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 + High speed class II - Supports MU-MIMO *Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality. |
| Slots | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x2 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slot (PCIE1) * Supports NVMe SSD as boot disks
|
| Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen3x4 (32 Gb/s) mode* - 2 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks
|
| RAID | - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* * Requires additional M.2 NVMe expansion cards to support RAID 10
|
| USB | CPU: - 1 x USB 3.2 Gen1 Type-C (Rear) - 2 x USB 3.2 Gen1 Type-A (2 Rear (USB32_1, USB32_2)) Chipset: - 1 x USB 3.2 Gen1 Type-C (Front) - 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_3), 2 Front) - 8 x USB 2.0 (4 Rear, 4 Front) * All USB ports support ESD Protection
|

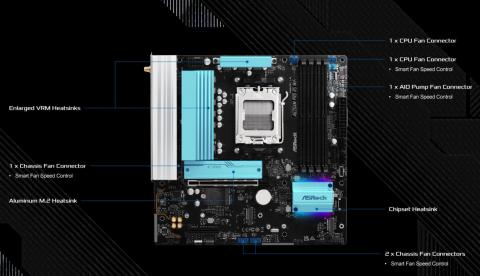

| Connector | - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header * Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). **** CPU_FAN2/WP supports the fan power up to 2A (24W). ***** CHA_FAN1~3/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. |

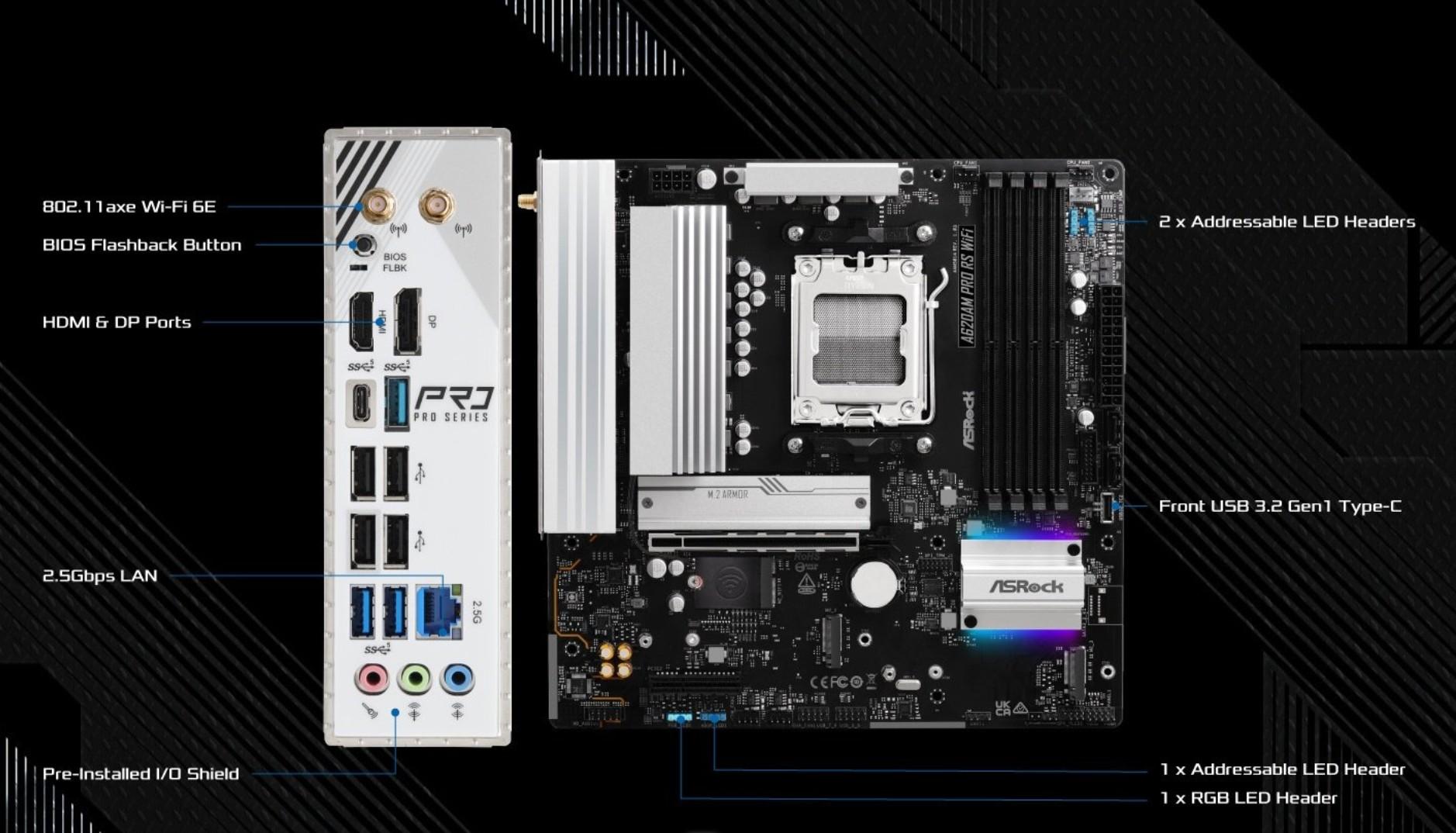

| Rear Panel I/O | - 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 3 x USB 3.2 Gen1 Type-A Ports - 1 x USB 3.2 Gen1 Type-C Port - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
|
| Accessories | - 1 x User Manual - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas - 3 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| OS | - Microsoft Windows 10 64-bit / 11 64-bit |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
