Начало Гейминг хардуер Дънни платки ASRock B760 Pro RS

ASRock B760 Pro RS

Дънна платка ASRock B760 Pro RS, LGA1700, DDR5, ATX

Арт. номер: ASR-MB-B760-PRO-RS

на път

Запитване за ASRock B760 Pro RS

безплатна доставка

на поръчки над 199 лв.

Технически характеристики

Гаранция	36 месеца
Сокет	Intel 1700
Форм Фактор	ATX
Чипсет	Intel B760
Брой слотове за памет	4
Капацитет на RAM	до 192 GB
Честота на памет	до 7200 MT/s
RGB Подсветка	Да
Поддържана памет	DDR5
Вграден Wi-Fi	Не

Свързани продукти

ASRock B760M Pro RS

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel B760

Брой слотове за памет: 4

Капацитет на RAM: до 192 GB

ASRock B850M-X WiFi R2.0

Сокет: AMD AM5

Форм Фактор: Micro ATX

Чипсет: AMD B850

Брой слотове за памет: 2

Капацитет на RAM: до 128 GB

ASRock B860M-X

Сокет: Intel 1851

Форм Фактор: Micro ATX

Чипсет: Intel B860

Брой слотове за памет: 2

Капацитет на RAM: до 128 GB

ASRock B860M Pro-A

Сокет: Intel 1851

Форм Фактор: Micro ATX

Чипсет: Intel B860

Брой слотове за памет: 4

Капацитет на RAM: до 256 GB

ASRock B850M-X

Сокет: AMD AM5

Форм Фактор: Micro ATX

Чипсет: AMD B850

Брой слотове за памет: 2

Капацитет на RAM: до 128 GB

ASRock A620AM Pro RS WiFi

Сокет: AMD AM5

Форм Фактор: Micro ATX

Чипсет: AMD A620A

Брой слотове за памет: 4

Капацитет на RAM: до 256 GB

ASRock B650M Pro RS

Сокет: AMD AM5

Форм Фактор: Micro ATX

Чипсет: AMD B650

Брой слотове за памет: 4

Капацитет на RAM: до 256 GB

ASRock A620AM Pro-A WiFi

Сокет: AMD AM5

Форм Фактор: Micro ATX

Чипсет: AMD A620A

Брой слотове за памет: 4

Капацитет на RAM: до 256 GB

ASRock B650M-HDV/M.2

Сокет: AMD AM5

Форм Фактор: Micro ATX

Чипсет: AMD B650

Брой слотове за памет: 2

Капацитет на RAM: до 128 GB

ASRock B850M Pro RS

Сокет: AMD AM5

Форм Фактор: Micro ATX

Чипсет: AMD B850

Брой слотове за памет: 4

Капацитет на RAM: до 256 GB

ASRock A620AM-X WiFi

Сокет: AMD AM5

Форм Фактор: Micro ATX

Чипсет: AMD A620A

Брой слотове за памет: 2

Капацитет на RAM: до 128 GB

ASRock B550M Pro4

Сокет: AMD AM4

Форм Фактор: Micro ATX

Чипсет: AMD B550

Брой слотове за памет: 4

Капацитет на RAM: до 128 GB

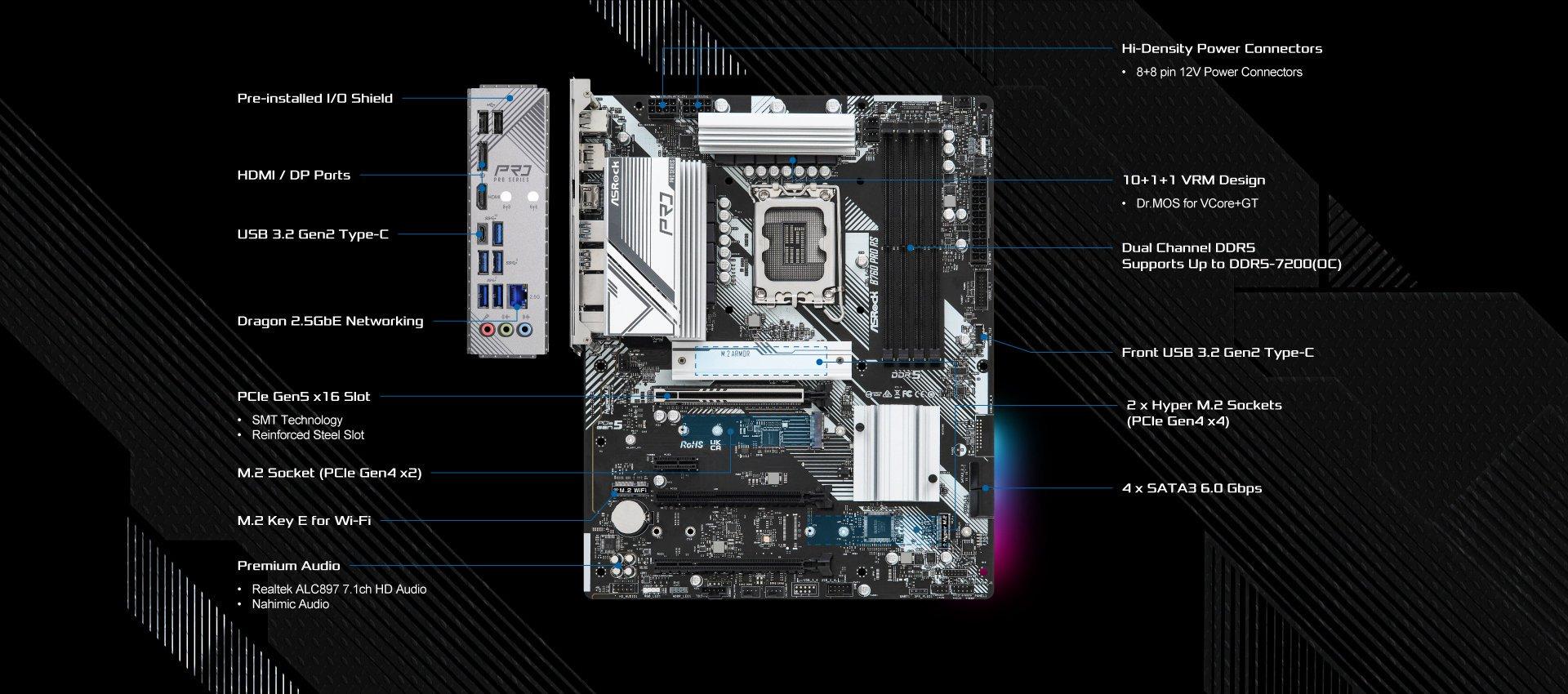

Дънна платка ASRock B760 Pro RS, LGA1700, DDR5, ATX

Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
10+1+1 Power Phase, Dr.MOS for VCore+GT
Supports DDR5 7200MHz (OC)
1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16,
1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
Graphics Output Options: HDMI, DisplayPort, eDP
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 2 Hyper M.2 (PCIe Gen4x4),
1 M.2 (PCIe Gen4x2)
2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),
1 USB 3.2 Gen2 Type-A (Rear),
6 USB 3.2 Gen1 (4 Rear, 2 Front),
4 USB 2.0 (2 Rear, 2 Front)
Dragon 2.5G LAN
Supports ASRock Auto Driver Installer

Specifications

Unique Feature	Superb Productivity - PCIe Gen5 (Graphics) - Dual Channel DDR5 Rock-Solid Durability - 10+1+1 Power Phase, 50A Dr.MOS for VCore+GT - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
CPU	- Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology - Supports Intel Thermal Velocity Boost (TVB) - Supports Intel Adaptive Boost Technology (ABT)
Chipset	- Intel B760
Memory	- Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* - Max. capacity of system memory: 192GB - Supports Intel Extreme Memory Profile (XMP) 3.0 *1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
BIOS	- 128Mb AMI UEFI Legal BIOS with GUI support
Graphics	- Intel Xe Graphics Architecture (Gen 12) - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz *Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio
LAN	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control
Slots	CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* - 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode* - 1 x PCIe 3.0 x1 Slot (PCIE2)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire *Supports NVMe SSD as boot disks
Storage	CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors *Supports Intel Volume Management Device (VMD) Supports NVMe SSD as boot disks
RAID	- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	- 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front) - 1 x USB 3.2 Gen2 Type-A (Rear) - 6 x USB 3.2 Gen1 (4 Rear, 2 Front) - 4 x USB 2.0 (2 Rear, 2 Front) * All USB ports support ESD Protection
Connector	- 1 x eDP Signal Connector - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 2 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) Support in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2/WP supports the fan power up to 2A (24W). ***CHA_FAN1~5/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O	- 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 4 x USB 3.2 Gen1 Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI	Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories	- 1 x User Manual - 2 x SATA Data Cables - 4 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket
Form Factor	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
OS	- Microsoft Windows 10 64-bit / 11 64-bit
Certifications	- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
