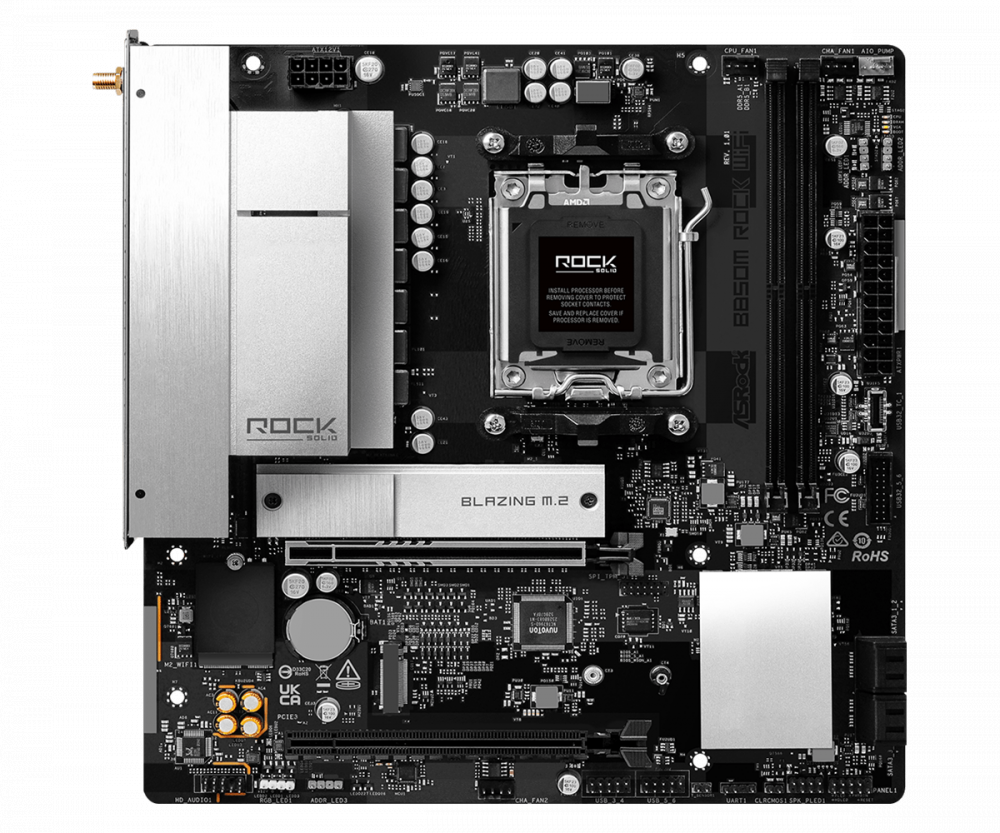

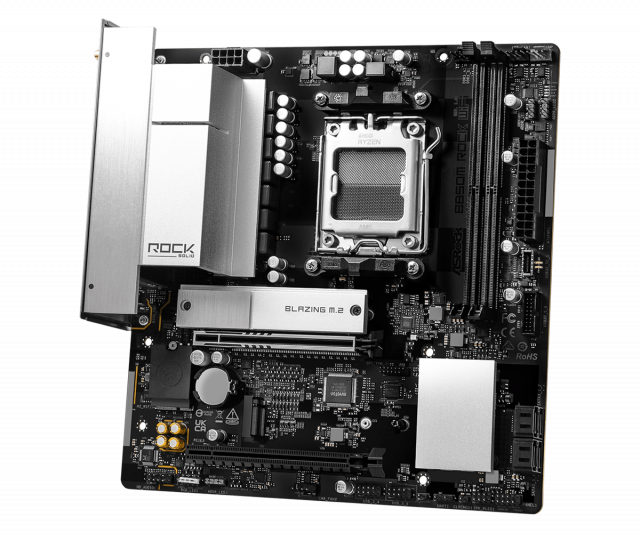

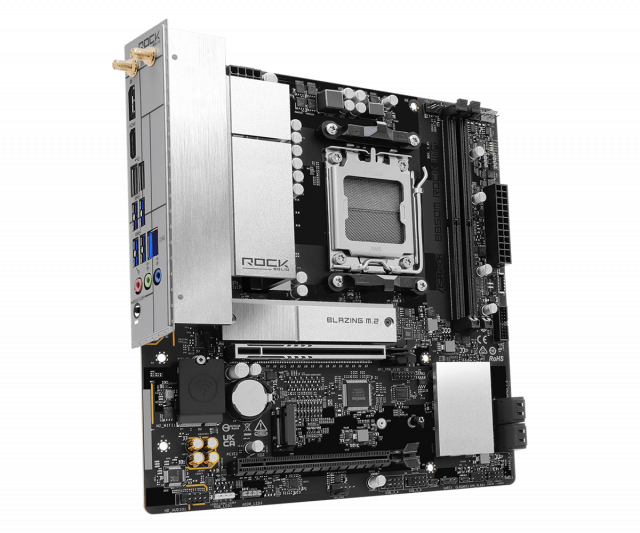

ASRock B850M Rock WiFi

Name: ASRock B850M Rock WiFi
Brand: ASROCK
SKU: ASR-MB-B850M-ROCK-WF
Price: 135.83 EUR
Availability: InStock

Дънна платка ASRock B850M ROCK WIFI socket AM5

Арт. номер: ASR-MB-B850M-ROCK-WF

наличен

Виж наличност

Gplay София

Склад Шереметя

Запитване за ASRock B850M Rock WiFi

безплатна доставка

на поръчки над 100 EUR

Технически характеристики

Гаранция	36 месеца
Сокет	AMD AM5
Форм Фактор	Micro ATX
Чипсет	AMD B850
Брой слотове за памет	2
Капацитет на RAM	до 128 GB
Честота на памет	до 8200 MT/s
RGB Подсветка	Не
Поддържана памет	DDR5
Вграден Wi-Fi	Да

Комплект

AMD Ryzen 7 7700 Tray

ASRock B850M Rock WiFi

Свързани продукти

ASRock B850M Challenger

Сокет: AMD AM5

Форм Фактор: Micro ATX

Чипсет: AMD B850

Брой слотове за памет: 4

Капацитет на RAM: до 256 GB

ASRock B850M Pro RS

Сокет: AMD AM5

Форм Фактор: Micro ATX

Чипсет: AMD B850

Брой слотове за памет: 4

Капацитет на RAM: до 256 GB

ASRock B850M Pro RS WiFi

Сокет: AMD AM5

Форм Фактор: Micro ATX

Чипсет: AMD B850

Брой слотове за памет: 4

Капацитет на RAM: до 256 GB

ASRock B860M Pro-A

Сокет: Intel 1851

Форм Фактор: Micro ATX

Чипсет: Intel B860

Брой слотове за памет: 4

Капацитет на RAM: до 256 GB

0% лихва за 6 месеца

ASRock B850M Challenger WiFi

Сокет: AMD AM5

Форм Фактор: Micro ATX

Чипсет: AMD B850

Брой слотове за памет: 4

Капацитет на RAM: до 256 GB

ASRock B650M Pro RS

Сокет: AMD AM5

Форм Фактор: Micro ATX

Чипсет: AMD B650

Брой слотове за памет: 4

Капацитет на RAM: до 256 GB

ASRock B860M-X

Сокет: Intel 1851

Форм Фактор: Micro ATX

Чипсет: Intel B860

Брой слотове за памет: 2

Капацитет на RAM: до 128 GB

0% лихва за 6 месеца

ASRock B860 Rock WiFi 7

Сокет: Intel 1851

Форм Фактор: ATX

Чипсет: Intel B860

Брой слотове за памет: 4

Капацитет на RAM: до 256 GB

ASRock B760 Pro RS

Сокет: Intel 1700

Форм Фактор: ATX

Чипсет: Intel B760

Брой слотове за памет: 4

Капацитет на RAM: до 192 GB

ASRock B760M Pro RS

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel B760

Брой слотове за памет: 4

Капацитет на RAM: до 192 GB

0% лихва за 6 месеца

ASRock B850 Pro-A

Сокет: AMD AM5

Форм Фактор: ATX

Чипсет: AMD B850

Брой слотове за памет: 4

Капацитет на RAM: до 256 GB

0% лихва за 6 месеца

ASRock B850M Challenger WiFi White

Сокет: AMD AM5

Форм Фактор: Micro ATX

Чипсет: AMD B850

Брой слотове за памет: 4

Капацитет на RAM: до 256 GB

Specifications

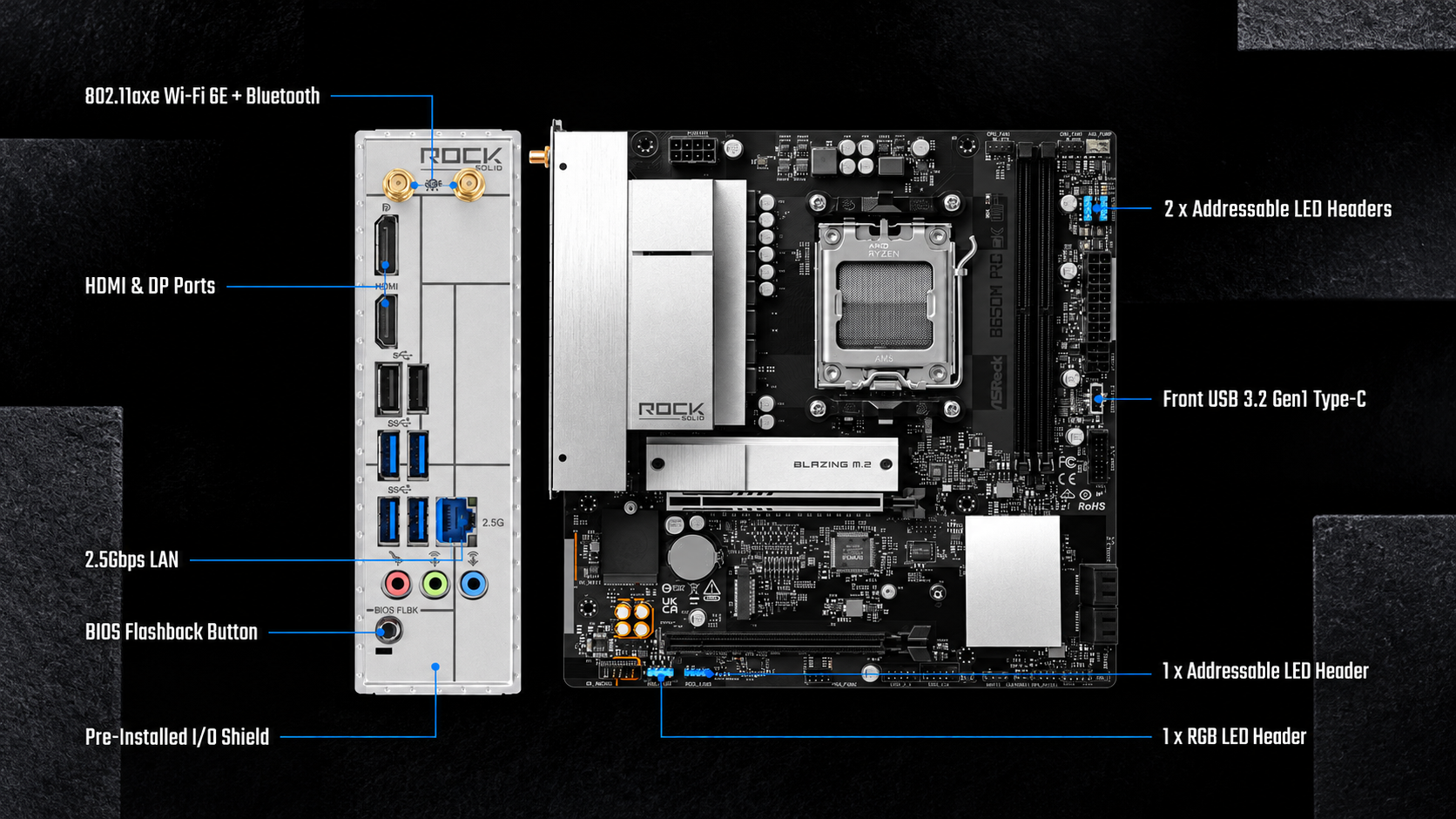

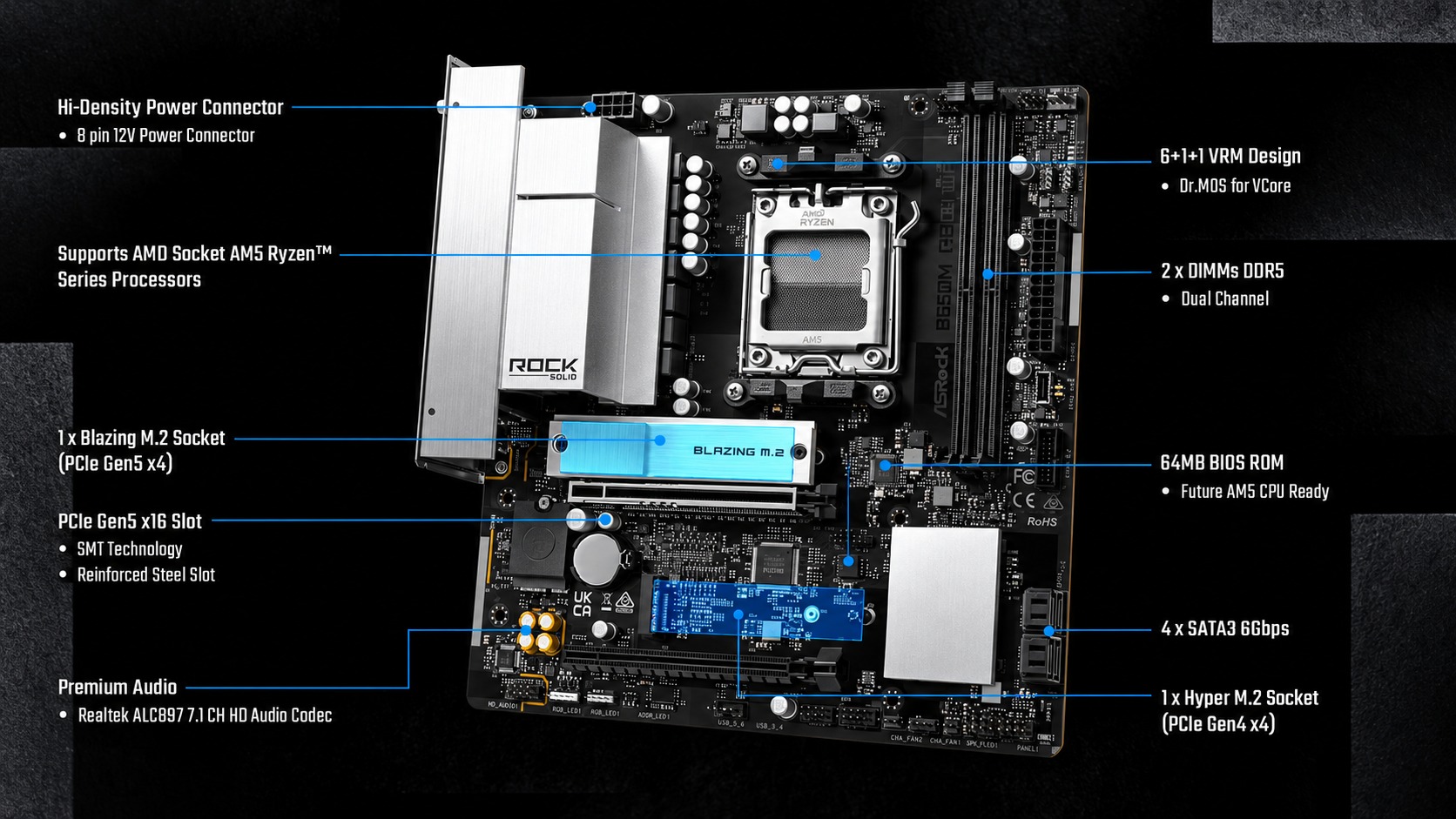

Unique Feature	Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 Rock-Solid Durability - 6+1+1 Power Phase, Dr.MOS for VCore - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
CPU	- Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors* *The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
Chipset	- AMD B850
Memory	- Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)* - Max. capacity of system memory: 128GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules *Please refer to Memory Support List on ASRock's website for more information.
BIOS	- 512Mb AMI UEFI Legal BIOS with GUI support
Graphics	Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control
Wireless LAN	- 802.11axe Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe - Supports Dual-Band 2x2 with extended 6GHz band support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.3 - Supports MU-MIMO *Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available. A 6GHz compatible router is required for 6E functionality.
Slots	CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module * PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. If M2_3 is occupied, PCIE2 will be disabled. Supports NVMe SSD as boot disks
Storage	CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 4 x SATA3 6.0 Gb/s Connectors *Supports NVMe SSD as boot disks M2_1 is the first priority for M.2 installation. M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. M2_2 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors.
RAID	- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* *Requires additional M.2 NVMe expansion cards to support RAID 10
USB	CPU: - 3 x USB 3.2 Gen1 Type-A (Rear (USB32_2 and USB32_34)) - 1 x USB 2.0 (Rear (USB_2)) Chipset: - 1 x USB 3.2 Gen1 Type-C (Front) - 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_1), 2 Front) - 5 x USB 2.0 (1 Rear (USB_1), 4 Front) * All USB ports support ESD Protection

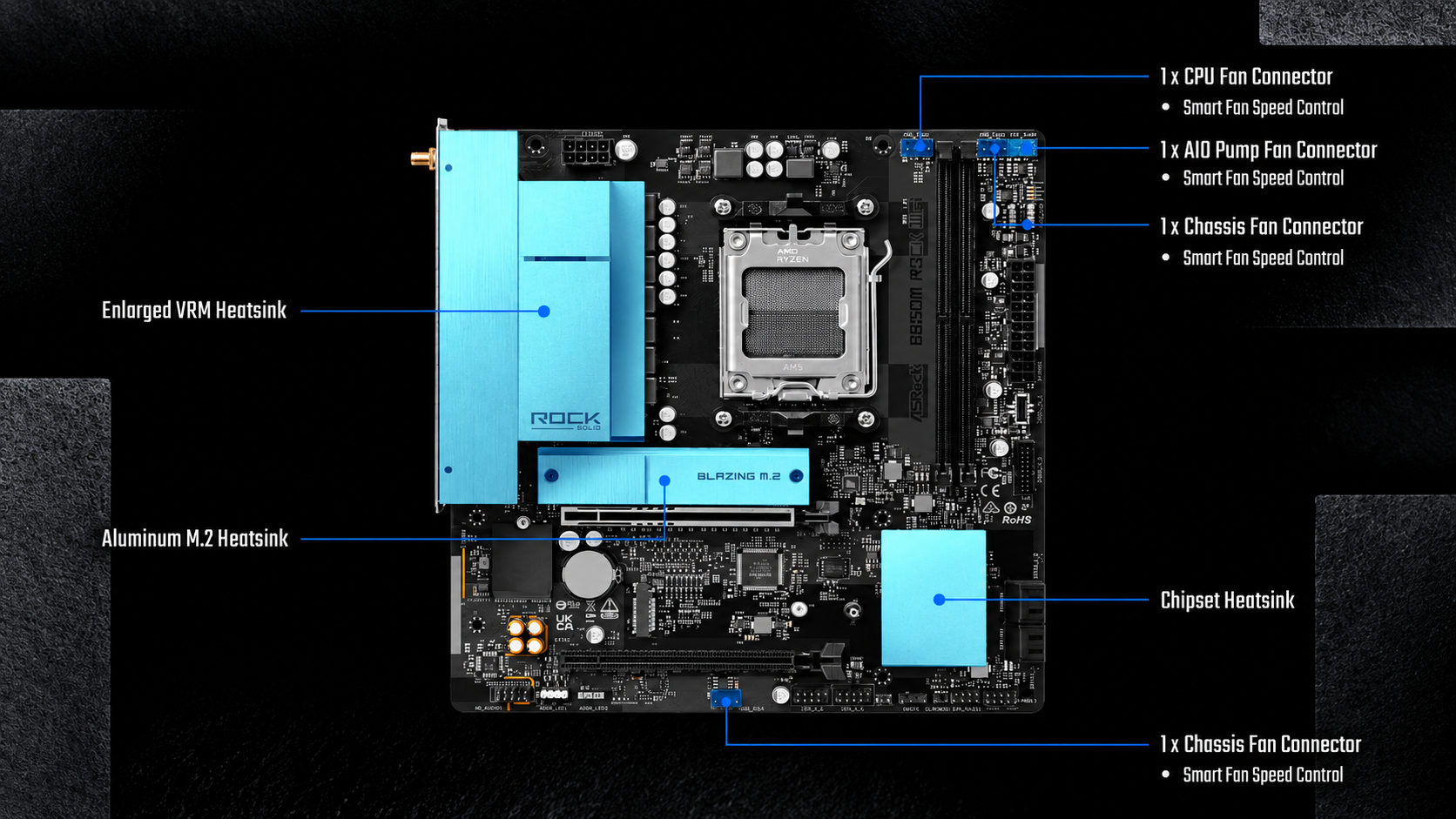

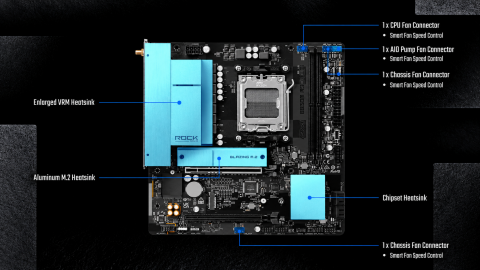

Connector	- 1 x Thermistor Cable Header - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)* - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)** - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header Supports in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip CPU_FAN1 supports the fan power up to 1A (12W). **CHA_FAN1, CHA_FAN2 and AIO_PUMP support the fan power up to 3A (36W). CHA_FAN1, CHA_FAN2 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

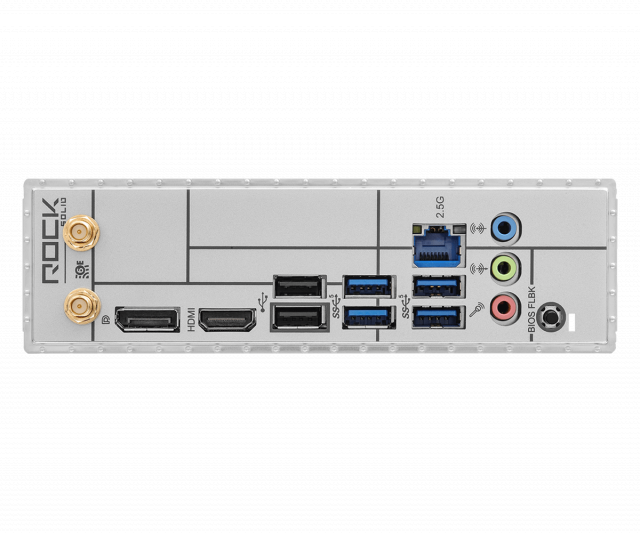

Rear Panel I/O	- 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 4 x USB 3.2 Gen1 Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI	Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.

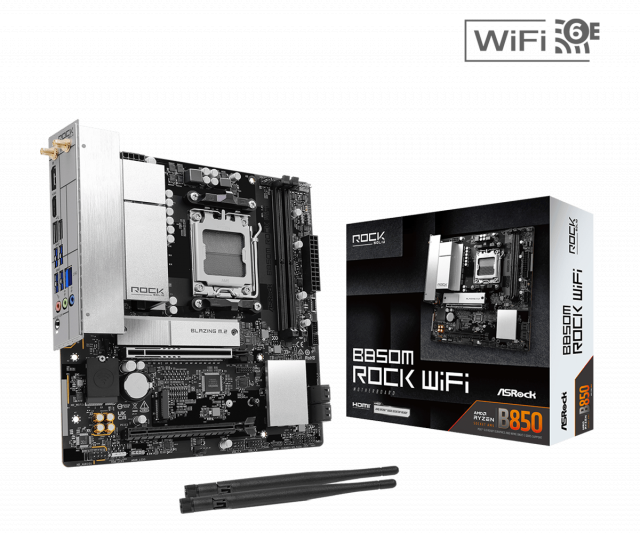

Accessories	- 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas
Form Factor	- Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
OS	- Microsoft Windows 10 64-bit / 11 64-bit
Certifications	- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
