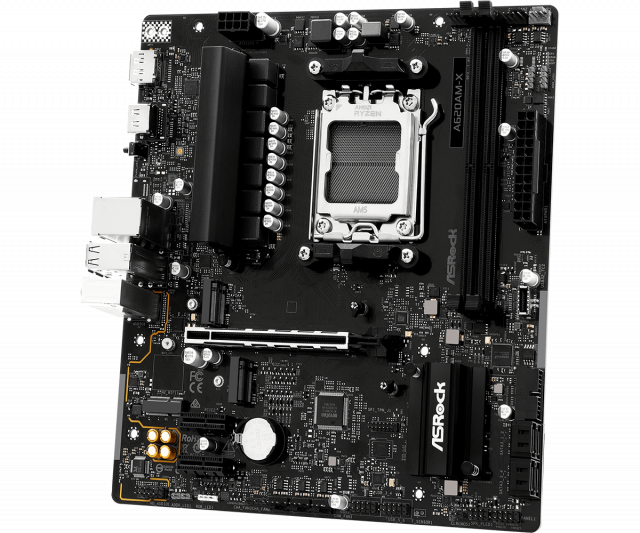

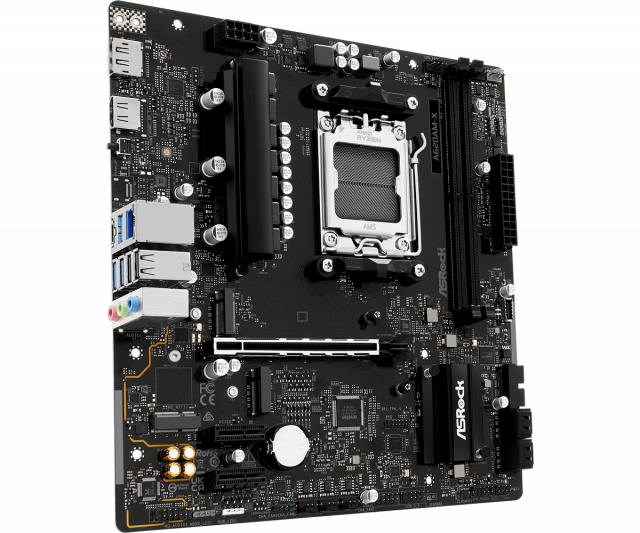

ASRock A620AM-X
Дънна платка ASRock A620AM-X, AM5
Арт. номер: ASR-MB-A620AM-X
безплатна доставка
на поръчки над 199 лв.
Технически характеристики
| Гаранция | 36 месеца |
| Сокет | AMD AM5 |
| Форм Фактор | Micro ATX |
| Чипсет | AMD A620A |
| Брой слотове за памет | 2 |
| Капацитет на RAM | до 128 GB |
| Честота на памет | до 8000 MT/s |
| RGB Подсветка | Не |
| Поддържана памет | DDR5 |
| Вграден Wi-Fi | Не |
Свързани продукти
Сокет:
AMD AM5
Форм Фактор:
Micro ATX
Чипсет:
AMD B650
Брой слотове за памет:
2
Капацитет на RAM:
до 128 GB
Сокет:
AMD AM4
Форм Фактор:
Micro ATX
Чипсет:
AMD B550
Брой слотове за памет:
4
Капацитет на RAM:
до 128 GB
Сокет:
Intel 1851
Форм Фактор:
Micro ATX
Чипсет:
Intel H810
Брой слотове за памет:
2
Капацитет на RAM:
до 128 GB
Сокет:
Intel 1700
Форм Фактор:
Micro ATX
Чипсет:
Intel B760
Брой слотове за памет:
2
Капацитет на RAM:
до 64 GB
Сокет:
AMD AM5
Форм Фактор:
Micro ATX
Чипсет:
AMD A620A
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
AMD AM4
Форм Фактор:
Micro ATX
Чипсет:
AMD B550
Брой слотове за памет:
4
Капацитет на RAM:
до 128 GB
Сокет:
AMD AM5
Форм Фактор:
Micro ATX
Чипсет:
AMD A620A
Брой слотове за памет:
2
Капацитет на RAM:
до 128 GB
Сокет:
AMD AM5
Форм Фактор:
Micro ATX
Чипсет:
AMD A620
Брой слотове за памет:
2
Капацитет на RAM:
до 64 GB
Сокет:
AMD AM4
Форм Фактор:
ATX
Чипсет:
AMD B450
Брой слотове за памет:
4
Капацитет на RAM:
до 128 GB
Сокет:
AMD AM5
Форм Фактор:
Micro ATX
Чипсет:
AMD B650
Брой слотове за памет:
2
Капацитет на RAM:
до 128 GB
Сокет:
AMD AM5
Форм Фактор:
Micro ATX
Чипсет:
AMD A620A
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
Intel 1700
Форм Фактор:
Micro ATX
Чипсет:
Intel H610
Брой слотове за памет:
2
Капацитет на RAM:
до 96 GB
The ASRock X-Series motherboard provides a high-value solution, balancing performance and versatility within a compact form factor. It’s highly capable in handling a wide range of tasks, from professional productivity to everyday usage, striking an excellent balance between affordability, reliability, and efficiency.

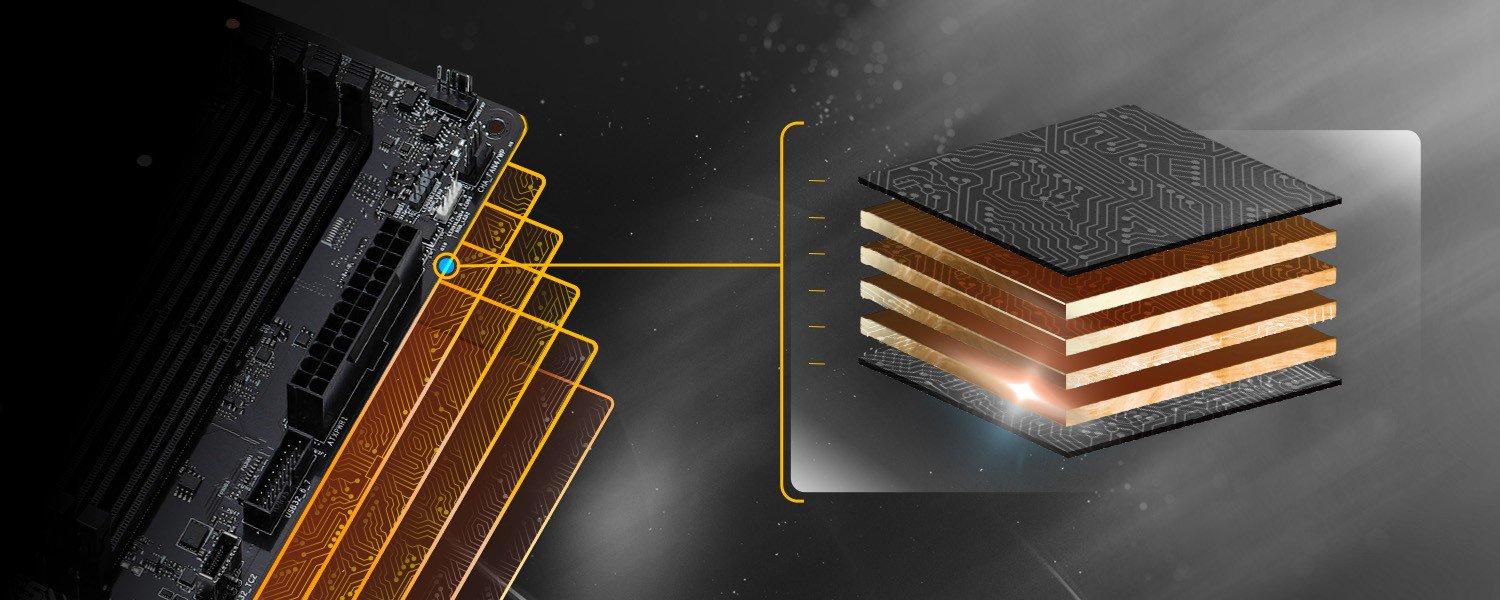

6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering
lower temperature and higher energy efficiency for memory overclocking!
Thus, it's able to support the latest memory modules with most extreme memory performance!
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details.
This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles.
Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
* There are certain risks involved with memory overclocking and may affect your system’s stability.
Please realize that overclocking should be done at your own risk and expense.
EXPO/XMP profile support may vary by different system configuration, memory modules and motherboard models.
Please refer to Memory QVL for the completed support list.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements
of home networking, content creators, online gamers and high-quality streaming media.
Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet,
you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Specifications

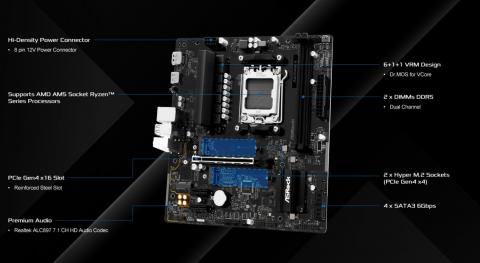

| Unique Feature | Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 6+1+1 Power Phase, Dr.MOS for VCore Ultrafast Connectivity - 2.5G LAN EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| CPU | - Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors* *Please refer to CPU Support List on ASRock's website for more information. https://www.asrock.com/MB/AMD/A620AM-X/index.asp#CPU |
| Chipset | - AMD A620A |
| Memory | - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)* - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules *Please refer to Memory Support List on ASRock's website for more information. |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Slots |
CPU: *Supports NVMe SSD as boot disks
|
| Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 4 x SATA3 6.0 Gb/s Connectors *Supports NVMe SSD as boot disks
|
| RAID | - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* * Requires additional M.2 NVMe expansion cards to support RAID 10
|
| USB | CPU: - 3 x USB 3.2 Gen1 Type-A (Rear) Chipset: - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) - 2 x USB 3.2 Gen1 Type-A (Front) - 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection
|
| Connector | - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header * Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W).
**** CHA_FAN1~3/WP support the fan power up to 2A (24W).
CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
|

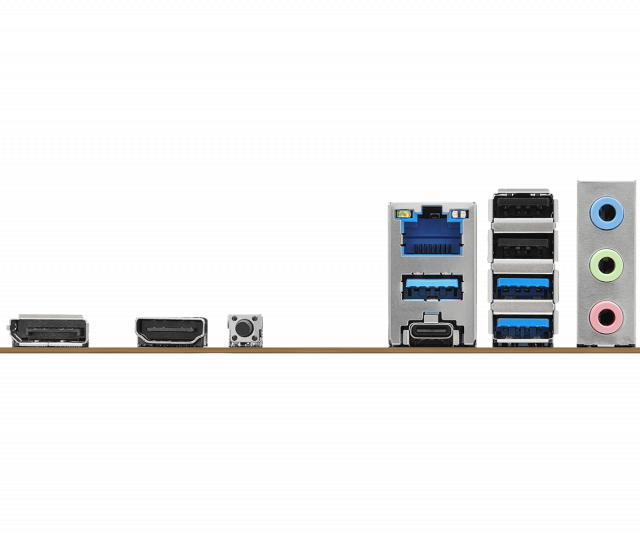

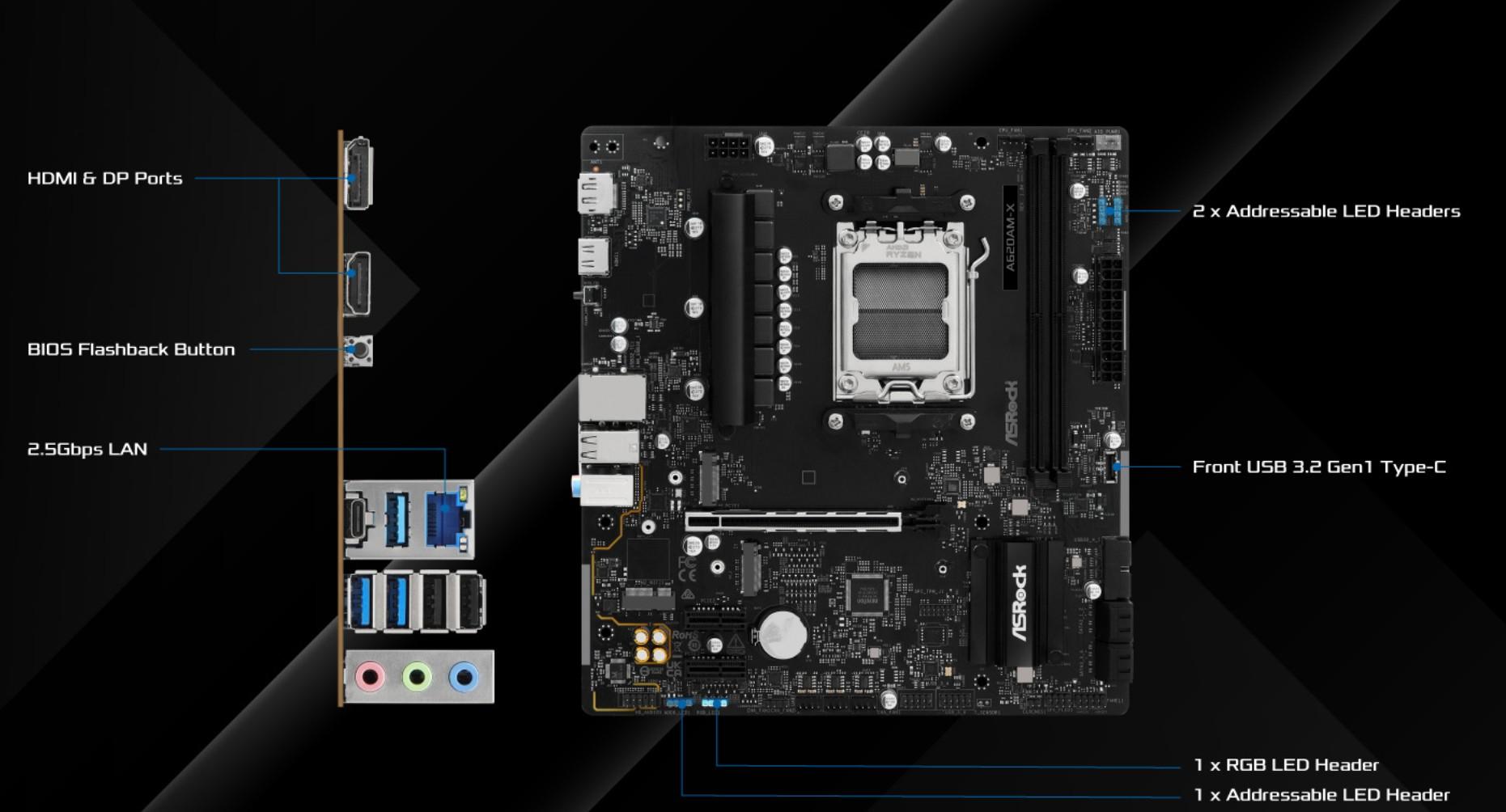

| Rear Panel I/O | - 2 x Antenna Mounting Points - 1 x HDMI Port - 3 x USB 3.2 Gen1 Type-A Ports - 1 x USB 3.2 Gen1 Type-C Port - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
|
| Accessories | - 1 x User Manual - 1 x I/O Shield - 2 x SATA Data Cables - 3 x Screws for M.2 Sockets |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm |
| OS | - Microsoft Windows 10 64-bit / 11 64-bit |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
