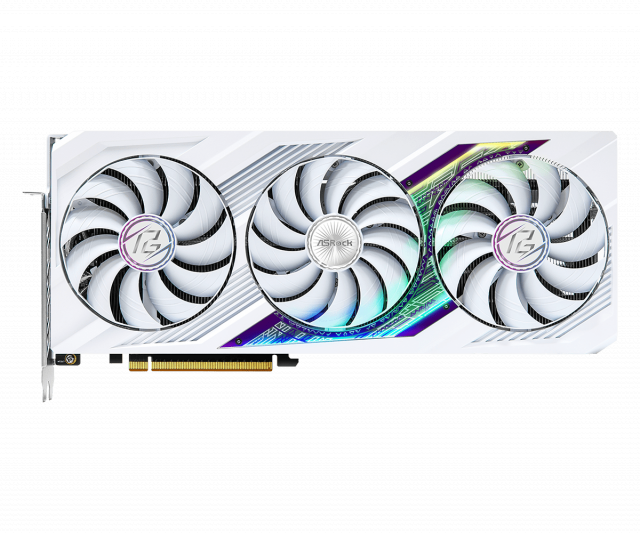

ASRock AMD Radeon RX 7900 XT Phantom Gaming White 20GB OC
Видео карта ASROCK AMD RADEON RX 7900 XT Phantom Gaming White OC 20GB GDDR6
Арт. номер: ASR-VC-RX7900XT-PGW-20GO
безплатна доставка
на поръчки над 199 лв.
Технически характеристики
| Гаранция | 36 месеца |
| Памет | 20 GB |
| Ядра | 5376 Stream |
| Честота | 2075 MHz |
| Шина | 320 bit |
| Изходи | HDMI, DisplayPort |
| Тип на паметта | GDDR6 |
| Серия | RX 7000 Series |
Свързани продукти
Памет:
24 GB
Ядра:
6144 Stream
Честота:
2680 MHz
Шина:
384 bit
Изходи:
HDMI, DisplayPort
Памет:
24 GB
Ядра:
6144 Stream
Честота:
2455 MHz
Шина:
384 bit
Изходи:
HDMI, DisplayPort
Памет:
16 GB
Ядра:
4096 Stream
Честота:
2570 MHz
Шина:
256 bit
Изходи:
HDMI, DisplayPort
Памет:
16 GB
Ядра:
4096 Stream
Честота:
2400 MHz
Шина:
256 bit
Изходи:
HDMI, DisplayPort
Памет:
16 GB
Ядра:
4096 Stream
Честота:
2400 MHz
Шина:
256 bit
Изходи:
HDMI, DisplayPort
Памет:
16 GB
Ядра:
3584 Stream
Честота:
2070 MHz
Шина:
256 bit
Изходи:
HDMI, DisplayPort
Памет:
32 GB
Ядра:
4096 Stream
Честота:
2350 MHz
Шина:
256 bit
Изходи:
DisplayPort
Памет:
16 GB
Ядра:
2048 Stream
Честота:
2780 MHz
Шина:
128 bit
Изходи:
HDMI, DisplayPort
Памет:
16 GB
Ядра:
2048 Stream
Честота:
2700 MHz
Шина:
128 bit
Изходи:
HDMI, DisplayPort
Памет:
8 GB
Ядра:
2048 Stream
Честота:
2700 MHz
Шина:
128 bit
Изходи:
HDMI, DisplayPort
Памет:
12 GB
Ядра:
160 XMX
Честота:
2800 MHz
Шина:
192 bit
Изходи:
HDMI, DisplayPort
Памет:
8 GB
Ядра:
2048 Stream
Честота:
2320 MHz
Шина:
128 bit
Изходи:
HDMI, DisplayPort
AMD Radeon RX 7900 XT Phantom Gaming White 20GB OC
PRODUCT BRIEF:
- Clock: GPU / Memory
Boost Clock*: Up to 2450MHz / 20Gbps
Game Clock**: 2075MHz / 20Gbps - Key Specification
AMD Radeon RX 7900 XT GPU
20GB GDDR6 on 320-Bit Memory Bus
84 AMD RDNA 3 Compute Units (With Rt+Ai Accelerators)
80MB AMD Infinity Cache Technology
PCI Express 4.0 Support
2 x 8-pin Power Connectors
3 x DisplayPort 2.1 / 1 x HDMI 2.1 - Key Features
Polychrome SYNC
Phantom Gaming 3X Cooling System
Striped Ring Fan
Reinforced Metal Frame
Stylish Metal Backplate
0dB Silent Cooling
Super Alloy Graphics Card
Reverse SpinThe center fan spins reversely to lower turbulence and enhance air dispersion through the heatsink.
|
Phantom Gaming 3X Cooling SystemFor Cool And Silent.Crafted for the best balance between the thermal efficiency and silence by all the details.
|
Striped Ring FanDesigned For Enhanced AirflowASRock’s all new Striped Ring Fan get more lateral intake and to provide
better airflow through the cooling array. |
|
|
Air Deflecting FinGuide Airflow to Go Through Regularly & Quickly.Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
|
Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others
and also the GPU baseplate for the optimized heat dissipation.
and also the GPU baseplate for the optimized heat dissipation.
Nickel-plated Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the
GPU would be maximized to improve thermal transfer effectively.
GPU would be maximized to improve thermal transfer effectively.
High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins,
hence improve heat dissipation effectively.
hence improve heat dissipation effectively.
Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad
Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to
optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Polychrome SYNC
Create your own unique colorful light effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be
synchronized with your ASRock motherboards that support Polychrome SYNC.
synchronized with your ASRock motherboards that support Polychrome SYNC.
LED On/Off Switch
On or Off? Switch as You Want.
You can switch not only the built-in ARGB LEDs but also the ARGB LEDs
equipping with the connected strips/devices at once.
equipping with the connected strips/devices at once.
Reinforced Metal Frame
Be solid. No sag.
Enhances the structure to prevent the PCB from being bent.
Stylish Metal Backplate
Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance
cooling with the premium thermal pads equipped backside.
cooling with the premium thermal pads equipped backside.
Japanese SP-Cap |
SPS (Smart Power Stage) |
Premium 100A Power Choke |
 |
 |
 |
| With a high conductive polymer as the electrolyte, it has a lower equivalent series resistance (ESR) to provide outstanding electrical characteristics. In addition to that, it also has excellence in product operational life, reliability and heat resistance. | Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the GPU with enhanced performance and OC capability. | Compared to traditional chokes, ASRock’s premium 100A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card. |
2oz Copper PCB |
Matte Black PCB |
High Density Glass Fabric PCB |
 |
 |
 |
| Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking. | A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card. | High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity. |
ASRock Tweak 2.0
Pro and Easy-to-Use Tuning Utility.
Provides the smart fan speed control and instant performance tweaking.
8K Resolution Support
Not only can it handles 4K graphics but also supports the next
generation 8K video output for the ultimate visual experience.
generation 8K video output for the ultimate visual experience.
PCI Express 4.0 Support
This graphics card features PCI Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth
compared to PCI Express 3.0. Get ready for the next generation of PC gaming.
compared to PCI Express 3.0. Get ready for the next generation of PC gaming.
Experience unprecedented performance, visuals, and efficiency at 4K and beyond with AMD Radeon RX 7000 Series, the world’s first gaming GPUs powered by AMD RDNA 3 chiplet technology. Immerse yourself in breathtaking visuals with the pinpoint color accuracy of AMD Radiance Display Engine and boost frame rates with AMD FidelityFX Super Resolution and Radeon Super Resolution upscaling technologies. To unlock even more performance, combine AMD Radeon RX 7000 Series graphics and compatible AMD Ryzen processors to activate AMD smart technologies.
BREAKTHROUGH PERFORMANCEAMD Radeon RX 7000 Series graphics cards set a new standard for ultra-enthusiast class gaming performance. Featuring advanced AMD RDNA 3 compute units, blazing fast clock speeds, and chiplet technology to enable fluid, high-refresh rate gaming experiences. Breakthrough new levels of performance with up to 24GB of GDDR6 memory and 2nd generation AMD Infinity Cache to deliver an incredible experience at 4K and beyond.
|
BREATHTAKING VISUALS
Discover new levels of fidelity and ultra-fast gameplay with High-Performance Rendering, a combination of compute-based AMD FideltyFX features and upscaling technologies, to deliver world-class visuals with remarkable performance. Further immerse yourself with the AMD Radiance Display Engine and DisplayPort 2.1 to experience up to 68 billion colors at up to 8K 165Hz.
BETTER TOGETHERCombine AMD Radeon RX 7000 Series graphics cards and AMD Ryzen processors to activate AMD smart technologies. You can unleash outstanding performance to give you an edge in the game. Advance your AMD Radeon RX 7000 Series GPU with the AMD Software: Adrenalin Edition application, featuring bulletproof drivers, for the best PC gaming experiences.
|
UPSIZE PERFORMANCE.
MAXIMIZE FIDELITY
AMD FidelityFX Super Resolution technology takes upscaling
technology to the next level. Providing incredible image quality
while boosting framerates in supported games.
technology to the next level. Providing incredible image quality
while boosting framerates in supported games.
AMD Radeon Super Resolution (RSR) leverages FSR technology
on the driver level, giving you upscaled performance benefits
across thousands of games.
Specification
| Graphics Engine | AMD Radeon RX 7900 XT | Resolution | Digital Max Resolution: 7680 x 4320 |
| Bus Standard | PCI Express4.0 x16 | Interface | 3 x DisplayPort 2.1* 1 x HDMI 2.1 *DisplayPort (DP) 2.1 on any one or two ports. DisplayPort (DP) 1.4a on any and up to 4 ports simultaneously.
|
| DirectX | 12 Ultimate | HDCP | Yes |
| OpenGL | 4.6 | Multi-view | 4 |
| Memory | GDDR6 20GB | Recommended PSU | 750W |
| Engine Clock | Boost Clock*: Up to 2450 MHz Game Clock**: 2075 MHz *Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
**Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. |
Power Connector | 2 x 8-pin |
| Stream Processors | 5376 | Accessories | 1 x Quick Installation Guide |
| Memory Clock | 20 Gbps | Dimensions | 330 x 140 x 57.6 mm, 2.8-slot |
| Memory Interface | 320-bit | Net Weight | 1450 g |
