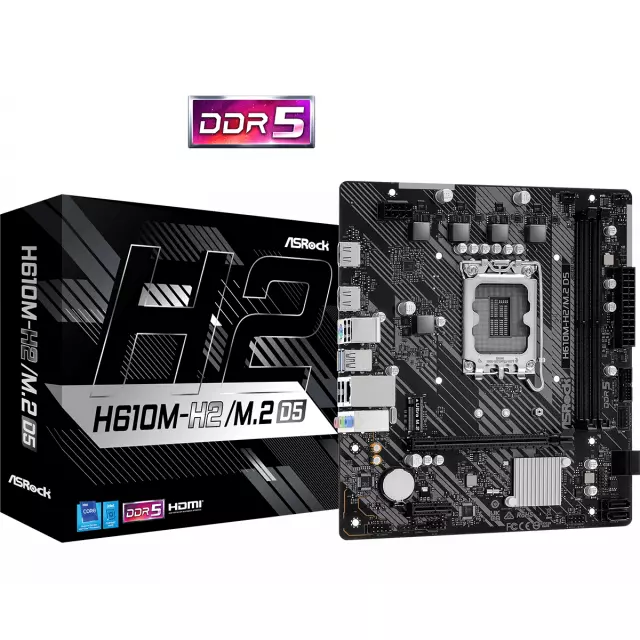

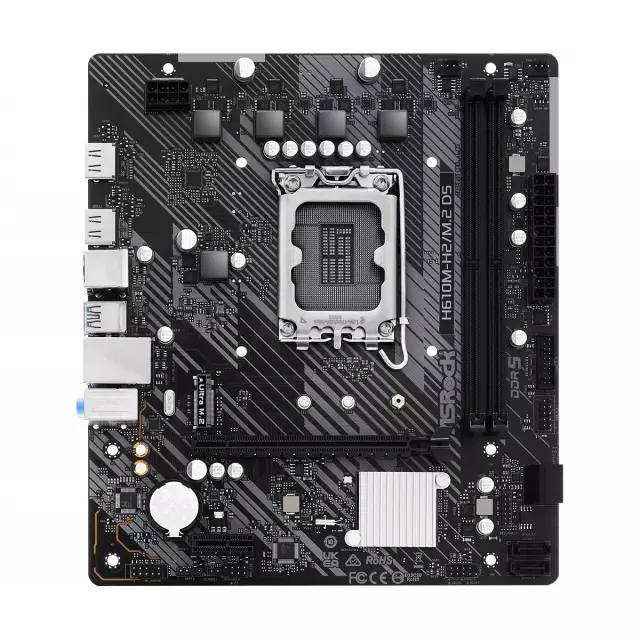

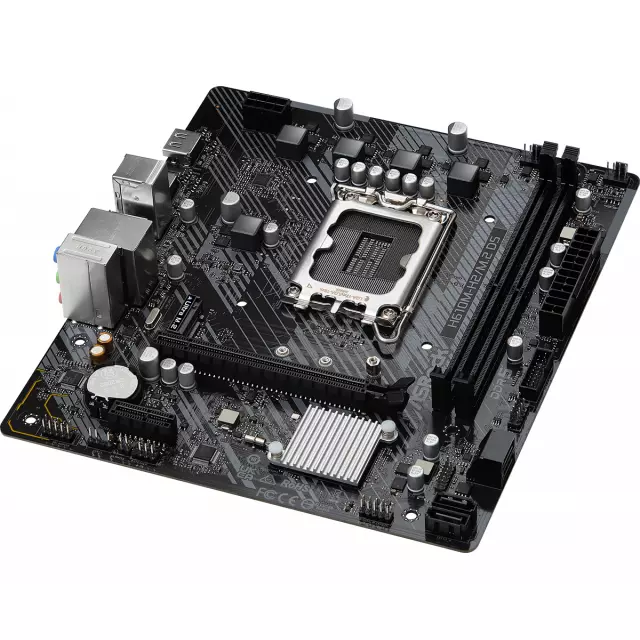

ASRock H610M-H2/M.2 D5
Дънна платка ASRock H610M-H2/M.2 D5, LGA1700, DDR5, mATX
Арт. номер: ASR-MB-H610M-H2-M2-D5
Запитване за ASRock H610M-H2/M.2 D5
безплатна доставка
на поръчки над 199 лв.
Технически характеристики
| Гаранция | 36 месеца |
| Сокет | Intel 1700 |
| Форм Фактор | Micro ATX |
| Чипсет | Intel H610 |
| Брой слотове за памет | 2 |
| Капацитет на RAM | до 96 GB |
| Честота на памет | до 5600 MT/s |
| RGB Подсветка | Не |
| Поддържана памет | DDR5 |
| Вграден Wi-Fi | Не |
Свързани продукти
Сокет:
Intel 1700
Форм Фактор:
Micro ATX
Чипсет:
Intel H610
Брой слотове за памет:
2
Капацитет на RAM:
до 96 GB
Сокет:
AMD AM4
Форм Фактор:
Micro ATX
Чипсет:
AMD B450
Брой слотове за памет:
4
Капацитет на RAM:
до 128 GB
Сокет:
Intel 1700
Форм Фактор:
Micro ATX
Чипсет:
Intel H610
Брой слотове за памет:
2
Капацитет на RAM:
до 64 GB
Сокет:
Intel 1700
Форм Фактор:
Micro ATX
Чипсет:
Intel H610
Брой слотове за памет:
2
Капацитет на RAM:
до 64 GB
Сокет:
AMD AM4
Форм Фактор:
ATX
Чипсет:
AMD B450
Брой слотове за памет:
4
Капацитет на RAM:
до 128 GB
Сокет:
AMD AM5
Форм Фактор:
Micro ATX
Чипсет:
AMD A620
Брой слотове за памет:
2
Капацитет на RAM:
до 64 GB
Сокет:
Intel 1200
Форм Фактор:
Micro ATX
Чипсет:
Intel H510
Брой слотове за памет:
2
Капацитет на RAM:
до 64 GB
Сокет:
Intel 1200
Форм Фактор:
Micro ATX
Чипсет:
Intel H510
Брой слотове за памет:
2
Капацитет на RAM:
до 64 GB
Сокет:
Intel 1700
Форм Фактор:
Micro ATX
Чипсет:
Intel B760
Брой слотове за памет:
2
Капацитет на RAM:
до 64 GB
Сокет:
Intel 1851
Форм Фактор:
Micro ATX
Чипсет:
Intel H810
Брой слотове за памет:
2
Капацитет на RAM:
до 128 GB
Сокет:
AMD AM4
Форм Фактор:
Micro ATX
Чипсет:
AMD B550
Брой слотове за памет:
4
Капацитет на RAM:
до 128 GB
Сокет:
AMD AM4
Форм Фактор:
Micro ATX
Чипсет:
AMD A520
Брой слотове за памет:
2
Капацитет на RAM:
до 64 GB
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

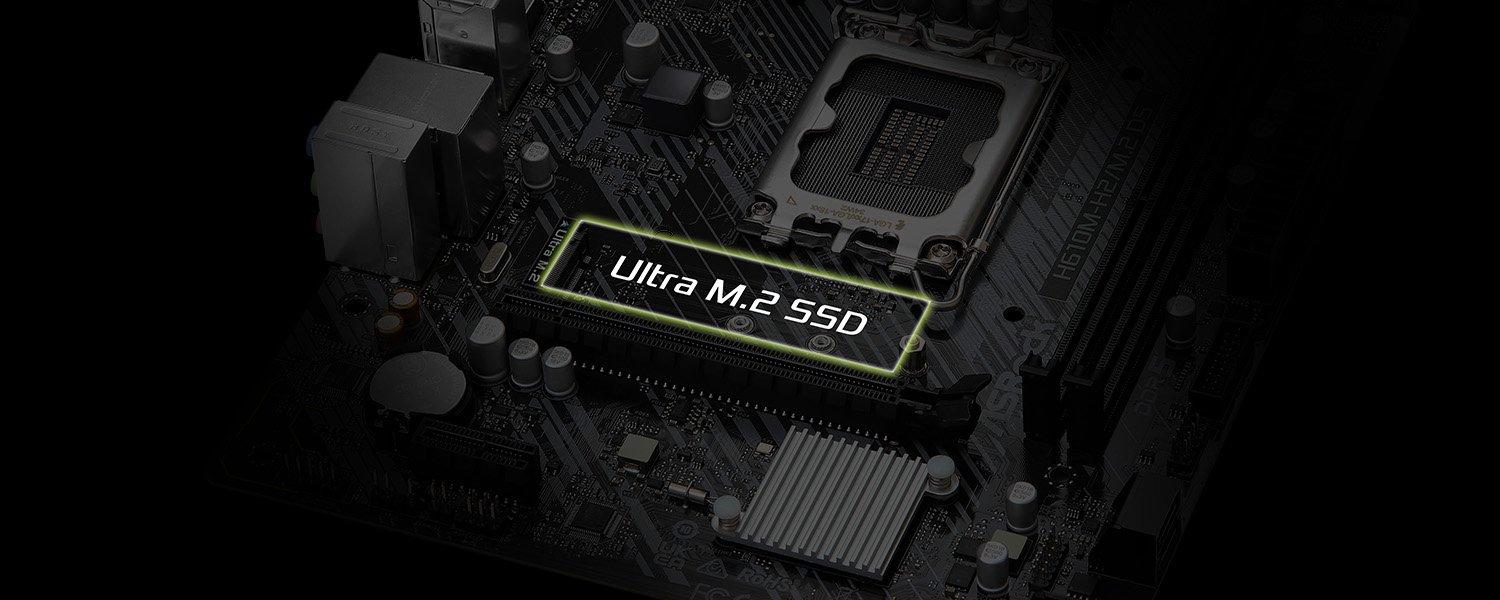

Ultra M.2 32Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
Dual HDMI OutputsEquipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.
|
HDMI 4k @60HzSupports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
|
Specifications
| Unique Feature | Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 3+1+1 Power Phase EZ Update - ASRock Auto Driver Installer |
| CPU | - Supports 13th Gen & 12th Gen and next gen Intel Core Processors (LGA1700) - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology |
| Chipset | - Intel H610 |
| Memory |
- Dual Channel DDR5 Memory Technology *Actual support may vary by CPU
|
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz *Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
|
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | - Gigabit LAN 10/100/1000 Mb/s - Realtek 8111H |
| Slots | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)* *Supports NVMe SSD as boot disks
|
| Storage | Chipset: - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors *Supports NVMe SSD as boot disks
|
| USB | - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) - 6 x USB 2.0 (4 Rear, 2 Front) *All USB ports support ESD Protection
|
| Connector | - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)e. *CPU_FAN1 supports the fan power up to 1A (12W).
**CHA_FAN1/WP supports the fan power up to 2A (24W). CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in us |
| Rear Panel I/O | - 1 x PS/2 Mouse/Keyboard Port - 2 x HDMI Ports - 2 x USB 3.2 Gen1 Type-A Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software - ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
|
| Accessories | - 1 x User Manual - 1 x I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket |
| Form Factor | - Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm |
| OS | - Microsoft Windows 10 64-bit / 11 64-bit |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
