BIOSTAR B550MH

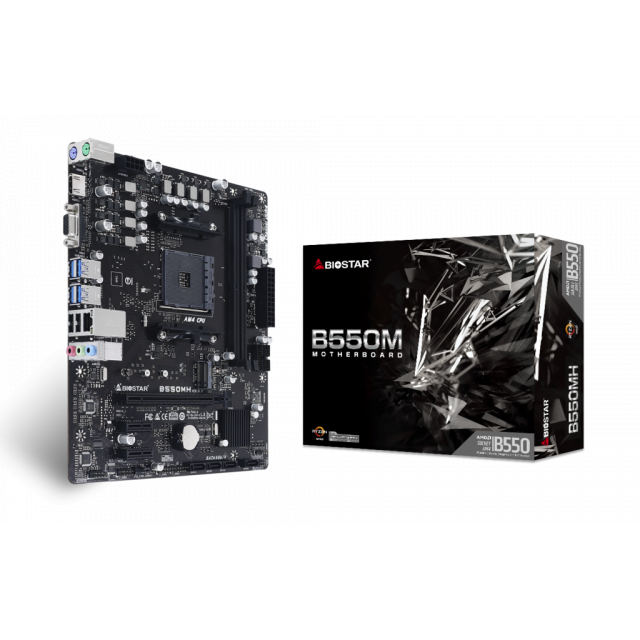

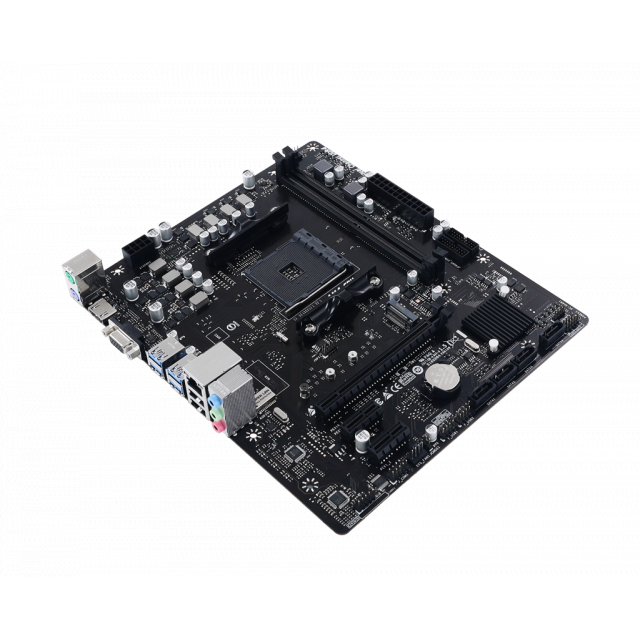

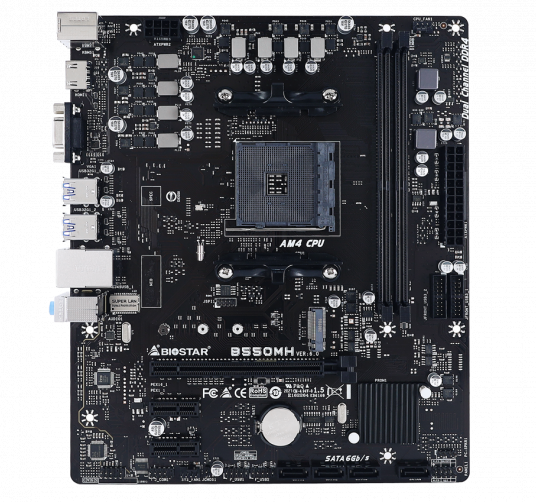

Дънна платка BIOSTAR B550MH, AMD B550, sock. AM4, Ver 6.0
Арт. номер: BIO-MB-B550MH
Изчерпан
Запитване за BIOSTAR B550MH
безплатна доставка
на поръчки над 100 EUR
Технически характеристики
| Гаранция | 24 месеца |
| Сокет | AMD AM4 |
| Форм Фактор | Micro ATX |
| Чипсет | AMD B550 |
| Брой слотове за памет | 2 |
| Капацитет на RAM | до 64 GB |
| Честота на памет | до 4400 MT/s |
| RGB Подсветка | Не |
| Поддържана памет | DDR4 |
| Вграден Wi-Fi | Не |
Свързани продукти
Сокет:
Intel 1700
Форм Фактор:
Micro ATX
Чипсет:
Intel H610
Брой слотове за памет:
2
Капацитет на RAM:
до 96 GB
Сокет:
Intel 1200
Форм Фактор:
Micro ATX
Чипсет:
Intel H410
Брой слотове за памет:
2
Капацитет на RAM:
до 64 GB
Сокет:
Intel 1150
Форм Фактор:
Micro ATX
Чипсет:
Intel H81
Брой слотове за памет:
2
Капацитет на RAM:
до 16 GB
Сокет:
Intel 1155
Форм Фактор:
Micro ATX
Чипсет:
Intel H61
Брой слотове за памет:
2
Капацитет на RAM:
до 16 GB
Сокет:
Intel 1151
Форм Фактор:
ATX
Чипсет:
Intel B360
Брой слотове за памет:
2
Капацитет на RAM:
до 32 GB
Сокет:
Intel 1700
Форм Фактор:
Micro ATX
Чипсет:
Intel H610
Брой слотове за памет:
2
Капацитет на RAM:
до 64 GB
Сокет:
AMD AM4
Форм Фактор:
Micro ATX
Чипсет:
AMD A520
Брой слотове за памет:
2
Капацитет на RAM:
до 64 GB
Сокет:
Intel 1200
Форм Фактор:
ATX
Чипсет:
Intel Z590
Брой слотове за памет:
4
Капацитет на RAM:
до 128 GB
Сокет:
Intel 1200
Форм Фактор:
Mini-ITX
Чипсет:
Intel Z590
Брой слотове за памет:
2
Капацитет на RAM:
до 64 GB
- Supports AMD Ryzen 3rd Gen (Matisse/ Renoir) and 4th Gen (Vermeer) processors
- AMD B550 single chip architecture
- Supports 2-DIMM DDR4-4933+(OC)/4800(OC)/4600(OC)/4400(OC)/4000(OC)/3800(OC)/3600(OC)
/3200/2933/2667/2400/2133/1866 - Supports USB 3.2 Gen1
- Supports PCIe M.2 4.0 (64Gb/s)
- Supports HDMI 4K resolution

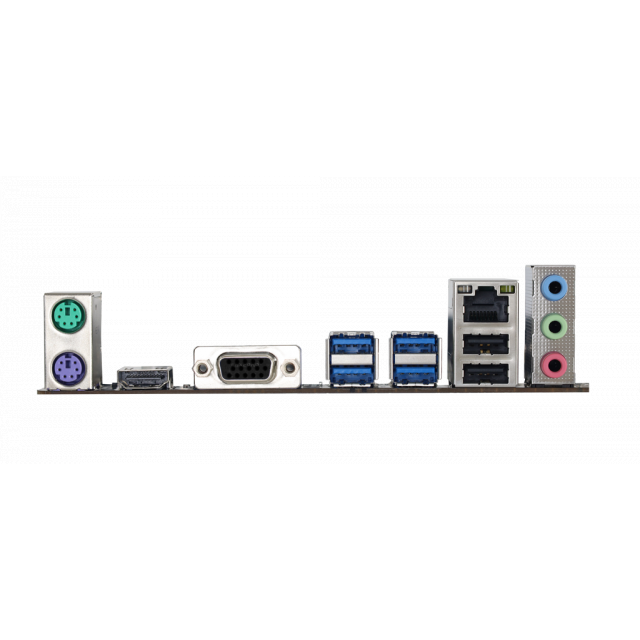

Rear I/O:
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x HDMI Port
1 x VGA Port
1 x LAN port
4 x USB 3.2 (Gen1) Ports
2 x USB 2.0 Ports
3 x Audio Jack
Internal I/O:
4 x SATA III (6.0Gb/s) Connectors
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
2 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x Internal Stereo Speaker Header
1 x COM Port Header
Chipset |
AMD B550 |
CPU SUPPORT |
Socket AM4 support AMD 3rd Gen Ryzen™ (Matisse/ Renoir) processors and Ryzen™ 4th Gen (Vermeer) processors Support for future AMD Ryzen processors with BIOS update * Please refer to www.biostar.com.tw for CPU support list. |
MEMORY |
4th Gen AMD Ryzen Processors (Vermeer CPUs/ Future APUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 3rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory Each DIMM supports non-ECC and ECC Un-buffered 8/ 16/ 32 GB DDR4 module * Please refer to www.biostar.com.tw for Memory support list. |
INTEGRATED VIDEO |
By CPU model Supports DX12 Supports HDCP |
STORAGE |
4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10 1 x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module Supports PCIe 4.0 x 4 (64Gb/s)/ 3.0 x 4 (32Gb/s) Supports SATA III (6.0Gb/s) SSD * M.2 (M Key) Socket (M2_PCIe-SATA1): The bandwidth is depended on CPU. Supports PCIe 4.0 x 4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen Matisse. |
LAN |
Realtek RTL8111H 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability Supports Super LAN Surge Protection |
AUDIO CODEC |
ALC887 7.1 Channels, High Definition Audio, Hi-Fi (Front) |
USB |
8 x USB 3.2 (Gen1) ports (4 on rear I/Os and 4 via internal headers) 6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers) |
EXPANSION SLOT |
1 x PCIe 4.0/ 3.0 x 16 Slot: Supports PCIe 4.0 x 16 mode with AMD Ryzen™ processors. (Matisse only) Supports PCIe 3.0 x 16 mode AMD Ryzen™ with Radeon Vega Graphics processors. (Renoir only) 2 x PCIe 3.0 x 1 Slot * According to different CPUs will have different speeds. |
REAR I/O |
1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x HDMI Port 1 x VGA Port 1 x LAN port 4 x USB 3.2 (Gen1) Ports 2 x USB 2.0 Ports 3 x Audio Jack |
INTERNAL I/O |
4 x SATA III (6.0Gb/s) Connectors 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 2 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x Internal Stereo Speaker Header 1 x COM Port Header |
H/W MONITORING |
CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring |
DIMENSION |
Micro ATX Form Factor Dimension: 24.4cm x 20.8cm ( W x L ) |
OS SUPPORT |
Supports Windows 10(64bit) / 11(64bit) ※Biostar reserves the right to add or remove support for any OS with or without notice |
BUNDLE SOFTWARE |
BullGuard |
ACCESSORIES |
2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide |
FEATURES |
Supports 100% Solid capacitor A.I FAN PCIe M.2 4.0 |
