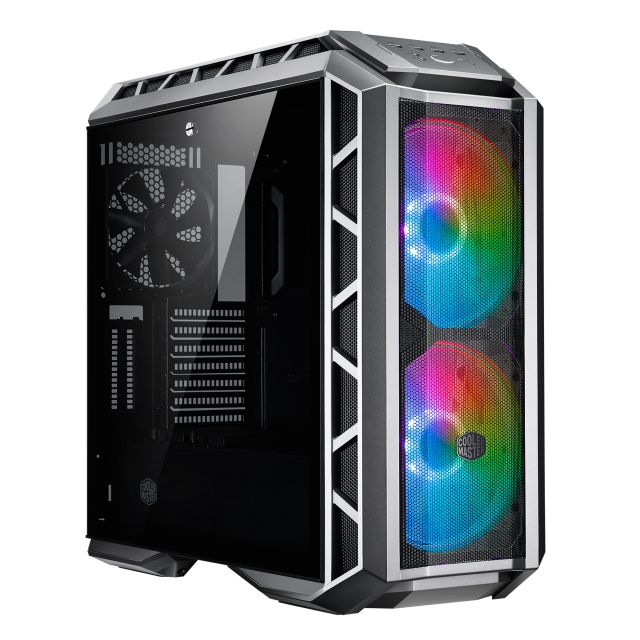

Cooler Master MasterCase H500P Mesh ARGB
Кутия Cooler Master MasterCase H500P Gunmetal Mesh ARGB TG
Запитване за Cooler Master MasterCase H500P Mesh ARGB
| Гаранция | 24 месеца |
| Форм Фактор | Mid Tower |
| Формат | ATX, Micro ATX, Mini ITX, EATX |
| Включени вентилатори | 1x 140mm, 2x 200mm |
| Преден панел | USB 2.0, Audio In & Out, USB 3.2 Gen1 |
| Цвят | Сив |
| Дължина | 544 мм |
| Широчина | 242 мм |
| Височина | 542 мм |
| Максимална височина на въздушен охладител | 190 мм |
| Максимална дължина на видеокарта | 412 мм |
| Екстри | ARGB контролер |
| Поддържани вентилатори отпред | 3x 120mm, 3x 140mm, 2x 200mm |
| Поддържани вентилатори отзад | 1x 120mm, 1x 140mm |
| Поддържани вентилатори отгоре | 3x 120mm, 2x 200mm, 3x 140mm |
| Поддържани водни охладители отпред | 1x 280mm, 1x 120mm, 1x 240mm, 1x 360mm, 1x 140mm |
| Поддържани водни охладители отзад | 1x 120mm, 1x 140mm |
| Поддържани водни охладители отгоре | 1x 240mm, 1x 120mm, 1x 140mm, 1x 280mm, 1x 360mm |
| Преден Mesh панел | Да |
Свързани продукти
Кутия Cooler Master MasterCase H500P Gunmetal Mesh ARGB TG

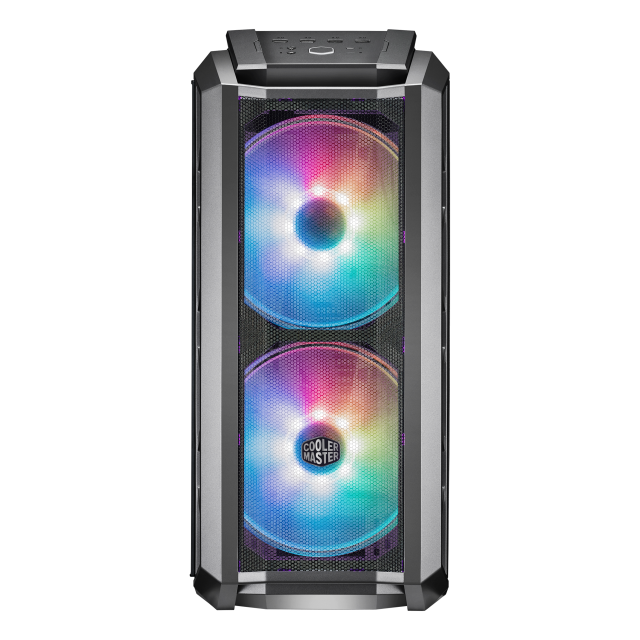

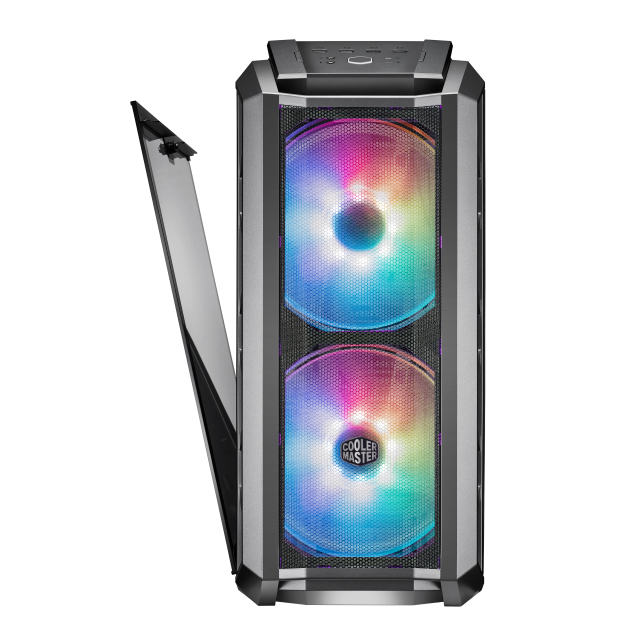

Dual ARGB Fans in Full View
Dual 200mm fans take the center-stage in the MasterCase H500P ARGB ATX case. Airflow is provided through mesh ventilation that spans the entire perimeter of the top and front panels, designed with an industrial construction testifying to a form that follows function.Evolving the design even further, the two 200mm fans now come standard with addressable RGB lighting to offer the utmost in customization. Two additional, optional 200mm fans can be installed on the top panel, with full support for 360mm radiators in the top and front for enthusiast-grade cooling potential and a gaming rig that knows no limits
- Dual 200mm ARGB Fans –The iconic, addressable RGB fans are the core of the H-Series in design and function, capable of operating quietly while moving high volumes of air due to their size.

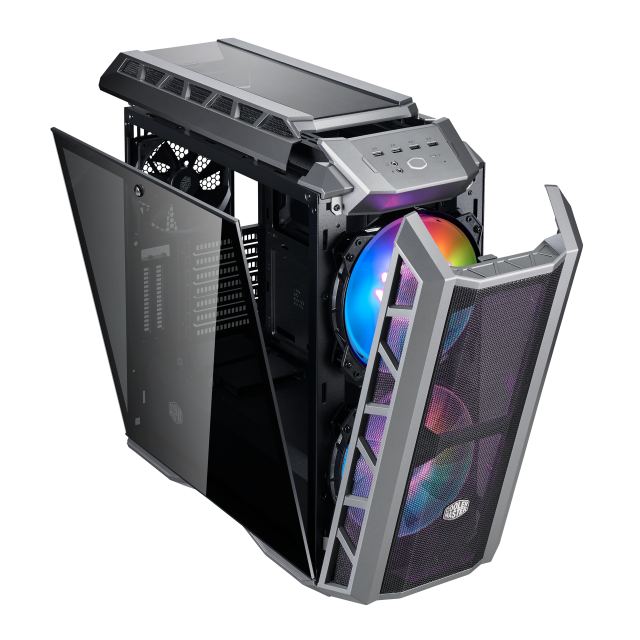

- Build By Design –Transparent panels and a tempered glass side panel flaunt the hardware & fans, while the cable covers, PSU shroud, and cable management space hide the clutter.
- ARGB Lighting System –The pre-installed ARGB fans can be managed by either the motherboard or an included controller, connected by the included splitter, to create a comprehensive ARGB lighting system*
- Tempered Glass Side Panel –Gaming hardware, custom-loop cooling, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.
- Versatile Cooling Options –Two additional 200mm fans can be mounted on the top panel for a display of 4 x 200mm fans in total. Compatible with 360mm radiators in both the top and front panel, cooling components have the potential to go beyond the enthusiast level.
- Vertical Graphics Card Compatible –Two additional PCI slots at the rear enable one graphics card to be mounted in the vertical position with an optional riser cable.
| Model Number | MCM-H500P-MGNN-S11 | Series | MasterCase Series |
| Size | Mid Tower | Color(s) | Gun Metal Grey |
| Materials | Steel, Plastic, Tempered Glass, Mesh | Dimensions (L x W x H) | 544 x 242 x 542mm |
| Weight | 11.3 kg | Motherboard Support | Mini ITX, Micro ATX, ATX, E-ATX*, (*support for up to 12" x 10.7", will limit cable management features) |
| Expansion Slots | 7+2, (Supports vertical graphics card installation) | 5.25" Drive Bays | N/A |
| 2.5" / 3.5" Drive Bays (Combo) | 2 | 2.5" Drive Bays | 2 (Max.4) |
| I/O Panel | 2x USB 3.2 Gen 1 (formerly USB 3.0), 2x USB 2.0, 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Controller, 1x ARGB 2-to-3 splitter | Pre-installed Fans - Front | 2x 200mm ARGB Fan |
| Pre-installed Fans - Rear | 1x 140mm, 1200RPM | Fan Support - Top | 3x 120/140mm, 2x 200mm |
| Fan Support - Front | 3x 120/140mm, 2x 200mm | Fan Support - Rear | 1x 120/140mm |
| Radiator Support - Top | 120mm, 140mm, 240mm, 280mm, 360mm | Radiator Support - Front | 120mm, 140mm, 240mm, 280mm, 360mm |
| Radiator Support - Rear | 120mm, 140mm | Clearance - CPU Cooler | 190mm |
| Clearance - PSU | 220mm | Clearance - GFX | 412mm |
| Dust Filters | Top, Front, Bottom | Power Supply Support | Bottom Mount, ATX |
