Cooler Master MWE Gold 1050W - V2 ATX 3.0 White Edition
Захранване Cooler Master MWE GOLD 1050W - V2 ATX 3.0 WHITE, 80+ GOLD
Запитване за Cooler Master MWE Gold 1050W - V2 ATX 3.0 White Edition
| Мощност | 1050W |
| Сертификат | 80+ Gold |
| Ефективност | 90 % |
| Тип | Модулярно |
| Форм Фактор | ATX |
| Спецификация | ATX 3.0 |
| PCIe Gen5 | Да |
| RGB Подсветка | Не |
| Цвят | Бял |
| Гаранция | 120 месеца |
Свързани продукти
• 80 PLUS Gold Efficiency
• High-quality Japanese capacitors
• 140mm Silent Fan
• High Temperature Resilience
• Fully Modular Cabling
Connect the Future, connect ATX 3.0
100% ATX 3.0 Compatible
Cooler Master took the initiative and continuously developing
our first ATX 3.0 Power Supply lineup. Compliant with ATX 3.0
standard and 12VHPWR connectors, the MWE Gold
1050/1250 - V2 ATX 3.0 can fully support the peak power drawn
by the 40 series RTX graphic cards and whole system.
80 PLUS Gold Certified
Efficiency has always been one of the most important factors
for users when choosing their power supply unit. While there
are a range of efficiency options, 80 PLUS Gold has been the
ideal choice for the last several years and continues to be seen
as the standard for much of the world. The MWE Gold
1050/1250 - V2 ATX 3.0 features 80 PLUS Gold certification,
guaranteeing 90% efficiency at typical load.

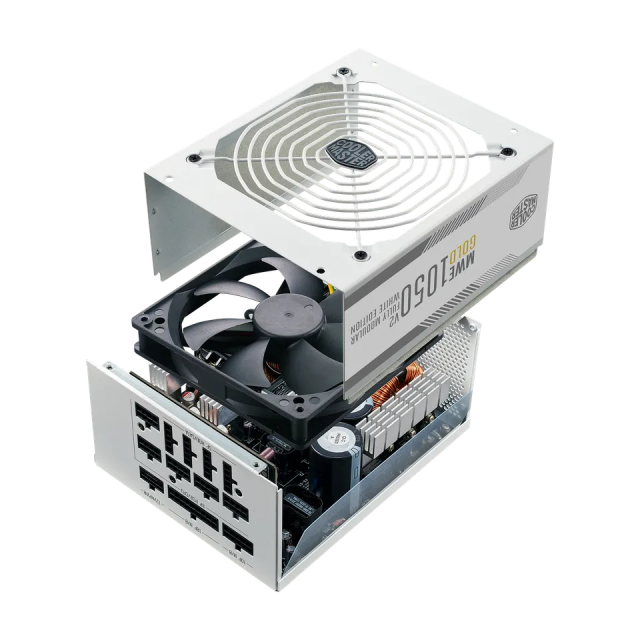

Quiet Cooling
The MWE Gold 1050/1250 - V2 ATX 3.0 has been optimized
with an 140mm fan along with an advanced fluid-dynamic
bearing (FDB) delivers quiet and effective cooling with a long
lifespan. With Smart Thermal Control System (STCM), the fan
will not spin until at 40% of rated output power to reduce noise.
*The fan curve is tested under ambient temperature of 25 degrees
Celsius and core temperature is related to load.
Industrial-grade
Temperature Resilience
The MWE Gold 1050/1250 - V2 ATX 3.0 has improved to
operate safely at up to 50 degrees Celsius ambient for high-end
computer, overclocking and other high intensity applications.
Such a high threshold greatly enhances the performance of your
PSU and your system.

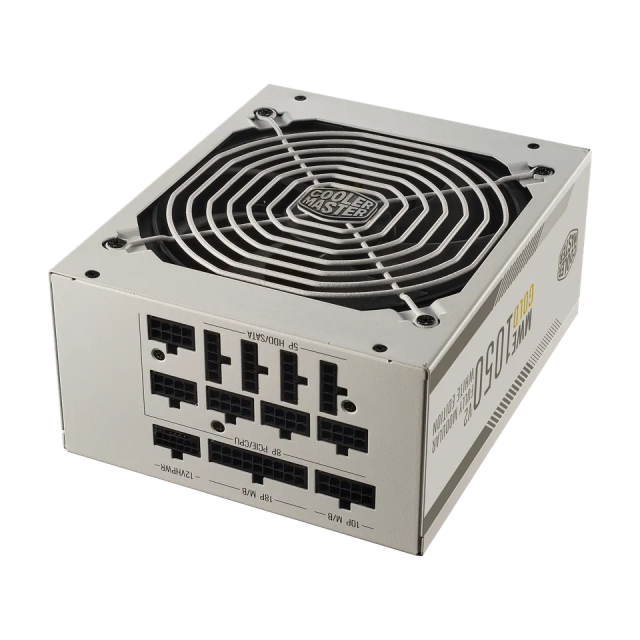

Fully Modular Cabling
The fully modular version of the MWE Gold 1050/1250 - V2
ATX 3.0 comes with a set of flat black cables that can be
customized to each user's individual needs. It's designed for
easy cable management that each system only needs to
include the cables required. This unused space within the chassis
allows for reduced clutter, better airflow and aesthetic, thereby
improving your system's overall cooling.
Specifications
| ATX Version | ATX Rer. 3.0 | Protections | OVP / OPP / SCP / OCP / UVP / OTP / Inrush Protection |
| PFC | Active PFC | Regulatory | TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, BIS |
| Input Voltage | 100-240V | ATX 24 Pin Connectors | 1 |
| Input Current | 13-6A | EPS 4+4 Pin Connectors | 1 |
| Input Frequency | 50-60Hz | EPS 8 Pin Connector | 1 |
| Dimensions (L x W x H) | 180 x 150 x 86 mm | SATA Connectors | 12 |
| Fan Size | 140mm | Peripheral 4 Pin Connectors | 4 |
| Fan Bearing | FDB | PCI-e 6+2 Pin Connectors | 3 |
| Warranty | 10 years | 12VHPWR Connector | 1 |
| Efficiency | ≥90% @ Typical Load | Series | MWE Gold Series |
| 80 PLUS Rating | 80 PLUS Gold | 80 Plus Efficiency | Gold |
| ErP 2014 Lot 3 | Yes | Modular | Fully Modular |
| Operating Temperature | 0-50°C | Category | Above 750W |
| Power Good Signal | 100 - 150 ms | Form Factor | ATX |
| Hold Up Time | ≥16ms at 100% Load | Watts | 1050W |
| MTBF | >100,000 Hours | Model | MPE-A501-AFCAG-3G |
