Lian Li O11 Vision
Кутия Lian Li O11 Vision Mid-Tower, Tempered Glass, Черна
Арт. номер: LL-CASE-GELI-940
Изчерпан
Запитване за Lian Li O11 Vision
безплатна доставка
на поръчки над 100 EUR
Технически характеристики
| Гаранция | 24 месеца |
| Форм Фактор | Mid Tower |
| Формат | ATX, Micro ATX, Mini ITX, EATX |
| Включени вентилатори | Не |
| Преден панел | USB 3.0, Audio In & Out, Type-C |
| Цвят | Черен |
| Дължина | 480 мм |
| Широчина | 304 мм |
| Височина | 465 мм |
| Максимална височина на въздушен охладител | 167 мм |
| Максимална дължина на видеокарта | 455 мм |
| Поддържани вентилатори отдолу | 3x 120mm, 3x 140mm |
| Поддържани вентилатори отзад | 2x 120mm |
| Поддържани вентилатори отстрани | 3x 120mm, 2x 140mm |
| Поддържани водни охладители отдолу | 1x 240mm, 1x 280mm, 1x 360mm |
| Поддържани водни охладители отзад | 1x 120mm, 1x 240mm |
| Поддържани водни охладители отстрани | 1x 240mm, 1x 280mm, 1x 360mm |
| Преден Mesh панел | Не |
Свързани продукти
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX, EATX
Включени вентилатори:
4x 140mm
Преден панел:
USB 3.0, USB 3.2 (Gen 2) Type-C
Цвят:
Черен
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX, EATX
Включени вентилатори:
4x 140mm
Преден панел:
USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C
Цвят:
Бял
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX, EATX
Включени вентилатори:
4x 140mm
Преден панел:
USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C
Цвят:
Черен
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX, EATX
Включени вентилатори:
4x 140mm
Преден панел:
USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C
Цвят:
Бял
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX, EATX
Включени вентилатори:
Не
Преден панел:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Цвят:
Черен
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX, EATX
Включени вентилатори:
Не
Преден панел:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Цвят:
Бял
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX, EATX
Включени вентилатори:
1x 140mm, 2x 170mm
Преден панел:
USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C
Цвят:
Бял
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX, EATX
Включени вентилатори:
Не
Преден панел:
USB 3.0, Audio In & Out, USB 3.1 Gen 2 (Type-C)
Цвят:
Черен
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX, EATX
Включени вентилатори:
2x 120mm, 1x 140mm, 2x 170mm
Преден панел:
USB 3.0, Audio In & Out, Type-C
Цвят:
Бял
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX, EATX
Включени вентилатори:
1x 140mm, 2x 170mm
Преден панел:
USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C
Цвят:
Черен
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX
Включени вентилатори:
3x 120 mm
Преден панел:
USB 3.0, USB 3.1 Gen 2 (Type-C)
Цвят:
Бял
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX, EATX
Включени вентилатори:
2x 120mm, 1x 140mm, 2x 170mm
Преден панел:
USB 3.0, Audio In & Out, Type-C
Цвят:
Черен
O11 VISION
- Three sides of column-less glass panels provide the most seamless view of components
- Modular and toolless design panels and fan brackets ensure a friendly installation process

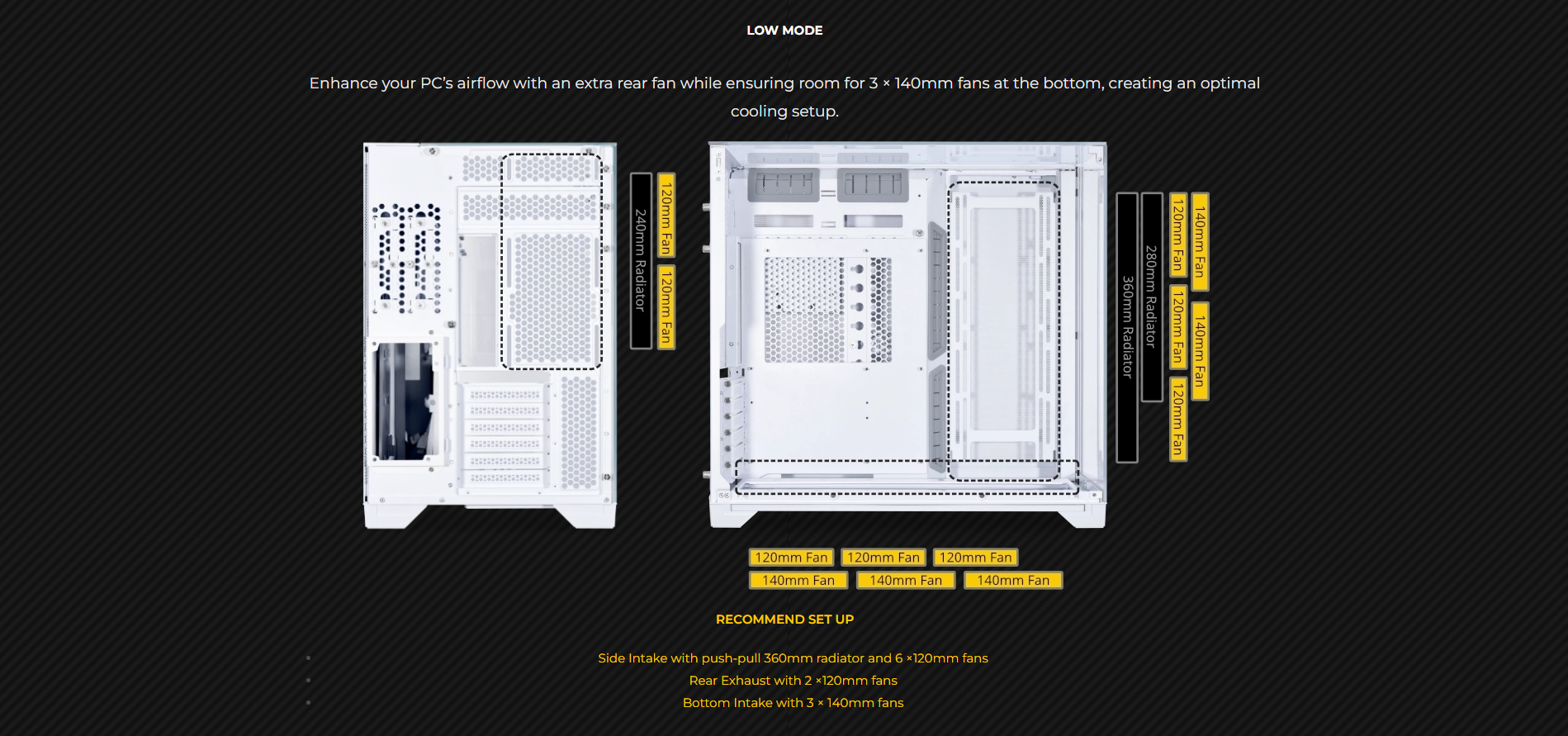

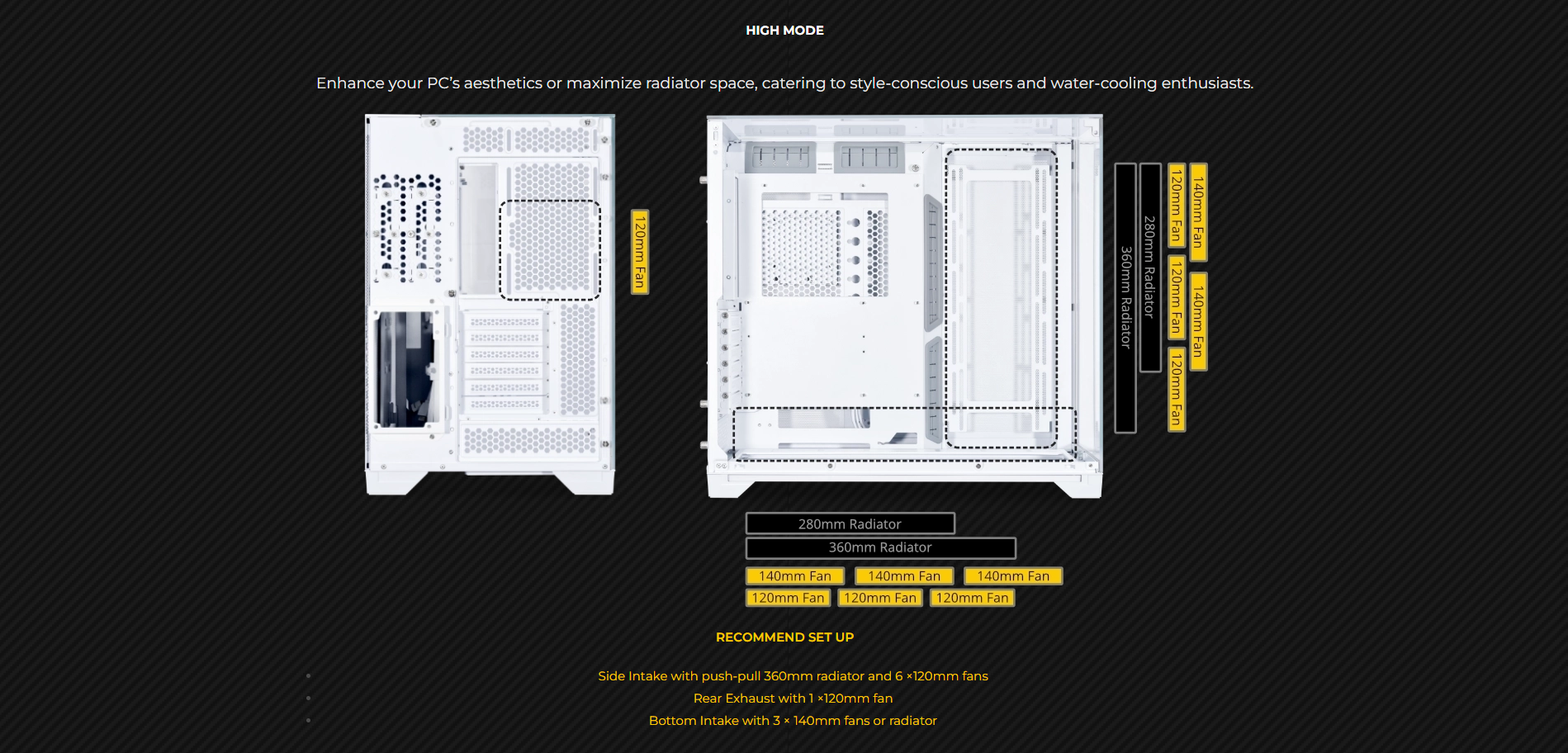

- Supports a up to 2 × 360mm radiators + 1 × 240mm radiator and a maximum of 8 fans (11 fans with push-pull setup)
- Features 27mm tall feet and hollowed bottom design to increase cold air intake.

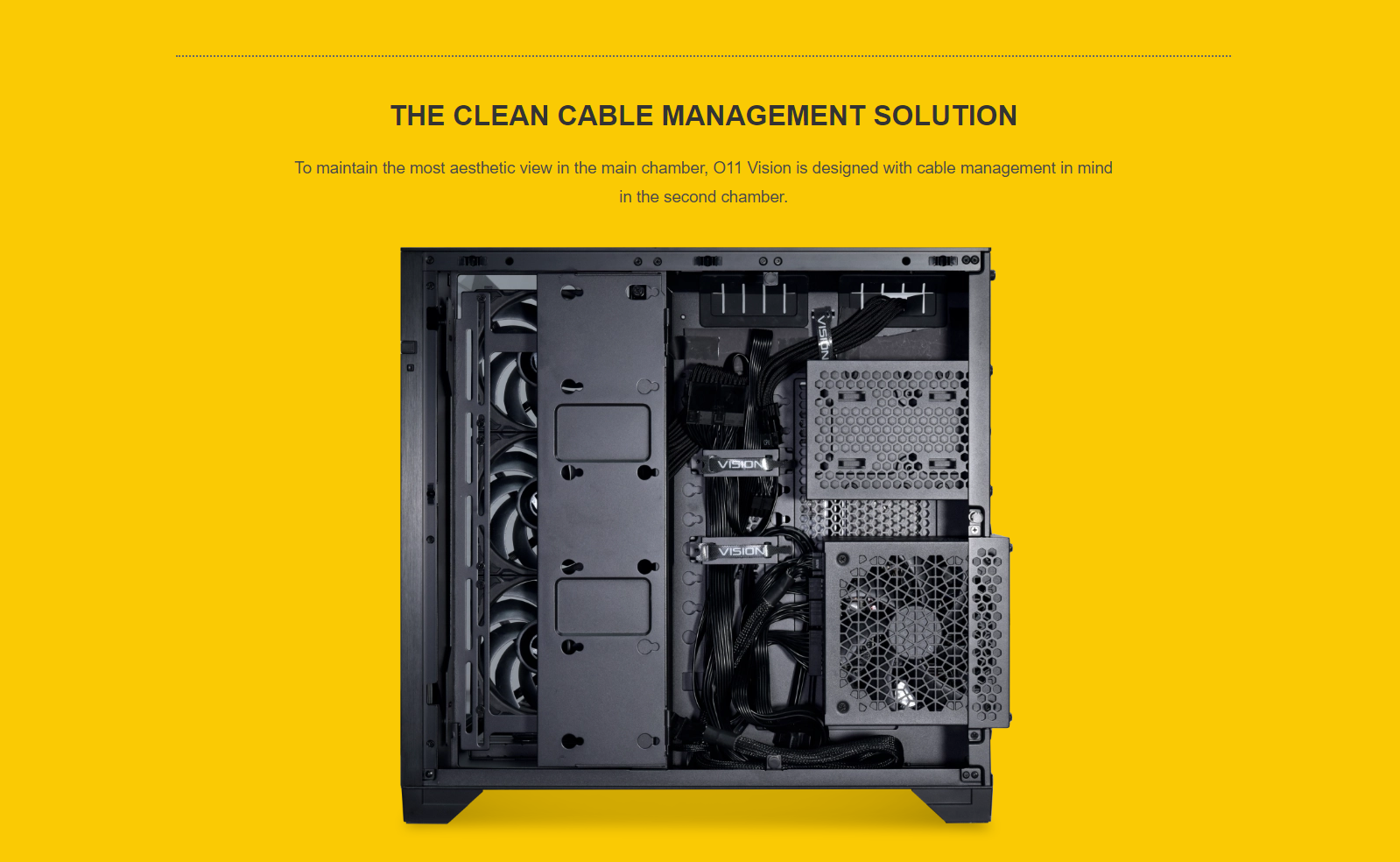

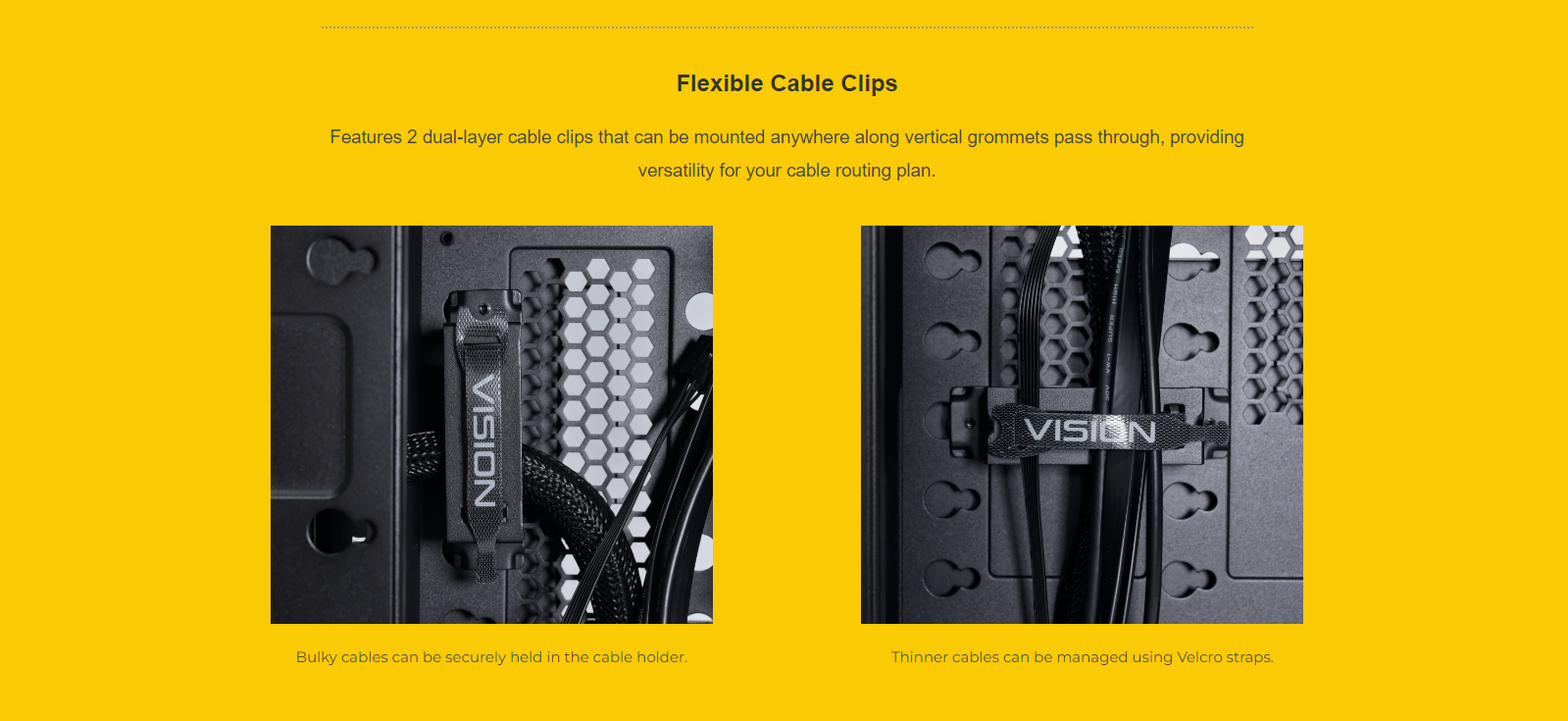

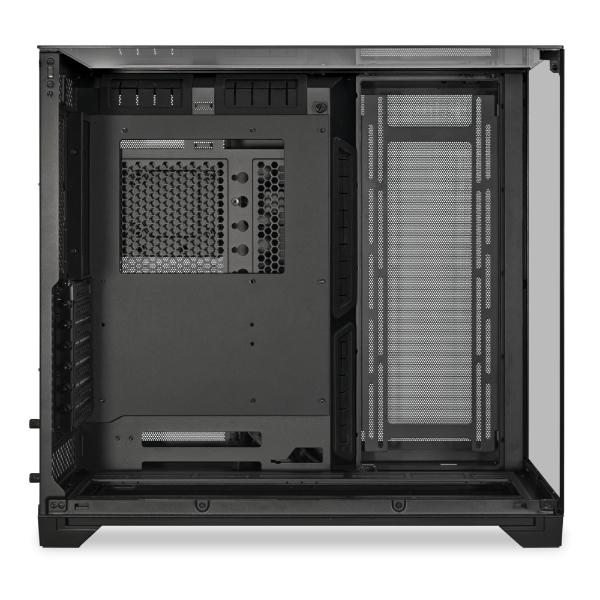

- Dual-chamber layout with cable management compartment and cable holders
- Number of PSU supported : 1
IN COLLABORATION WITH PCMR
LIAN LI joins forces with PC Master Race (PCMR) to present the O11 Vision. By combining LIAN LI’s expertise in
crafting high-quality, feature-rich cases with PCMR’s community of PC enthusiasts, we created a product that
builders truly desire. The result is a dual-chamber case with three sides of borderless tempered glass panels that
give the clearest view of the system. The O11 Vision embodies the spirit of LIAN LI and PCMR, providing PC
enthusiasts the opportunity to create their finest masterpiece.

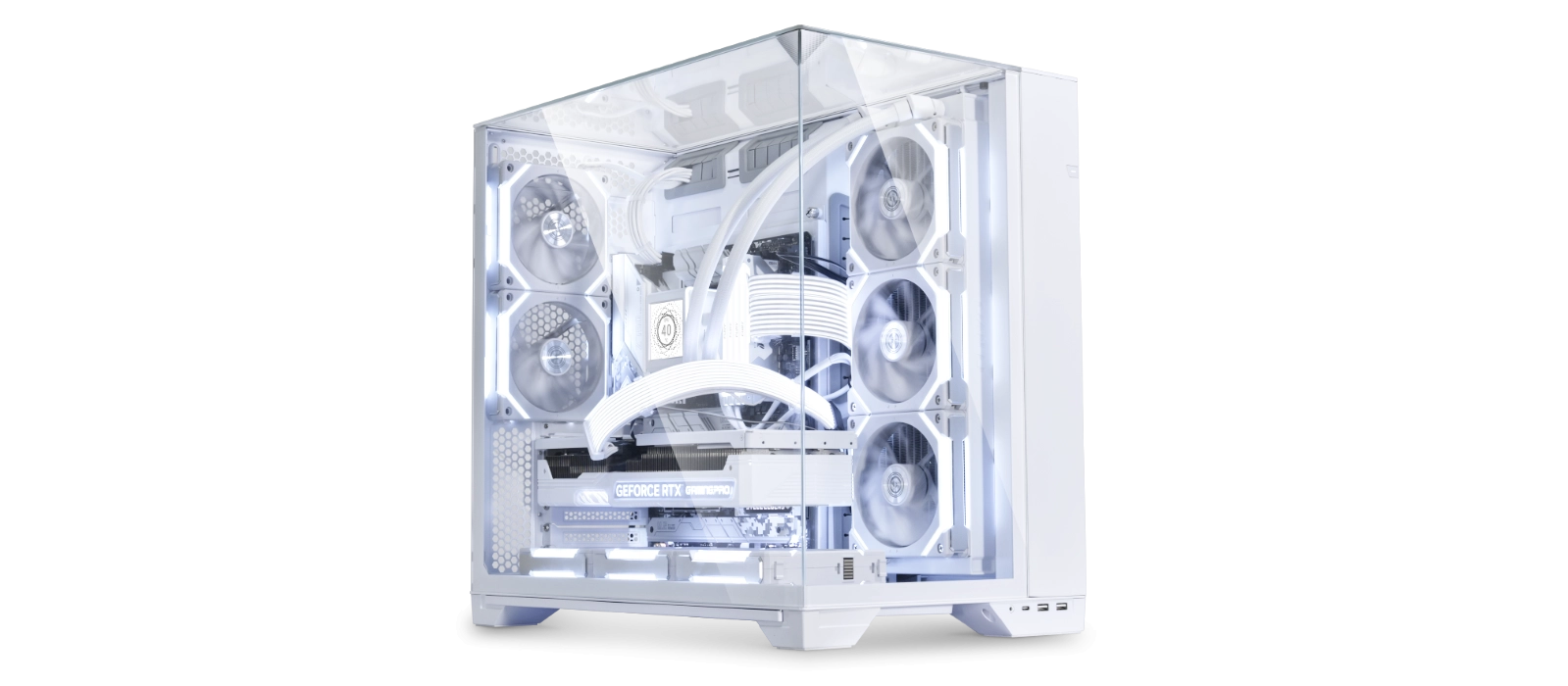

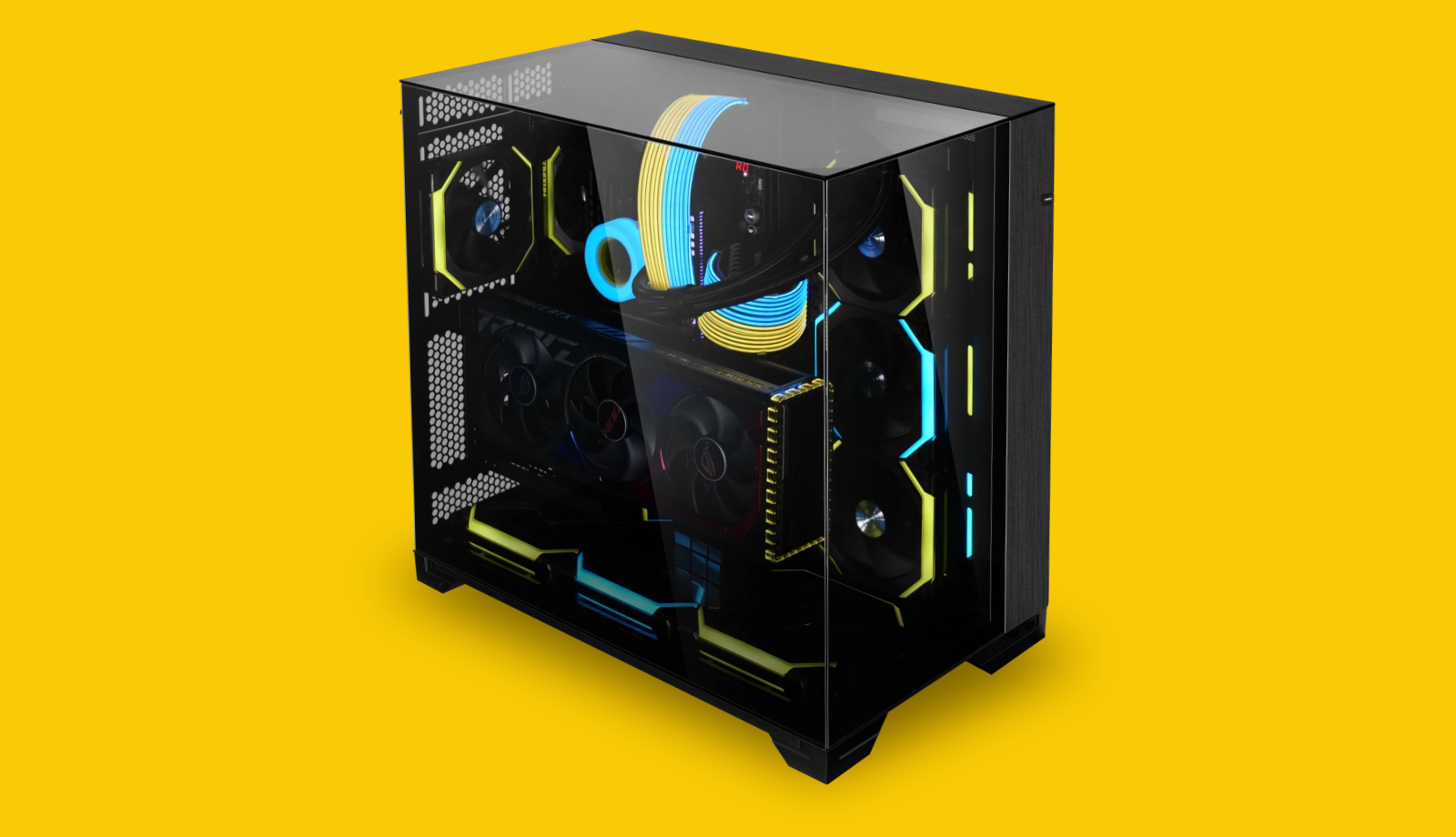

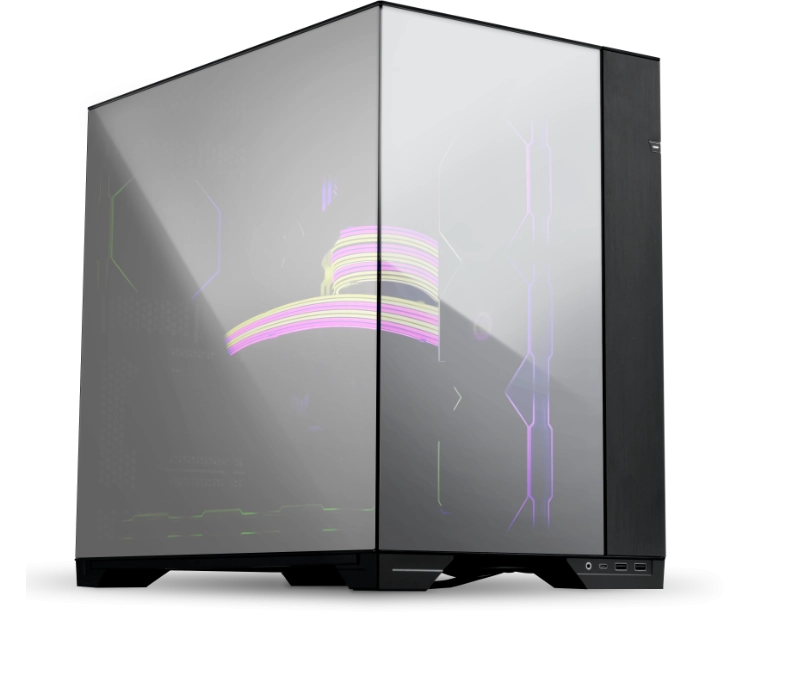

UNOBSTRUCTED HARDWARE SHOWCASE

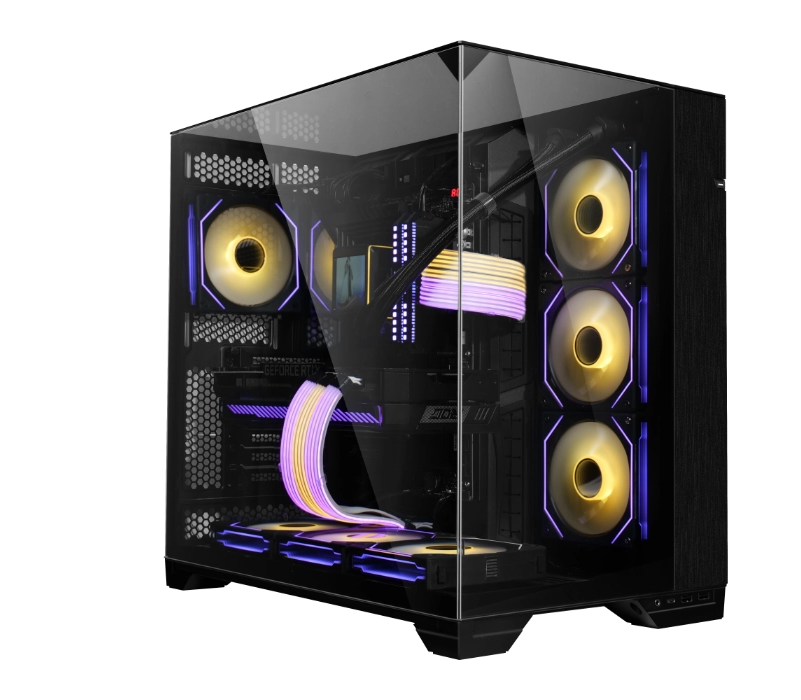

Display your style and showcase the power of your PC with the O11 Vision, a chassis that features three sides of
tempered glass panels without any columns or pillars for the ultimate unobstructed view of the system.

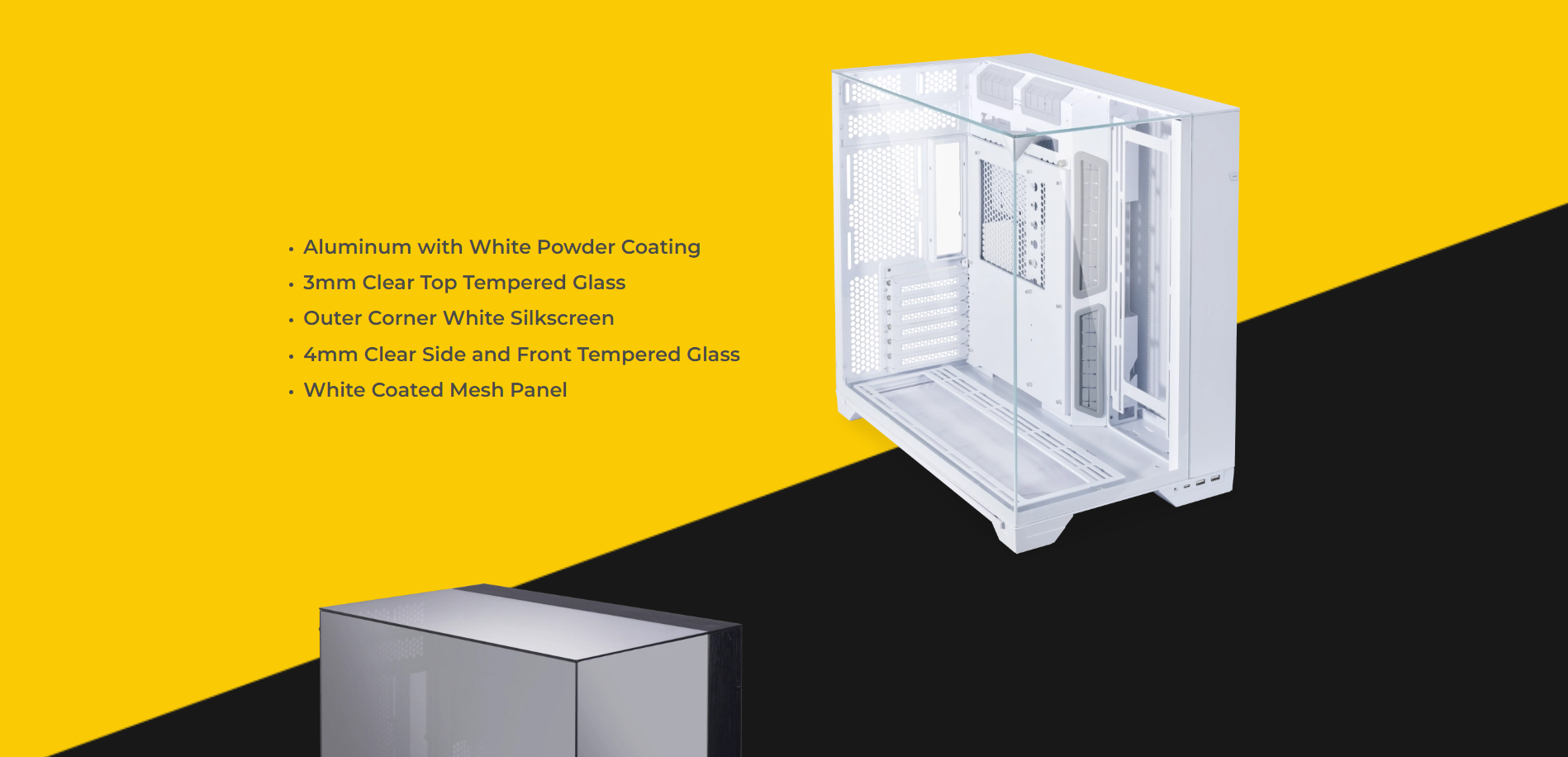

White
Black
Color Chrome
(Black Mirror Finish)
BALANCE BETWEEN COOL AND CLEAR
The O11 Vision not only boasts a striking appearance but also doesn’t compromise on cooling capabilities thanks
to its 27mm tall feet and hollowed out bottom fan bracket with 13mm elevation, ensuring ample airflow intake within
the chassis.Offers support for a maximum of 2 × 360 + 1 × 240 radiators, ensuring efficient thermal control.

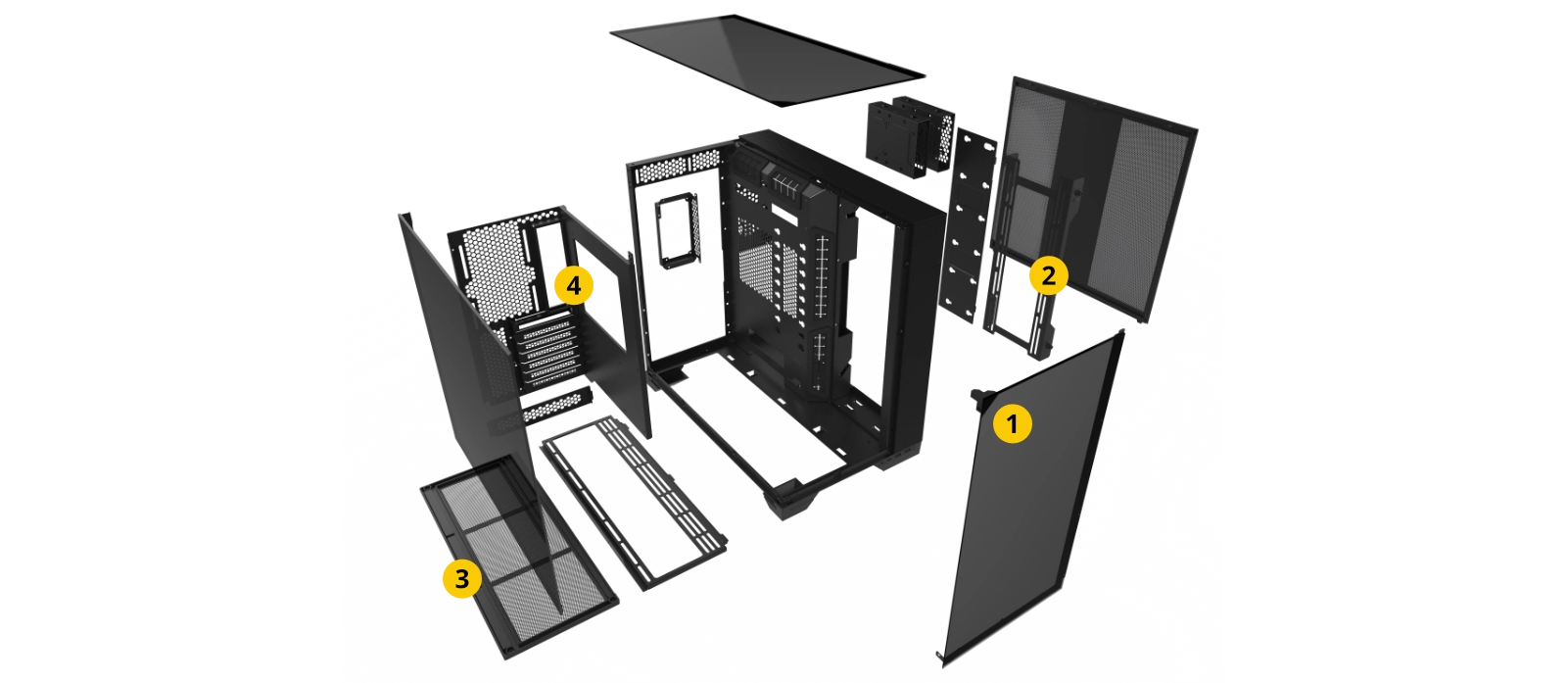

SEAMLESS BUILD PROCESS
Every bracket and panels are designed for modular and toolless removal, simplifying the build process and
allowing for customizable configuration.
Note: The front glass panel is also removable but we do not suggest doing so during the normal installation process.

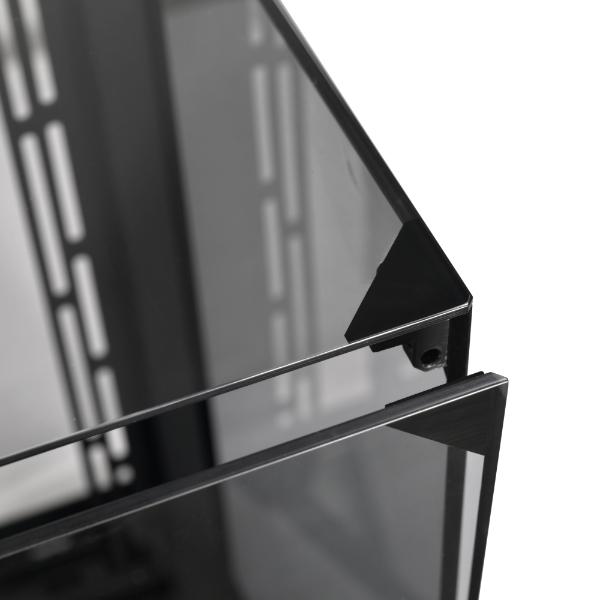

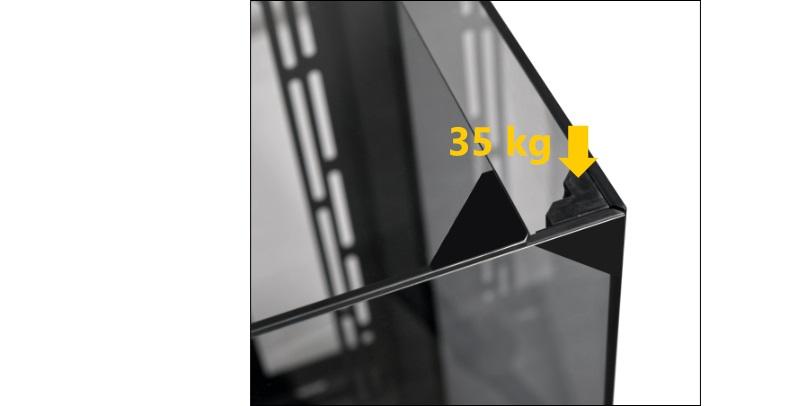

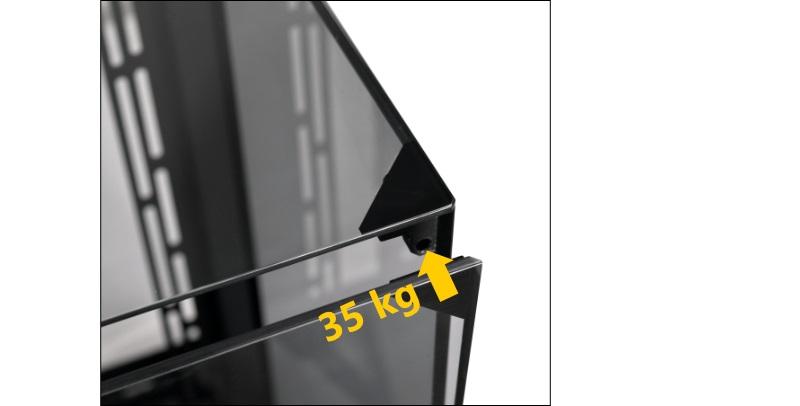

SOLID STRUCTURE
Strong structural support is designed with robust keys rated for 35kg of force, ensuring unwavering stability for all
three side glass panels

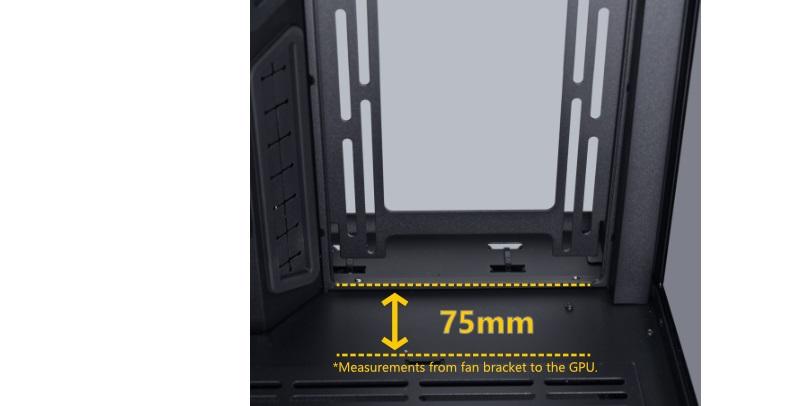

TWO-WAYS REVERSIBLE SIDE FAN BRACKET
Inner Scenario
For 75mm space in the main chamber
Outer Scenario
Optimized for a push-pull configuration

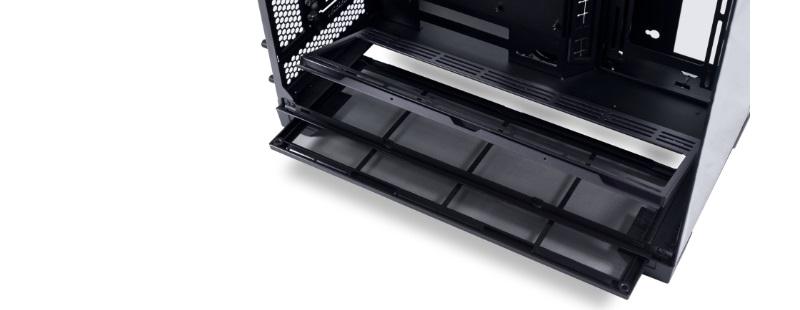

REMOVABLE BOTTOM FAN BRACKET AND DUST
FILTER
Able to remove the fan bracket to install the radiator or fan
with ease and clean the dust filter.

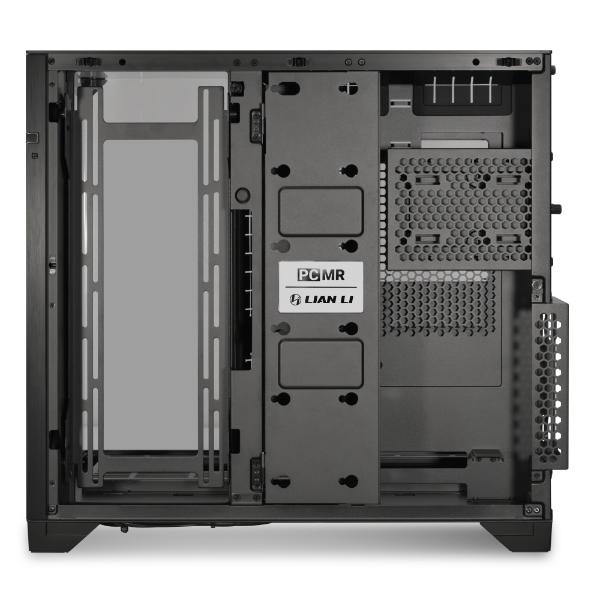

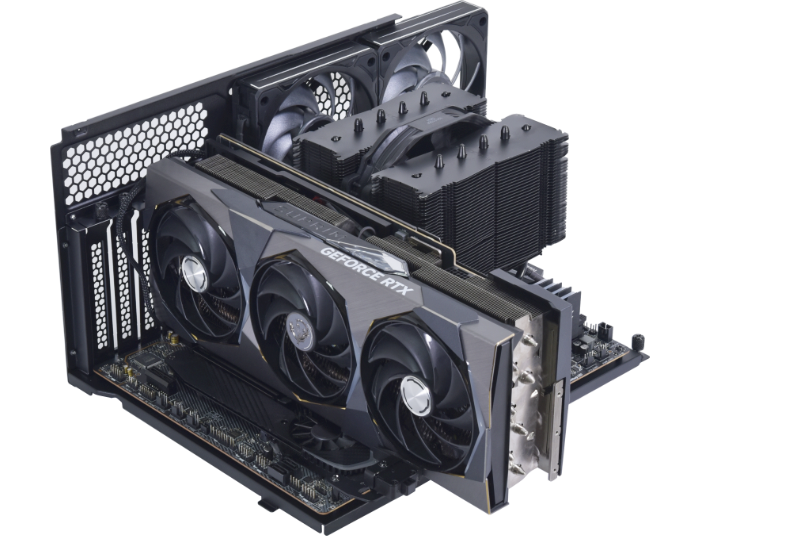

ADJUSTABLE MOTHERBOARD TRAY
Mount the motherboard, CPU pump, and graphics card
outside the chassis first to make the installation process
easier.
EASY TO ACCESS
The front I/O ports are strategically positioned
at the bottom of the chassis, ensuring
convenient access when the case is placed
on a table, all while showcasing its aesthetic
appeal.
Specifications

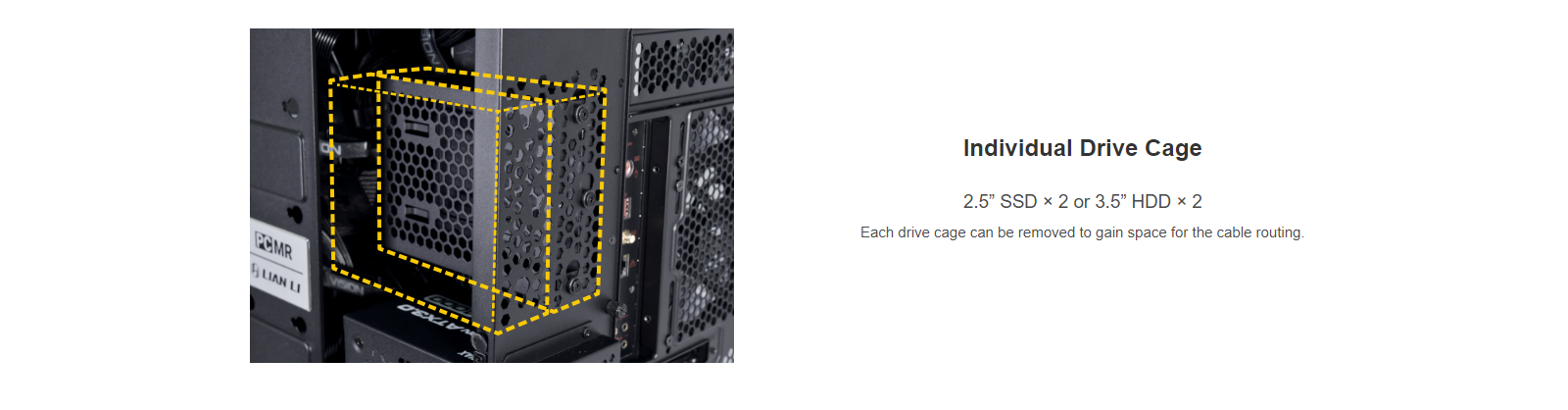

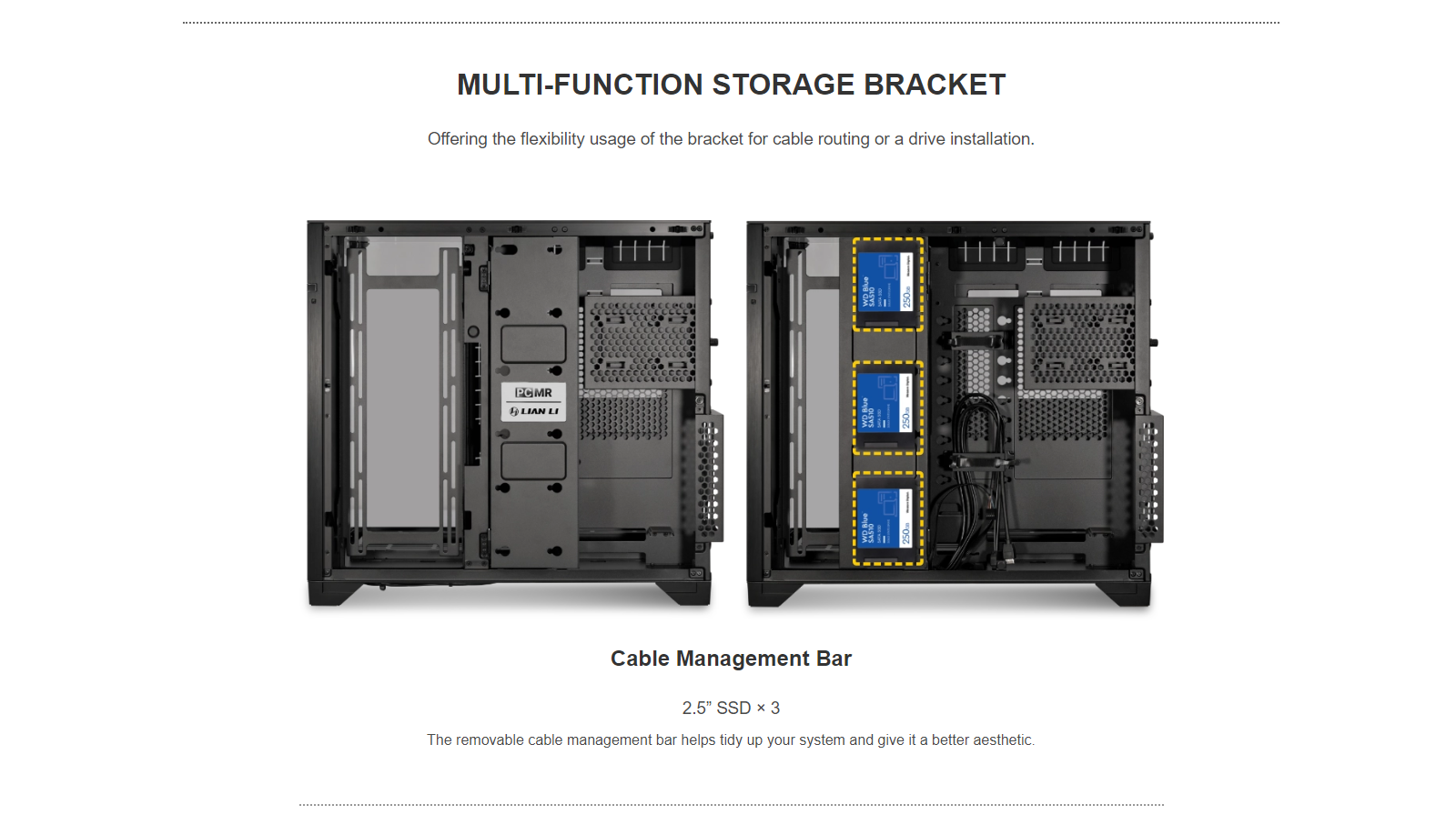

| PRODUCT NAME | O11 Vision | STORAGE | Behind MB Tray: 3 x 2.5” SSD Hard Drive Cage: 2 X 3.5′′ HDD or 2.5′′ SSD |
| CASE TYPE | Tower Chassis | GPU LENGTH CLEARANCE | 430mm (Max.) |
| MODEL | O11VX | CPU COOLER HEIGHT CLEARANCE | 174mm (Max.) |

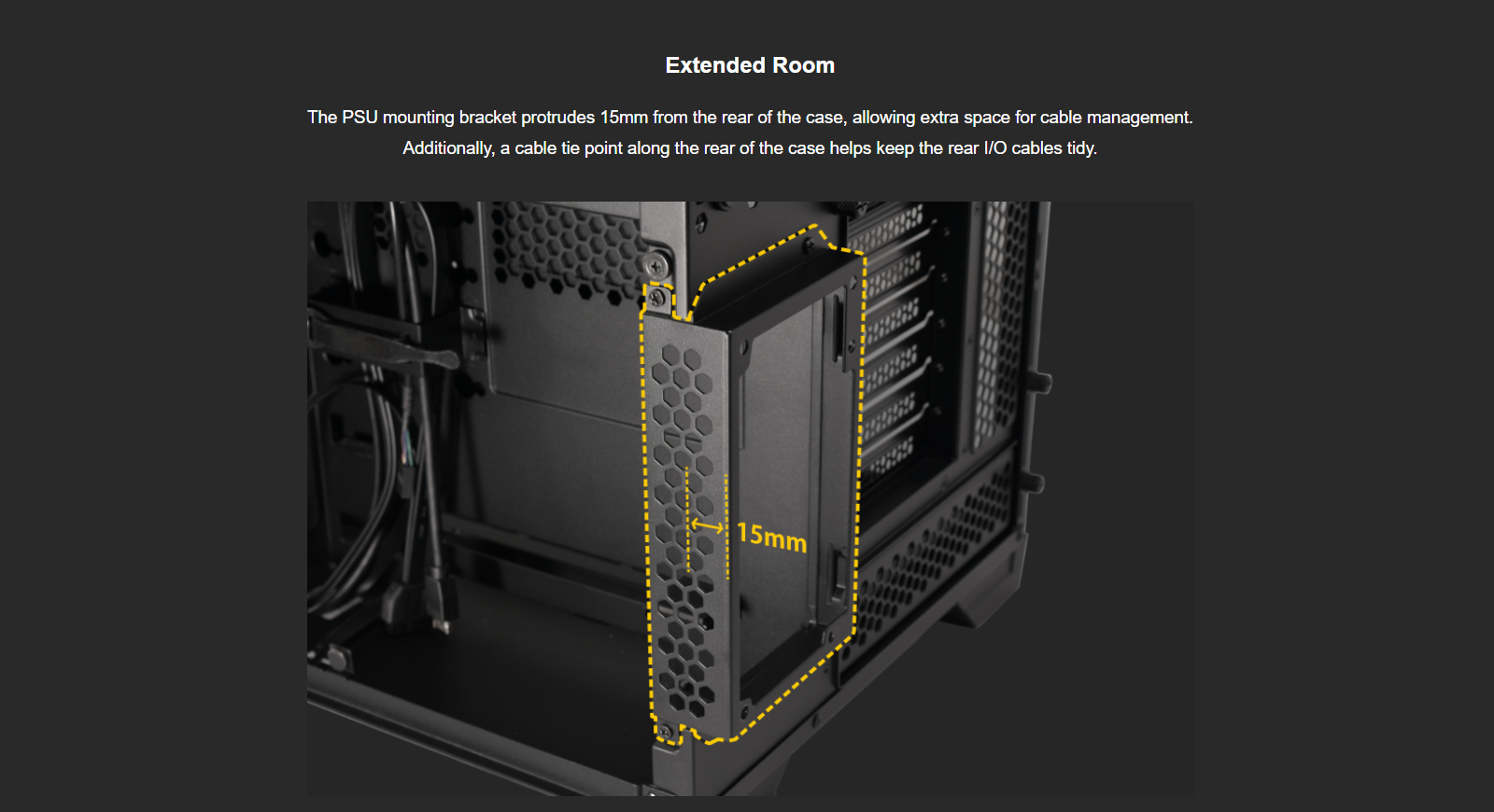

| COLOR | Black | PSU SUPPORT | ATX (Under 232mm) |
| DIMENSION | (D) 480mm x ( W ) 304mm x (H) 464.5mm | FAN SUPPORT | Side: 3 x 120mm / 2 x 140mm Bottom: 3 x 120mm / 3 x 140mm Rear:1 or 2 x 120mm |

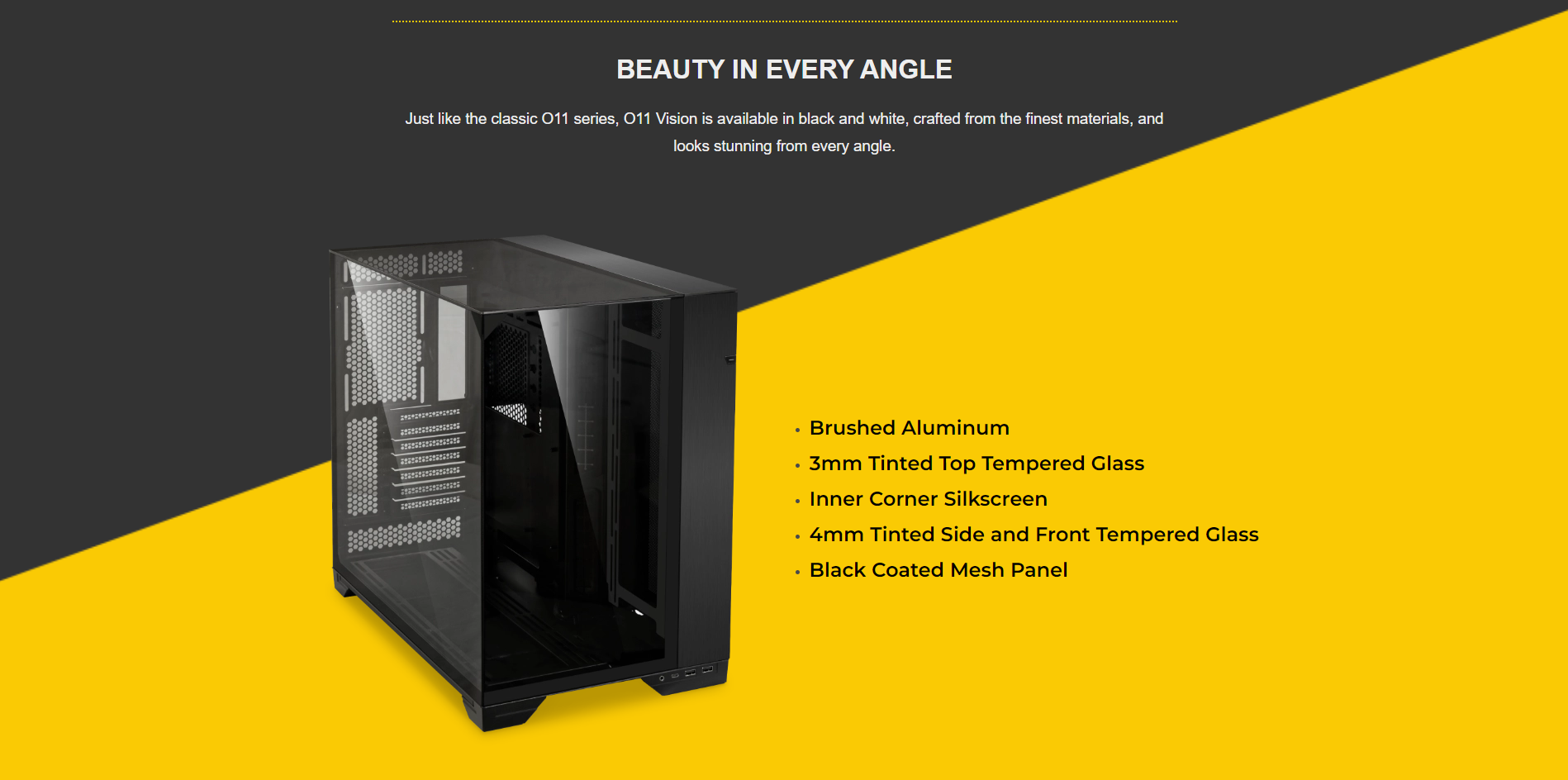

| MATERIAL | Steel 4.0mm Tempered Glass 3.0mm Tempered Glass Aluminum |
RADIATOR SUPPORT | Side: 360 / 240 / 280mm Bottom: 360 / 240 / 280mm Rear: 240/ 120mm |
| MOTHERBOARD SUPPORT | E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX | I/O PORTS | 1 x Power Button 1 x Reset Button 2 x USB 3.0 1 x USB Type C 1 x Audio |
| EXPANSION SLOT | 6+1 | DUST FILTER | Bottom × 1 |
