Lian Li RS1000G
Захранване Lian Li RS 1000W 80+ Gold PCIe 5.1, ATX 3.1, RS Hub - Бял
| Мощност | 1000W |
| Сертификат | 80+ Gold |
| Ефективност | 90 % |
| Тип | Модулярно |
| Форм Фактор | ATX |
| Спецификация | ATX 3.1 |
| PCIe Gen5 | Да |
| RGB Подсветка | Не |
| Цвят | Бял |
| Гаранция | 120 месеца |
Свързани продукти
Available in Black and White
6 Configurations to Suit Your Build
Available in Black and White, with both 1200W and 1000W models.
Users can choose between the standard version or the upgraded edition with a RS Hub for greater flexibility.
![]() |
![]() |
![]() |
![]() |
| RS1200G BLACK |
RS1200G WHITE |
RS1000G BLACK |
RS1000G WHITE |

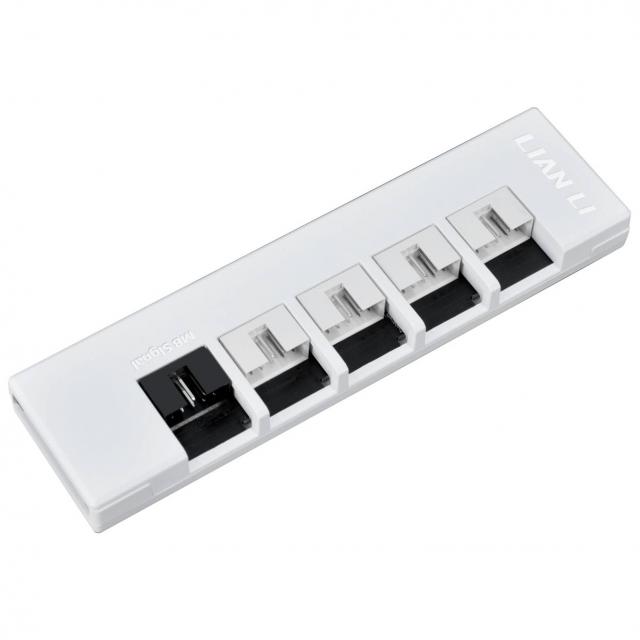

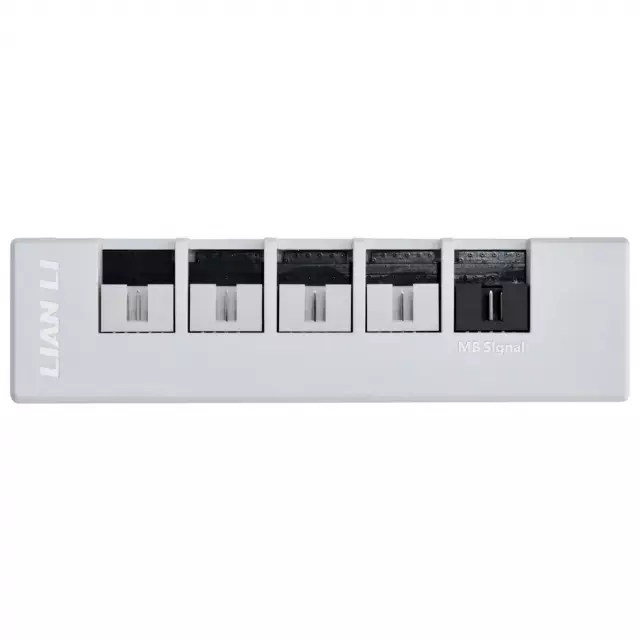

Note: The RS Hub comes with both Black and White RS1200G models, and is optional for the 1000W version.
TWO INSTALLATION OPTIONS FOR GREATER FLEXIBILITY
The RS Series offers both standard and side installation options, giving users greater flexibility to match different case layouts and achieve cleaner cable management.
![]() |
![]() |
| STANDART | SIDE |

![]() |

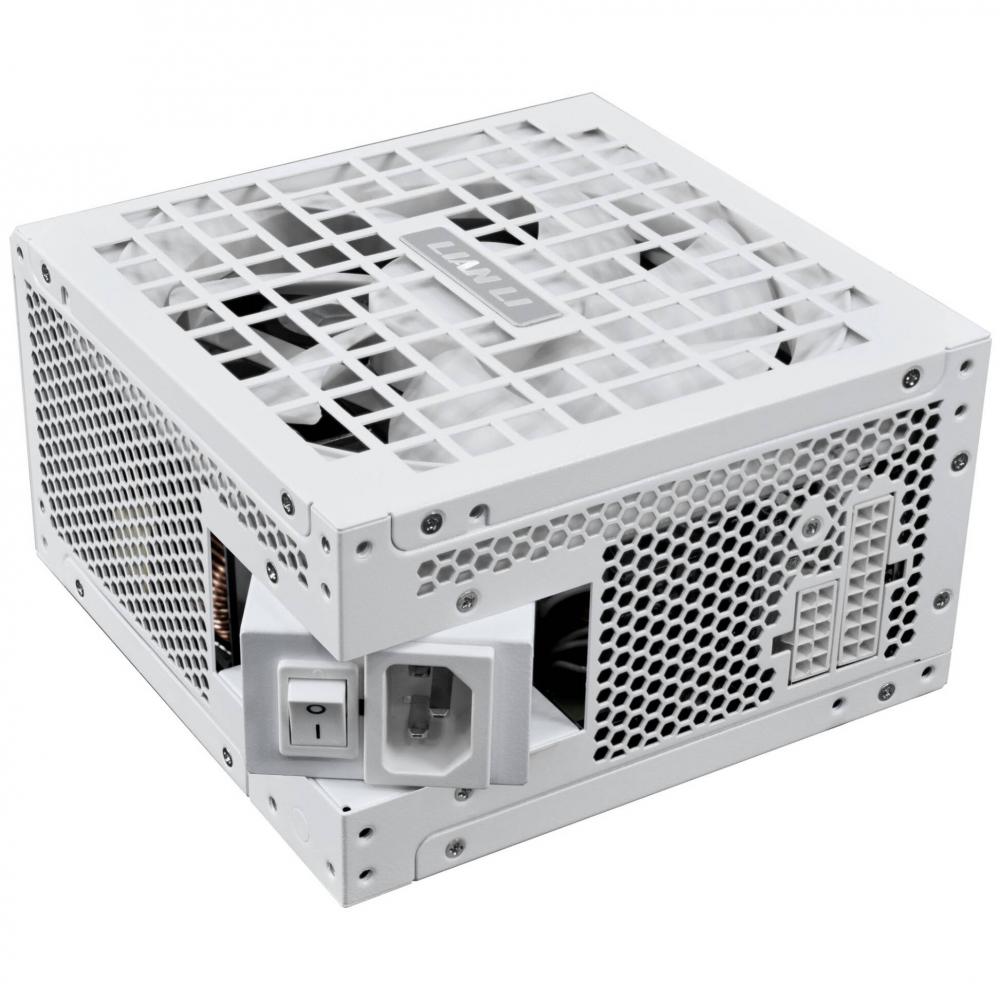

ROTATABLE AC INLET
Innovative rotatable AC inlet rotates 90°, providing |

Note: Please ensure the mounting plate is properly secured before use.
LIAN LI Exclusive Dual-Color 12V-2×6 Cable
Specially designed for next-gen GPUs, LIAN LI’s exclusive dual-color 12V-2×6 cable ensures safer and more reliable power delivery.
The dual-color housing makes connections clearer at a glance, while the reinforced structure provides long-lasting durability and stability for every build.

All Essential Cables Included
The RS Series comes with a complete set of high-quality modular cables right out of the box.
Every connection you need for a clean and reliable build is already included, ensuring a hassle-free installation experience.


Specifications
| PRODUCT NAME | RS1200G | RS1000G | |
| MODEL NO. | RS1200G | RS1000G | |
| COLOR | Black: RS1200G.BH00 White: RS1200G.WH00 |
Black: RS1000G. BH00 White: RS1000G. WH00 |
Black: RS1000G .B000 White: RS1000G .W000 |
| WITH HUB | Yes | Yes | No |
| ATX12V VERSION | ATX 3.1 | ||
| EFFICIENCY | 80 PLUS Gold / Cybenetics Platinum / PPLP Gold | ||
| DC OUTPUT CABLE | Full-Modular | ||
| DIMENSIONS | (D)150 mm X (W)86 mm X (H)150 mm | ||
| MATERIAL | SECC | ||
| PFC | Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz | ||
| INPUT RATING | 100-240Vac 15-8A, 50-60Hz |
||
| MAX. DC OUTPUT | 1200W | 1000W | |
| COMBINED +12V | 1200W | 1000W | |
| COMBINED +3.3V & +5V | 100W | ||
| FAN SPEC | 135mm FDB Fan | ||
| FAN RPM | 2400rpm | 1600rpm | |
| FANLESS MODE | YES | ||
| NOISE LEVEL | 36.27dBA @ 30℃, 100cm away from micphone to PSU | 36.21dBA @ 30℃, 100cm away from micphone to PSU | |
| MTBF | 100,000 hrs minimum 25℃/75% Load | ||
| PROTECTION | OCP,OVP,OTP,OPP,SCP,UVP,NLP,SIP | ||
| WORKING TEMPERATURE | 0-40℃ | ||
