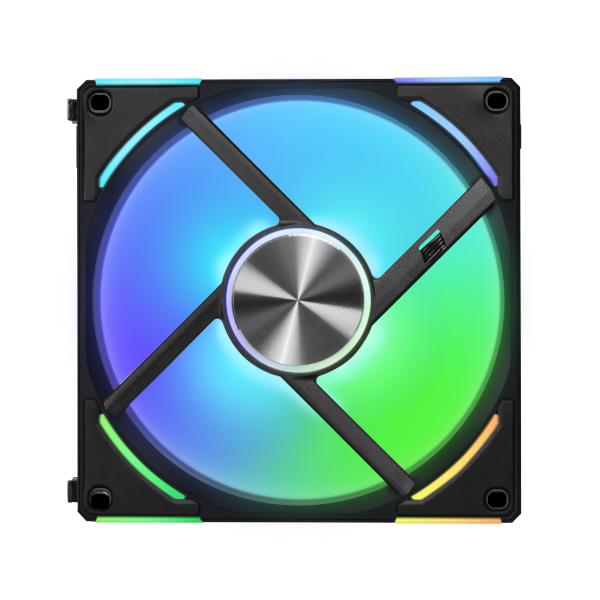

Lian Li UNI AL140 V2
Вентилатор Lian Li UNI AL140 V2, ARGB, Черен
Арт. номер: LL-FAN-LULI-14ALV21B
Запитване за Lian Li UNI AL140 V2
безплатна доставка
на поръчки над 199 лв.
Технически характеристики
| Гаранция | 24 месеца |
| Размери | 140 x 140 x 25 mm |
| Обороти | до 1600 RPM |
| Ниво на шум | до 26.8 dBA |
| Въздушен поток | до 81.6 CFM |
| Конектор | 3-pin, 4-pin PWM |
| Reverse | Не |
| Цвят | Черен |
| Подсветка | ARGB |
Свързани продукти
Размери:
140 x 140 x 28 mm
Обороти:
до 1800 RPM
Ниво на шум:
до 29 dBA
Въздушен поток:
до 103.9 CFM
Подсветка:
ARGB
Размери:
120 x 120 x 25 mm
Обороти:
до 2100 RPM
Ниво на шум:
до 29 dBA
Въздушен поток:
до 61.3 CFM
Подсветка:
ARGB
Размери:
120 x 120 x 25 mm
Обороти:
до 2100 RPM
Ниво на шум:
до 29 dBA
Въздушен поток:
до 61.3 CFM
Подсветка:
ARGB
Размери:
120 x 120 x 28 mm
Обороти:
до 2000 RPM
Ниво на шум:
до 28.7 dBA
Въздушен поток:
до 77.3 CFM
Подсветка:
ARGB
Размери:
120 x 120 x 25 mm
Обороти:
до 2100 RPM
Ниво на шум:
до 32 dBA
Въздушен поток:
до 63.6 CFM
Подсветка:
ARGB
Размери:
120 x 120 x 25 mm
Обороти:
до 2100 RPM
Ниво на шум:
до 32 dBA
Въздушен поток:
до 63.6 CFM
Подсветка:
ARGB
Размери:
140 x 140 x 25 mm
Обороти:
до 1600 RPM
Ниво на шум:
до 28.6 dBA
Въздушен поток:
до 71.6 CFM
Подсветка:
ARGB
Размери:
140 x 140 x 25 mm
Обороти:
до 1600 RPM
Ниво на шум:
до 28.6 dBA
Въздушен поток:
до 71.6 CFM
Подсветка:
ARGB
Размери:
120 x 124.5 x 28 mm
Обороти:
до 2000 RPM
Ниво на шум:
до 28.5 dBA
Въздушен поток:
до 69.8 CFM
Подсветка:
ARGB
Размери:
120 x 124.5 x 28 mm
Обороти:
до 2000 RPM
Ниво на шум:
до 28.5 dBA
Въздушен поток:
до 69.8 CFM
Подсветка:
ARGB
Размери:
120 x 124.5 x 28 mm
Обороти:
до 2000 RPM
Ниво на шум:
до 31 dBA
Въздушен поток:
до 69.5 CFM
Подсветка:
ARGB
Размери:
120 x 124.5 x 28 mm
Обороти:
до 2000 RPM
Ниво на шум:
до 31 dBA
Въздушен поток:
до 69.5 CFM
Подсветка:
ARGB
Вентилатор Lian Li UNI AL140 V2, ARGB
- Improved daisy chain design to connect 2 clusters of fans.
- AL140 V2 fan frame thickness is 25mm to provide 20% improved airflow compared to V1.
- Removable interlocking keys to provide better radiator clearance.
- Start/stop fan RPM support for a quieter environment.
- New corner lighting visible from all sides
- Only one cable is required for each fan cluster when using the provided new UNI HUB to control lighting effects via L-Connect 3.
COOL IN STYLE
 |
 |
 |
 |
 |
 |
| Slide In Daisy-Chain Style | Improved Performance | Sophisticate Lighting Effects | Cableless with Controller | Start/ Stop Fan | L-Connect 3 Software |
UPGRADED MODULARITY
UNI FAN AL V2 features an interlocking system to connect up to 6 fans in two clusters to a single controller port, making fans installation and cable management a simple job.
|
SINGLE CABLE TO CONTROLLERCombo of power and LED cable, reduce cable numbers. |
EXTENSION CABLEBridge 2 fan cluster, keep as minor cable as possible. |
|
PLUG-IN POWER CABLE MODULEFlush fan frame, reduce clearance issues. |
SLIDE-IN MECHANISMPin-to-pad contact, daisy-chain the fan clusters simply. |
REMOVABLE KEYRemove the interlocking key to improving compatibility. |
THICKER YET EASY TO INSTALL
The UNI FAN AL140 V2 has been amended to a slightly thicker frame of 25mm, and implements indented screw holes to fit standard 25mm long screws for installation.
ULTIMATE PERFORMANCE ARGB FAN
Running at peak performance while keeping low noise levels, the UNI FAN AL140 V2 is the best-performing ARGB fan within the entire UNI FAN lineup.
MODEL
|
AIRFLOW
|
STATIC PRESSURE
|
NOISE
|
SPEED
|
| AL140 V2 | 81.6 CFM | 2.97 mmH20 | 26.8 dB(A) | 0, 250-1600 RPM |
DURABLE DESIGN
|
THICKER IMPELLERIncreased thickness to 25mm for better efficiency |
MAGNETIC FRAMETo provide extra support for fan blades |
FLUID DYNAMIC BEARING (FDB)To effectively reduce the internal friction for improved durability |
CIRCLIPTo secure the fan blades in place |
|
EXTRA MAGNETIC FORCETo support the fan blades and reduce vibration levels, thus ensuring low noise levels while in operation |
STATORTo provide a rotating magnetic field that generates momentum |
RUBBER PADSTo reduce vibrations and ensure extremely low noise levels |
DAZZLING FROM ALL ANGLES
UNI FAN ALV2 has comprehensive lighting all around with independent control of the effects at the fan blades and fan frame, and combined lighting effects.
| Sophisticated lighting on the fan blade glows the whole system. |
| A ring of RGB is visible at the rear side, keeping it attractive no matter as intake or exhaust. |
| The fine LED strips at the four corners of the fan frame and beside the aluminum sides can be set in different colors, creating an elegant look. |
MORE LIGHTING EFFECT CHOICES
New lighting effects have been developed for the updated version of the AL fans, offering more lighting options.
CONTINUOUS LIGHTING EFFECTS
A merge function is available to allow lighting effects to flow not only across a single cluster but across the whole system.
SIMPLE CONNECTION
2 ways to connect UNI FAN ALV2 fans, adapted to your personal needs.
UNI HUB - 16 Fans in One Go
The included controller in the triple pack (also available separately) can support up to 16 fans and 2 SM-type connected devices to simplify cable management and provide efficient power to the fans.
|
SM TYPE PORTCompatible with the Galahad AIO pump ARGB cable…etc. Each port supports a 5W maximum output.
SYNC 4 port replicates the lighting effect applied to port 4 and SYNC 2 port replicates the lighting effect applied to port 2 |
FAN GROUP ARGB + PWM SIGNALSupport one cluster of up to 6 fans
|
USB CABLEPlug into a motherboard 9-pin USB header.
|
|
5V ARGB / 4 PIN PWM CABLERequired for motherboard sync function.
|
2×SATA CABLEFor a total maximum input of 29W
Main- SATA: Plug in all circumstances |
Note:
Please lower the static white lighting effect’s brightness to 75% when connecting more than 8 x140 or 11 x 120 AL V2 fans synchronized to the motherboard. Failing to do so may cause inaccurate colors.
DIRECT TO MOTHERBOARD
The single pack includes a cable module that features a 4-PIN PWM and a 3-PIN SM-type ARGB cable (3P to 3P 5V ARGB cable is included) to connect directly to the motherboard.
L-CONNECT 3 SOFTWARE TO CONTROL AL-V2 FANS
Control and preview with precision the lighting effect of the AL-V2 fans with the new L-Connect interface.
Note: L-Connect 3 is only supported when connecting the fans to an ALV2 UNI HUB.
|
Choose to control lighting effects of fan blades/ edge of fan frame/ botn together or set as merge mode |
Set personalized color / brightness / speed / direction
|
INTELLIGENT START/ STOP FAN
|
Select fan mode for each group
|
Turn on to stop fan operating at a set temperature |
Customize real-time RPM curve
|
DEFINE THE ORDER
|
Define fan group name |
Set fan quantity each group |
Reorder the fan group order |
Specification
PRODUCT NAME |
UNI FAN AL140 V2 |
MAX. AIRFLOW |
81.6 CFM (Maximum) |
MODEL |
AL140V2-1B |
ACOUSTIC NOISE |
26.8 dB(A) Max |
COLOR |
Black |
MATERIAL |
PBT/PC/Aluminum) |
NUMBER OF FANS |
1 |
RATED VOLTAGE |
DC 12V (FAN) & 5V (LED) |
CONTROLLER |
No |
BEARING TYPE |
Fluid Dynamic Bearing (FDB) |
CONNECTOR TYPE |
1 × 4-PIN PWM + 3-PIN SM Type 1 × ARGB MB Adaptor |
OPERATE VOLTAGE |
DC12V & 5V |
FAN DIMENSION |
140 X 140 X 25 (mm) |
START-UP VOLTAGE |
≦5V |
FAN SPEED |
0, 250~1600 RPM |
INPUT POWER |
6.32W |
MAX. AIR PRESSURE |
2.80 mmH2O (Maximum) |
WARRANTY |
2 years |
