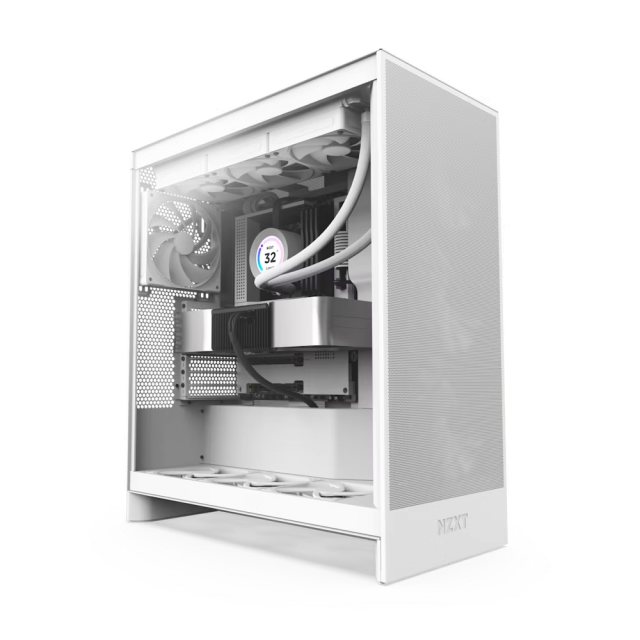

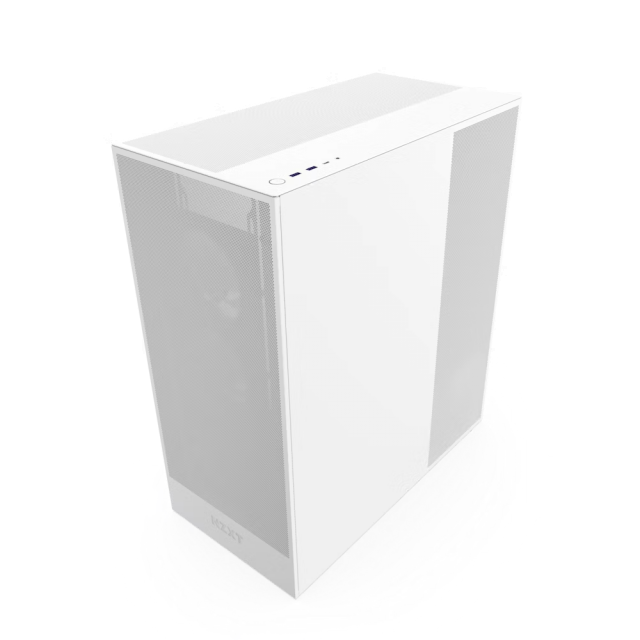

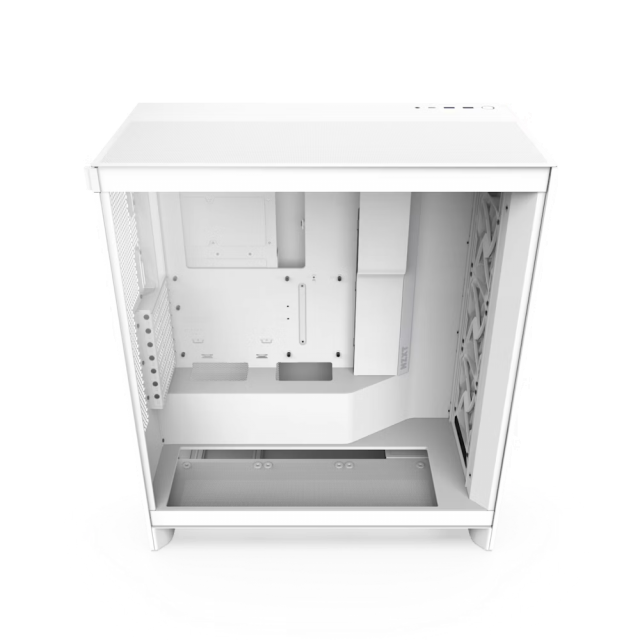

NZXT H7 Flow 2024 Edition
Кутия NZXT H7 Flow 2024 Edition White
Арт. номер: NZXT-CASE-H72FW-01
безплатна доставка
на поръчки над 199 лв.
Технически характеристики
| Гаранция | 24 месеца |
| Форм Фактор | Mid Tower |
| Формат | ATX, Micro ATX, Mini ITX, EATX |
| Включени вентилатори | 3x 120 mm |
| Преден панел | Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C |
| Цвят | Бял |
| Дължина | 468 мм |
| Широчина | 244 мм |
| Височина | 544 мм |
| Максимална височина на въздушен охладител | 185 мм |
| Максимална дължина на видеокарта | 410 мм |
| Поддържани вентилатори отпред | 3x 120mm, 3x 140mm |
| Поддържани вентилатори отзад | 1x 120mm, 1x 140mm |
| Поддържани вентилатори отгоре | 2x 140mm, 3x 120mm |
| Поддържани вентилатори отдолу | 3x 120mm |
| Поддържани водни охладители отпред | 1x 280mm, 1x 240mm, 1x 360mm, 1x 420mm |
| Поддържани водни охладители отзад | 1x 120mm, 1x 140mm |
| Поддържани водни охладители отгоре | 1x 240mm, 1x 280mm, 1x 360mm |
| Преден Mesh панел | Да |
Свързани продукти
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX
Включени вентилатори:
3x 120 mm
Преден панел:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Цвят:
Черен
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX
Включени вентилатори:
3x 120 mm
Преден панел:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Цвят:
Бял
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX
Включени вентилатори:
4x 140mm
Преден панел:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Цвят:
Бял
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX, EATX
Включени вентилатори:
3x 120 mm
Преден панел:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Цвят:
Черен
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX, EATX
Включени вентилатори:
4x 120mm
Преден панел:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Цвят:
Бял
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX, EATX
Включени вентилатори:
4x 120mm
Преден панел:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Цвят:
Черен
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX
Включени вентилатори:
2x 120mm, 2x 140mm
Преден панел:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Цвят:
Бял
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX
Включени вентилатори:
3x 120 mm
Преден панел:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Цвят:
Черен
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX
Включени вентилатори:
3x 120 mm
Преден панел:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Цвят:
Бял
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX, EATX
Включени вентилатори:
3x 120 mm
Преден панел:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Цвят:
Бял
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX, EATX
Включени вентилатори:
3x 120 mm
Преден панел:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Цвят:
Черен
Форм Фактор:
Mid Tower
Формат:
ATX, Micro ATX, Mini ITX, EATX
Включени вентилатори:
2x 120mm
Преден панел:
Audio In & Out, USB 3.2 Gen1, USB 3.2 (Gen 2) Type-C
Цвят:
Бял
The H7 Flow revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient
cooling without expanding the case footprint.
- Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
- Comes equipped with three front-mounted 120mm fans for exceptional out-of-the-box cooling.
- High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
- Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
- Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
- Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
- Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
- Tool-less access to the front, top, and side panels makes building and upgrading a breeze.

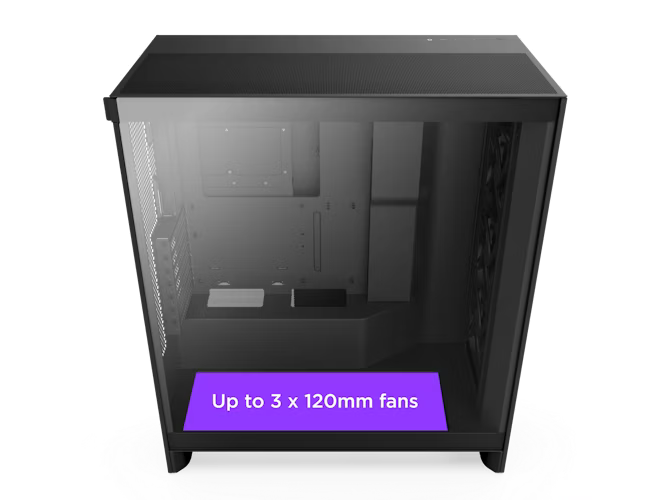

Dedicated GPU Cooling
Supports three bottom-mounted 120mm fans
for direct GPU cooling in a narrow mid-tower
footprint.
for direct GPU cooling in a narrow mid-tower
footprint.

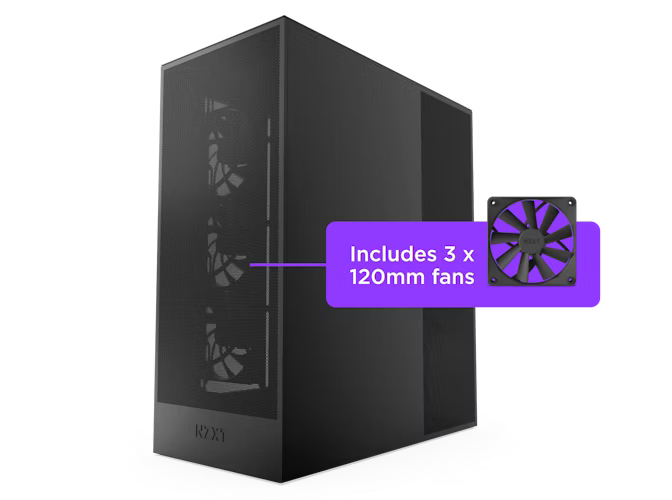

Out-of-the-Box Performance
Comes equipped with 3 x 120mm front-
mounted fans for exceptional out-of-the-box
cooling performance.
mounted fans for exceptional out-of-the-box
cooling performance.
Optimized for
Airflow
High-performance mesh panels
maximize airflow for both intake
and exhaust, as well as filter dust.
maximize airflow for both intake
and exhaust, as well as filter dust.

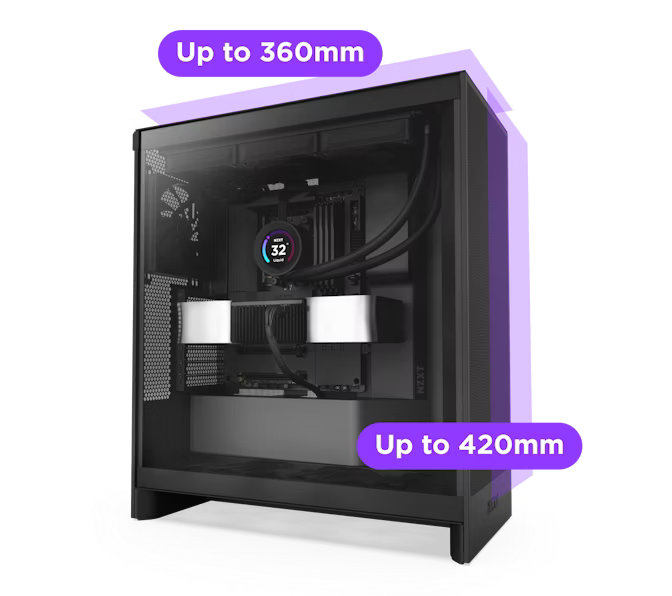

Large Radiator
Support
Supports up to a 420mm radiator
in front and 360mm radiator up
top for max cooling potential.
in front and 360mm radiator up
top for max cooling potential.

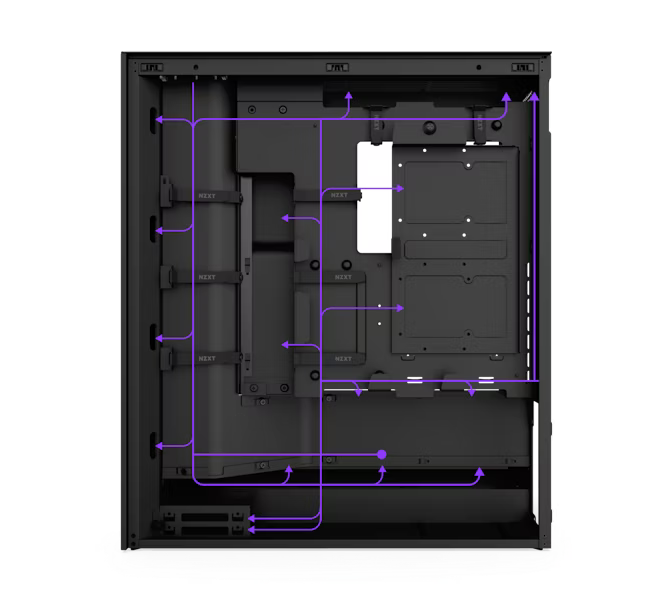

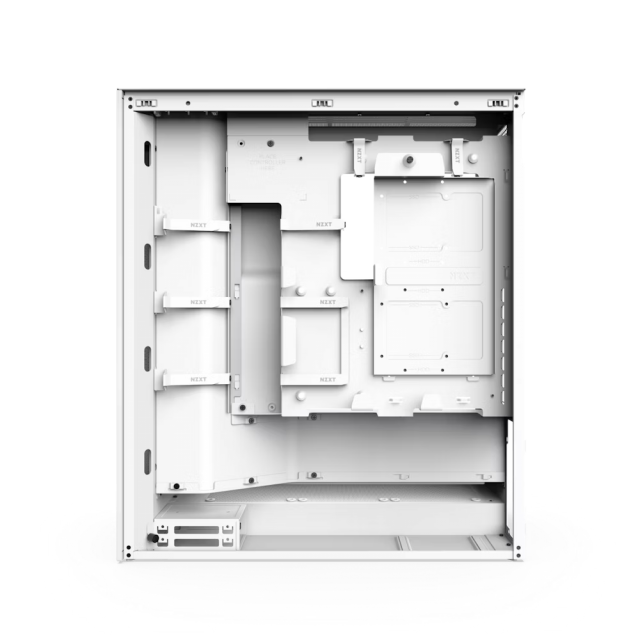

Easily Manage
Cables
Intuitive cable management system
with wide channels, built-in hooks, and
included straps for easy routing.
with wide channels, built-in hooks, and
included straps for easy routing.
10-Fan Capacity
Capacity for up to 10 fans in total: 3 up
top, 3 in front, 3 on bottom, and 1 in the
rear.
top, 3 in front, 3 on bottom, and 1 in the
rear.
Top I/O Ports
Conveniently access 2 x USB-A and 1 x USB-C
ports located on the top panel.
ports located on the top panel.

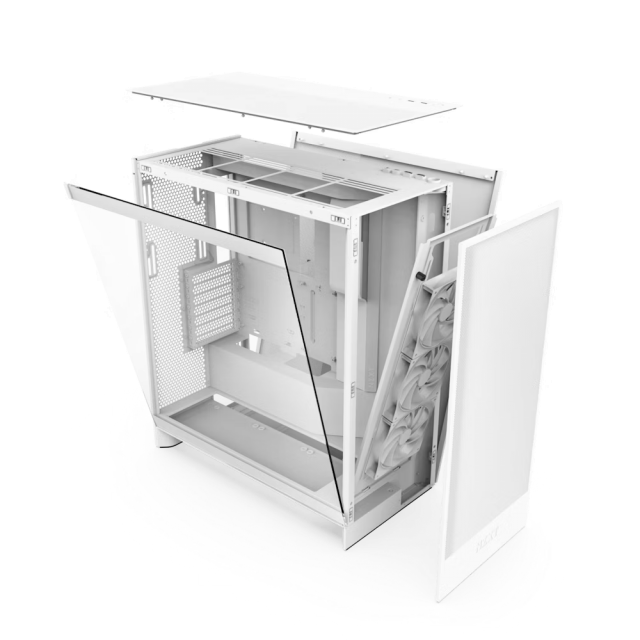

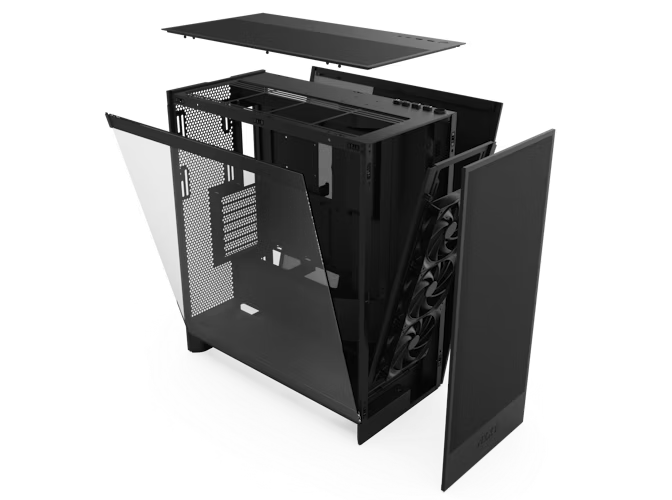

Tool-less Panel Access
Tool-less access to the front, top, and side
panels makes building and upgrading a breeze.
panels makes building and upgrading a breeze.
Tech Specs
Key Specs
| Motherboard Support | E-ATX (Up to 27.7mm), ATX, Micro-ATX, Mini-ITX | Case Material | SGCC Steel, Ultra-Clear Tempered Glass (White) |
| Enclosure Type | Mid-Tower |
Dimensions
| Height (with feet) | 544 mm | Depth | 468 mm |
| Width | 244 mm | Weight | 11.13 kg |
Compatibility & Clearance
| CPU Cooler Height | Up to 185 mm | Cable Management | Up to 34.5 mm |
| GPU Length | Up to 410 mm | Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness | Up to 57 mm |
| PSU Length | Up to 200 mm |
Front I/O Ports
| USB 3.2 Gen 1 Type-A | 2 | Headset Audio Jack | 1 |
| USB 3.2 Gen 2 Type-C | 1 |
Expansion Slots
| Standard | 7 | Vertical | 0 |
Drive Bays
| 2.5" | 2+2 | 3.5" | 2 |
Fan Support
| Front | 3 x 120 mm / 3 x 140 mm (3 x F120Q included) | Rear | 1 x 120 mm / 1 x 140 mm |
| Top | 3 x 120 mm / 2 x 140 mm | Filters | High-Performance Mesh |
Radiator Support
| Front | Up to 420 mm | Rear | Up to 140mm |
| Top | Up to 360mm |
Fan Specs
| Model | F120Q Airflow Fan (Case Version) | Static | 1.05 mm - H2O |
| Speed | 1,350 ± 150 RPM | Noise | 24.1 dBA |
| Airflow | 60.2 CFM | Fan Connector | 3-pin |
General
| Warranty | 2 Years | UPC | 810074845564 (White) |
| Model Number | CM-H72FW-01 (White) | EAN | 5056547205519 (White) |
