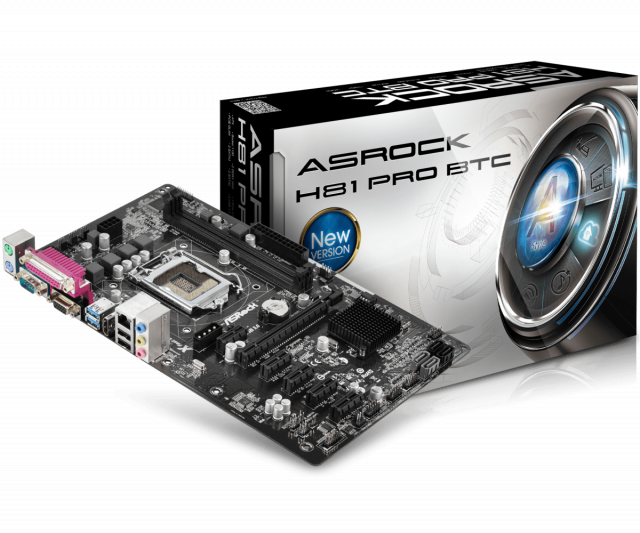

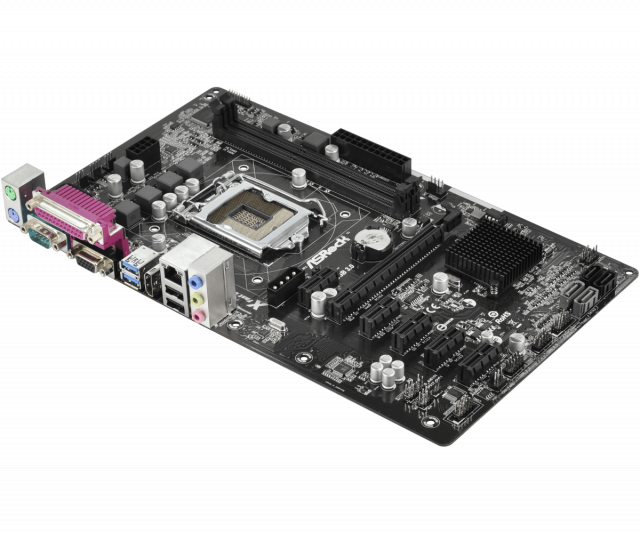

ASRock H81 Pro BTC
Дънна платка ASRock H81 Pro BTC
Запитване за ASRock H81 Pro BTC
| Гаранция | 24 месеца |
| Сокет | Intel 1150 |
| Форм Фактор | ATX |
| Чипсет | Intel H81 |
| Брой слотове за памет | 2 |
| Капацитет на RAM | до 16 GB |
| RGB Подсветка | Не |
| Честота на памет | до 1600 MT/s |
| Поддържана памет | DDR3, DDR3L |
Свързани продукти
Модел: H81 PRO BTC
Чипсет: Intel® H81
Аудио: 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
LAN:
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111GR
Supports Realtek RealWoW! Technology
Supports Wake-On-LAN
Supports LAN Cable Detection
Supports Energy Efficient Ethernet 802.3az
Supports PXE
Слотове:
1 x PCI Express 2.0 x16 Slot (PCIE2: x16 mode)
5 x PCI Express 2.0 x1 Slots
Интерфейс:
2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Конектори:
1 x IR Header
1 x COM Port Header
1 x Power LED Header
1 x TPM Header
2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)
1 x Power Fan Connector (3-pin)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
2 x SLI/XFire Power Connectors
1 x Front Panel Audio Connector
1 x SPDIF Out connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
Заден панел-В/И:
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x Serial Port: COM1
1 x Parallel Port (ECP/EPP support)
1 x D-Sub Port
1 x HDMI Port
2 x USB 2.0 Ports
2 x USB 3.0 Ports
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jack: Line in / Front Speaker / Microphone
Други:
ASRock APP Shop
ASRock A-Tuning
ASRock Instant Flash
ASRock APP Charger
ASRock XFast LAN
ASRock XFast RAM
ASRock Crashless BIOS
ASRock OMG (Online Management Guard)
ASRock Internet Flash
ASRock UEFI Tech Service
ASRock Dehumidifier
ASRock Easy Driver Installer
ASRock Interactive UEFI
ASRock Fast Boot
ASRock Restart to UEFI
ASRock USB Key
ASRock FAN-Tastic Tuning
