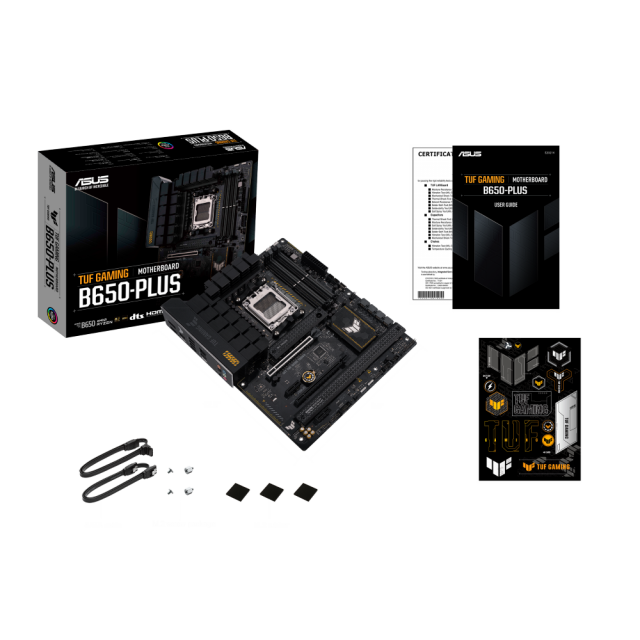

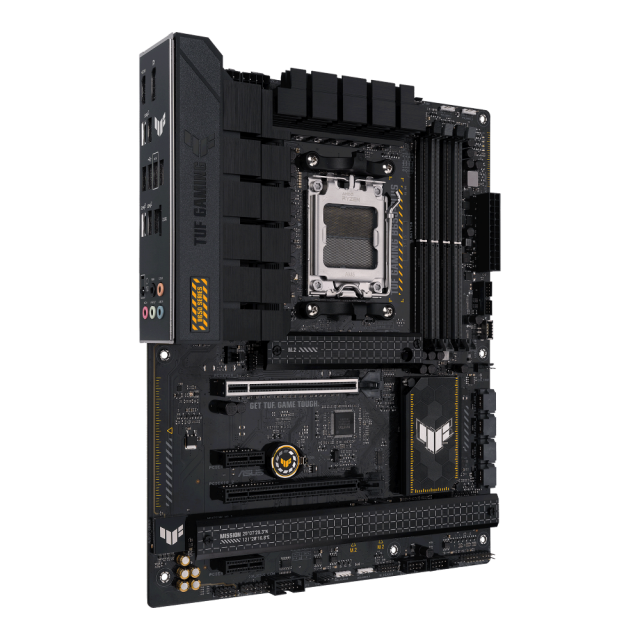

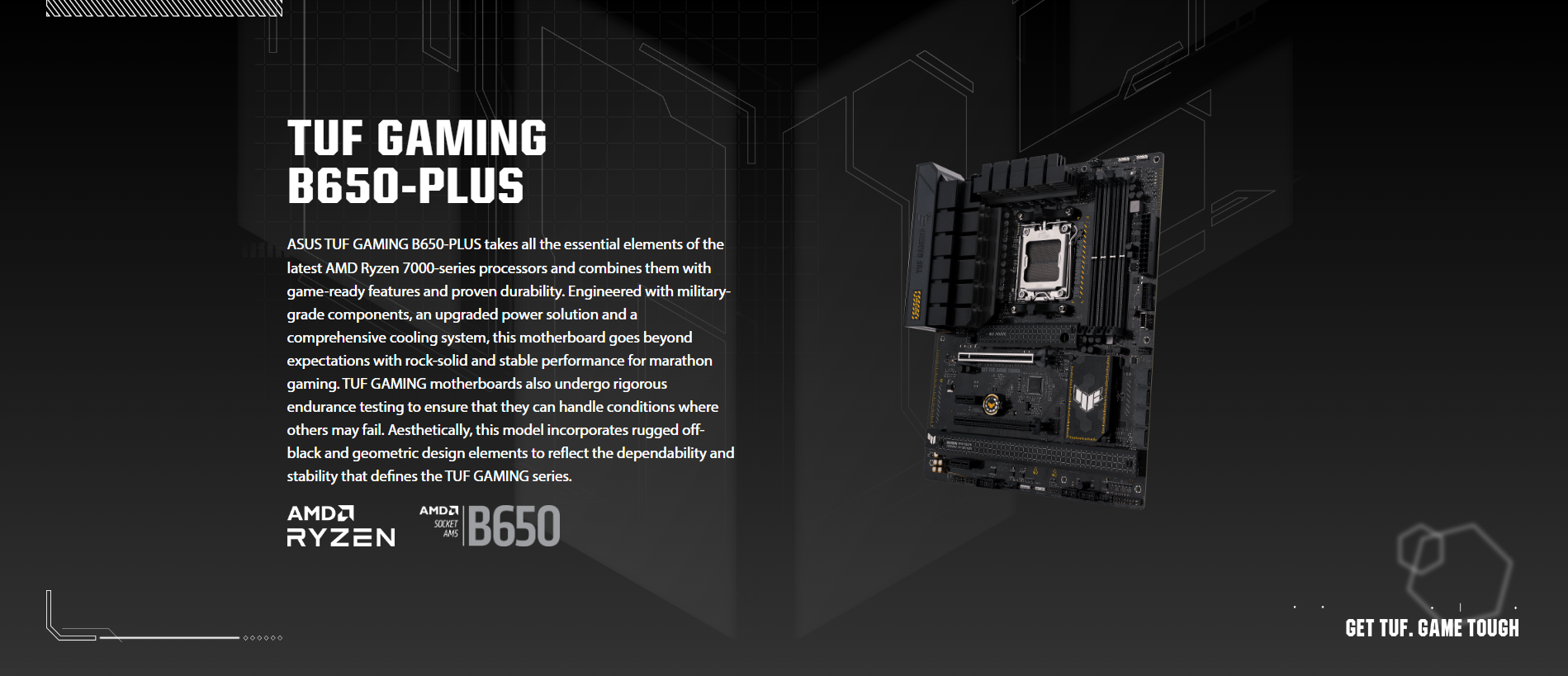

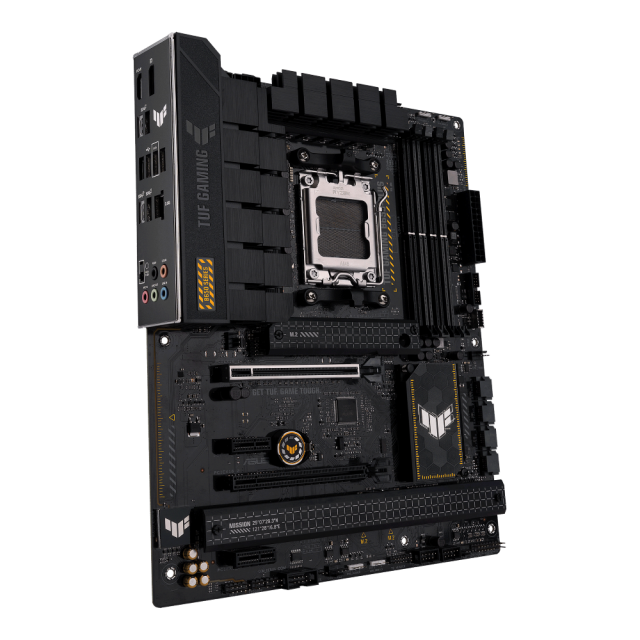

ASUS TUF GAMING B650-PLUS

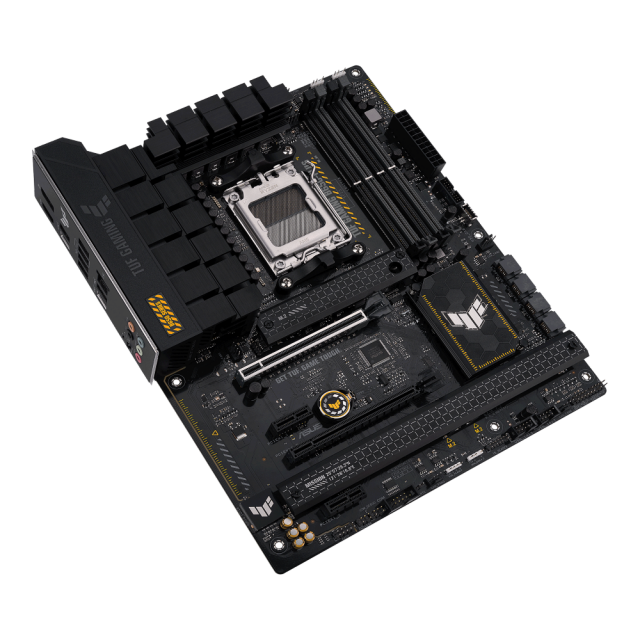

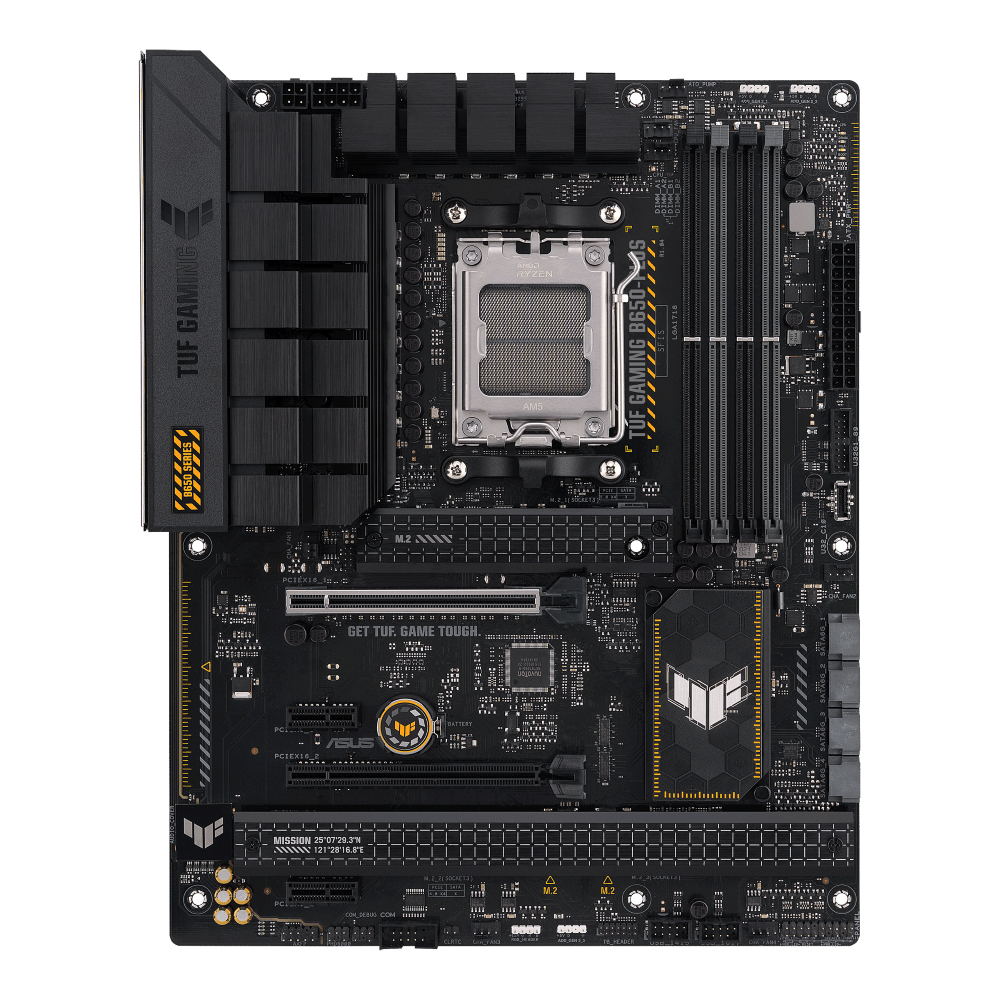

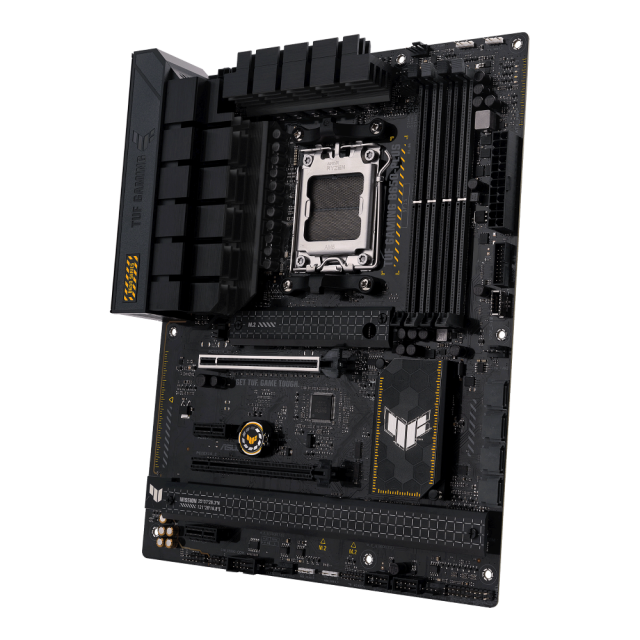

Дънна платка ASUS TUF GAMING B650-PLUS socket AM5
Арт. номер: ASUS-MB-TUF-B650-PLUS
безплатна доставка
на поръчки над 100 EUR
Технически характеристики
| Гаранция | 36 месеца |
| Сокет | AMD AM5 |
| Форм Фактор | ATX |
| Чипсет | AMD B650 |
| Брой слотове за памет | 4 |
| Капацитет на RAM | до 128 GB |
| Честота на памет | до 7600 MT/s |
| RGB Подсветка | Не |
| Поддържана памет | DDR5 |
| Вграден Wi-Fi | Не |
Свързани продукти
0% лихва за 6 месеца
Сокет:
Intel 1700
Форм Фактор:
Micro ATX
Чипсет:
Intel B760
Брой слотове за памет:
4
Капацитет на RAM:
до 192 GB
0% лихва за 6 месеца
Сокет:
AMD AM5
Форм Фактор:
Micro ATX
Чипсет:
AMD B850
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
AMD AM4
Форм Фактор:
ATX
Чипсет:
AMD B550
Брой слотове за памет:
4
Капацитет на RAM:
до 128 GB
Сокет:
Intel 1700
Форм Фактор:
ATX
Чипсет:
Intel B760
Брой слотове за памет:
4
Капацитет на RAM:
до 192 GB
Сокет:
AMD AM4
Форм Фактор:
Micro ATX
Чипсет:
AMD B550
Брой слотове за памет:
4
Капацитет на RAM:
до 128 GB
Сокет:
Intel 1700
Форм Фактор:
Micro ATX
Чипсет:
Intel H610
Брой слотове за памет:
2
Капацитет на RAM:
до 64 GB
0% лихва за 6 месеца
Сокет:
AMD AM5
Форм Фактор:
ATX
Чипсет:
AMD B850
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
AMD AM4
Форм Фактор:
ATX
Чипсет:
AMD B450
Брой слотове за памет:
4
Капацитет на RAM:
до 128 GB
0% лихва за 6 месеца
Сокет:
Intel 1851
Форм Фактор:
ATX
Чипсет:
Intel B860
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
Intel 1700
Форм Фактор:
Micro ATX
Чипсет:
Intel B760
Брой слотове за памет:
2
Капацитет на RAM:
до 64 GB
0% лихва за 6 месеца
Сокет:
Intel 1700
Форм Фактор:
ATX
Чипсет:
Intel Z790
Брой слотове за памет:
4
Капацитет на RAM:
до 128 GB
0% лихва за 6 месеца
Сокет:
AMD AM5
Форм Фактор:
ATX
Чипсет:
AMD X870
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
 |

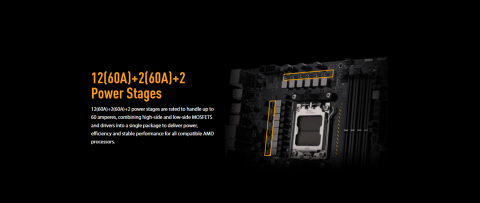

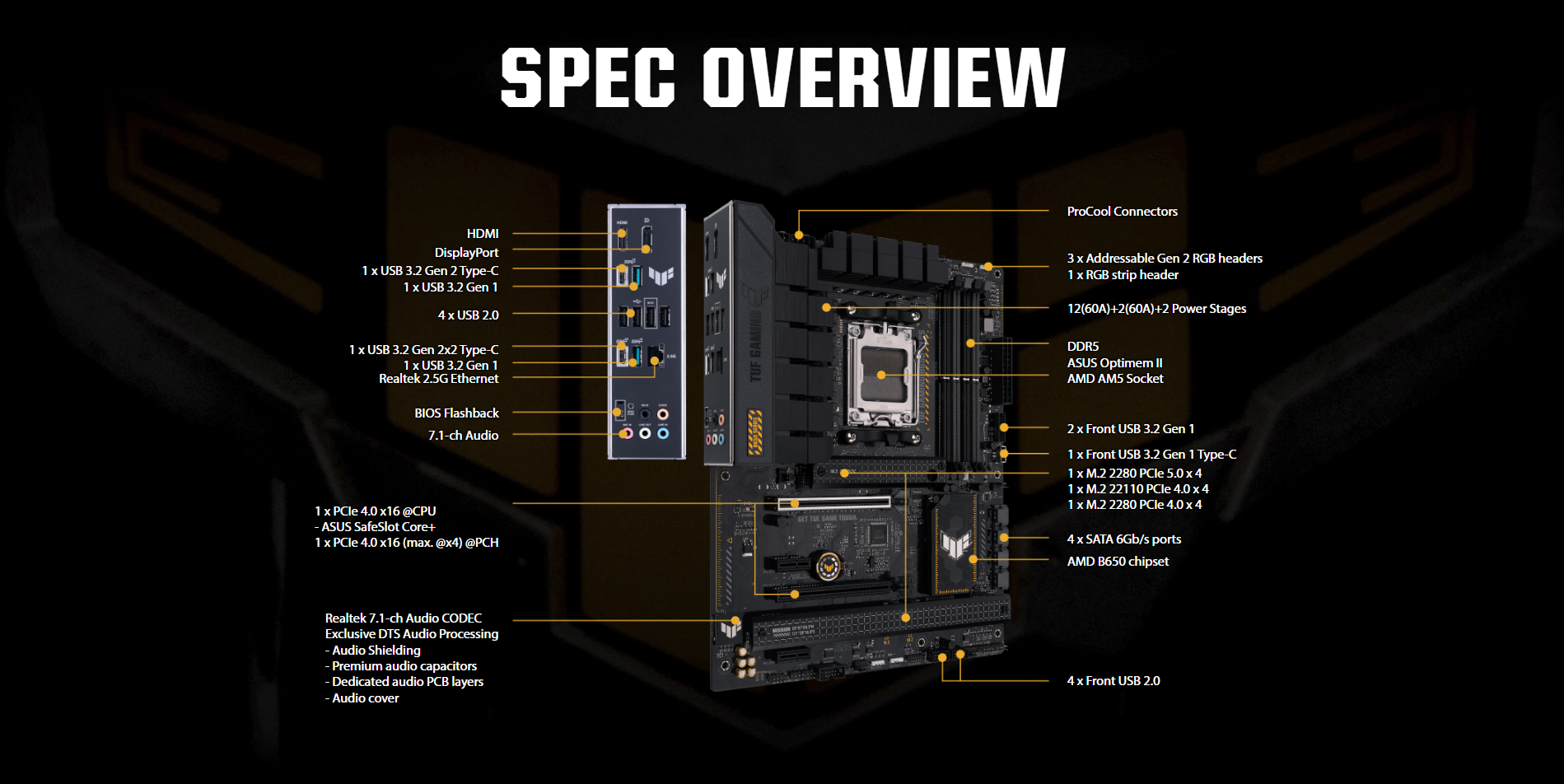

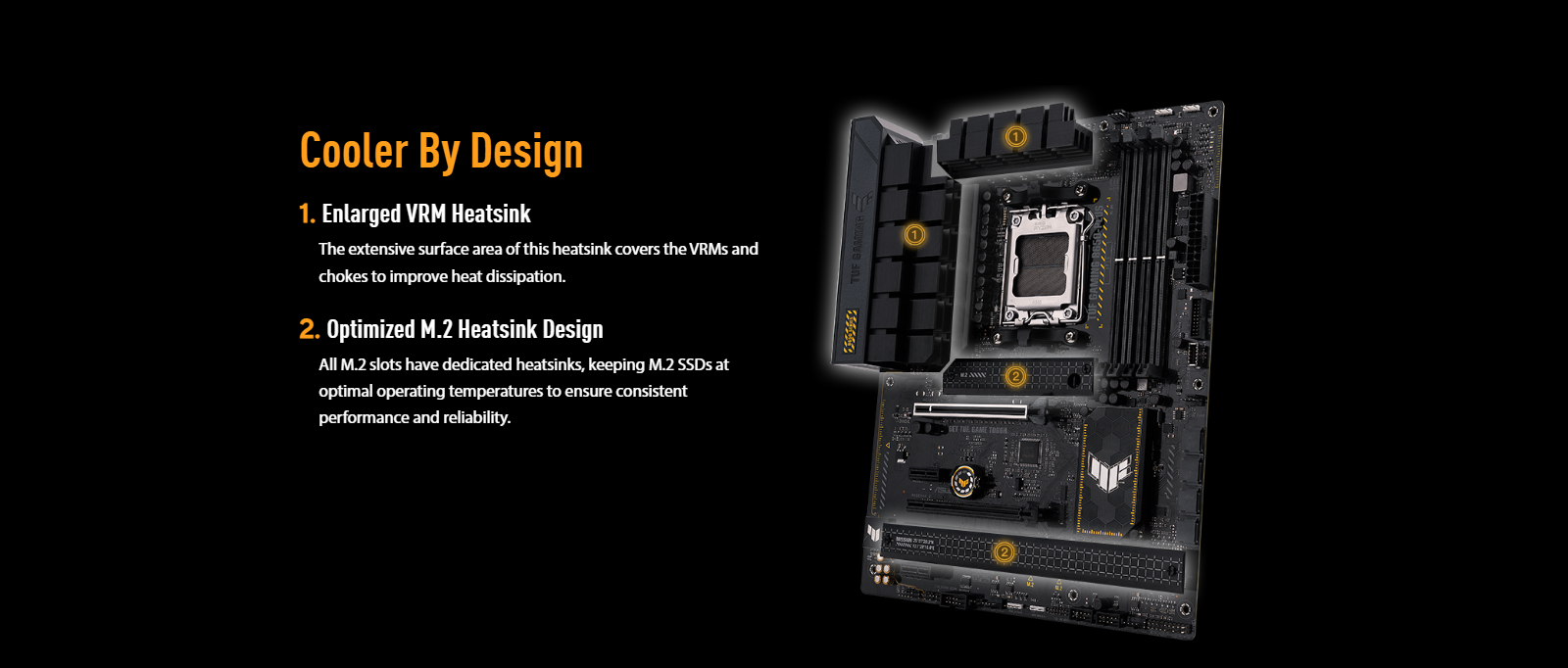

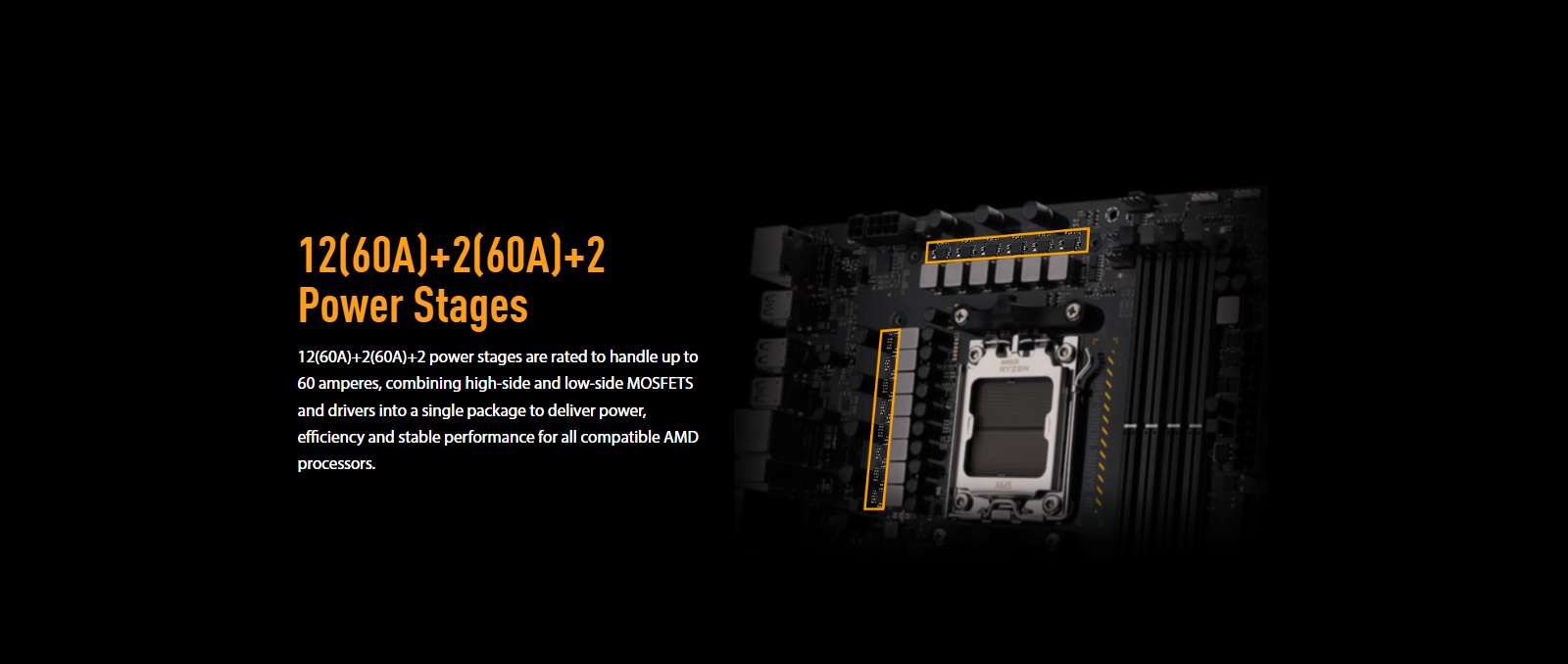

12(60A)+2(60A)+2 power stages with enlarged VRM heatsinks |  |

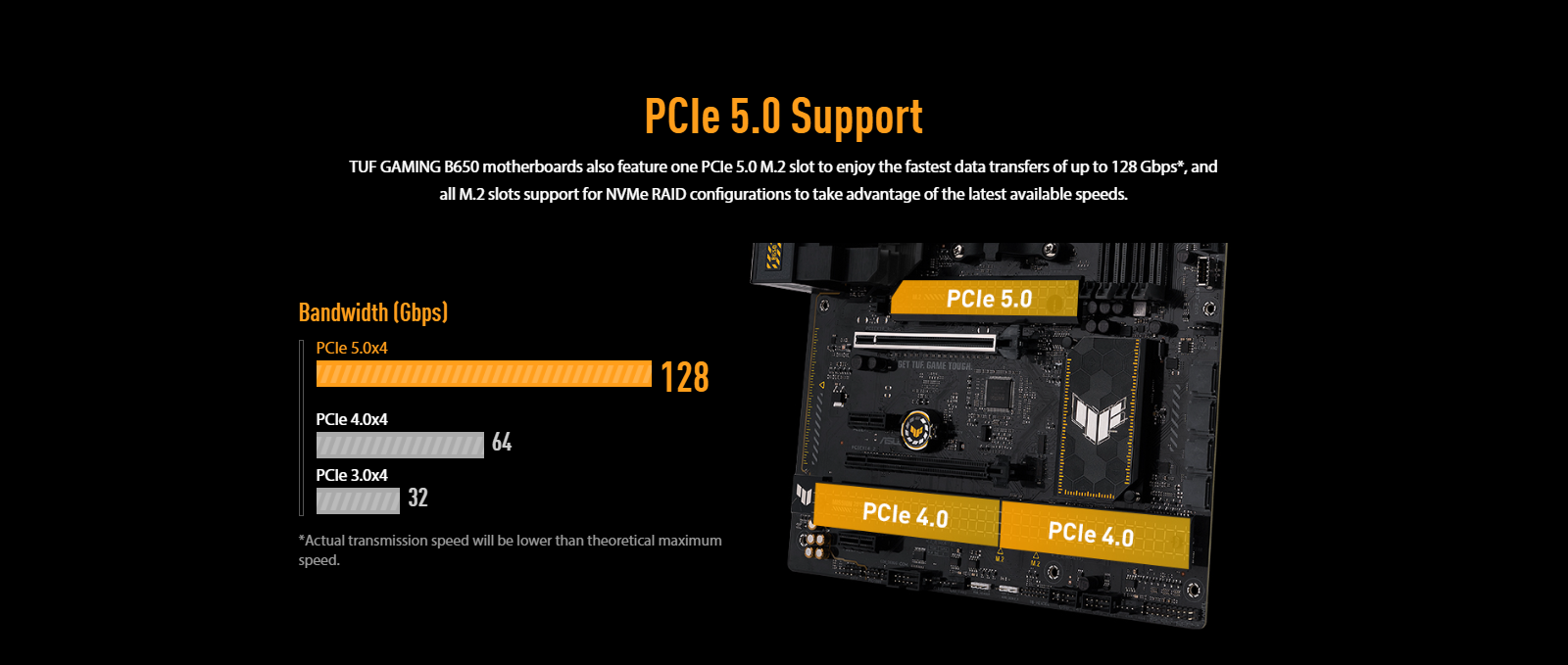

PCIe 5.0 for M.2 storage |  |

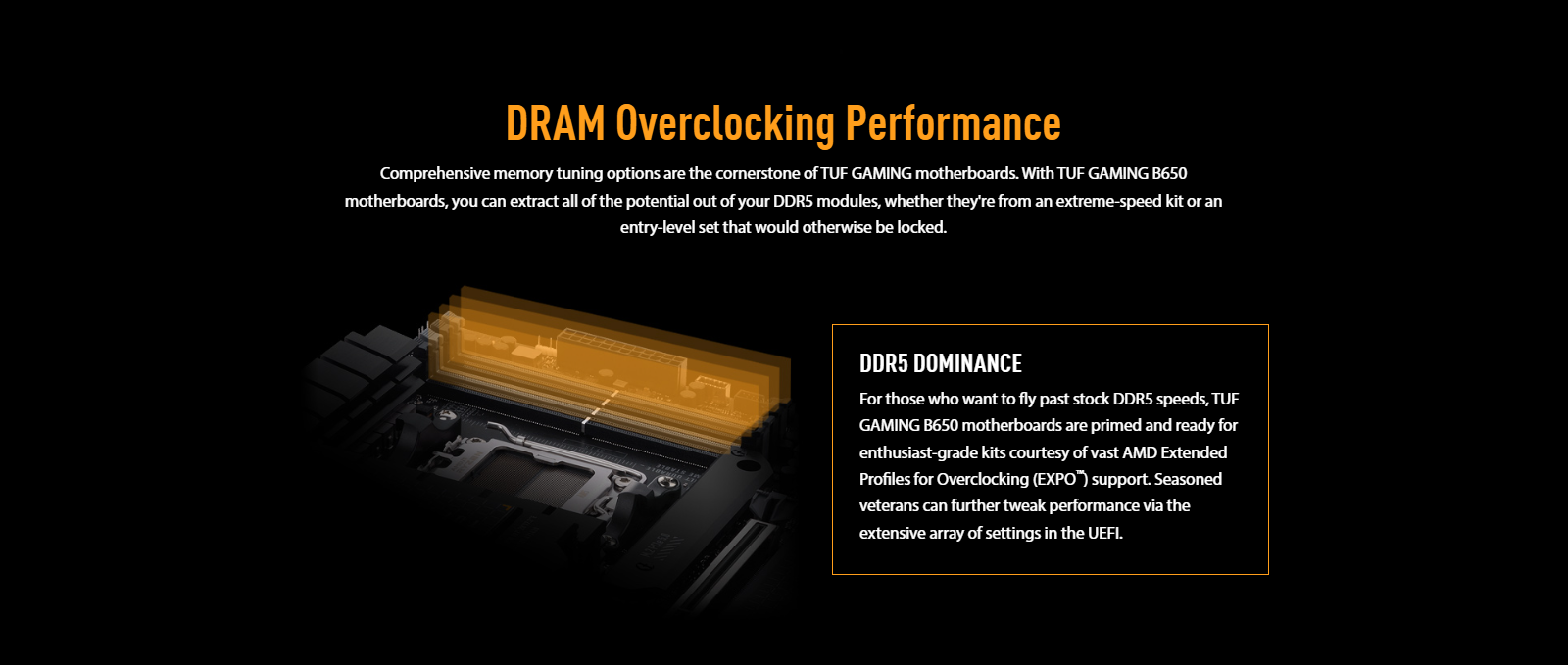

DDR5 memory module support | ||||
 |

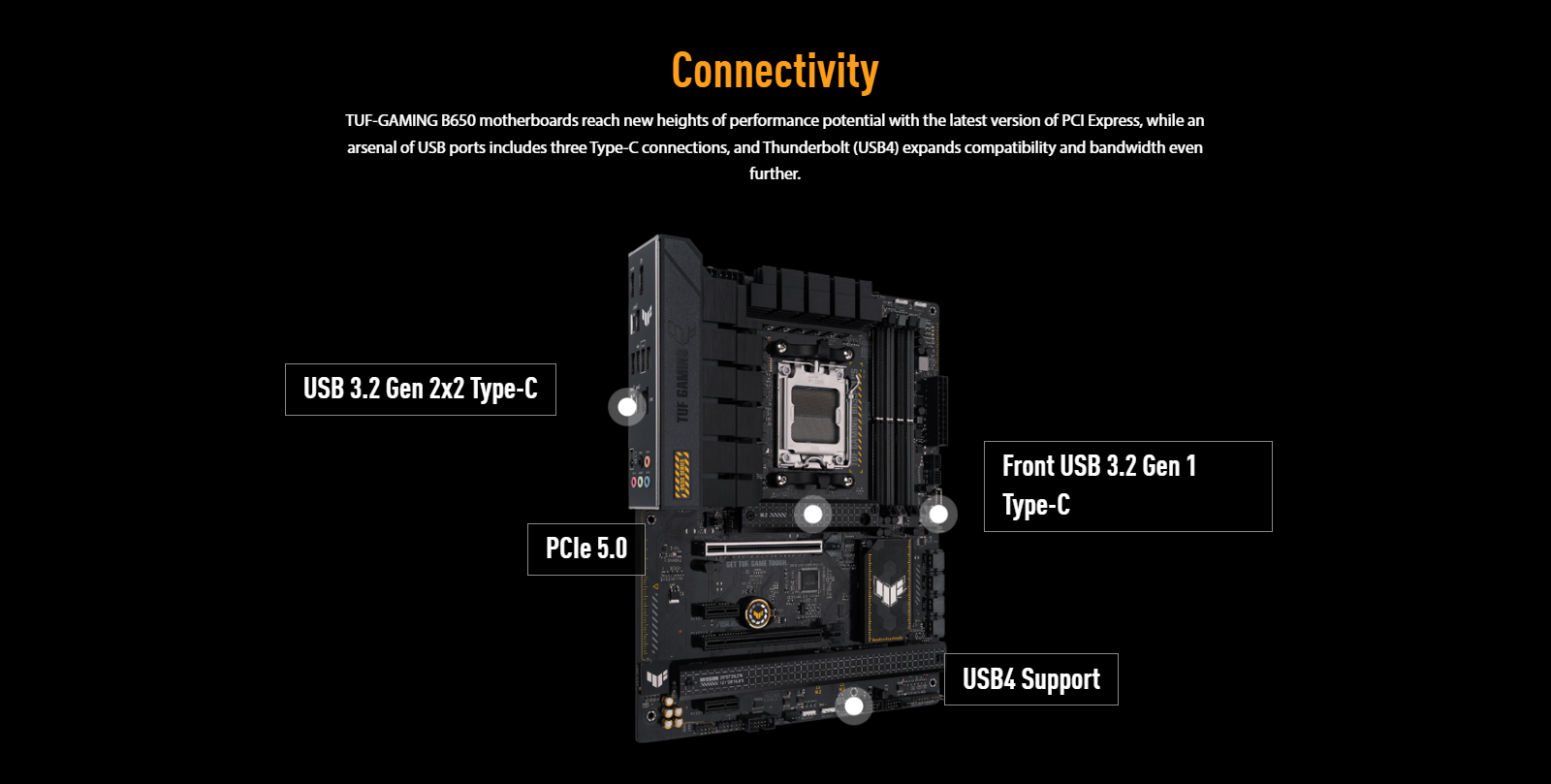

USB 3.2 Gen 2x2 Type-C and a front-panel USB 3.2 Gen 1 Type-C header |  |
2.5 Gb Ethernet |  |
Two-Way AI Noise Cancelation |
INTELLIGENT CONTROL
Comprehensive controls form the foundation of the ASUS TUF GAMING series. The TUF GAMING B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
CPU Performance BoostAMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher. |

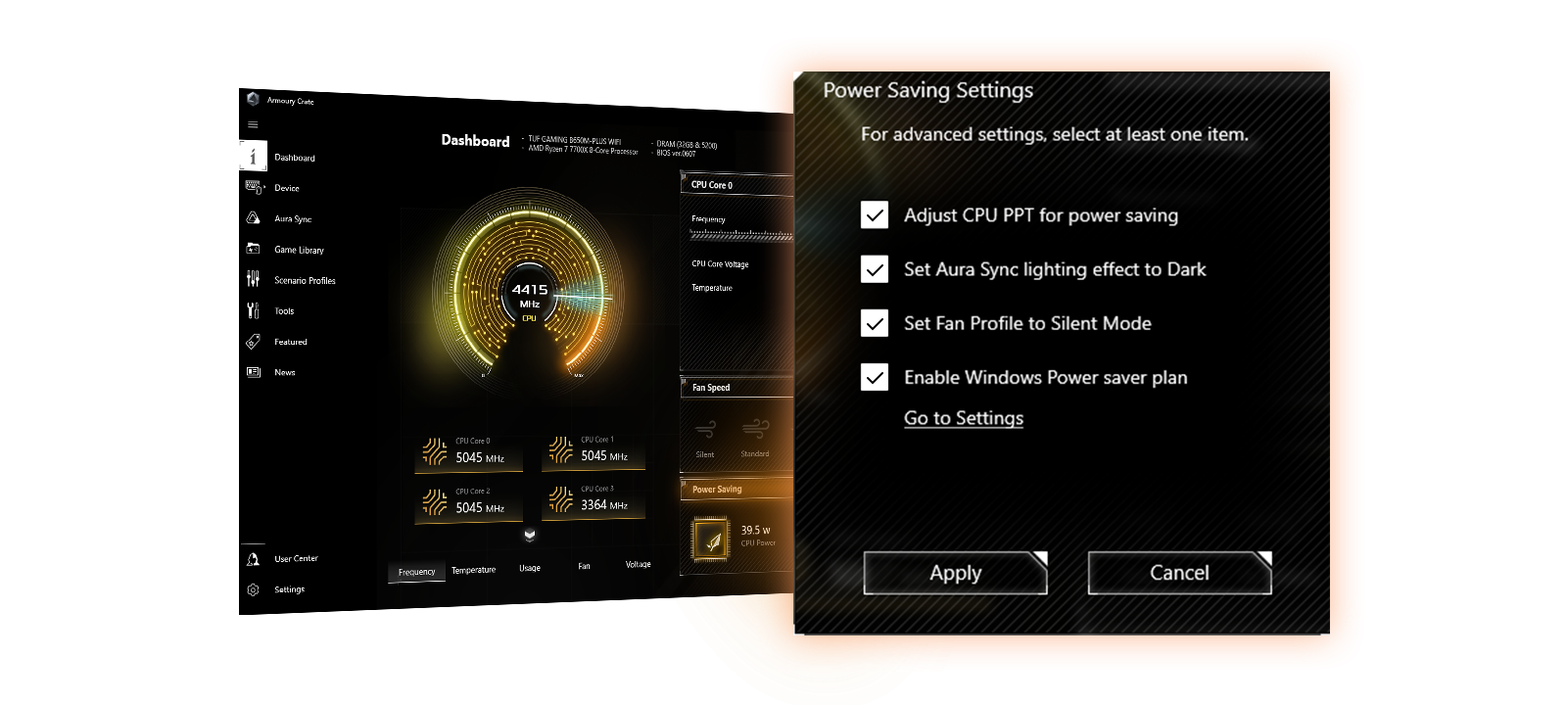

All-Around Energy EfficiencyThe Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows. |
UEFI BIOSThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans. |

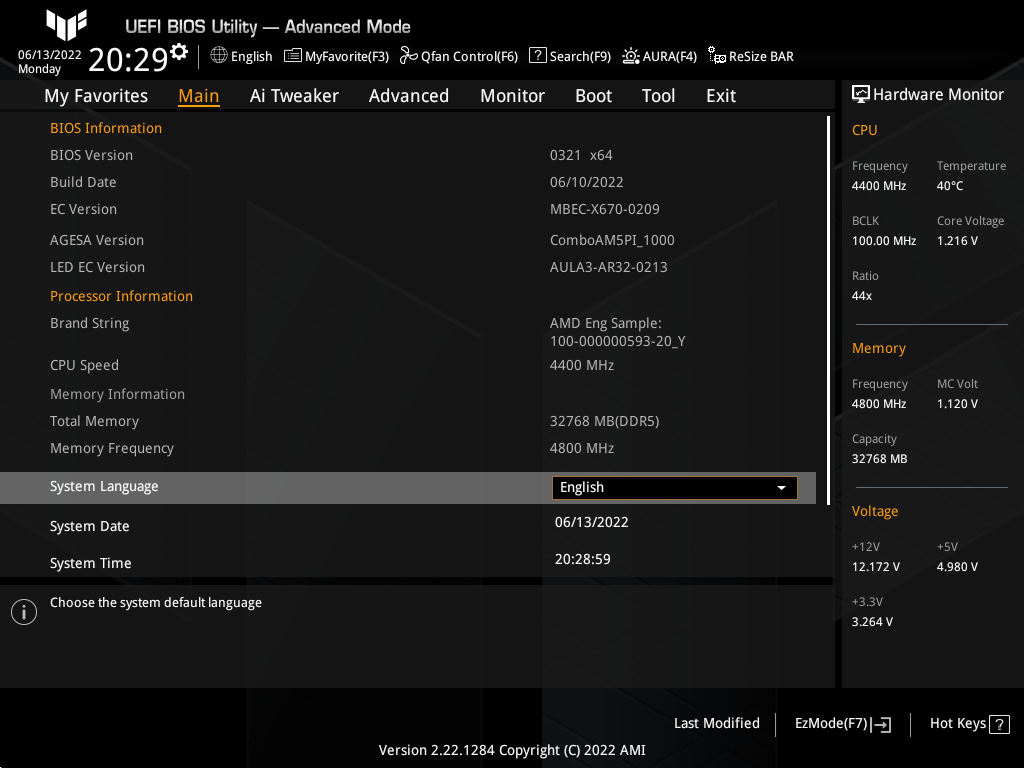

Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Search Function
Quickly and easily find the option or setting you need.
ASUS User Profile
Transfer configuration settings between different BIOS versions, or share them with friends.

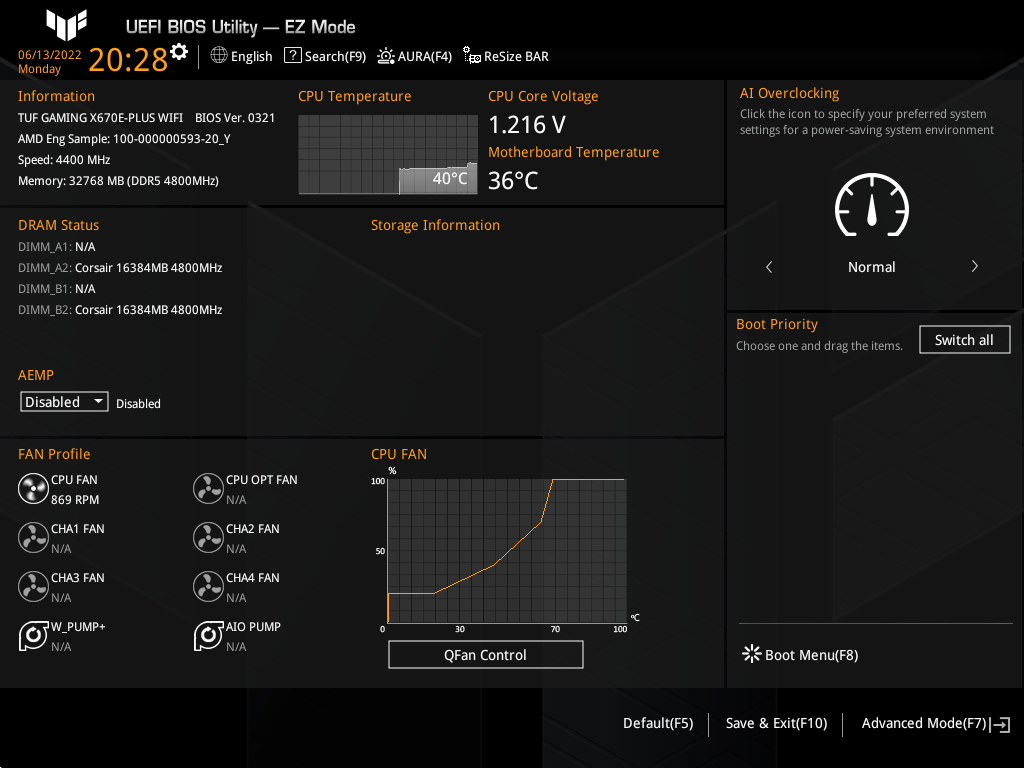

Quick and Simple Setup
EZ mode displays vital settings and stats, and it offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.
Intuitive Graphical Fan Control
Fine-tune individual fan settings simply by dragging a curve with the mouse.
Aura On/Off Mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.

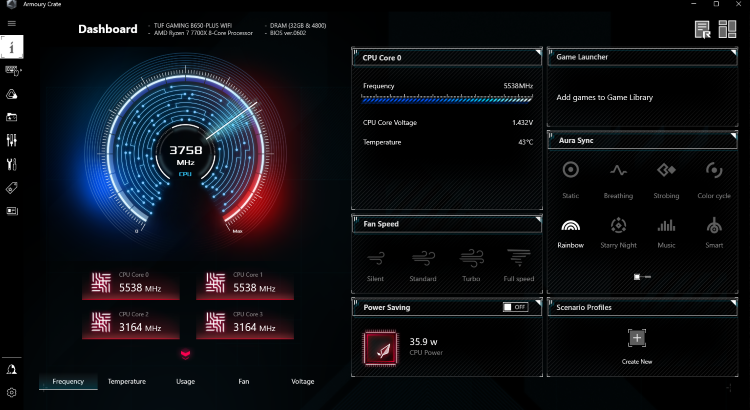

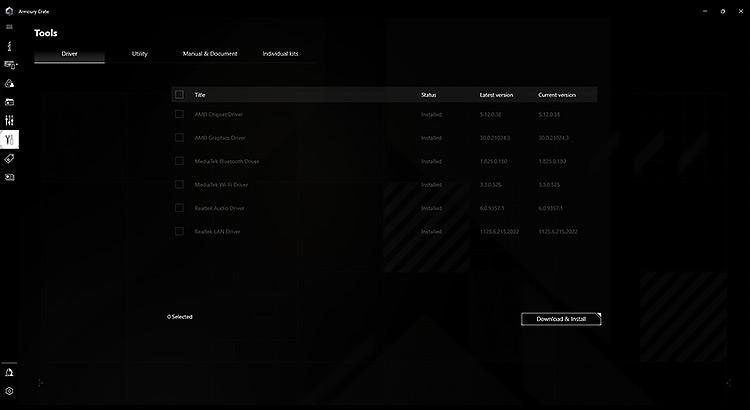

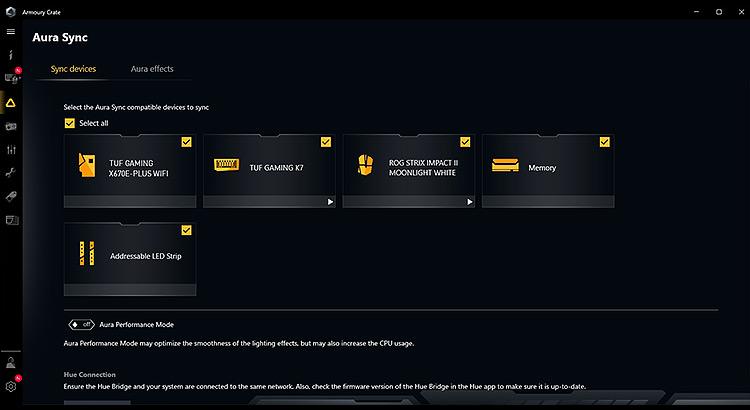

Armoury CrateThe ASUS-exclusive Armoury Crate centralizes easy control of supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also offers information and control for a select and growing hardware ecosystem, with input device settings, Fan Xpert 4 and Two-Way AI Noise Cancelation. Armoury Crate even features product registration, and a news section to stay in touch with the gaming community. |
Hardware Information

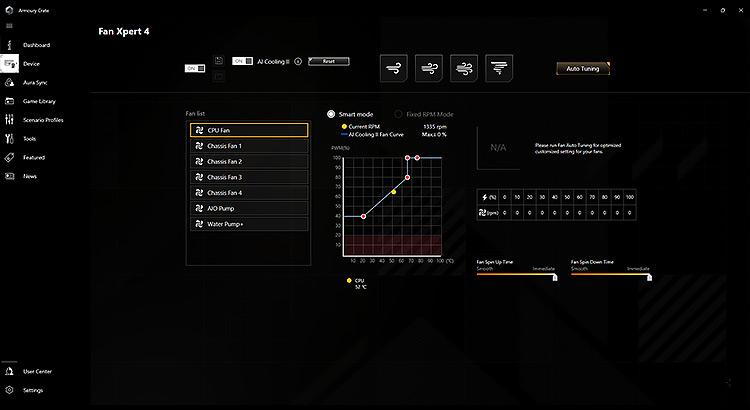

Fan Xpert 4

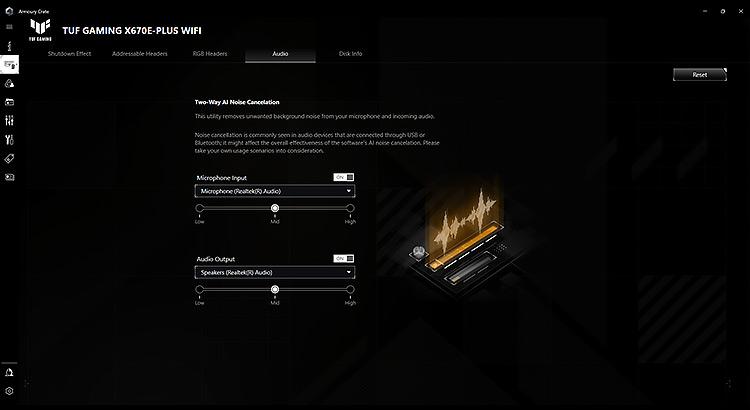

Two-Way AI Noise Cancelation
Aura Sync
Driver & Manuel Download

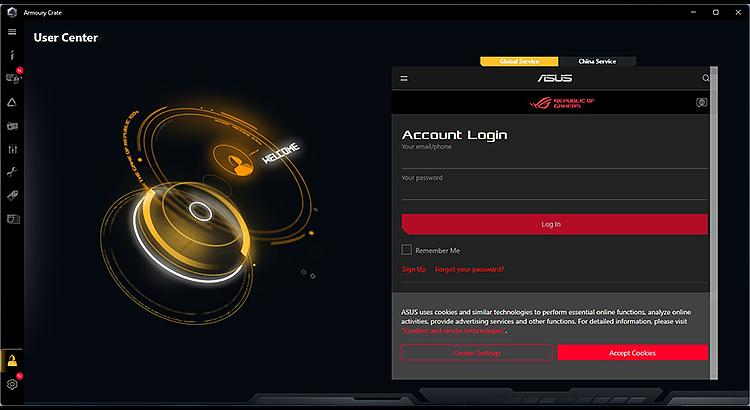

Account Management
ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF GAMING B650 motherboards are the perfect foundation for your next high-core-count AMD battle rig.
EASY PC DIY

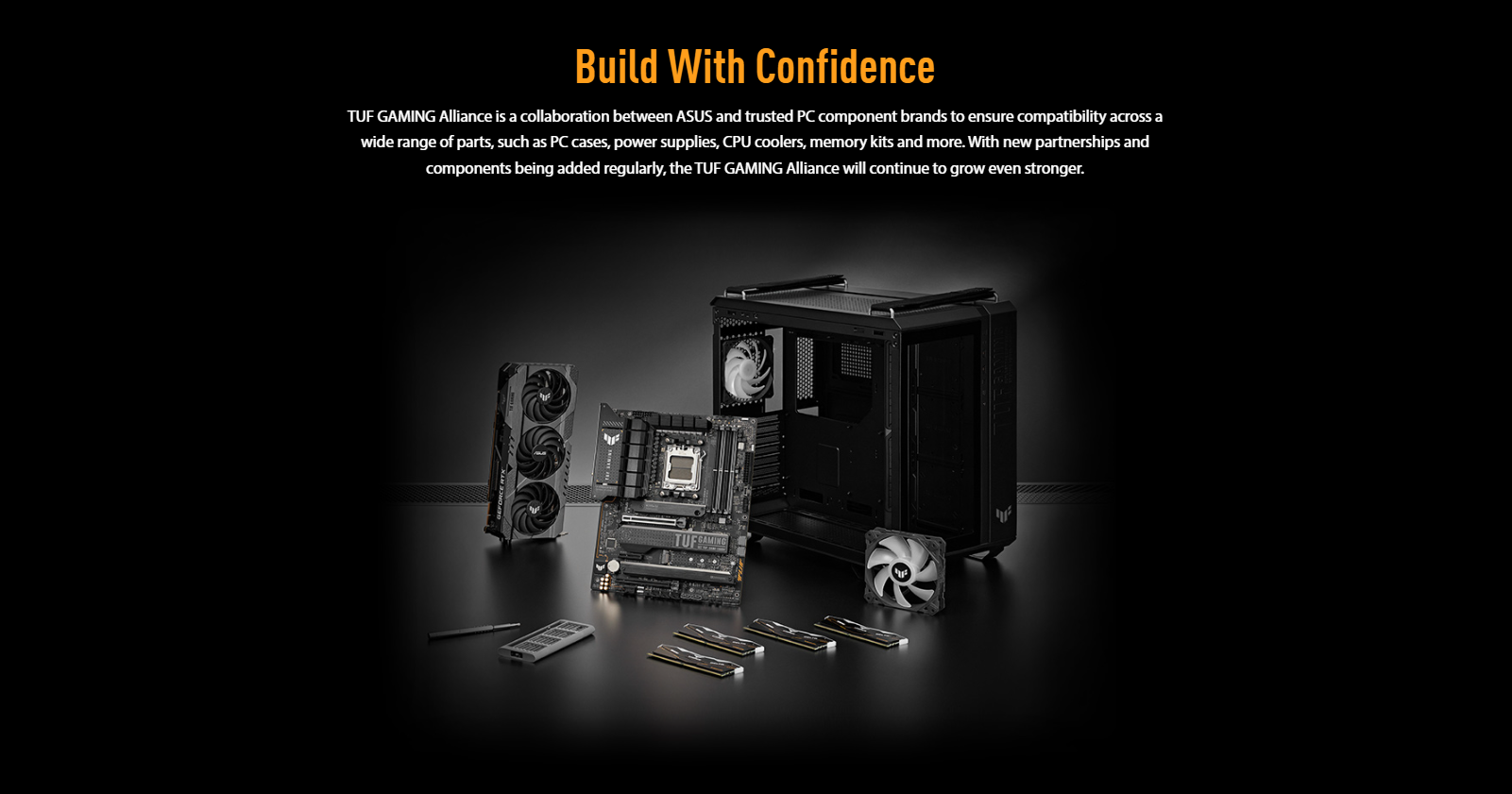

The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 4, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.
IMMERSIVE GAMING
TUF GAMING B650 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.
Specifications
| Model | TUF GAMING B650-PLUS |
| CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. |
| Chipset | AMD B650 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function |
| Graphics | 1 x DisplayPort* 1 x HDMI port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion Slots | AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0/3.0 x16 slot(s) AMD Ryzen 8000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 4.0/3.0 x1 slots * Please check PCIe bifurcation table on support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. ** Specifications vary by CPU types. *** M.2_3 shares bandwidth with PCIEX16_2. PCIEX16_2 will be suspended once M.2_3 is populated. |

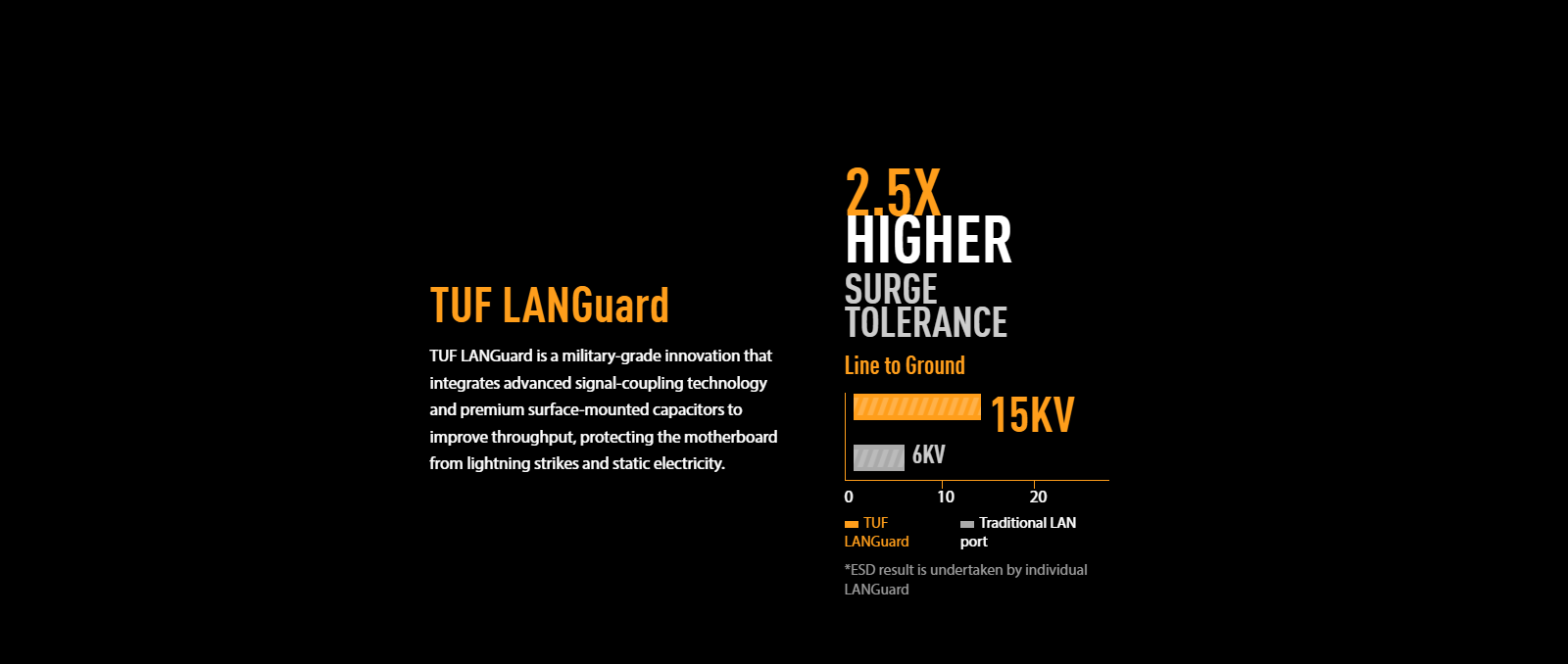

| Ethernet | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
| USB | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |

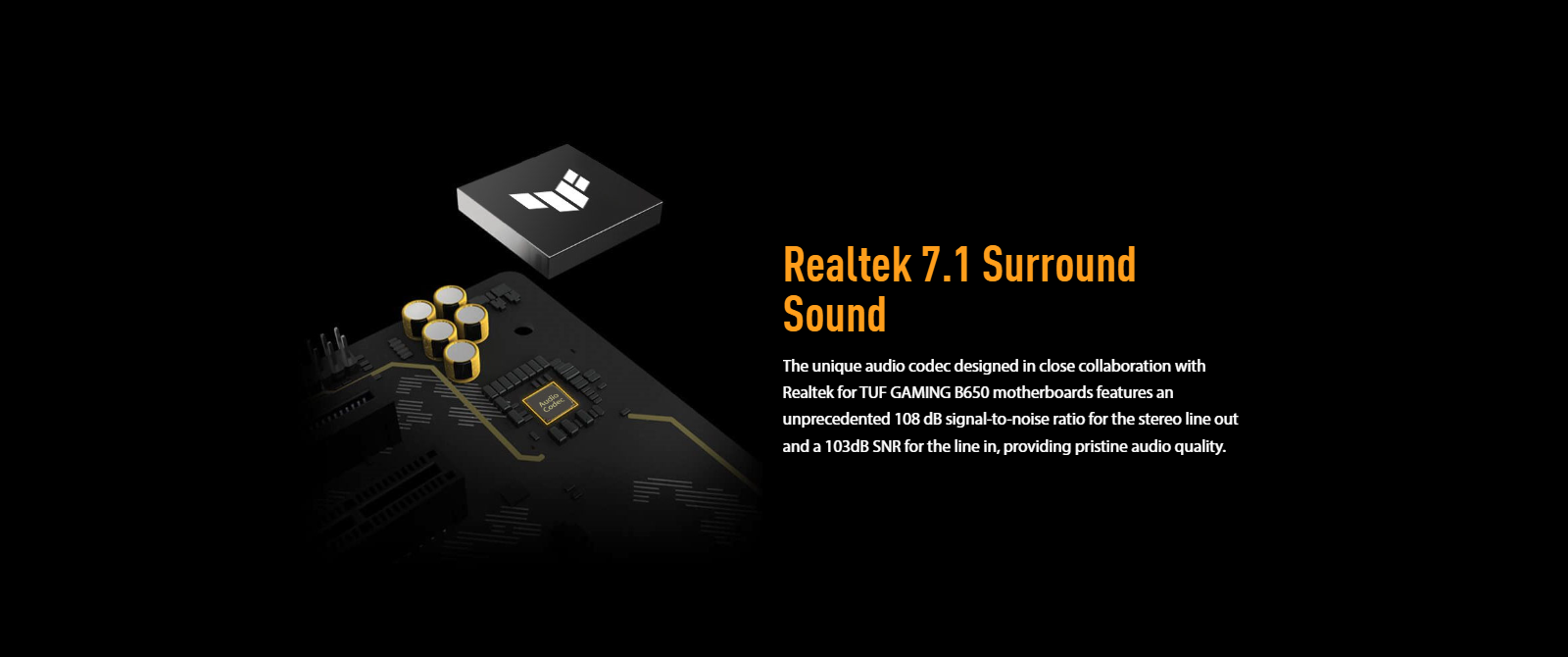

| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

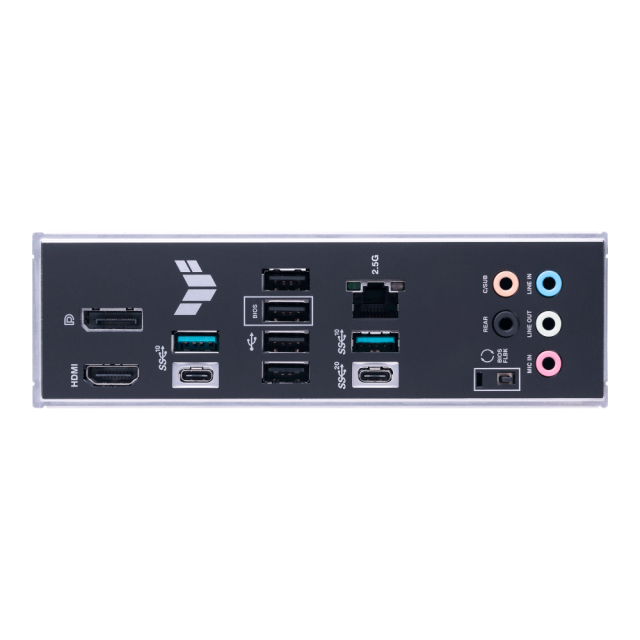

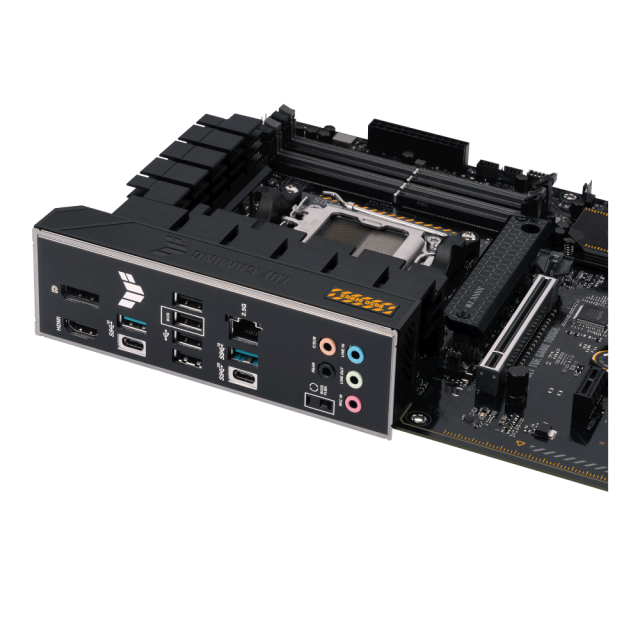

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C ) 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x Aura RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header |

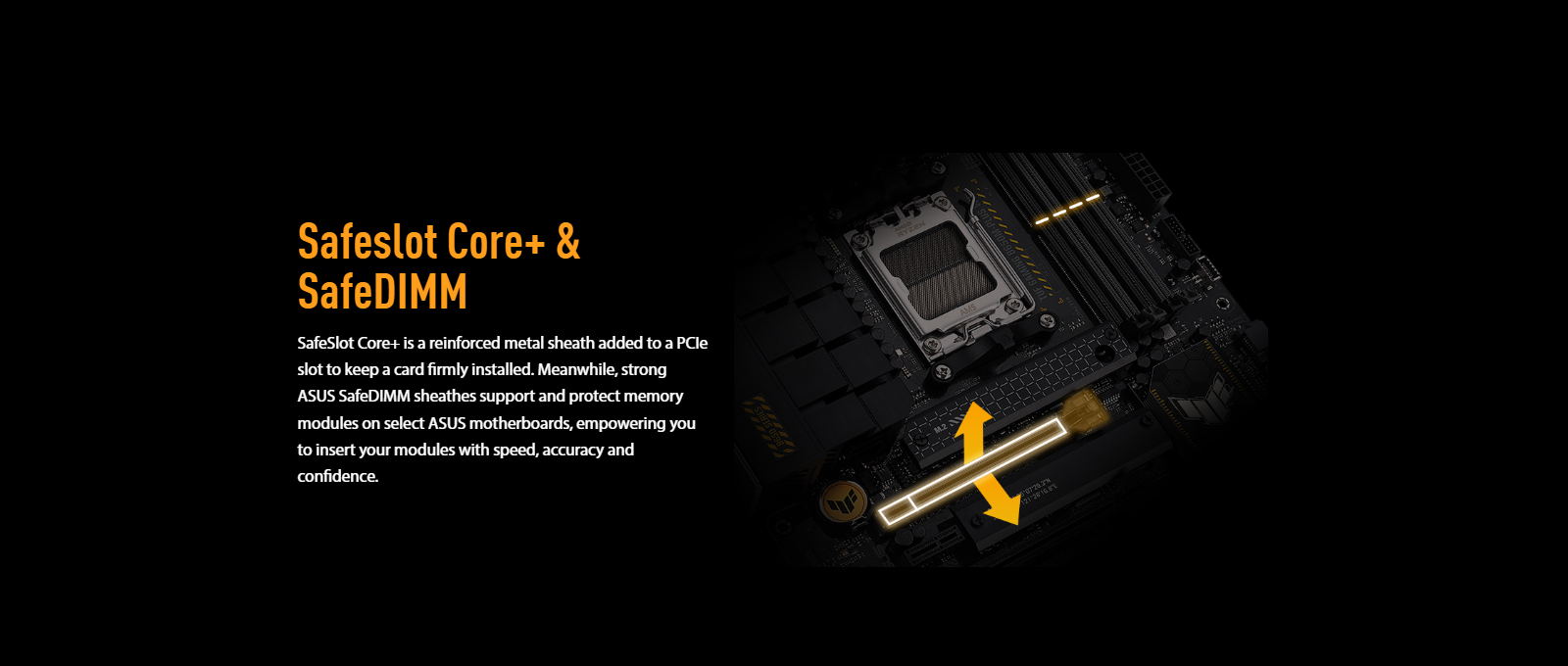

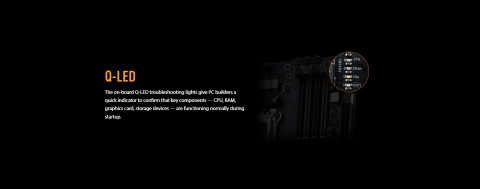

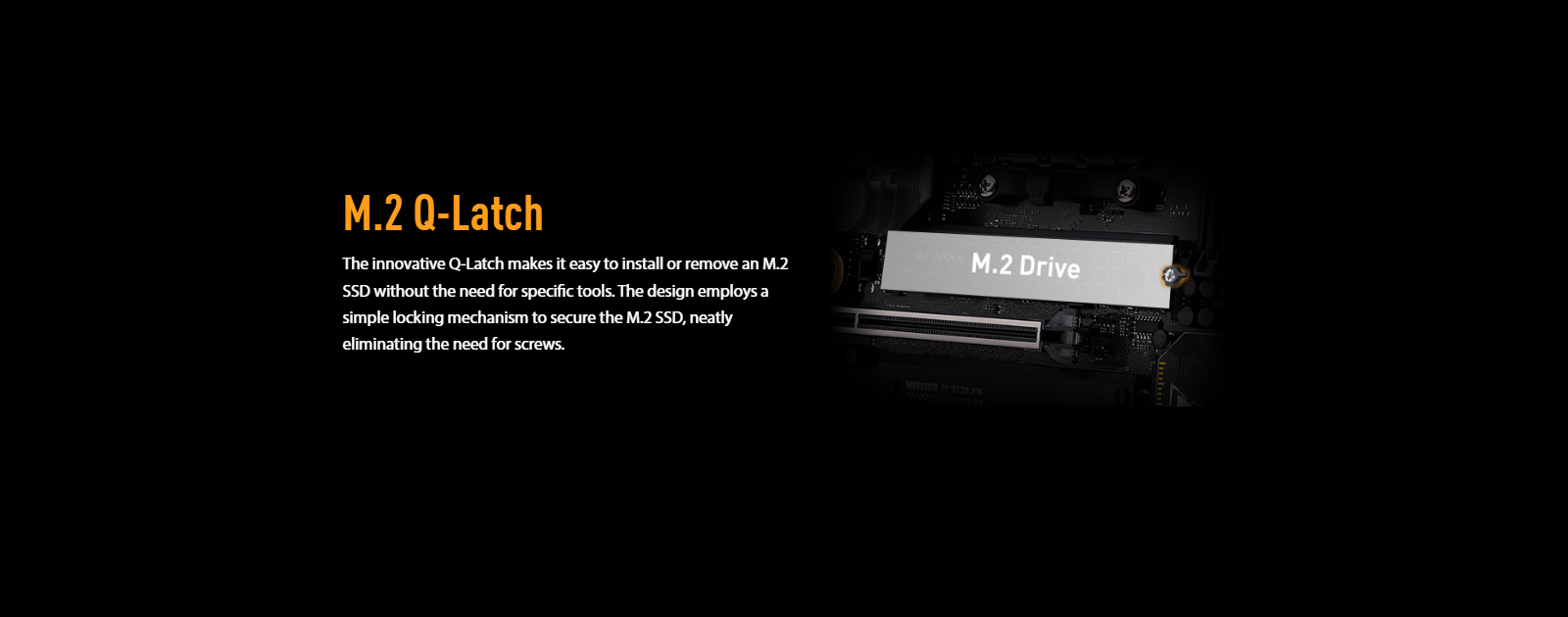

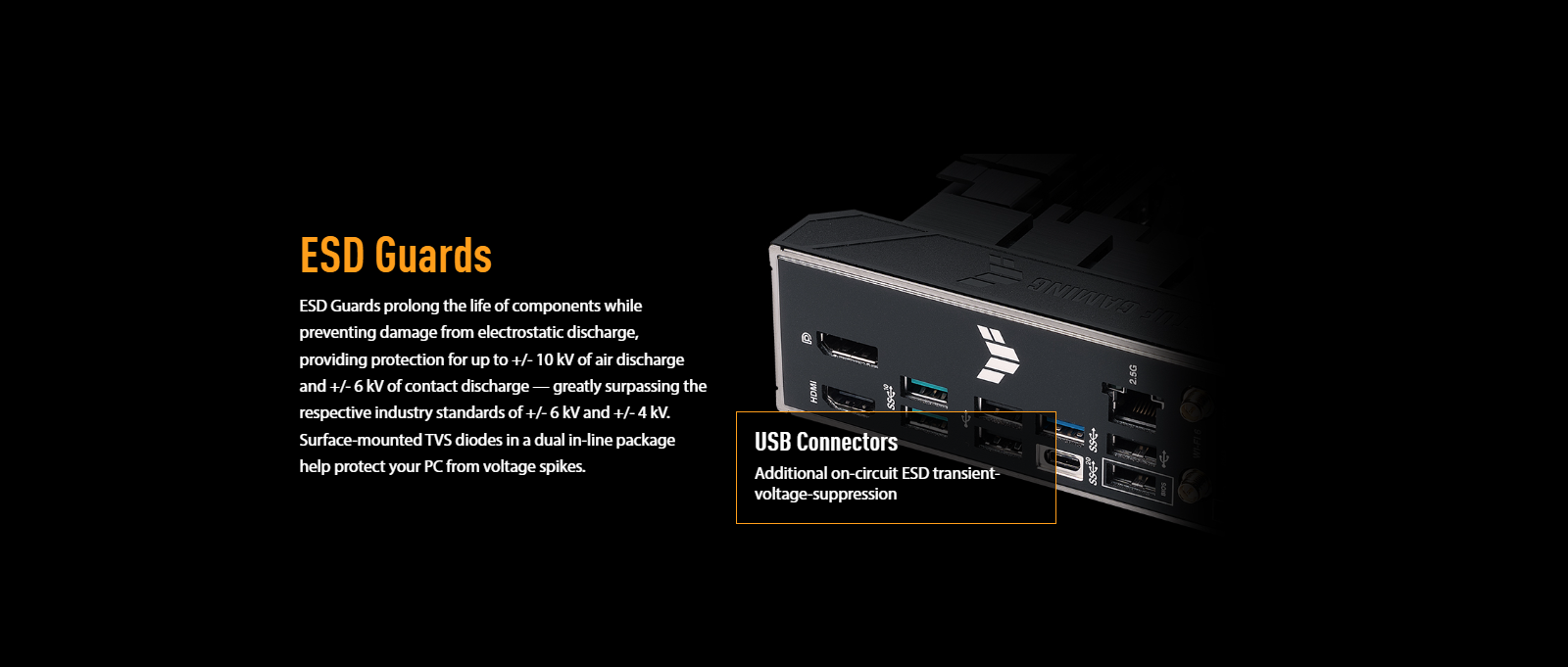

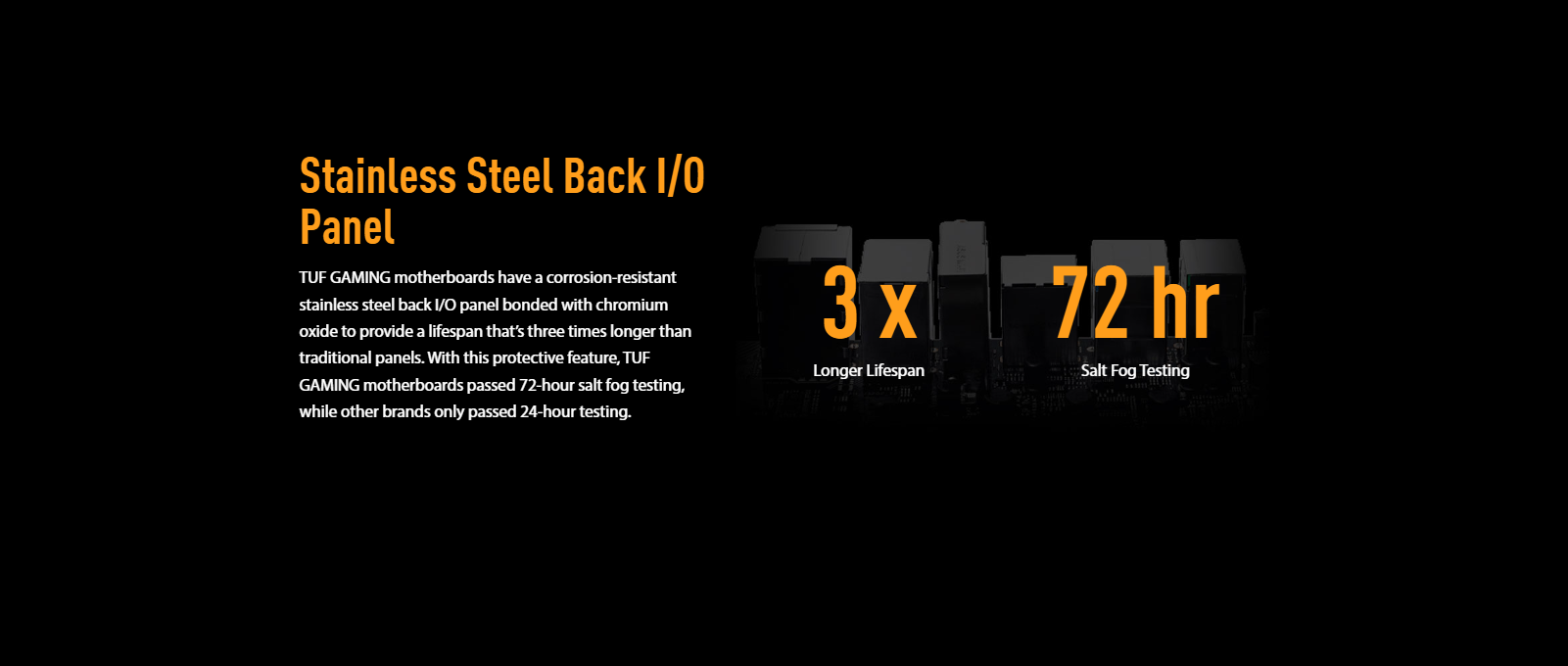

| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Aura RGB header(s) - Addressable Gen 2 header(s) |

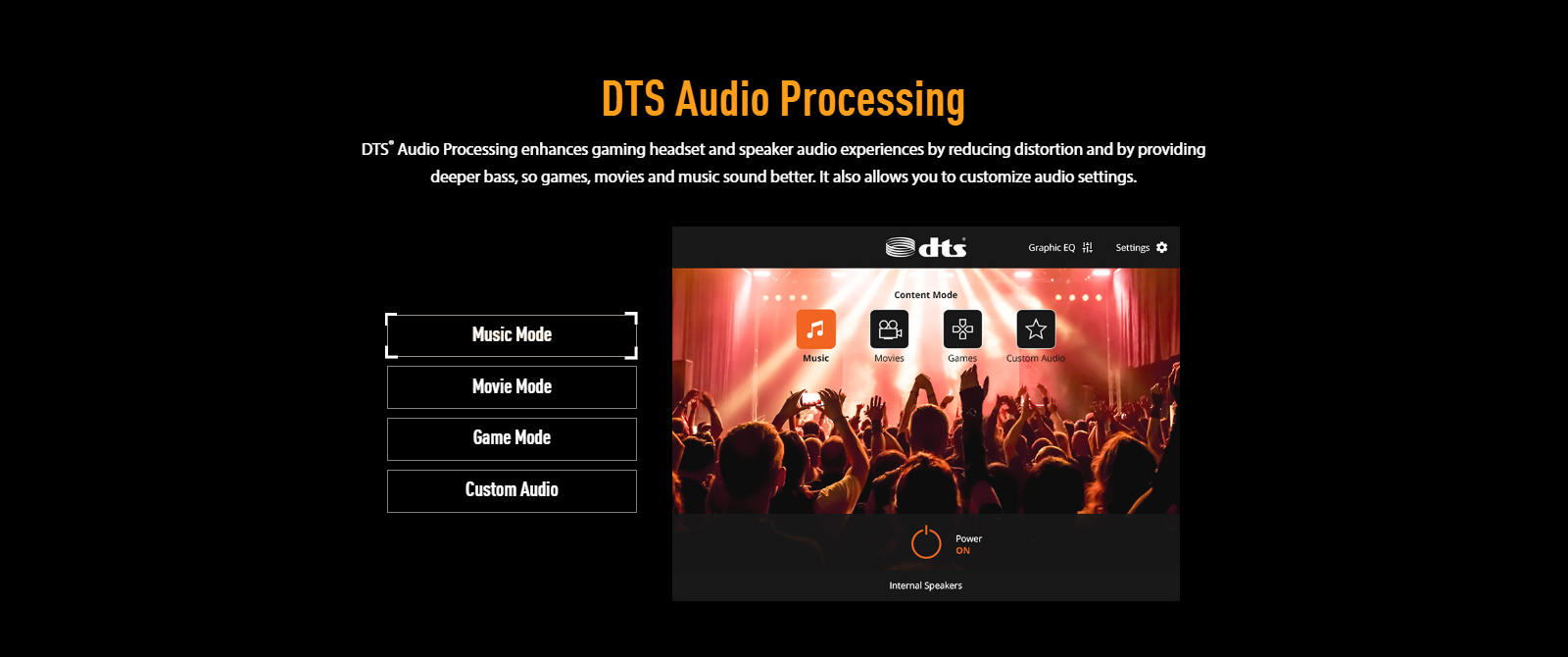

| Software Features | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 11 Windows 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
