AVerMedia LIVE Gamer ULTRA

Външен кепчър AVerMedia LIVE Gamer ULTRA, USB 3.1 (TYPE-C), GC553

Арт. номер: AVER-LG-GC553
Изчерпан
Виж наличност
Склад Шереметя

Запитване за AVerMedia LIVE Gamer ULTRA

безплатна доставка
на поръчки над 100 EUR
Технически характеристики
Гаранция 24 месеца
Интерфейс USB 3.1 Gen 1
Max резолюция 2160p30
Изходи HDMI

Свързани продукти



Live Gamer ULTRA

The next generation of game capture is here. The Live Gamer ULTRA (LGU)
brings 4K capture to the table while its pass-through allows gamers to fully
experience what 4K HDR is all about. Not limited to 4K HDR, this compact
device can pass-through high refresh rates of up to 240 Hz on a Full HD
signal.

To see if LGU is compatible with your computer, please download and run our compatibility test tool.



















































New Feature - Variable Refresh Rate (VRR)

The Live Gamer ULTRA (LGU) now supports VRR for both
video capturing (using RECentral 4 software) and pass-
through via a firmware update for Windows users.
Download the firmware to enjoy tear-free and stutter-free gameplays!



























































4K High Dynamic Range Pass-through

Don’t give up 4K HDR content just to be able to record your gameplay. With 100% lag-free, 4Kp60 HDR
video pass-through, the LGU allows you to enjoy mesmerizing 4K HDR gameplay and record at 4Kp30.







High Frame Rate Capture

With its high frame rate capture ability of up to 120 fps for Full HD signals,
the LGU positions itself as the first external game capture device in the
market to bring super smooth recordings to your archives.













































Full HD High Dynamic Range

Unique, simply one of a kind. While supporting 4K HDR pass-through, the
LGU records HDR content for Full HD playback at 60 frames per second.

































































Easiest Setup Ever

The LGU takes full advantage of UVC technology, which basically
standardizes video drivers across Windows and Mac. In other words, all you
need to do is plug your LGU to your PC or Mac and it’s ready to record and
stream.

























Stay Cool

With a powerful, silent built-in fan, if you ever noticed, drawing cold air from the top and venting out
hot air through the sides, your LGU will always stay cool in the heat of battles.











































































RECentral—Powerful Streaming Software

First in its class! RECentral is the first gaming capture software able to
record HDR content. And it doesn’t stop there, RECentral is also able to
simultaneously stream to multiple platforms. For more information,
click here.









Customizable resolution utility

If you decided not to connect a display to the HDMI output (pass-through)
of your LGU we got you covered! With the “AVerMedia Gaming Utility” you
can customize which resolutions and corresponding frame rates you are
able to preview and record without the need to connect a passthrough
monitor.

Download the utility here (Click here),If you need some help follow this
guide (Click here)

















Capture, Record, Edit 4K

Are you thinking about editing your 4K videos but don’t know where to
start? We’ve got you covered. The bundled CyberLink PowerDirector 15
is a feature-packed, intuitive 4K video editor to kickstart your editing skills.

(Click here)









Technical Specifications

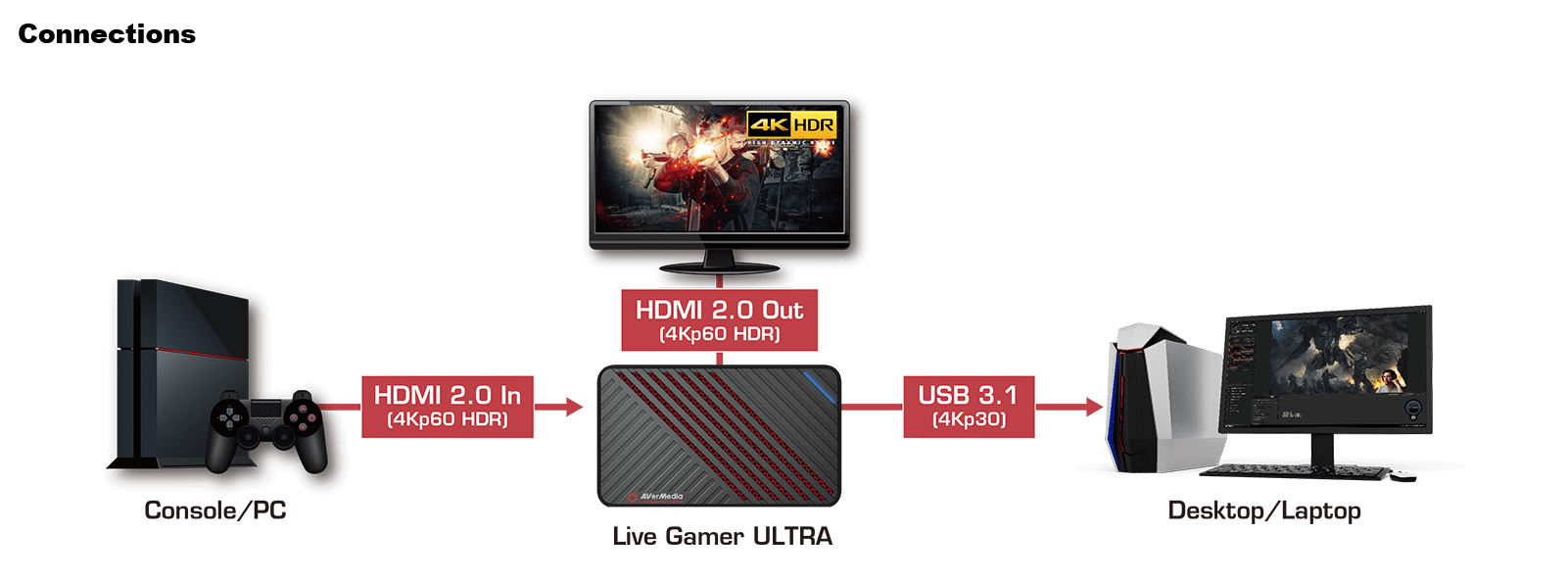

  • Interface:USB 3.1 (Gen 1) Type C
  • Video Input:HDMI 2.0
  • Video Output (Pass-Through):HDMI 2.0
  • Audio Input:HDMI 2.0
  • Audio Output (Pass-Through):HDMI 2.0
  • Max Pass-Through Resolutions:2160p60 HDR /1440p144 / 1080p240
  • Max VRR Pass-Through Resolutions: 2160p60 /1440p120 /1080p120#
  • Max Capture Resolutions:2160p30 / 1440p60 / 1080p120 / 1080p60 HDR
  • Max VRR Record Resolutions: 1440p60 /1080p120#
  • Supported Resolutions (Video input):2160p, 1440p, 1080p, 1080i, 720p, 576p, 480p
  • Recording: Supported by streaming software such as RECentral or OBS
  • Dimension (W x D x H):112.6 x 66.2 x 26 mm (4.43 x 2.6 x 1.02 in)
  • Weight:116 g (4.09 oz.)
Notes:
#VRR pass-through and recording are available via a firmware update for Windows users. To record in VRR, please use the RECentral 4 software.
* LGU does not support viewing/recording/streaming of HDCP protected signals

System Requirements(For dedicated streaming PC)

Operating system: Windows 10 x64 or later (Support UVC Protocol)

For 4K30 or 1080p120 (4K60 HDR pass-through supported)
Desktop:

-Intel Core i5-6XXX / AMD Ryzen 3 XXX or above
-NVIDIA GeForce GTX 1060 / AMD RX 5700 or above
-8 GB RAM (*Dual-channel)

Laptop:

-Intel Core i7-7700HQ or above
-NVIDIA GeForce GTX1050 Ti or above
-8 GB RAM (*Dual-channel)
*You have to set your memory on dual channel mode in your computer system. Please see attachment: attachment (Link)


For 1080p60 (4K60 HDR pass-through supported)
Desktop:

-Intel Core i5-4440 3.10 GHz or above
-NVIDIA GTX 660
-4 GB RAM (8 GB recommended)

Laptop:

-Intel Core i7-4810MQ
-NVIDIA GeForce GTX 870M or above
-4 GB RAM (8GB Recommended)


Mac system requirement : Operating system: macOS 10.13 or later

Requires an Apple Thunderbolt 3 (USB‑C) Cable (0.8 m)


For 4K30 or 1080p120 (4K60 HDR pass-through supported)
iMac:

-3.6GHz quad-core Intel Core i7
-Radeon Pro 555 with 2GB of VRAM
-16GB of 2400MHz DDR4 memory

MacBook Pro:

-2.8GHz quad-core Intel Core i7
-Radeon Pro 555X with 2GB of GDDR5 memory
-16GB 2133MHz LPDDR3 memory


For 1080p60 (4K60 HDR pass-through supported) :
iMac:

-3.6GHz quad-core Intel Core i7
-Radeon Pro 555 with 2GB of VRAM
-16GB of 2400MHz DDR4 memory

MacBook Pro:

-2.6GHz quad-core Intel Core i7
-Radeon Pro 450 with 2GB of GDDR5 memory
-16GB of 2133MHz LPDDR3 onboard memory

Notes:
1. LGU does not support USB 2.0
2. LGU does not support USB 3.1 Gen 2
3. We strongly recommended to use Intel chipset.
4. For 4K, HDR or High frame rate recording only NVIDIA graphics card are supported.

What's in the box

  • Live Gamer Ultra (GC553)
  • HDMI 2.0 cable
  • Type C to Type A Cable
  • Quick guide
  • CyberLink PowerDirector 15 Product Key Card*
Notes:
*4K video editing software. Does not support HEVC encoded files or HDR editing. Please note that this version of PowerDirector 15 is not the retail version and some functionalities may be restricted or require paid upgrades.
