GIGABYTE A520 AORUS ELITE
Дънна платка GIGABYTE A520 AORUS ELITE, AM4, ATX, DDR4
Арт. номер: GA-MB-A520-AORUS-ELITE
безплатна доставка
на поръчки над 199 лв.
Технически характеристики
| Гаранция | 36 месеца |
| Сокет | AMD AM4 |
| Форм Фактор | ATX |
| Чипсет | AMD A520 |
| Брой слотове за памет | 4 |
| Капацитет на RAM | до 128 GB |
| Честота на памет | до 4733 MT/s |
| RGB Подсветка | Да |
| Поддържана памет | DDR4 |
| Вграден Wi-Fi | Не |
Свързани продукти
Сокет:
Intel 1700
Форм Фактор:
Micro ATX
Чипсет:
Intel B760
Брой слотове за памет:
2
Капацитет на RAM:
до 64 GB
Сокет:
AMD AM4
Форм Фактор:
Micro ATX
Чипсет:
AMD B550
Брой слотове за памет:
4
Капацитет на RAM:
до 128 GB
Сокет:
Intel 1851
Форм Фактор:
Micro ATX
Чипсет:
Intel H810
Брой слотове за памет:
2
Капацитет на RAM:
до 128 GB
Сокет:
AMD AM4
Форм Фактор:
Micro ATX
Чипсет:
AMD B550
Брой слотове за памет:
4
Капацитет на RAM:
до 128 GB
Сокет:
AMD AM5
Форм Фактор:
Micro ATX
Чипсет:
AMD A620
Брой слотове за памет:
2
Капацитет на RAM:
до 96 GB
Сокет:
Intel 1700
Форм Фактор:
Micro ATX
Чипсет:
Intel B760
Брой слотове за памет:
4
Капацитет на RAM:
до 128 GB
Сокет:
AMD AM4
Форм Фактор:
Micro ATX
Чипсет:
AMD B550
Брой слотове за памет:
4
Капацитет на RAM:
до 128 GB
Сокет:
AMD AM5
Форм Фактор:
Micro ATX
Чипсет:
AMD A620
Брой слотове за памет:
4
Капацитет на RAM:
до 192 GB
Сокет:
Intel 1700
Форм Фактор:
Micro ATX
Чипсет:
Intel B760
Брой слотове за памет:
4
Капацитет на RAM:
до 128 GB
Сокет:
Intel 1700
Форм Фактор:
Micro ATX
Чипсет:
Intel B760
Брой слотове за памет:
2
Капацитет на RAM:
до 64 GB
Сокет:
AMD AM5
Форм Фактор:
Micro ATX
Чипсет:
AMD B650
Брой слотове за памет:
2
Капацитет на RAM:
до 96 GB
Сокет:
Intel 1700
Форм Фактор:
Micro ATX
Чипсет:
Intel H610
Брой слотове за памет:
2
Капацитет на RAM:
до 96 GB

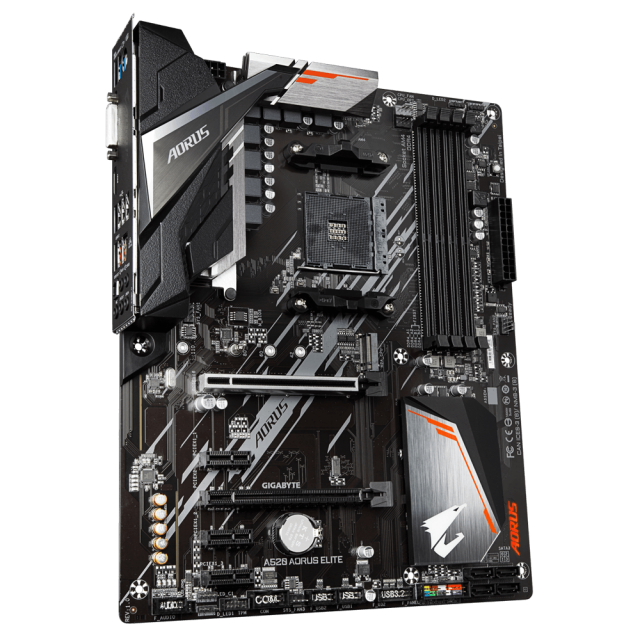

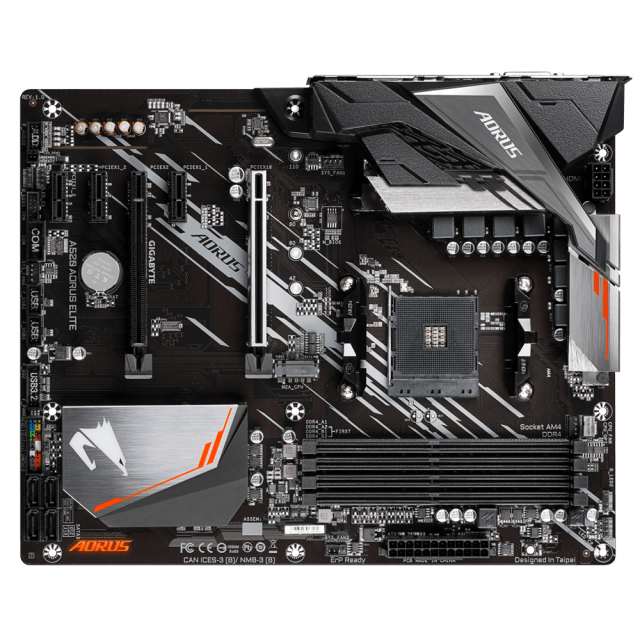

Дънна платка GIGABYTE A520 AORUS ELITE, AM4, ATX, DDR4
- Поддържа процесори AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
- AMP-UP Audio with ALC1200 and High End Audio Capacitors
- GbE LAN with Bandwidth Management

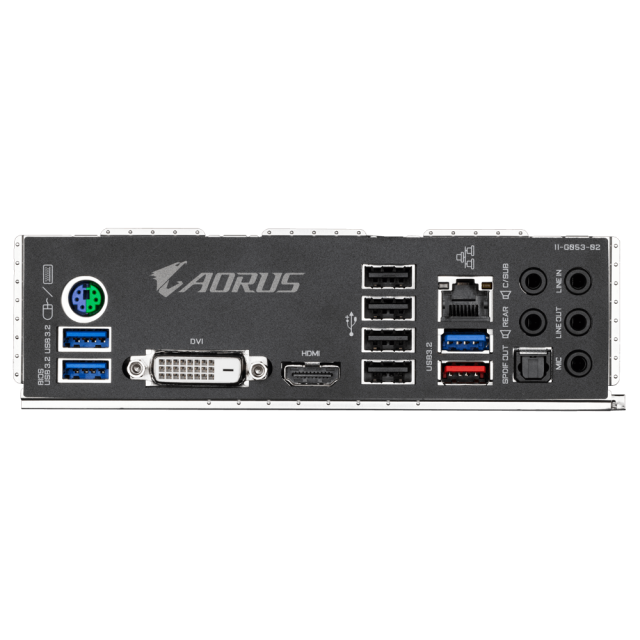

- HDMI, DVI-D Ports for Multiple Display
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Pre-installed IO Shield for Easy and Quick Installation
DESIGN CONCEPT
FEROCIOUS TALONS
| The AORUS Core is inspired by the falcon's aggressive nature and hunting prowess. The falcon uses its razor sharp talons to swiftly strike down its prey with exceptional efficiency and precision, qualities that are exemplified in the fine details of AORUS design. |
PERFORMANCE
5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
| GIGABYTE AORUS series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. |
|
Benefits of Lower RDS(on) MOSFETs
|
|
 |
NVMe PCIe 3.0 x4 M.2 Connector (Up to 32 GB/s)
AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
 |
The Industry's Leading LAN Static-Electricity & Surge Protection
GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard and your PC from any surge in power delivery that may occur, ensuring that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.
 |
CONNECTIVITY
Exclusive Realtek 8118 Gaming LAN
High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.
Program On Top Gets Highest Priority

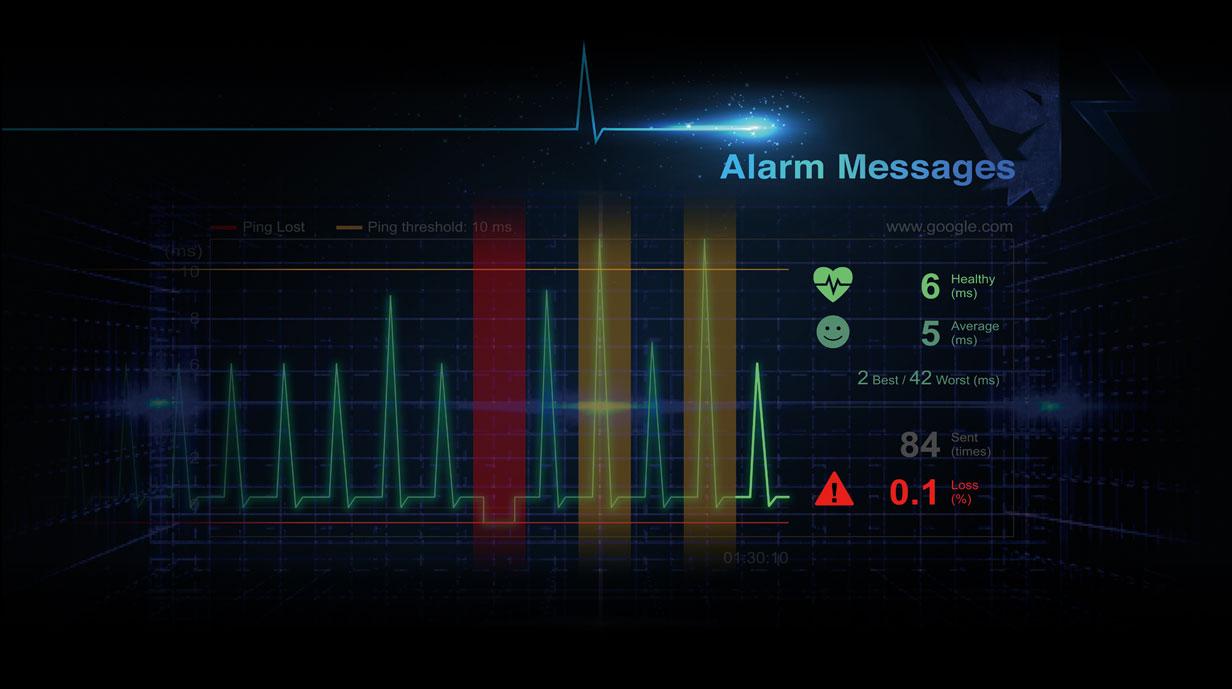

Real-Time Network Monitoring
HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support
 |
HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers. |
|
Note: Only New Gen AMD Ryzen with Radeon Graphics processors support displaying function.
|
Native USB 3.2 Gen2
AMD A520 chipset provides native USB 3.2 Gen2 ports with speeds up to 10Gbps. Available over the USB Type-A connector, the USB3.2 Gen2 is much improved with twice the bandwidth compared to its previous generation as well as backwards compatibility with USB2.0 and USB3.2 Gen1.
 |
COOLING
Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC.
All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

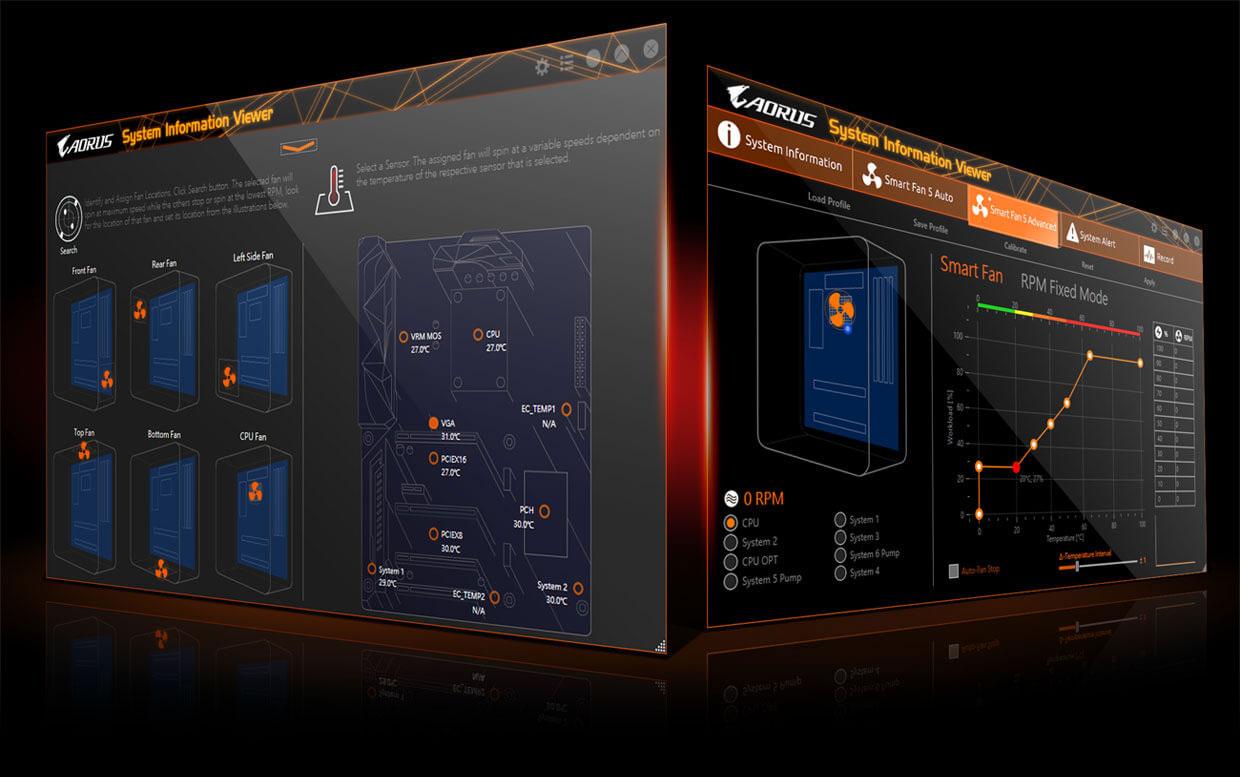

New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage preferences.
For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.
For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.
LIGHTING
 |
With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience. |
|
Sync with one click |
Individual control as you wish |
AUDIO

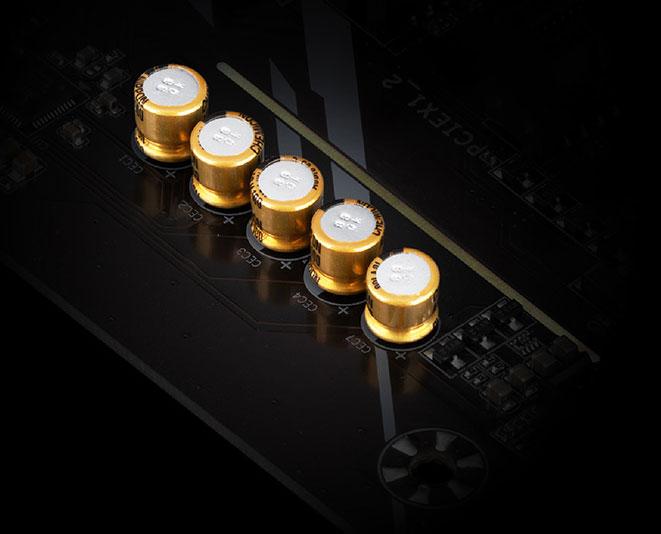

High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
ULTRA DURABLE
| Q-Flash Plus | |
 |
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
|
 |
 |
 |
Ultra Durable PCIe ArmorIndustry Leading Ultra Durable PCIe Armor
The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
|
GIGABYTE Patented Double Locking Bracket
Solid Pin Power Connectors
A520 AORUS motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
 |
 |
START SULFURIZATION PROTECTION
 |
| Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning. |
 |
GIGABYTE EXCELLENCE
GIGABYTE BIOS & APP CENTER
New User Interface
All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.

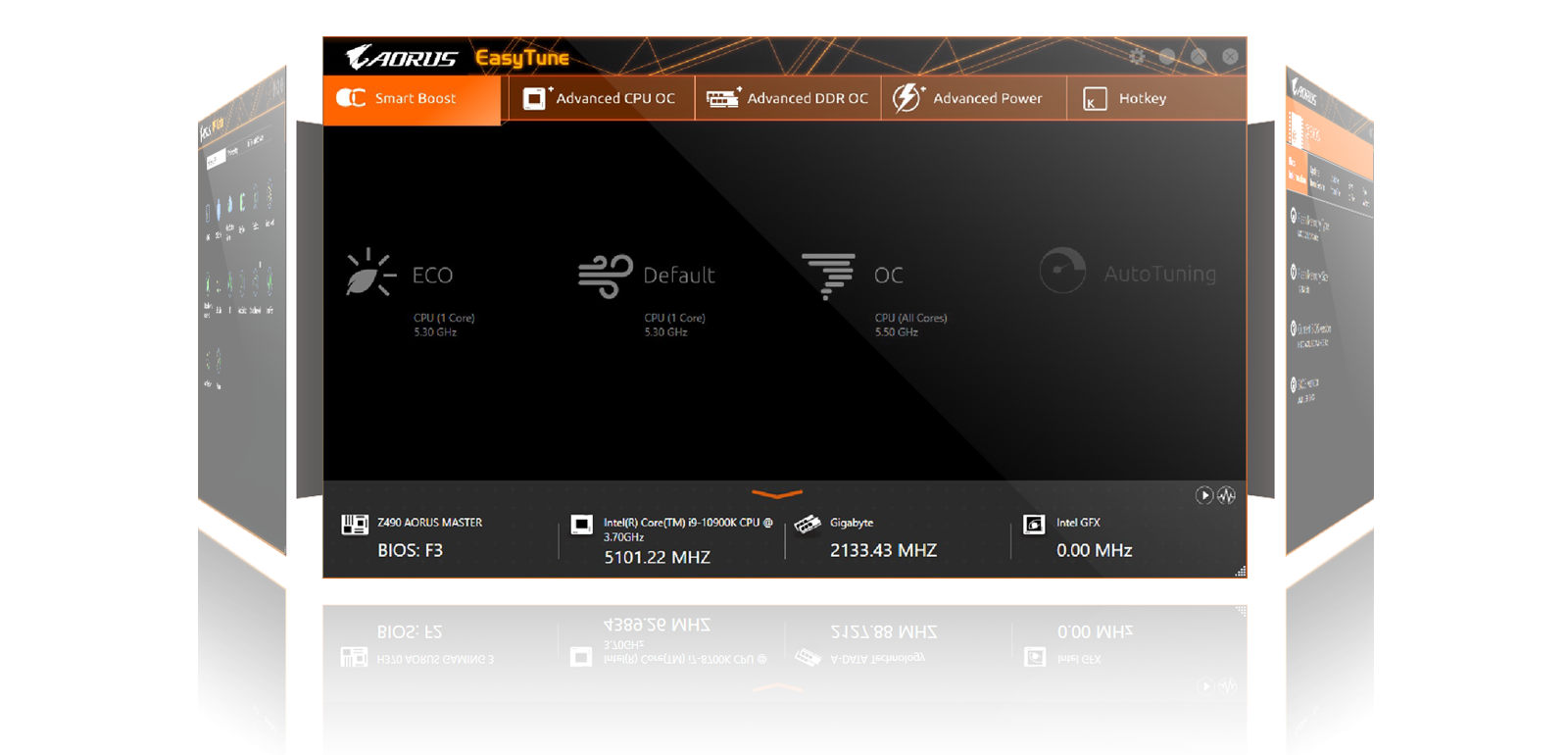

EasyTune
GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

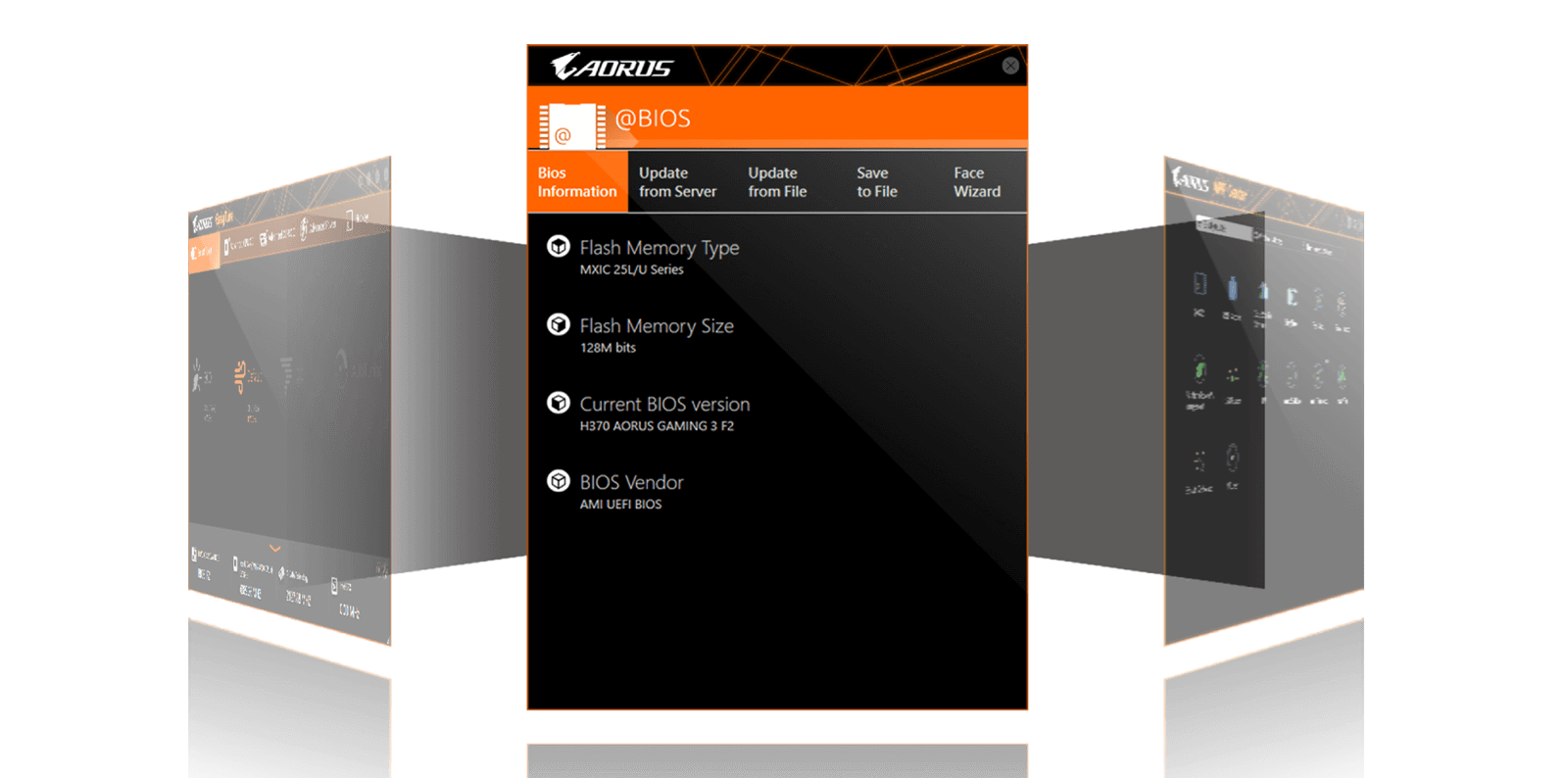

@BIOS
The GIGABYTE @BIOS app allows you to update your system's BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.

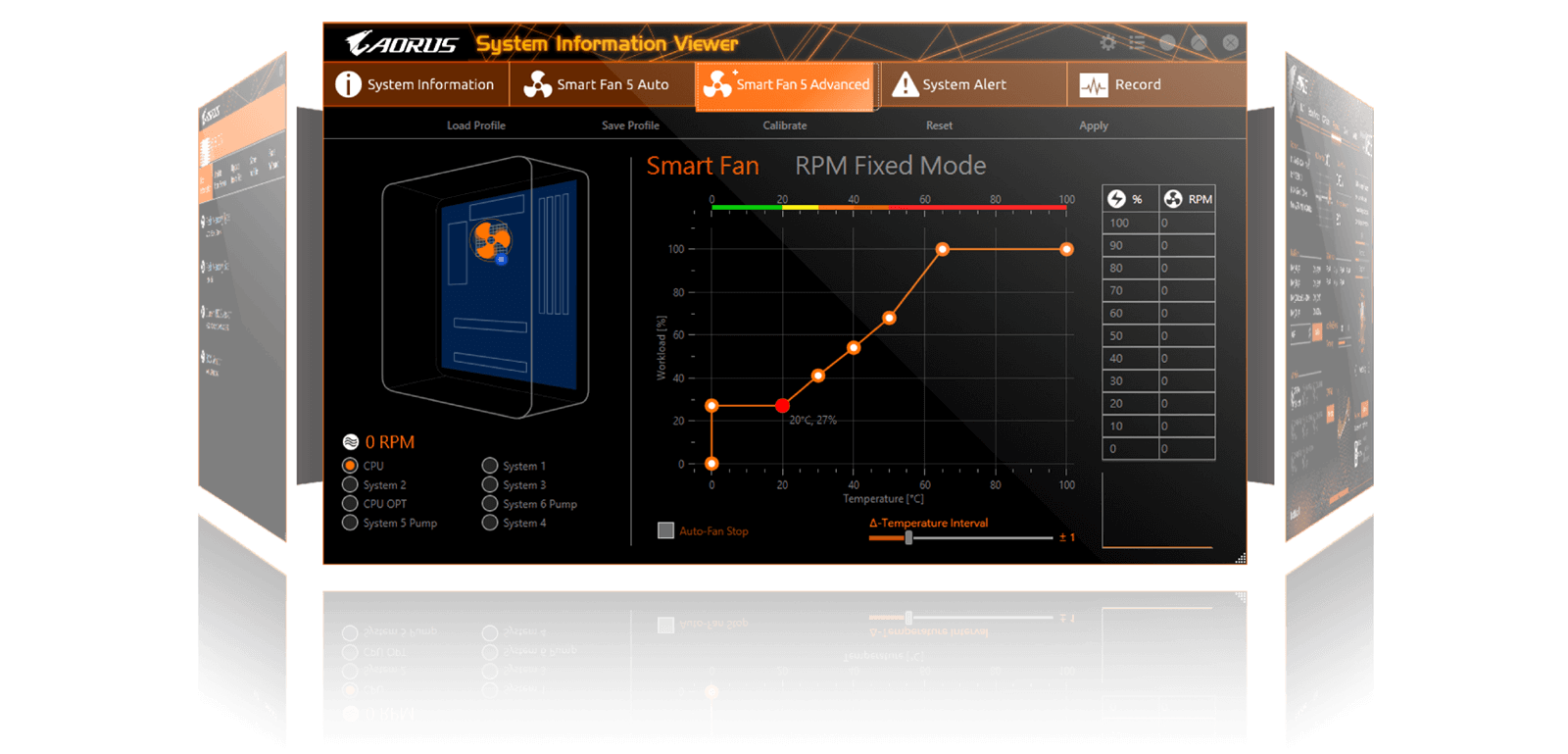

System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
Specification
CPU |
|
Chipset |
|
Memory |
|
Onboard Graphics |
Integrated Graphics Processor:
|
Audio |
|
LAN |
|
Expansion Slots |
CPU:
|
Storage Interface |
CPU:
|
USB |
CPU:
|
Internal I/O Connectors |
|
Back Panel Connectors |
|
I/O Controller |
|
H/W Monitoring |
|
BIOS |
|
Unique Features |
|
Bundled Software |
|
Operating System |
|
Form Factor |
|
Remark |
|
