GIGABYTE AORUS C400 GLASS
Кутия Gigabyte AORUS C400 GLASS - Mid Tower
| Гаранция | 24 месеца |
| Форм Фактор | Mid Tower |
| Формат | ATX, Micro ATX, Mini ITX |
| Включени вентилатори | 4x 120mm |
| Преден панел | USB 3.0, Audio In & Out, USB 3.2 (Gen 2) Type-C |
| Цвят | Черен |
| Дължина | 469 мм |
| Широчина | 210 мм |
| Височина | 435 мм |
| Максимална височина на въздушен охладител | 168 мм |
| Максимална дължина на видеокарта | 360 мм |
| Екстри | ARGB контролер |
| Поддържани вентилатори отдолу | 2x 140mm, 3x 120mm |
| Поддържани вентилатори отзад | 1x 120mm |
| Поддържани вентилатори отгоре | 2x 140mm, 3x 120mm |
| Поддържани водни охладители отдолу | 1x 240mm, 1x 280mm, 1x 360mm |
| Поддържани водни охладители отзад | 1x 120mm |
| Поддържани водни охладители отгоре | 1x 240mm, 1x 280mm, 1x 360mm |
| Преден Mesh панел | Да |
Свързани продукти
KEY FEATURE
• Optimized Vertical Airflow Design
• 40L Compact size with ATX Motherboard support
• RGB Fusion with ARGB Connector Hub

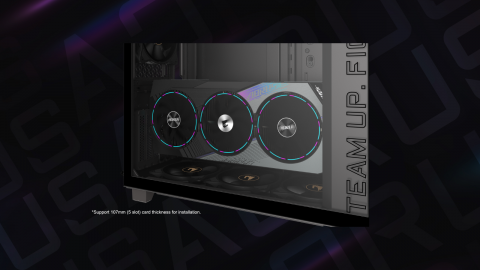

• Support Vertical GPU Installation
• Full-Size Tempered Glass Side Panel
• With USB 3.0 x2 and USB 3.2 Gen2 Type-C x1 on I/O panel
• Pre-installed 4 ARGB & PWM fans
OPTIMIZED VERTICAL
AIRFLOW DESIGN
Based on the principle of the stack effect, which enhances the speed of air convection, allowing
air to flow rapidly from bottom to top within the chassis, achieving more efficient heat
dissipation. The bottom, top, and front panels all feature vented designs, enabling ample intake
airflow for internal cooling, thus delivering excellent cooling performance.
40L COMPACT SIZE WITH
|
With a compact size of nearly 40 liters, the AORUS C400 GLASS can support a ATX motherboard, up to 360mm liquid cooling, and even a power-hungry graphics card with thickness thermal design, which strikes a perfect balance between size and compatibility. |
TEMPERED GLASS SIDE PANEL
Built with a 4mm black tempered glass side panel, making your PC parts and RGB lighting more
attractive and gorgeous. The non-drilled glass design effectively reduces the risk of fragmentation,
allowing users to remove it with ease and safety, thus extending the product's lifespan.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects,
you can choose lighting effects or synchronize with other devices.
*The type of RGB lighting effect depends on the MB support.
ARGB & PWM CONNECTOR HUB
The built-in ARGB and PWM connector hub is equipped with five 5V 3-pin
and five PWM connectors, enabling users to expand their RGB light stripes,
create a superb cooling system as well as a fantastic and gorgeous rig.
EASY TO INSTALL.
EASY TO USE.

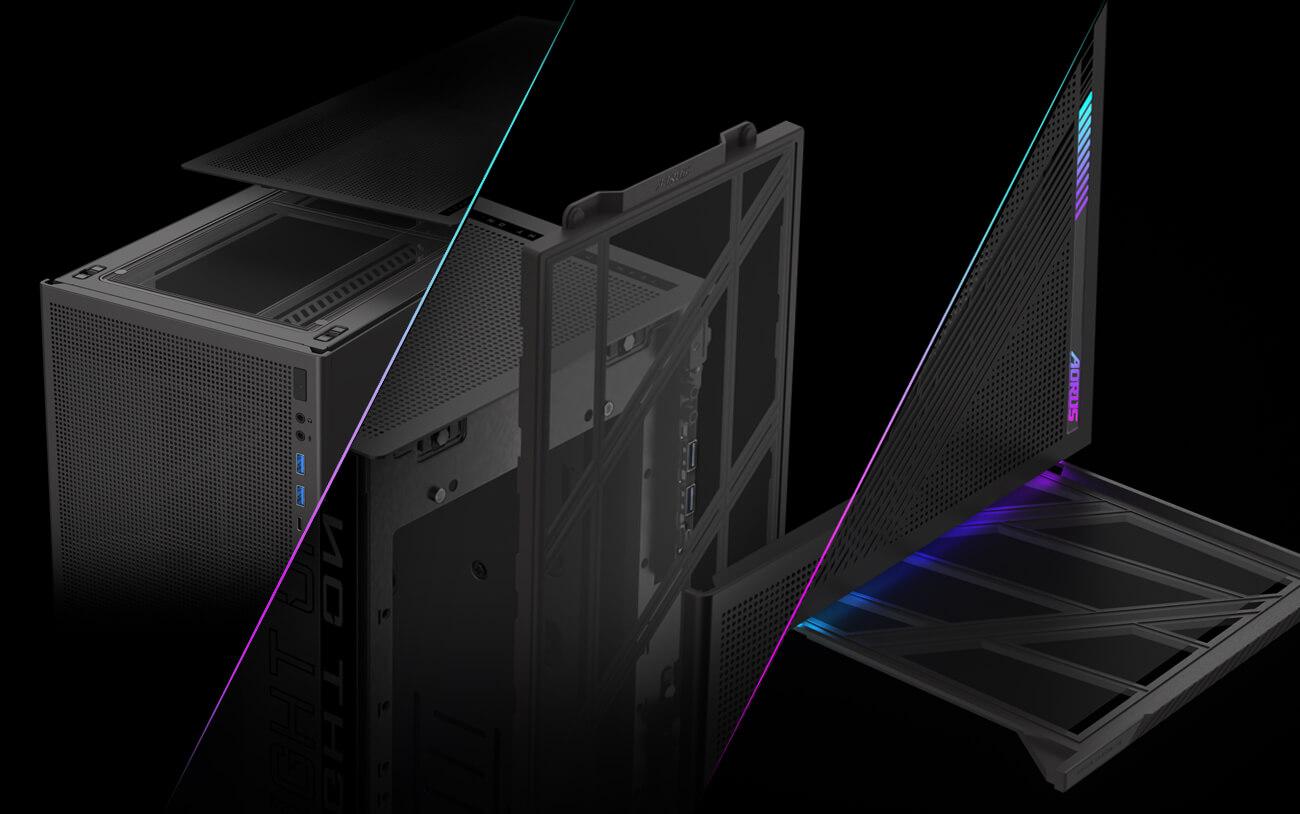

TOOL-FREE INSTALLATION
Thanks to its modular design, users can easily remove the front, top,
and side panels without any tool when updating or changing components.
DETACHABLE FAN AND RADIATOR BRACKET
The detachable bracket is designed for fan and radiator
installation on the top panel, which makes assembly
easier and more convenient.
DETACHABLE DUST FILTER
The filters keep your PC from accumulating dust, while maintaining
optimal cooling performance. The magnetic filter of front and top
panels, along with the removable filter at the bottom, make maintenance easy.
I/O PANEL
Provides a USB 3.2 Gen2 Type-C port with a transmission speed of up to 10 Gbps,
along with two USB 3.0 ports, audio ports, and a power button.
Specifications

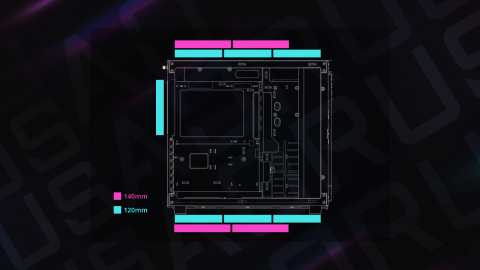

| Case Form Factor | Mid Tower | Fan Support | Bottom : 120mm x3 / 140mm x2 Top : 120mm x3 / 140mm x2 Rear : 120mm x1 |
| M/B Type | Mini ITX / Micro ATX / ATX | Radiator Support | Bottom : Max 360mm Top : Max 360mm Rear : Max 120mm |
| Materials | Steel, Plastic, Glass | Power Supply Type | Standard ATX (Not included) |

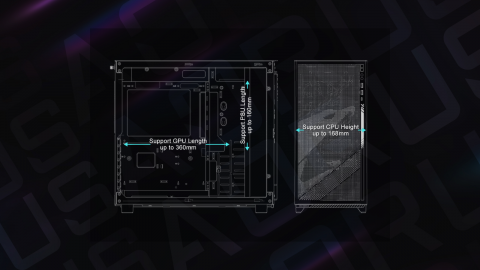

| Dimensions | H435x W210x D469 mm (Within ± 1% error) | Maximum Compatibility | CPU Height : 168mm GPU Length : 360mm PSU Length : 160mm |
| Expansion slots | 8 | Vertical GPU Mount | Yes (107mm total clearance ) |
| 5.25" Drive Bays | None | Dust Filters | Front, Top, Bottom |
| 3.5" Drive Support | 2 + 3 (Replace from bottom fans) | RGB Lighting | Yes (supports RGB Fusion) |
| 2.5" Drive Support | 2 + 1 (Replace from 3.5") | Weight | N.W. 8.72 Kg G.W. 10.05 Kg |
| I/O Panel | USB 3.2 Gen2 Type-C x1 USB 3.0 x2 Audio In & Out (supports HD Audio) |
Package Dimensions | H=562 W=301 D=510 mm |
| Pre-installed Fan | Bottom : 120mm x3 (ARGB & PWM) Rear : 120mm x1 (ARGB & PWM) |
Accessories | 1.Manual 2.Accessories kit |
