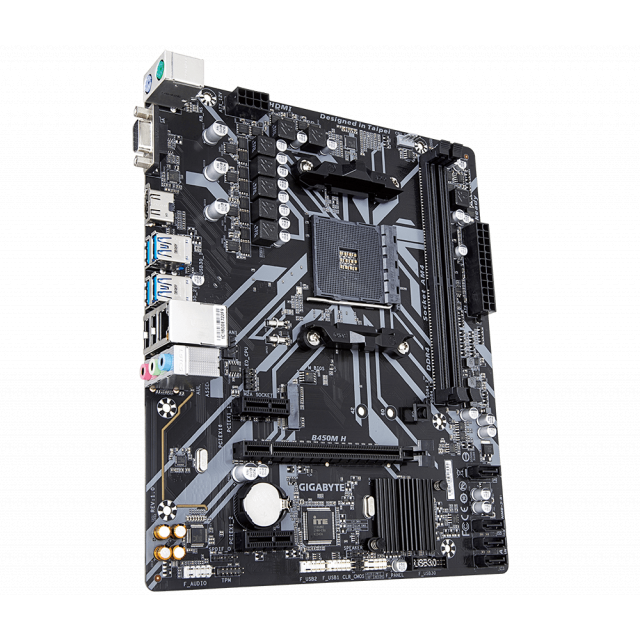

GIGABYTE B450M H

Дънна платка GIGABYTE B450M H Socket AM4, 2 x DDR4, rev. 1.0

Арт. номер: GA-MB-B450M-H
последна бройка

Запитване за GIGABYTE B450M H

безплатна доставка
на поръчки над 99 лв.
Технически характеристики
Гаранция 36 месеца
Сокет AMD AM4
Форм Фактор Micro ATX
Чипсет AMD B450
Брой слотове за памет 2
Капацитет на RAM до 64 GB
Честота на памет до 3600 MHz
RGB Подсветка Не
Поддържана памет DDR4
Вграден Wi-Fi Не

Дънна платка GIGABYTE B450M H Socket AM4, 2 x DDR4

CPU

  1. AMD Socket AM4, support for: Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
(Please refer "CPU Support List" for more information.)

Chipset

  1. AMD B450

Memory

  1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  2. Dual channel memory architecture
  3. Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor:
  1. 1 x D-Sub port, supporting a maximum resolution of [email protected] Hz
  2. 1 x HDMI port, supporting a maximum resolution of [email protected] Hz(Note)
    * Support for HDMI 2.0 version and HDCP 2.2.(Note)
Maximum shared memory of 16 GB

(Note) Actual support may vary by CPU.

Audio

  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  4. Support for S/PDIF Out

LAN

  1. Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

  1. 1 x PCI Express x16 slot, running at x16
    (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  2. 2 x PCI Express x1 slots
    (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)

Storage Interface

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support)
    * Actual support may vary by CPU.
    * Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.
  2. 4 x SATA 6Gb/s connectors
  3. Support for RAID 0, RAID 1, and RAID 10

USB

Chipset:
  1. 2 x USB 3.1 Gen 1 ports available through the internal USB header
  2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
  1. 4 x USB 3.1 Gen 1 ports on the back panel

Internal I/O Connectors

  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x system fan header
  5. 1 x M.2 Socket 3 connector
  6. 4 x SATA 6Gb/s connectors
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x S/PDIF Out header
  10. 1 x CPU cooler LED strip/RGB LED strip header
  11. 1 x USB 3.1 Gen 1 header
  12. 2 x USB 2.0/1.1 headers
  13. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  14. 1 x speaker header
  15. 1 x Clear CMOS jumper
  16. 1 x chassis intrusion header

Back Panel Connectors

  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x D-Sub port
  4. 1 x HDMI port
  5. 4 x USB 3.1 Gen 1 ports
  6. 2 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks

I/O Controller

  1. iTE® I/O Controller Chip

H/W Monitoring

  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    AutoGreen
    Cloud Station
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    Smart Keyboard
    Smart Survey
    System Information Viewer
    USB Blocker
  2. Support for Q-Flash
  3. Support for Xpress Install

Bundled Software

  1. Norton® Internet Security (OEM version)
  2. Realtek® 8118 Gaming LAN Bandwidth Control Utility

Operating System

  1. Support for Windows 10 64-bit
  2. Support for Windows 7 64-bit
    * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
    * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

Form Factor

  1. Micro ATX Form Factor; 24.4cm x 20.5cm

Remark

  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
