GIGABYTE B760M GAMING X DDR4

Дънна платка GIGABYTE B760M GAMING X DDR4, socket 1700, mATX

Арт. номер: GA-MB-B760M-GAMING-X-D4

наличен

Виж наличност

Склад Шереметя

Запитване за GIGABYTE B760M GAMING X DDR4

безплатна доставка

на поръчки над 199 лв.

Технически характеристики

Гаранция	36 месеца
Сокет	Intel 1700
Форм Фактор	Micro ATX
Чипсет	Intel B760
Брой слотове за памет	4
Капацитет на RAM	до 128 GB
Честота на памет	до 5333 MT/s
RGB Подсветка	Не
Поддържана памет	DDR4
Вграден Wi-Fi	Не

Свързани продукти

GIGABYTE B650M D3HP

Сокет: AMD AM5

Форм Фактор: Micro ATX

Чипсет: AMD B650

Брой слотове за памет: 4

Капацитет на RAM: до 256 GB

GIGABYTE B760M DS3H AX DDR4

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel B760

Брой слотове за памет: 4

Капацитет на RAM: до 128 GB

GIGABYTE B550 Gaming X V2

Сокет: AMD AM4

Форм Фактор: ATX

Чипсет: AMD B550

Брой слотове за памет: 4

Капацитет на RAM: до 128 GB

Честота на памет: до 4733 MT/s

GIGABYTE B550 EAGLE WIFI6

Сокет: AMD AM4

Форм Фактор: ATX

Чипсет: AMD B550

Брой слотове за памет: 4

Капацитет на RAM: до 128 GB

GIGABYTE B760 DS3H DDR4

Сокет: Intel 1700

Форм Фактор: ATX

Чипсет: Intel B760

Брой слотове за памет: 4

Капацитет на RAM: до 128 GB

GIGABYTE B760M DS3H AX

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel B760

Брой слотове за памет: 4

Капацитет на RAM: до 192 GB

GIGABYTE B760M D3HP

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel B760

Брой слотове за памет: 4

Капацитет на RAM: до 256 GB

GIGABYTE B550M DS3H AC R2

Сокет: AMD AM4

Форм Фактор: Micro ATX

Чипсет: AMD B550

Брой слотове за памет: 4

Капацитет на RAM: до 128 GB

GIGABYTE B650M S2H

Сокет: AMD AM5

Форм Фактор: Micro ATX

Чипсет: AMD B650

Брой слотове за памет: 2

Капацитет на RAM: до 96 GB

GIGABYTE B760 DS3H AX DDR4

Сокет: Intel 1700

Форм Фактор: ATX

Чипсет: Intel B760

Брой слотове за памет: 4

Капацитет на RAM: до 128 GB

GIGABYTE B760M GAMING DDR4

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel B760

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

GIGABYTE B760M DS3H DDR4

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel B760

Брой слотове за памет: 4

Капацитет на RAM: до 128 GB

Дънна платка GIGABYTE B760M GAMING X, socket 1700, mATX 4xDDR4

Intel Socket LGA 1700：Support 13th and 12th Gen Series Processors
Unparalleled Performance：Hybrid 8+1+1 Phases Digital VRM Solution
Dual Channel DDR4：4*DIMMs XMP Memory Module Support
Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
Fast Networks：2.5GbE LAN
Extended Connectivity：Front USB-C 10Gb/s, DP, HDMI
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

PERFORMANCE

Hybrid Digital VRM Design

To ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU, GIGABYTE GAMING series motherboard equip the best VRM design ever built with the highest quality components.

To unleash full potential of multi-cores CPU performance

For CPU integrated GPU performance

Provide stable power for CPU integrated PCIe & Memory controller

* DrMOS adopted only on Vcore / VGT.

GIGABYTE B760 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience triple bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

Support for DDR4 XMP Up to 5333MHz and Beyond*

GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE otherboard.

*XMP Profile support may vary depending on memory module.
Please see the complete validated memory support list. Product features may vary by model.

Shielded Memory Routing

All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.

Dual PCIe 4.0 x4 M.2

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.

GIGABYTE PerfDrive

PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel Core processors.

Max Turbo allows Intel 13th Gen. Core CPU to run at Maximum Turbo Boost speed.

The Optimization mode enables Intel 13th Gen. Core CPU to balance between high performance and low temperature.

The Spec Enhance mode enables Intel 13th Gen. Core CPU to run at high performance under a lower temperature setting.

The E-Core Disable mode allocates CPU resources to P-core exclusively to boost its gaming performance, while diminishing the overall power consumption of processors.

* Features and function vary depending on Motherboard and CPU specifications, image is for reference only.

THERMAL

OUTSTANDING THERMAL DESIGN

GIGABYTE Motherboards' Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

Cooling Features - (PWM/DC Fan Headers)

High Current Support

Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection

Precision Control

Multiple temperature/fan speed control points for precise fan curve

Dual Curve Mode

Slope/Stair dual mode for different user scenario

Fan Stop

Fan can stop completely below users' specified temperature point

Cooling Features - (Internal Temperature Sensors)

High Current Support

Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection

Precision Control

Multiple temperature/fan speed control points for precise fan curve

Dual Curve Mode

Slope/Stair dual mode for different user scenario

Fan Stop

Fan can stop completely below users' specified temperature point

Smart Fan 6 BIOS UI

1.Improve fan curve UI

We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.

2.Slope/Stair dual graph mode

Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.

3.Manual Input

For advanced users, we provide fan speed manual input for more precise control.

4.EZ Tuning

Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.

5.Fan curve profile

Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.

Note: The picture is for reference and may vary by model.

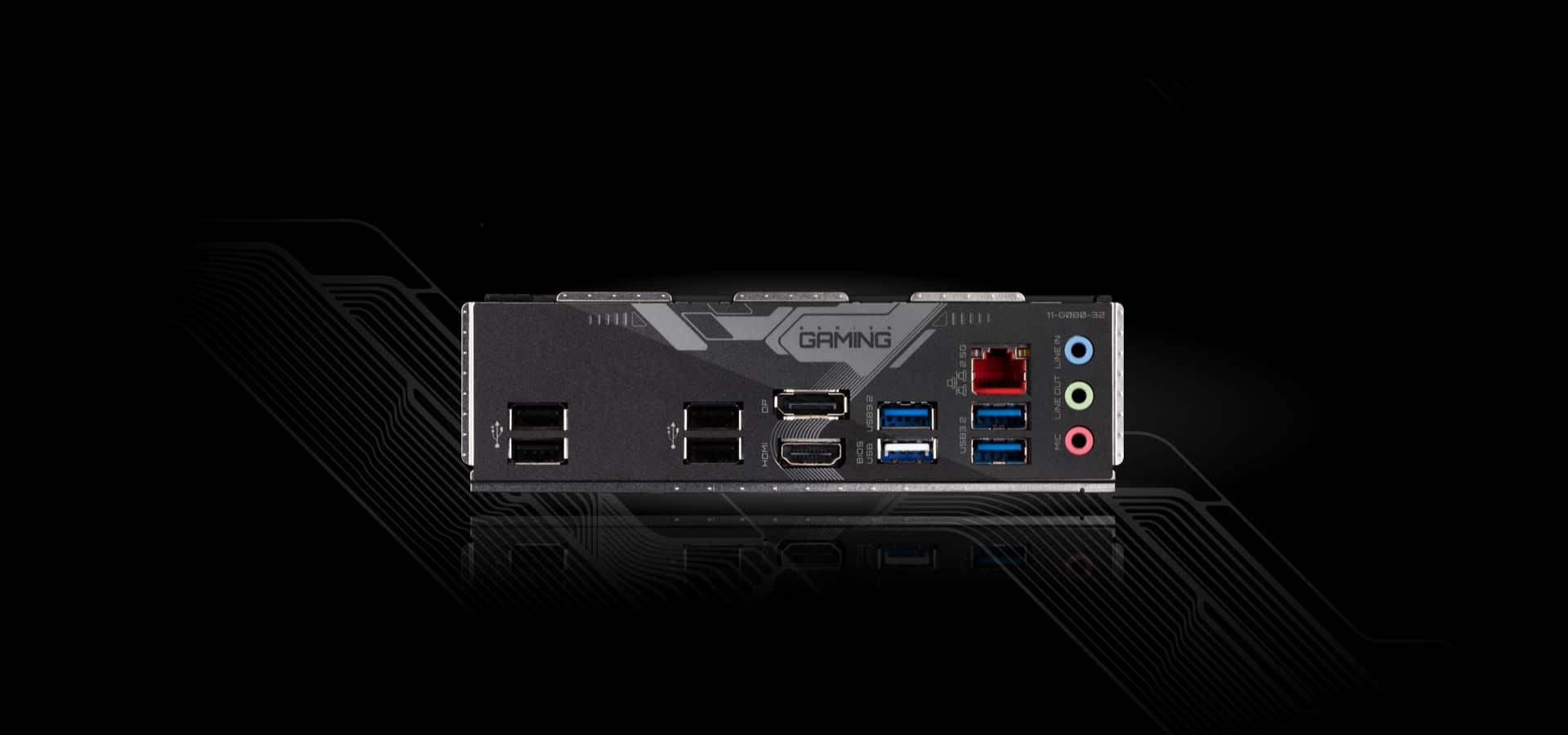

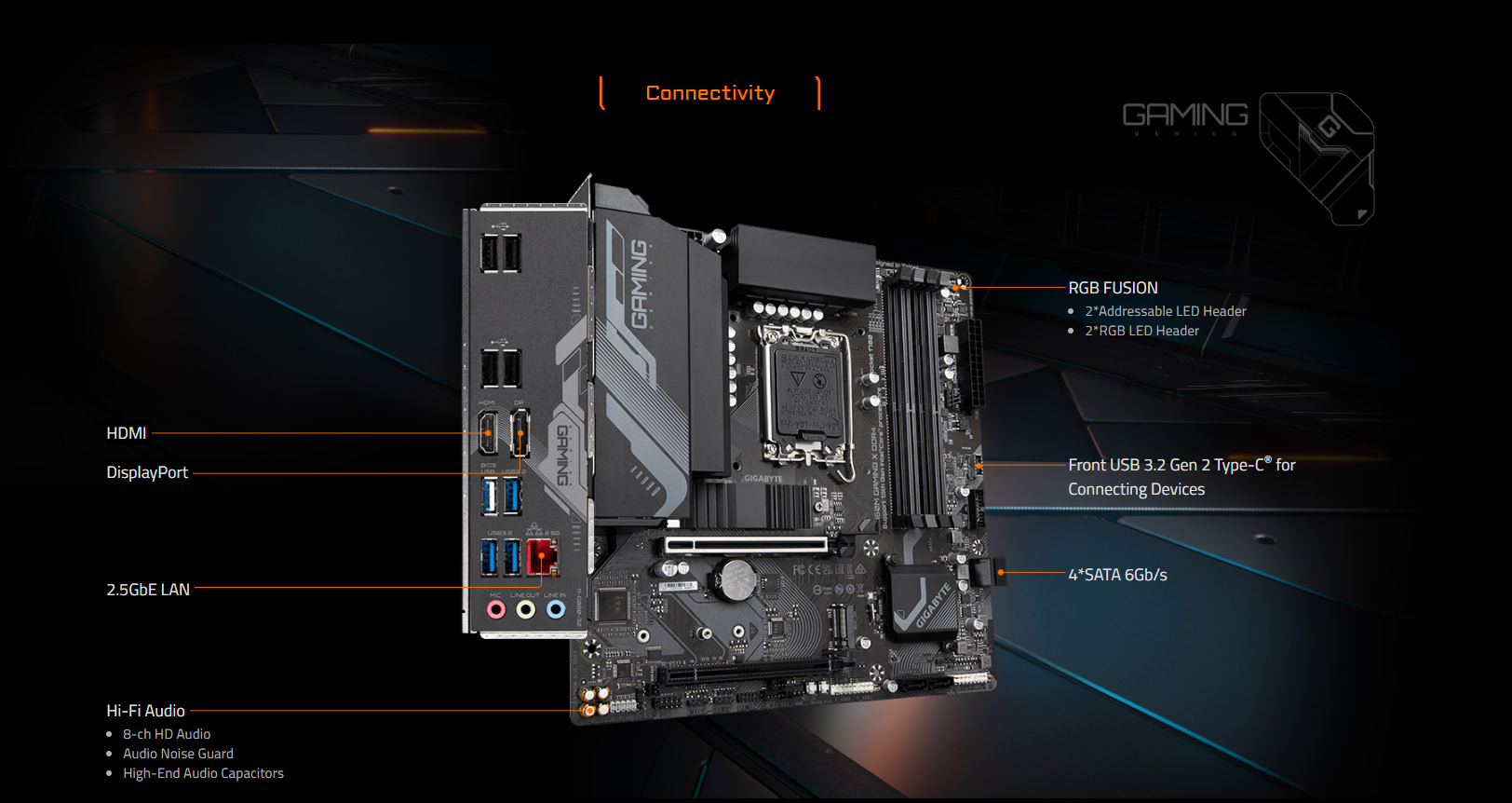

CONNECTIVITY

First adopter on 2.5GbE LAN onboard

2X Faster than ever

- - Adoption of 2.5G LAN provide up to 2.5GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
  - Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet

Connecting the Future - Front USB3.2 Gen 2 Type-C

USB 3.2 Gen 2 provides USB 3.2 Gen 2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C and the traditional USB Type-A connector for better compatibility over a wider range of devices.

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

PERSONALIZATION

Friendly User Interface

The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.

My Favorites

Add constantly used items into the favorite menu for quick access.

Storage Information

Show all kinds of storage information including SATA, PCIE and M.2 interface.

Changelog

List all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive Load Line Curve

Clearly show each loadline calibration setting in an intuitive curve graph.

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.

Unified software platform for all Gigabyte supported products
Intuitive user interface for an eased experience
Modularized control components only for installed hardware
Auto update function to keep system up to date and support future products

LEARN MORE

Multi-key

A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios.

RGB Switch
Turn off all lighting effect on motherboard.

Direct-To-BIOS
Boot into BIOS menu directly without pressing any keyboard button.

Safe Mode
Boot into BIOS safe mode to change specific option without losing other BIOS settings.

* Photo for reference only.

ULTRA DURABLE

Specification

CPU	LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Chipset	Intel B760 Express Chipset
Memory	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.)
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LAN	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots	CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Storage Interface	CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

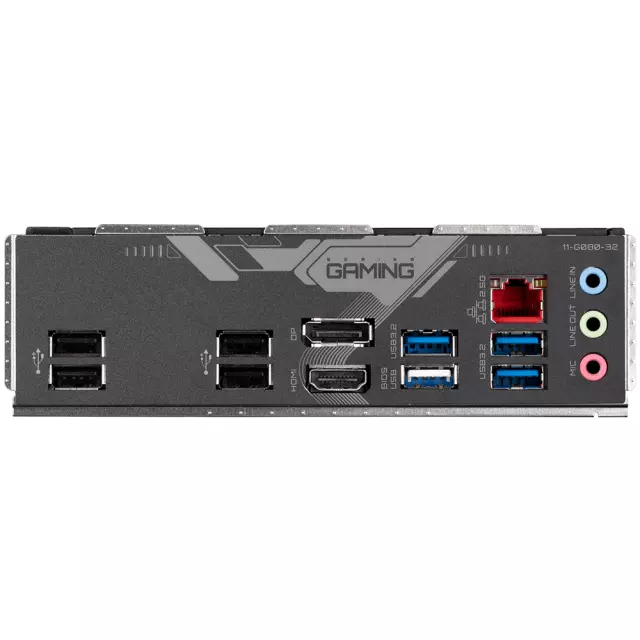

Back Panel Connectors	3 x USB 3.2 Gen 1 ports 5 x USB 2.0/1.1 ports 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
