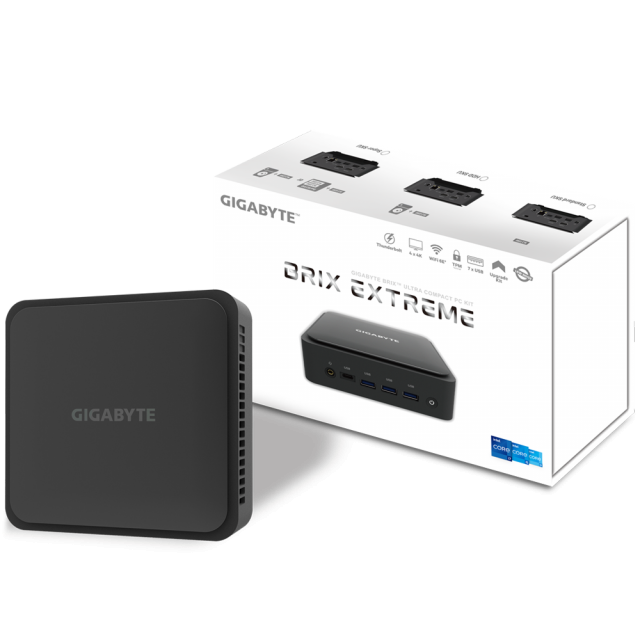

GIGABYTE BRIX INTEL i7-1260P
Компютърна конфигурация GIGABYTE BRIX BEI7HS-1260, INTEL® CORE™ I7-1260P, 2 X SO-DIMM DDR4, M.2 SSD, WI-FI 6E + BT 5.2, ЧЕРНО
Арт. номер: GA-PC-BEI7HS-1260
Свързани продукти
Процесор:
Intel Core Ultra 5 225H 1.7 GHz~4.9 GHz, 14C/14T 18MB L3 Cache
Видео чипсет:
Intel® Arc™ Graphics, 130T
Памет:
Team Group Elite 16GB 5600MT/s DDR5
SSD:
Kingston NV3 500GB
Свързаност:
Intel WIFI7; Bluetooth 5.4; 2.5G LAN
Процесор:
13th Gen Intel® Core™ i7-1355U Processor 10 Cores (2P+8E), 12 Threads, 12MB Cache Frequency up to 5.0GHz(P Core Turbo), 15W
Видео чипсет:
Intel® Iris® Xe Graphics, 96EU, 1.3GHz
Памет:
Team Group Elite 8GB 3200MT/s DDR4
SSD:
Kingston NV3 500GB
Свързаност:
Intel AX203 Wi-Fi 6 ; 802.11ax ; 2.4 & 5 GHz ; Bluetooth 5.2
Процесор:
Intel Core Ultra 7 255H 2.0 GHz~5.1 GHz, 16/16T 24MB L3 Cache
Видео чипсет:
Intel® Arc™ Graphics, 140T
Памет:
Team Group Elite 16GB 5600MT/s DDR5
SSD:
Kingston NV3 500GB
Свързаност:
Intel WIFI7; Bluetooth 5.4; 2.5G LAN
Процесор:
13th Gen Intel® Core™ i5-1335U Processor 10 Cores (2P+8E), 12 Threads, 12MB Cache Frequency up to 4.6GHz(P Core Turbo), 15W
Видео чипсет:
Intel® Iris® Xe Graphics, 96EU, 1.25GHz
Памет:
Team Group Elite 8GB 3200MT/s DDR4
SSD:
Kingston NV3 500GB
Свързаност:
Intel AX203 Wi-Fi 6 ; 802.11ax ; 2.4 & 5 GHz ; Bluetooth 5.2
Процесор:
Intel® CoreTM i3 Processor N305 CPU 3.0G~3.8G Turbo, 8C/8T Core, 6MB L3 Cache
Видео чипсет:
Intel® UHD Graphics 1250
Памет:
Team Group Elite 8GB 3200MT/s DDR4
SSD:
Kingston NV3 500GB
Свързаност:
Intel WIFI6; Bluetooth 5.2; 2.5G LAN
Процесор:
Intel® Processor N100 2.9G~3.4G Turbo, 4C/4T Core, 6MB L3 Cache
Видео чипсет:
Intel® UHD Graphics 750
Памет:
Team Group Elite 8GB 3200MT/s DDR4
SSD:
Kingston NV3 500GB
Свързаност:
Intel WIFI6; Bluetooth 5.2; 2.5G LAN
Процесор:
Intel® Pentium® Processor 6005 (2.00 GHz/3.30 GHz, 4MB, 4C/4T)
Видео чипсет:
Intel® UHD Graphics 605
Памет:
Team Group Elite 8GB 3200MT/s DDR4
SSD:
Kingston NV3 500GB
Свързаност:
Wi-Fi 802.11ac; Bluetooth 4.2; 1G LAN
Dimension |
52 mm x 134.2 mm x 139.1 mm (2.0" x 5.3" x 5.4") |
Motherboard Size |
125mm x 128.8mm (4.9"x 5.1") |
CPU |
12th Generation Intel® Core™ i7-1260P Processors, 12 Cores (4P+8E) 16 Threads, 12MB L2 Cache, Frequency 2.1GHz-4.7GHz(P Core), 28W |
Memory |
2 x SO-DIMM DDR4 slots, support up to 3200MHz Max. 64GB |
LAN |
2.5G LAN (Intel i225V) |
Wifi Card |
Intel WIFI6E / BT 5.2 Module |
Graphics |
Intel® Iris® Xe Graphics, 96EU |
Audio |
Realtek ALC897 HD audio |
HDMI Resolution (Max.) |
1x HDMI2.1 with HDCP 2.2 Max Resolution 7680 x 4320@60Hz 1x HDMI2.0a with HDCP 2.2 Max Resolution 3840x2160@60Hz |
Mini DP Resolution (Max.) |
Mini DP supports : DP1.4a Max Resolution 3840x2160@60Hz USB 4.0 Type-C DP supports : DP1.4a Max Resolution 3840x2160@60Hz |
Storage |
1 x PCI-e Gen4 x 4 /SATA M.2 2280 slot 2 x PCI-e Gen4 x 1 /SATA M.2 2280 slots 1 x 2.5"HDD/SSD, 7.0mm thick (1 x 6 Gbps SATA 3)(To remove above dual M.2 kit first) |
Expansion Slots |
1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card |

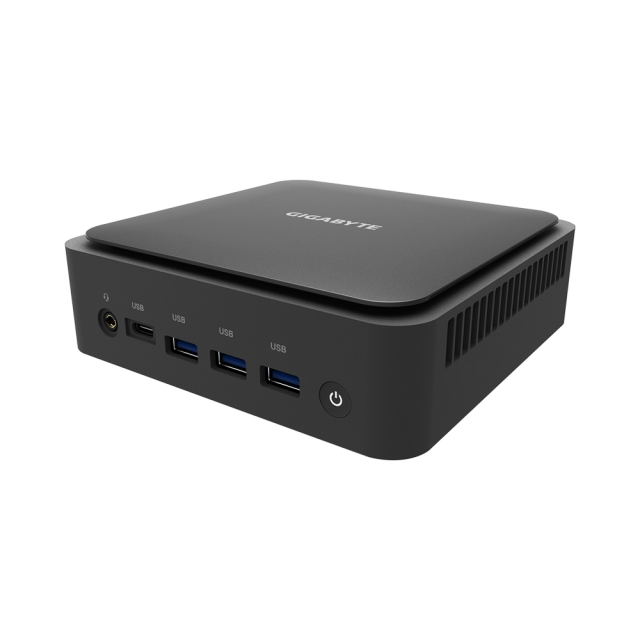

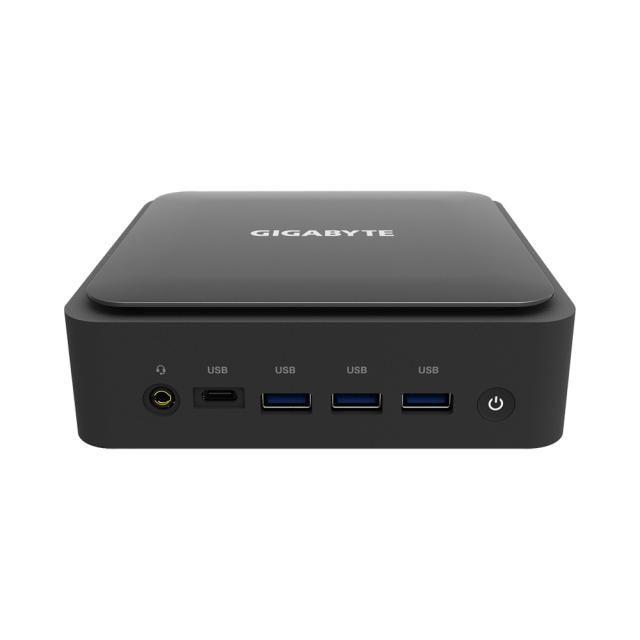

Front I/O |
1 x Power Button 1 x USB 3.2 type C (Gen2) 3 x USB 3.2 type A (Gen2) 1 x head phone jack with MIC |

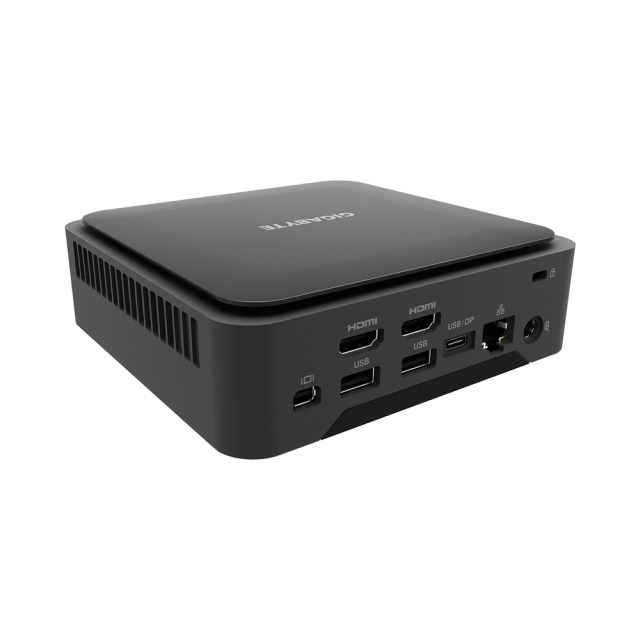

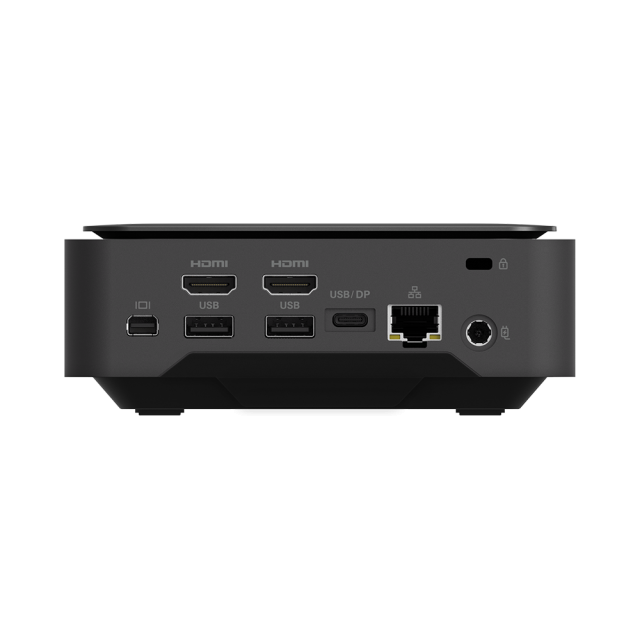

Rear I/O |
1 x HDMI(2.1) 1 x HDMI(2.0b) 1 x mDP 1 x USB 4.0 (Support Intel Thunderbolt 4) w/ DP alt mode 2 x USB 2.0 type A 1 x RJ45 1 x DC-In 1 x Kensington lock slot |
TPM |
Integrate TPM module* (in selected regions /countries) |
Power Supply |
Input: AC 100-240V Output: DC 19.5V / 6.92A, 135W |
VESA |
Mounting Bracket Included |
Support OS |
Windows 11 64Bit Windows 10 64bit |
Environment |
Operating Temperature 0°C to 35°C Storage Temperature -20°C to +60°C |
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
