GIGABYTE Z890 AORUS MASTER

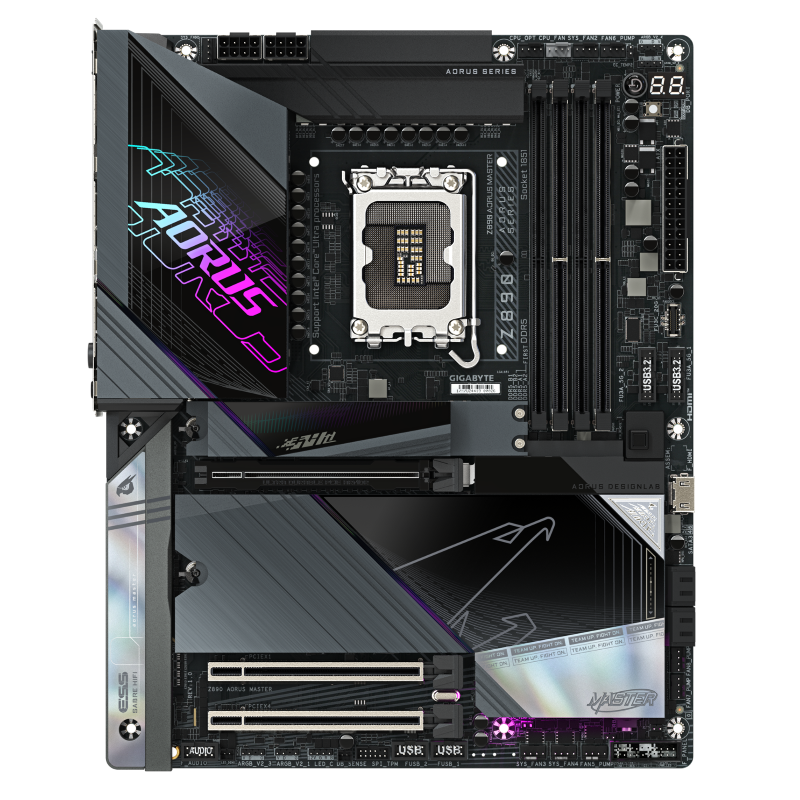

Дънна платка GIGABYTE Z890 AORUS MASTER, LGA 1851
Арт. номер: GA-MB-Z890-AORUS-MASTER
безплатна доставка
на поръчки над 199 лв.
Технически характеристики
| Гаранция | 36 месеца |
| Сокет | Intel 1851 |
| Форм Фактор | ATX |
| Чипсет | Intel Z890 |
| Брой слотове за памет | 4 |
| Капацитет на RAM | до 256 GB |
| Честота на памет | до 9500 MT/s |
| RGB Подсветка | Да |
| Поддържана памет | DDR5 |
| Вграден Wi-Fi | Да |
Свързани продукти
Сокет:
AMD AM5
Форм Фактор:
ATX
Чипсет:
AMD X870E
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
AMD AM5
Форм Фактор:
Extended ATX
Чипсет:
AMD X670
Брой слотове за памет:
4
Капацитет на RAM:
до 128 GB
Сокет:
AMD AM5
Форм Фактор:
ATX
Чипсет:
AMD X870E
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
AMD AM5
Форм Фактор:
ATX
Чипсет:
AMD X870E
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
AMD AM5
Форм Фактор:
ATX
Чипсет:
AMD X870E
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
AMD AM5
Форм Фактор:
ATX
Чипсет:
AMD X870
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
AMD AM5
Форм Фактор:
ATX
Чипсет:
AMD X870
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
AMD AM5
Форм Фактор:
ATX
Чипсет:
AMD B650
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
Intel 1851
Форм Фактор:
ATX
Чипсет:
Intel Z890
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
Intel 1851
Форм Фактор:
ATX
Чипсет:
Intel Z890
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
Intel 1851
Форм Фактор:
ATX
Чипсет:
Intel Z890
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Сокет:
Intel 1851
Форм Фактор:
Micro ATX
Чипсет:
Intel Z890
Брой слотове за памет:
4
Капацитет на RAM:
до 256 GB
Key Features
• Supports Intel Core Ultra processors (Series 2)
• Digital twin 18+1+2 phases VRM solution
• D5 Bionic Corsa for Infinite Memory Performance
• AORUS AI SNATCH : Auto-Overclocking Software by AI models
• AI Perfdrive : Provides optimal and customized BIOS preset profile for users
• Premium Compatibility : 4*DDR5 with XMP Memory Module Support
• DDR Wind Blade : Enhanced Active Cooling for Memory Modules

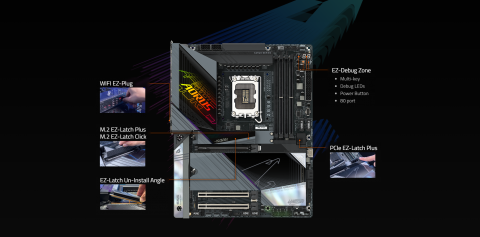

• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click : M.2 heatsinks with screwless design
• Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• New Power Monitor in HWinfo for real-time monitoring on CPU power phases
• Ultra-Fast Storage : 5*M.2 slots, including 2* PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard XL
• Fast Networking : 10GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity : Dual THUNDERBOLT 4 Type-C with DP-Alt
• DTS : X Ultra Audio : ALC1220 & Rear ESS SABRE Hi-Fi 9118 DAC
• Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
• PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
Specifications
| CPU | LGA1851 socket: Support for Intel Core Ultra Processors L3 cache varies with CPU * Please refer to "CPU Support List" for more information. |
| Chipset | Intel Z890 Express Chipset |
| Memory | Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: - 2 x Intel Thunderbolt 4 connectors (USB4 USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs When a Thunderbolt monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output). When a USB4 USB Type-C monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output). * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.) - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time |
| Audio | Realtek ALC1220 CODEC * The front panel line out jack supports DSD audio. ESS ES9118 DAC chip Support for DTS:X Ultra High Definition Audio 2/4/5.1-channel * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| LAN | Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Intel Wi-Fi 7 BE200NGW - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) |
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1) |
| Storage Interface | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2D_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | CPU: - 2 x Intel Thunderbolt 4 (USB Type-C) ports on the back panel *Support up to 40Gbps with Thunderbolt devices *Support up to 20Gbps with USB4 devices *Support up to 10Gbps with USB 3.2 devices Chipset: - 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+USB 3.2 Gen 2x2 Hub: - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header Chipset+2 USB 3.2 Gen 1 Hubs: - 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Chipset+2 USB 2.0 Hubs: - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 4 x system fan/water cooling pump headers 4 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 5 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points (Note) Actual support may vary by CPU |
| Back Panel Connectors | 1 x Q-Flash Plus button 1 x Clear CMOS button 2 x Intel Thunderbolt 4 connectors (USB Type-C ports) 6 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for GIGABYTE Control Center (GCC) Support for Q-Flash |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
