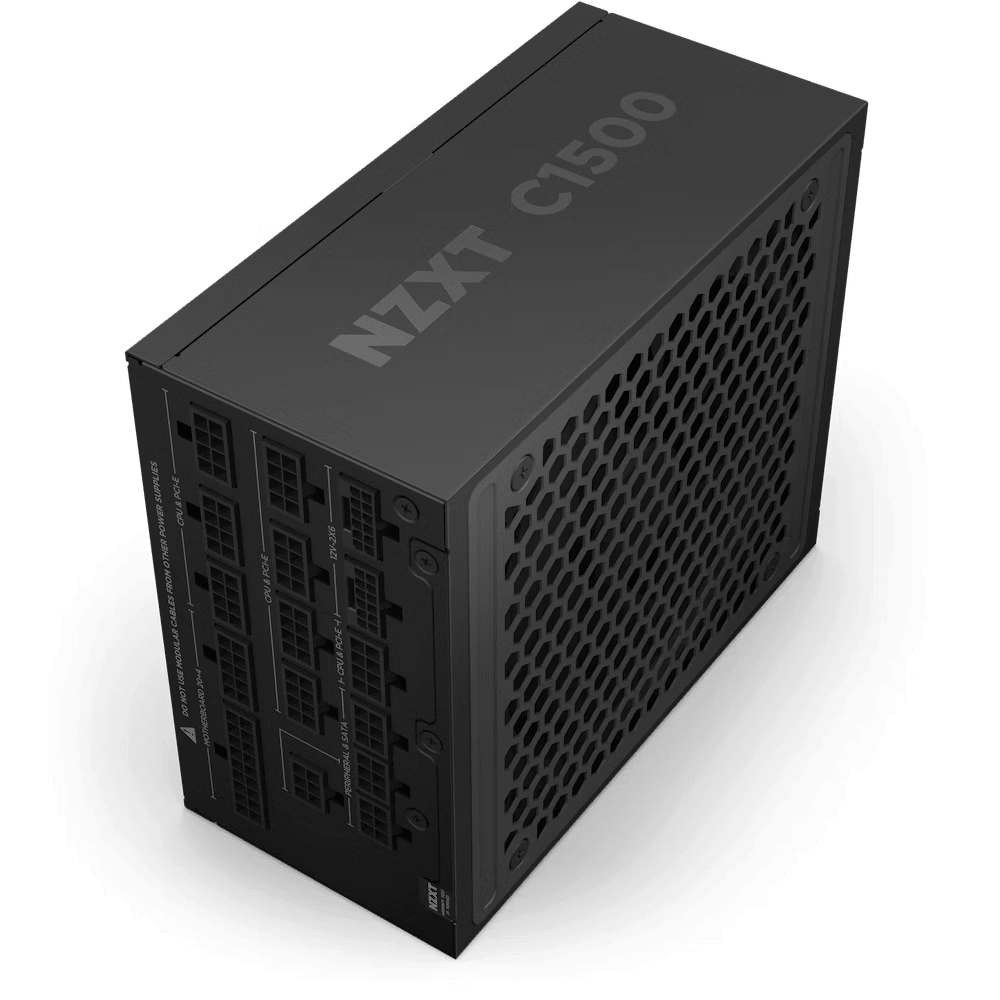

NZXT C1500 Platinum ATX 3.1

Захранване NZXT C1500, 1500W 80+ Platinum ATX 3.1 - Fully Modular

Арт. номер: NZXT-PS-PA-5P1BB-EU
не е в наличност

Запитване за NZXT C1500 Platinum ATX 3.1

безплатна доставка
на поръчки над 199 лв.
Технически характеристики
Мощност 1500W
Сертификат 80+ Platinum
Ефективност 94 %
Тип Модулярно
Форм Фактор ATX
Спецификация ATX 3.1
PCIe Gen5 Да
RGB Подсветка Не
Цвят Черен
Гаранция 120 месеца

Свързани продукти











Future-Proof Power

ATX 3.1 and PCIe 5.1 compliance supports
current and future high-performance GPUs
and CPUs.
















Dual PCIe 5.1 Connectors

Equipped with two 16-pin 12V-2x6 cables to
power GPUs drawing more than 600 watts.







Digital Power

Enables precise voltage regulation, resulting in
higher efficiency and lower ripple noise.













Exceptional Efficiency

Exceeding 80 Plus Platinum standards, the
94% efficiency lowers power usage and
ensures quieter, cooler operation.









Magnetic Levitation Fan

140mm fan uses air-suspended blades to
minimize noise, extend lifespan, and boost
airflow.

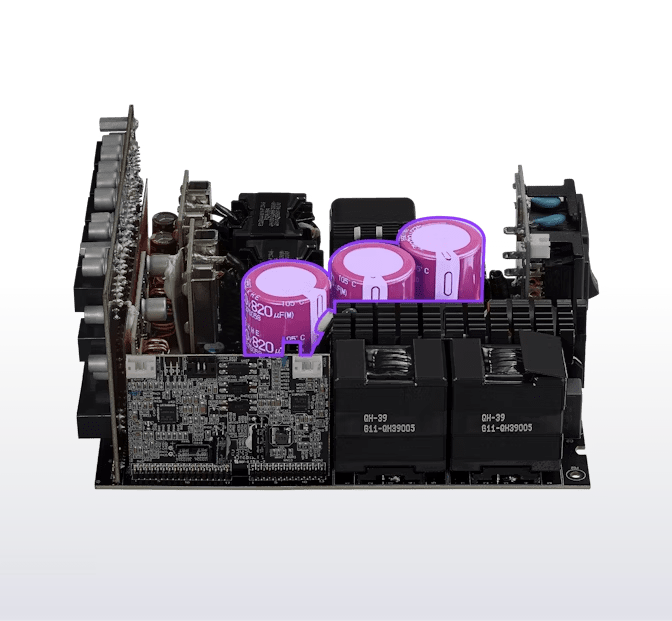

Built with Quality

Constructed using all 105°C
Japanese capacitors for
unmatched reliability.




Fully Modular Design

Simplifies cable management by
allowing connection of only
necessary cables.




Space-Saving Size

Compact 180mm form factor
optimizes case space while
promoting improved airflow.

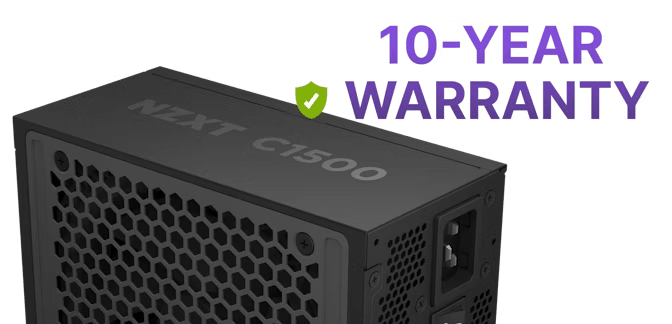

Peace of Mind

Backed by a 10-year warranty and reliable
customer support.

Tech Specs



OUTPUT CONNECTORS

24-pin ATX power 1 16-pin (12+4) 12VHPWR PCIe Cable 2
4+4-pin CPU power 1 SATA Cable 12
8-pin CPU Cable 1 Peripherals Cable 4
6+2-pin PCIe power 6





CABLE SPECS

24-pin ATX power 600 mm, Nylon sleeving 16-Pin (12+4) 12VHPWR PCIe Cable 650mm, Nylon sleeving
4+4-pin CPU power 700 mm, Nylon sleeving SATA Cable 500 + 150 mm, Nylon sleeving
8-Pin CPU Power Cable 700mm, Nylon sleeving Peripherals Cable 500 + 150 mm, Nylon sleeving
6+2-pin PCIe power 650mm, Nylon sleeving





AC INPUT RATING

100 - 240Vac 15A-9A 50Hz-60Hz 200 - 240Vac 9A 50Hz-60Hz





DC OUTPUT RATING

+3.3V and +5V 22A (120W) 5Vsb 3A (15W)
12V 125A (1500W) Total 1500W (115-240Vac) / 1300W (100-115Vac)





OPERATION

MTBF 100,000 hours Temperature 0 - 50 °C





ENERGY EFFICIENCY

Rating 80 Plus Gold 50% loading 93.8% @115Vac
10% loading
92% @115Vac
100% loading
90.8% @115Vac
20% loading 94% @115Vac





ELECTRICAL FEATURES

PF Correction Active @0.99 Protections OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) /





FAN SPECS

Dimensions 140 x 140 x 25 mm Noise 41.0 dBA max
Speed 2500 ± 10% RPM Bearing Magnetic Levitation Bearing (ML)
Airflow 125 CFM (Tpy.)





GENERAL

Dimensions 180 x 150 x 86mm Warranty 10 years
Material(s) Steel, PCB and Plastic Model Number PA-5P1BB-EU
Compliance Standard ATX12V v3.1 / EPS12V v2.92 UPC 5056547203652
Regulation & Certification FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65 EAN 810074843737
