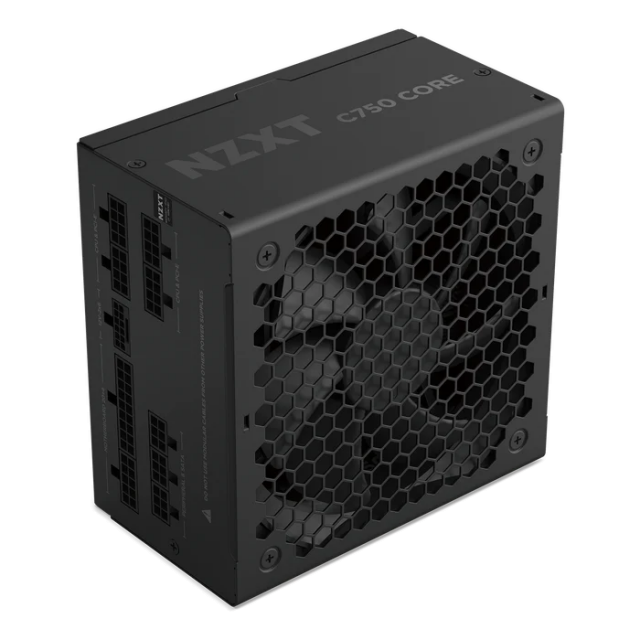

NZXT C750 Gold Core
Захранване NZXT C750 Core 750W 80+ Gold ATX 3.1 PCIe 5.1 - Fully Modular
Арт. номер: NZXT-PS-PA-7G3BB-EU
безплатна доставка
на поръчки над 100 EUR
Технически характеристики
| Мощност | 750W |
| Сертификат | 80+ Gold |
| Ефективност | 89.53 % |
| Тип | Модулярно |
| Форм Фактор | ATX |
| Спецификация | ATX 3.1 |
| PCIe Gen5 | Да |
| RGB Подсветка | Не |
| Цвят | Черен |
| Гаранция | 84 месеца |
Свързани продукти
Мощност:
850W
Сертификат:
80+ Gold
Ефективност:
89.33 %
Тип:
Модулярно
Форм Фактор:
ATX
Мощност:
850W
Сертификат:
80+ Gold
Ефективност:
91 %
Тип:
Модулярно
Форм Фактор:
ATX
Мощност:
1200W
Сертификат:
80+ Gold
Ефективност:
90 %
Тип:
Модулярно
Форм Фактор:
ATX
Мощност:
1000W
Сертификат:
80+ Gold
Ефективност:
91 %
Тип:
Модулярно
Форм Фактор:
ATX
Мощност:
1000W
Сертификат:
80+ Gold
Ефективност:
89 %
Тип:
Модулярно
Форм Фактор:
ATX
Мощност:
1200W
Сертификат:
80+ Gold
Ефективност:
91 %
Тип:
Модулярно
Форм Фактор:
ATX
Мощност:
1500W
Сертификат:
80+ Platinum
Ефективност:
94 %
Тип:
Модулярно
Форм Фактор:
ATX
Спецификация:
ATX 3.1
Essential Power for Modern Builds
NZXT Gold Core delivers 80 PLUS Gold efficiency with full ATX 3.1 support for stable performance. Its modular design keeps cable management easy and your build clean, with broad compatibility across cases and components.

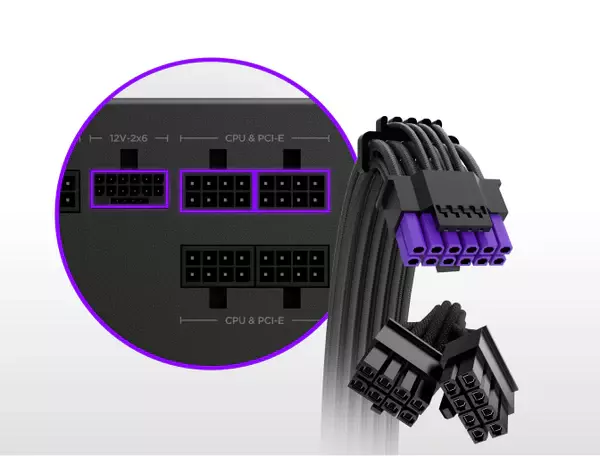

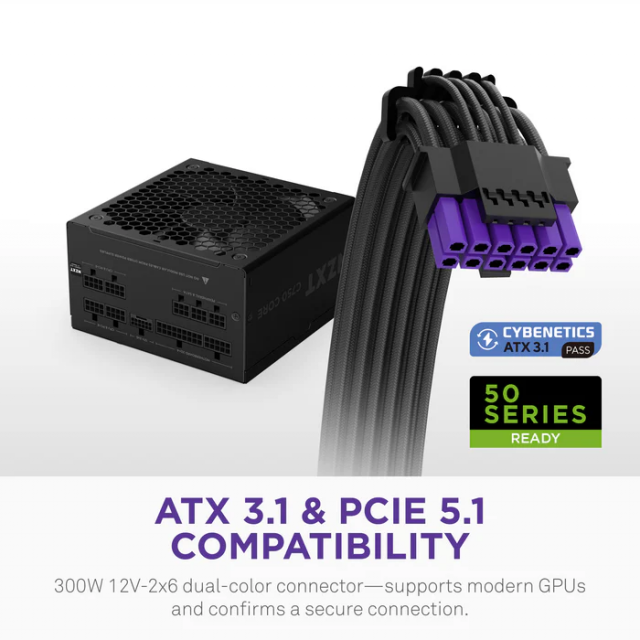

ATX 3.1 & PCIe 5.1 Compatibility

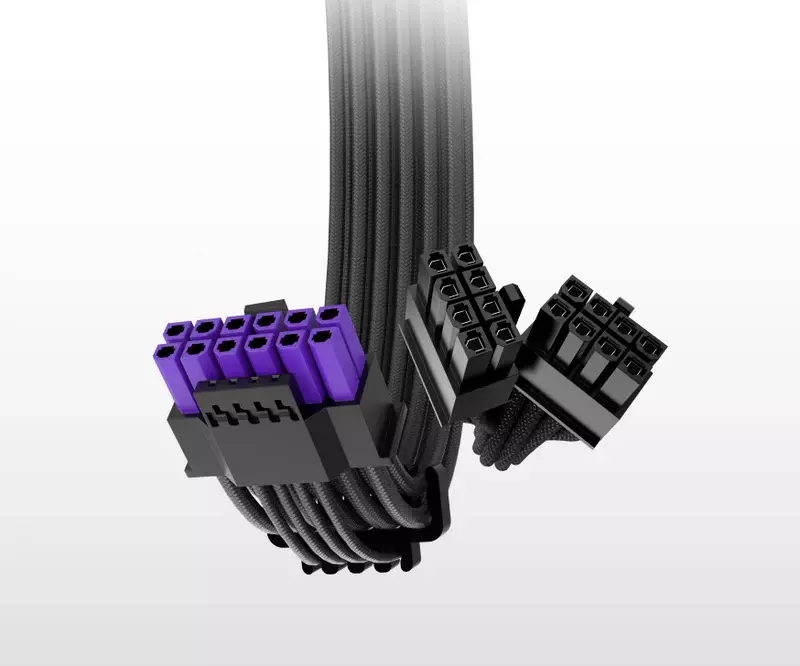

Supports modern GPUs with a 12V-2x6 connector and dual-color housing that lets you see when it’s fully plugged in. Includes up to two 8-pin PCIe cables for legacy support — offering flexibility across a wide range of NVIDIA and AMD builds.

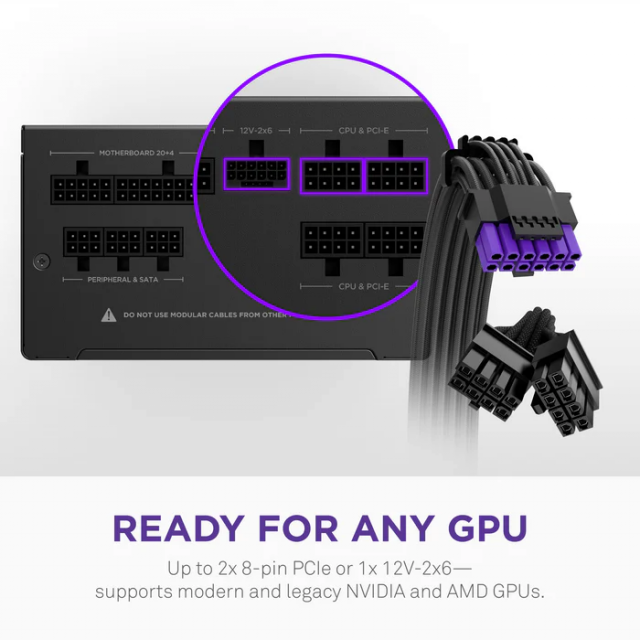

Ready for Any GPU
Supports the latest GPUs from NVIDIA and AMD with a 12V-2x6 connector, plus two 8-pin PCIe cables for legacy cards. Whether you're upgrading or building new, it's ready for your next graphics card.

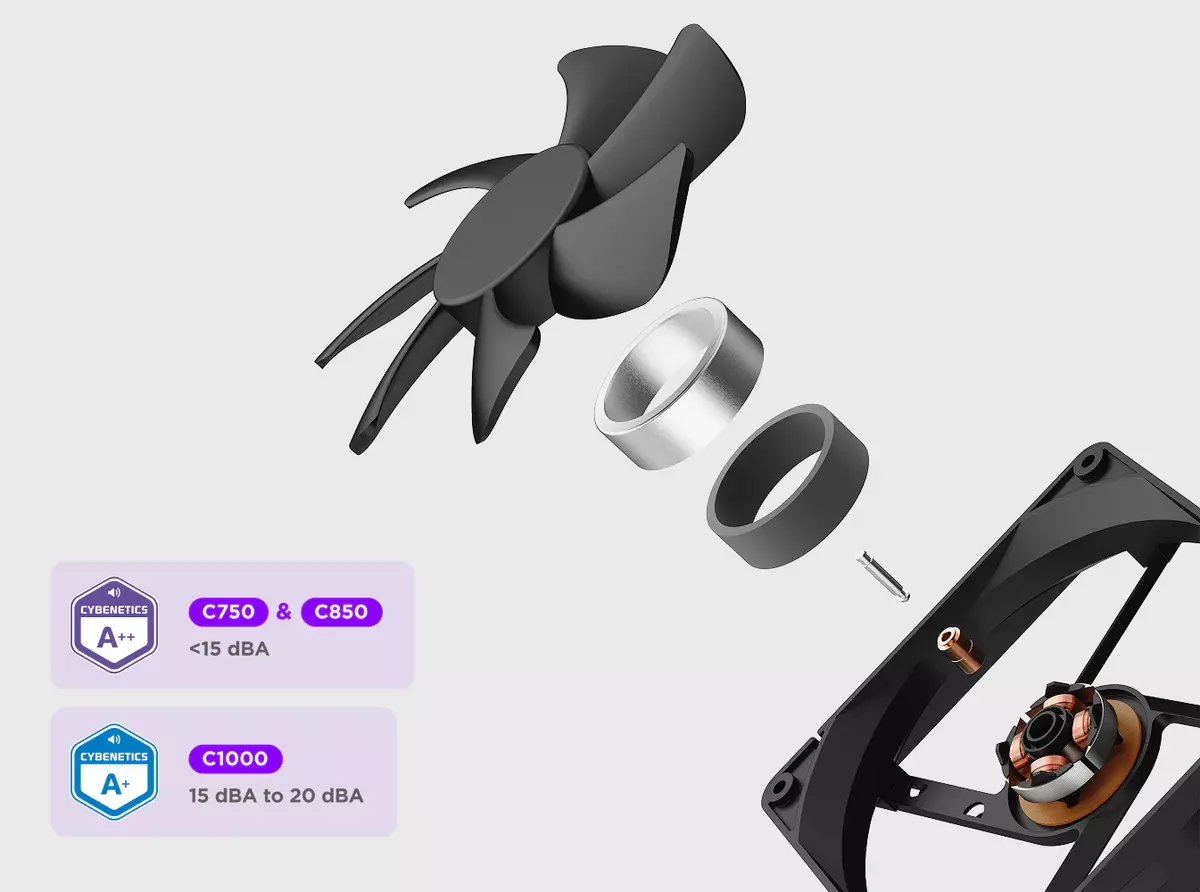

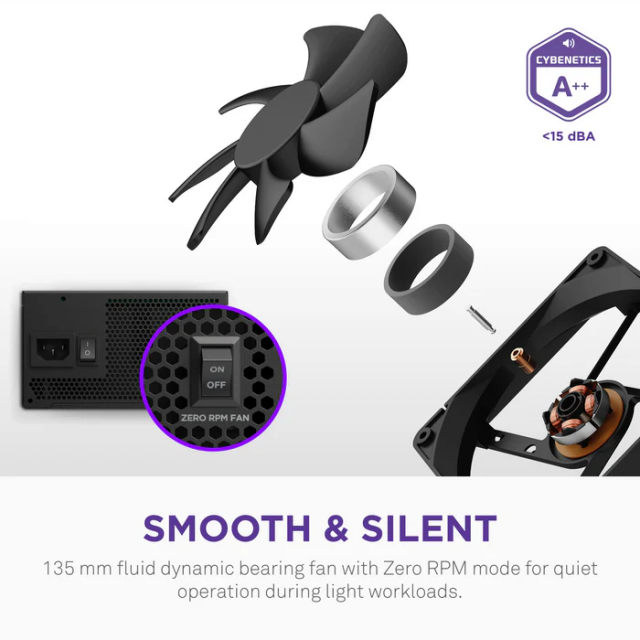

Quiet When it Counts
135 mm fluid dynamic bearing fan stays silent under light loads with Zero RPM mode—automatically stopping the fan when cooling isn’t needed.

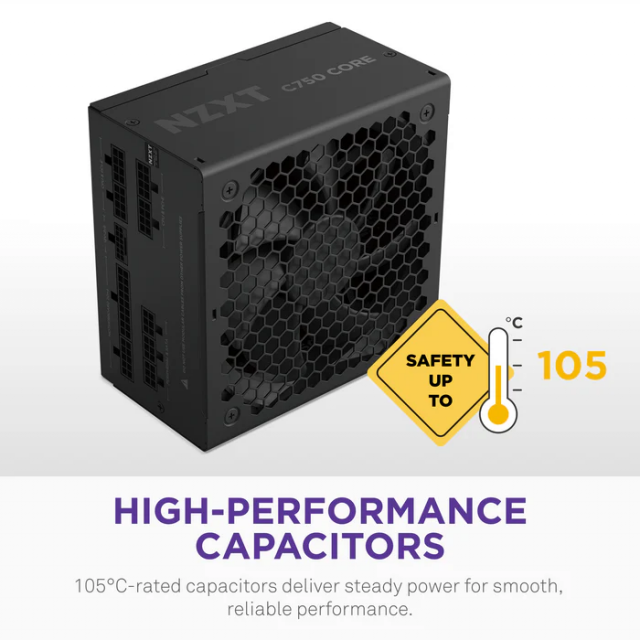

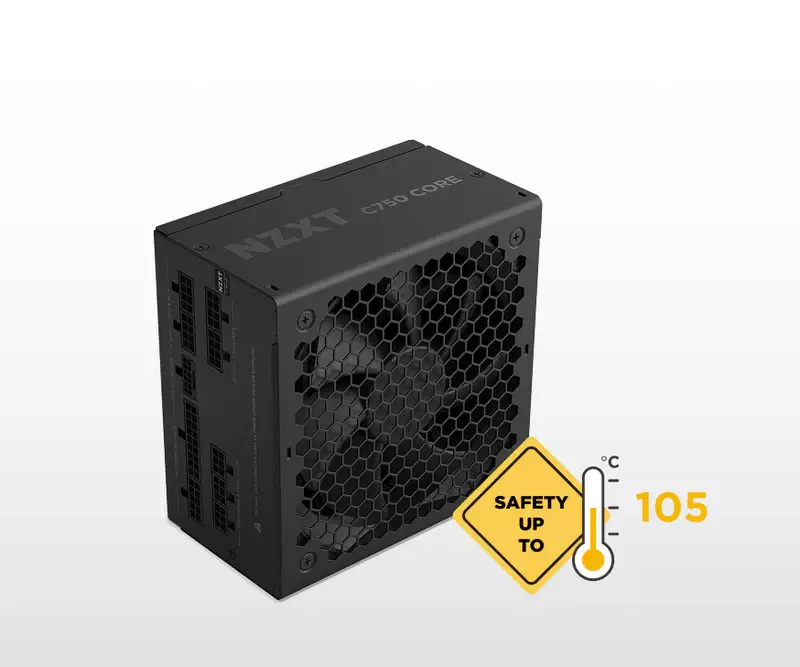

Stable Under Pressure
105°C-rated capacitors deliver steady, reliable power—even under heavy loads.

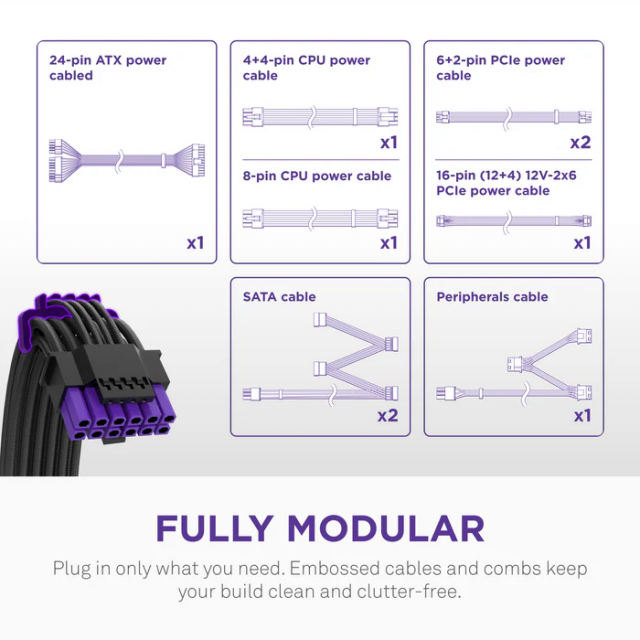

Fully Modular
Embossed cables with included combs help keep your build and cables clean.

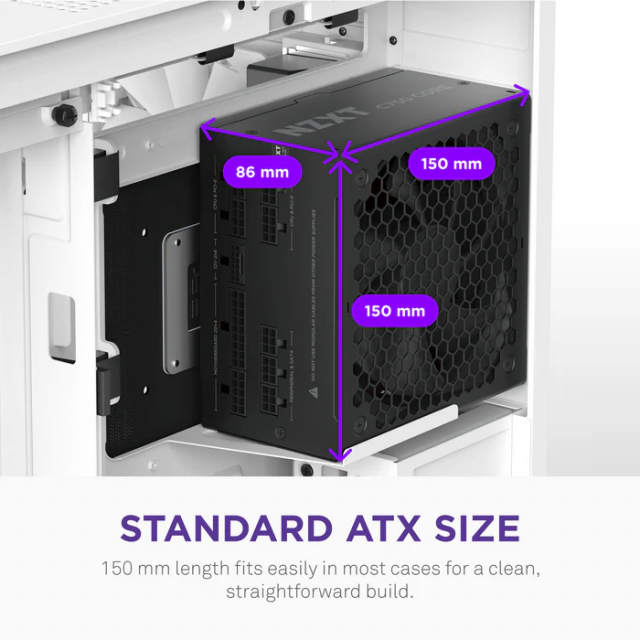

Sized for Easy Builds
150 mm length fits easily in most PC cases, helping keep your build clean and straightforward.
Specification
General
| Wattage | 750 W | Cybenetics Noise | A++ |
| Form Factor | ATX | Modular | Fully modular |
| ATX Version | 3.1 | Capacitors | 105°C performance capacitors |
| 80 PLUS Rating | Gold | Cable Type | Individually embossed with cable comb |
| Cybenetics Efficiency | Platinum | Zero RPM Fan Mode | Yes |
Cable Length, Connector Quantity & Dimensions
| 24-pin ATX Power Cable | 600 mm (1) | 16-pin (12+4) 12V-2x6 PCIe Power Cable | 650 mm (1) (300W) |
| 4+4-pin CPU Power Cable | 700 mm (1) | SATA Cables | 500 + 100 mm (8) |
| 8-pin CPU Power Cable | 700 mm (1) | Peripherals Cable | 500 + 100 mm (3) |
| 6+2-pin PCIe Power Cable | 650 mm (2) | PSU Dimensions | Width: 150mm Height: 86mm Depth: 150mm |
AC Input Rating
| 100 – 240 Vac | 10 – 5 A, 50 – 60 Hz | 200 – 240 Vac (South Korea) | 5 A, 50 – 60 Hz |
DC Output Rating
| +3.3 V and +5 V | 20 A (120 W) | 5VSB | 3 A (15 W) |
| +12 V | 62.5 A (750 W) | Total | 750 W |
Energy Efficiency
| 80 PLUS Rating | Gold | ||
| 10% Load | 87.9% @ 115 V | 50% Load | 92.11% @ 115 V |
| 20% Load | 91.63% @ 115 V | 100% Load | 89.53% @ 115 V |
Fan Specs
| Size | 135 mm | Airflow | 103.36 CFM |
| Type | PWM | Noise Level | 40.5 dBA |
| Speed | 2,300 ± 10% RPM | Bearing | Fluid dynamic bearing |
Operation & Electrical Features
| MTBF | 100,000 hours | Temperature | 0 – 50°C (Continuous Full Load) |

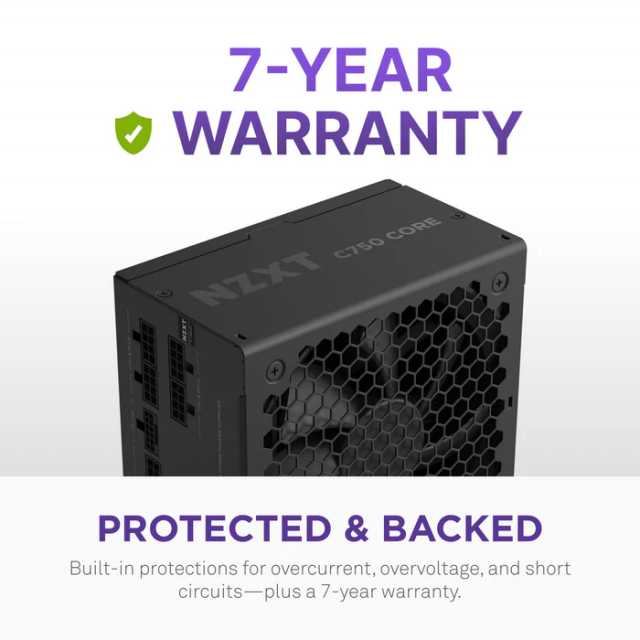

| PF Correction | Active @ 0.99 | Protections | OVP (Over Voltage), UVP (Under Voltage), SCP (Short Circuit), OTP (Over Temperature), OPP (Over Power), OCP (Over Current) |
