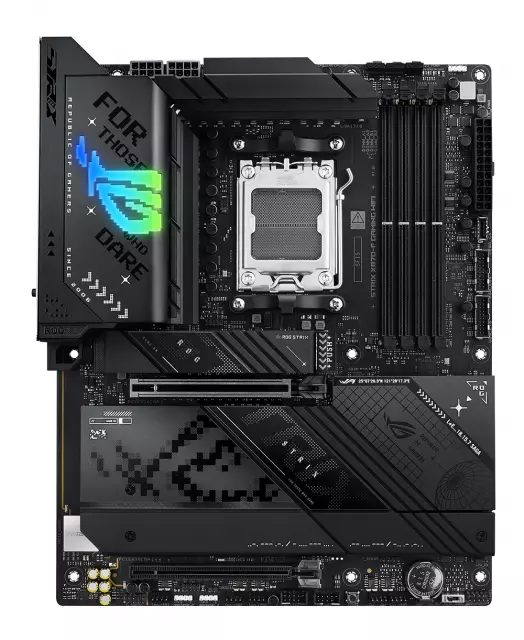

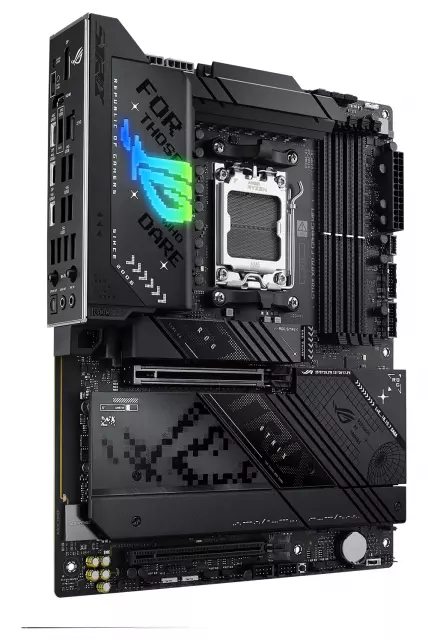

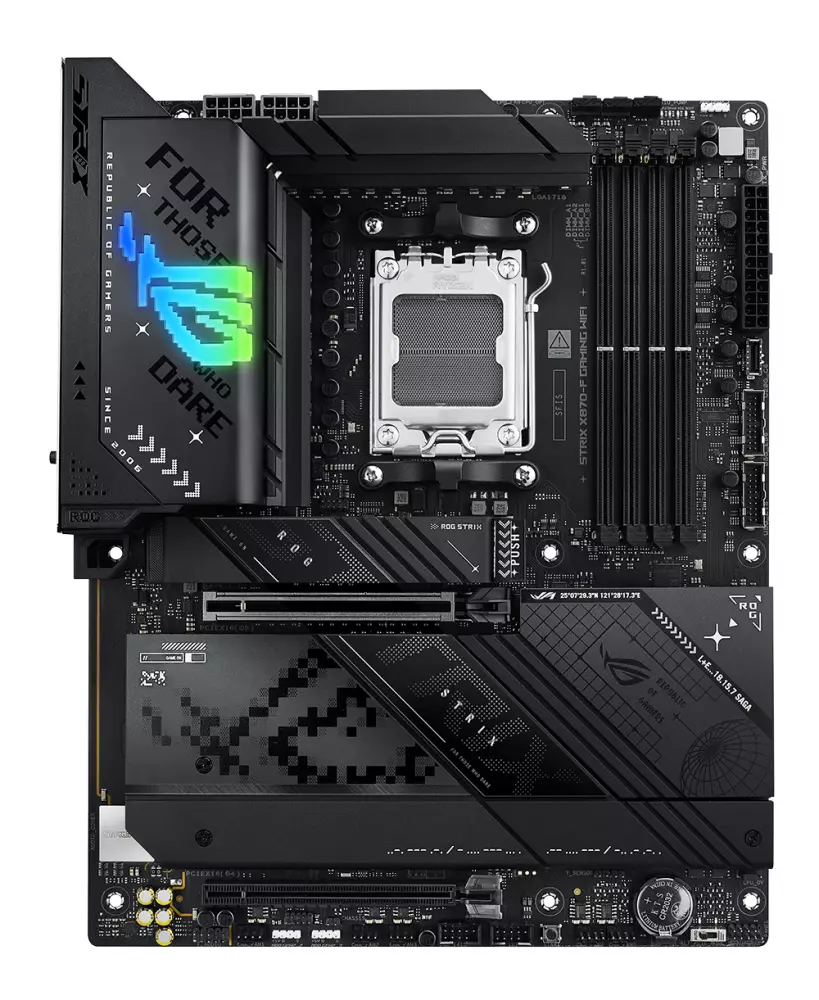

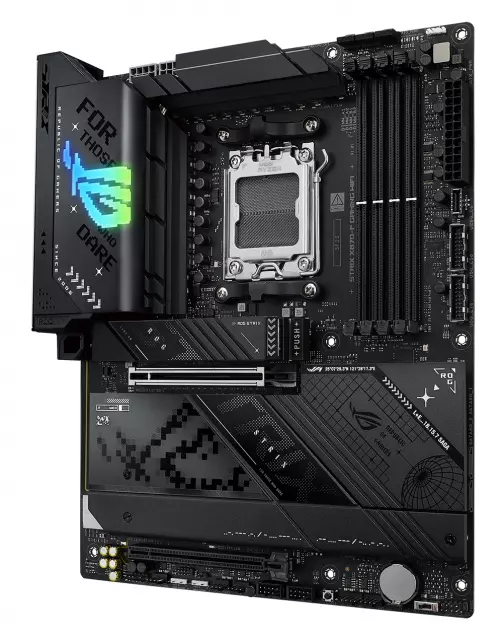

ASUS ROG STRIX X870-F GAMING WIFI

Дънна платка ASUS ROG STRIX X870-F GAMING WIFI AM5 DDR5

Арт. номер: ASUS-MB-STRIX-X870-F-WF

не е в наличност

Запитване за ASUS ROG STRIX X870-F GAMING WIFI

безплатна доставка

на поръчки над 199 лв.

Технически характеристики

Гаранция	36 месеца
Сокет	AMD AM5
Форм Фактор	ATX
Чипсет	AMD X870
Брой слотове за памет	4
Капацитет на RAM	до 256 GB
Честота на памет	до 8000 MT/s
RGB Подсветка	Да
Поддържана памет	DDR5
Вграден Wi-Fi	Да

Комплект

ASUS ROG Astral GeForce RTX 5080 OC 16GB

ASUS ROG STRIX X870-F GAMING WIFI

Свързани продукти

ASUS ROG STRIX X870-A GAMING WIFI

Сокет: AMD AM5

Форм Фактор: ATX

Чипсет: AMD X870

Брой слотове за памет: 4

Капацитет на RAM: до 256 GB

ASUS ROG STRIX X870E-H GAMING WIFI7

Сокет: AMD AM5

Форм Фактор: ATX

Чипсет: AMD X870E

Брой слотове за памет: 4

Капацитет на RAM: до 256 GB

ASUS ROG STRIX Z890-A GAMING WIFI

Сокет: Intel 1851

Форм Фактор: ATX

Чипсет: Intel Z890

Брой слотове за памет: 4

Капацитет на RAM: до 192 GB

ASUS ROG STRIX Z890-H GAMING WIFI

Сокет: Intel 1851

Форм Фактор: ATX

Чипсет: Intel Z890

Брой слотове за памет: 4

Капацитет на RAM: до 256 GB

ASUS ROG STRIX Z890-F GAMING WIFI

Сокет: Intel 1851

Форм Фактор: ATX

Чипсет: Intel Z890

Брой слотове за памет: 4

Капацитет на RAM: до 192 GB

ASUS X870 MAX GAMING WIFI7

Сокет: AMD AM5

Форм Фактор: ATX

Чипсет: AMD X870

Брой слотове за памет: 4

Капацитет на RAM: до 256 GB

ASUS X870 MAX GAMING WIFI7 W

Сокет: AMD AM5

Форм Фактор: ATX

Чипсет: AMD X870

Брой слотове за памет: 4

Капацитет на RAM: до 256 GB

ASUS ROG STRIX B850-I GAMING WIFI

Сокет: AMD AM5

Форм Фактор: Mini-ITX

Чипсет: AMD B850

Брой слотове за памет: 2

Капацитет на RAM: до 128 GB

ASUS ProArt Z890-CREATOR WIFI

Сокет: Intel 1851

Форм Фактор: ATX

Чипсет: Intel Z890

Брой слотове за памет: 4

Капацитет на RAM: до 192 GB

ASUS ROG STRIX B860-F GAMING WIFI

Сокет: Intel 1851

Форм Фактор: ATX

Чипсет: Intel B860

Брой слотове за памет: 4

Капацитет на RAM: до 256 GB

ASUS ProArt X870E-CREATOR WIFI

Сокет: AMD AM5

Форм Фактор: ATX

Чипсет: AMD X870E

Брой слотове за памет: 4

Капацитет на RAM: до 256 GB

ASUS ROG STRIX B850-F GAMING WIFI

Сокет: AMD AM5

Форм Фактор: ATX

Чипсет: AMD B850

Брой слотове за памет: 4

Капацитет на RAM: до 256 GB

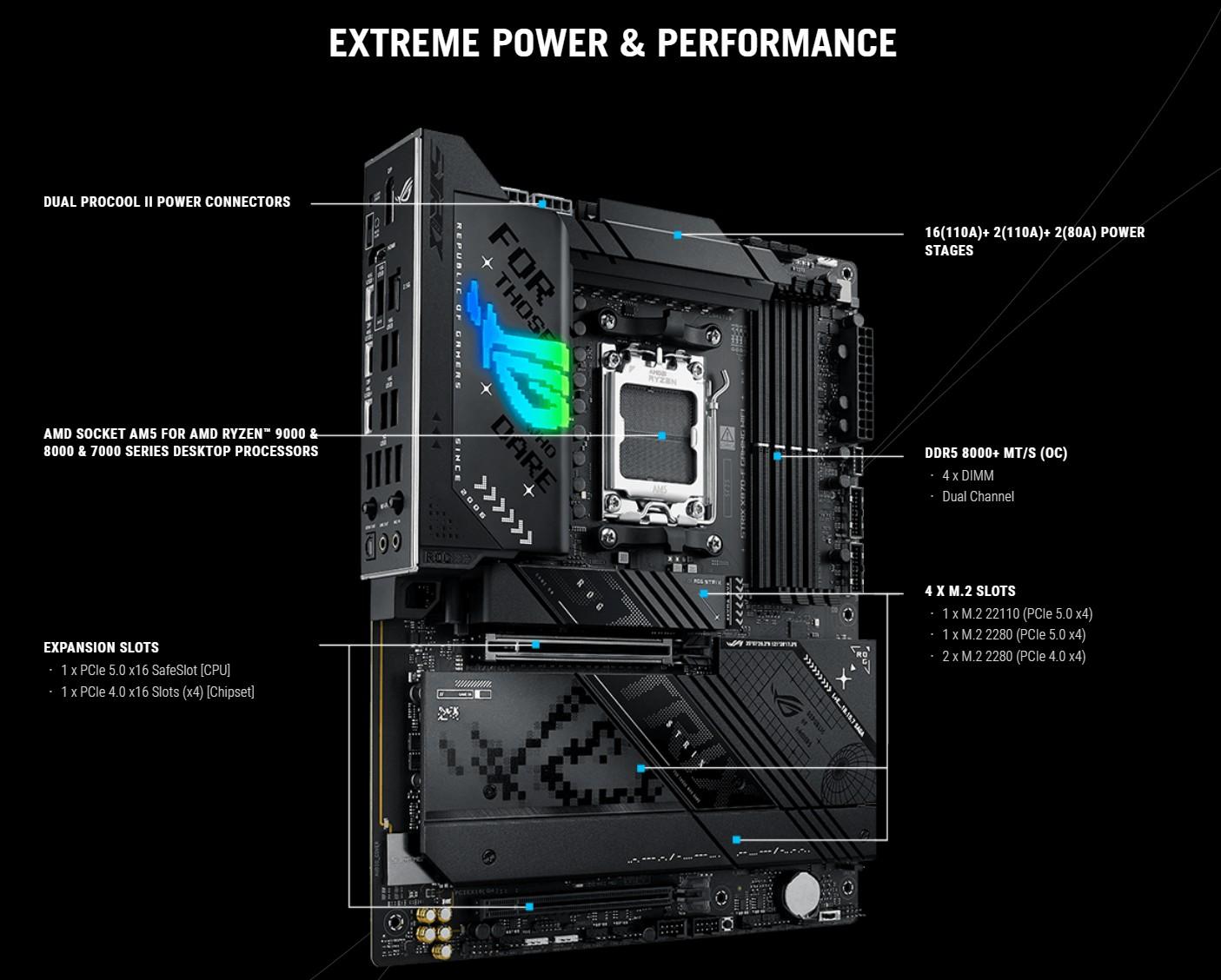

Мощен дизайн: Разполага с 16+2+2 етапа на захранване, осигуряващи стабилна производителност за взискателни задачи.
Съвременна свързаност: Поддържа WiFi 7, два USB4 Type-C порта и PCIe 5.0 за най-новите технологии.
Памет и съхранение: Поддържа DDR5 памет (до 256GB) и разполага с множество M.2 слотове за високоскоростно съхранение.

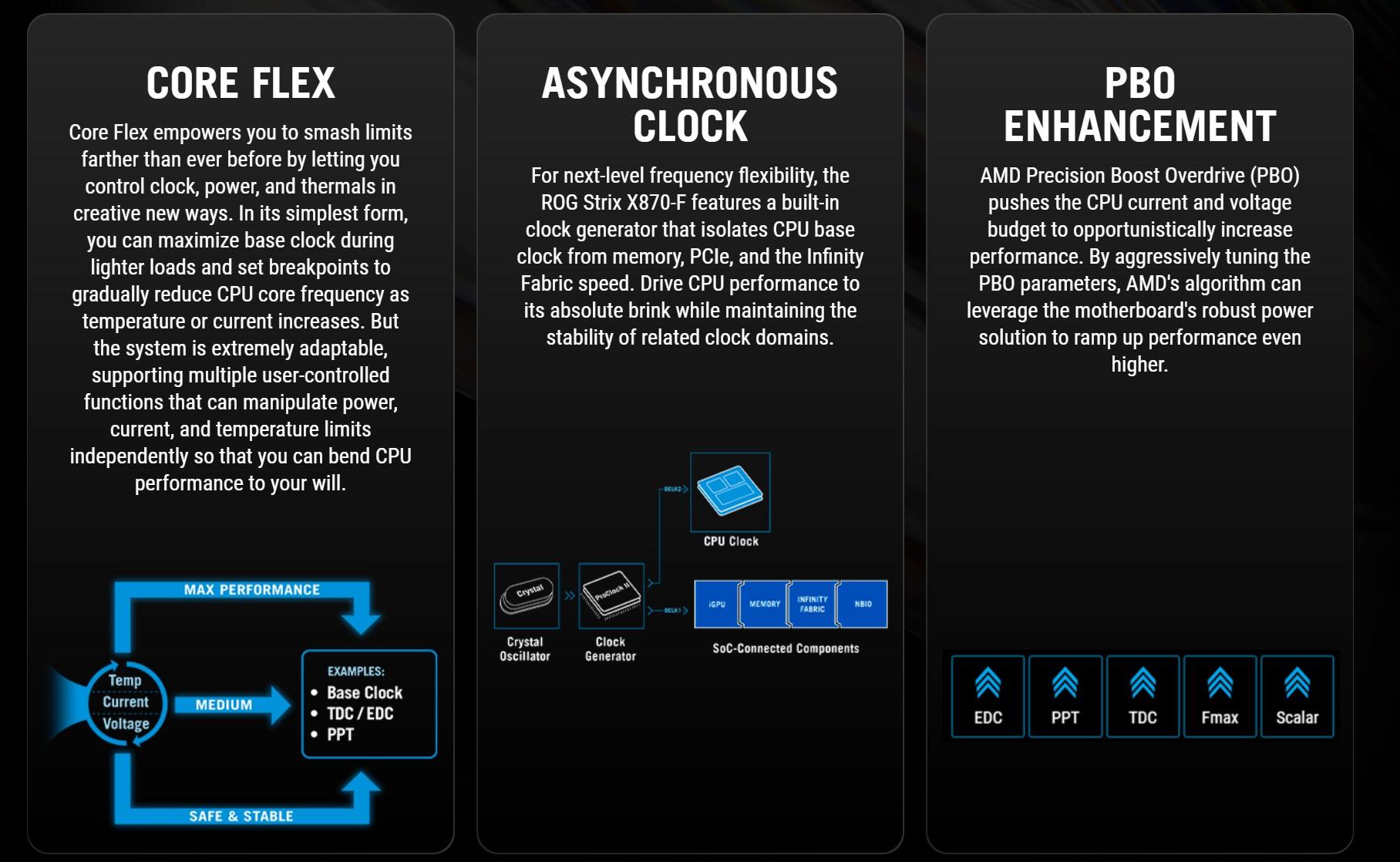

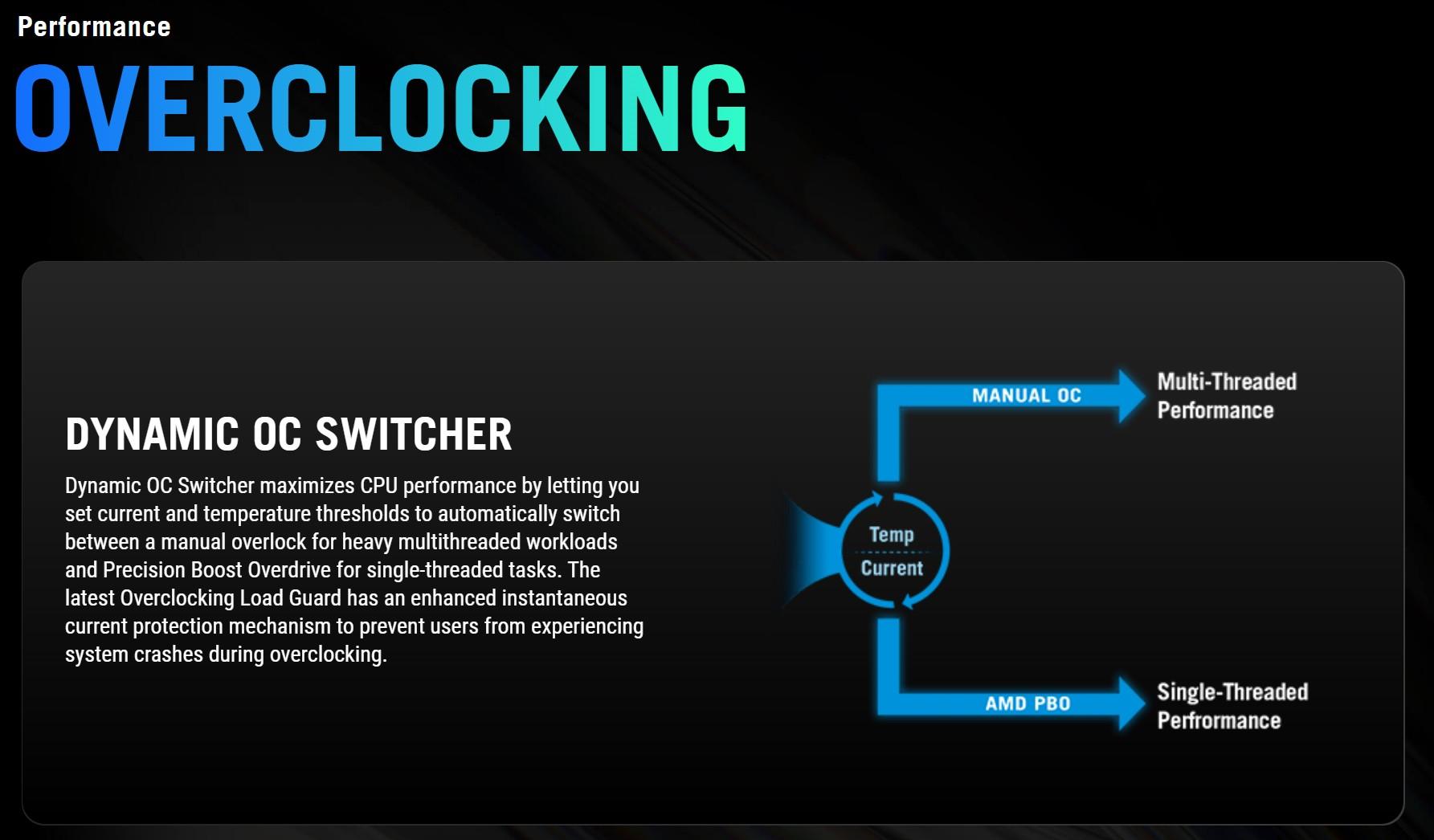

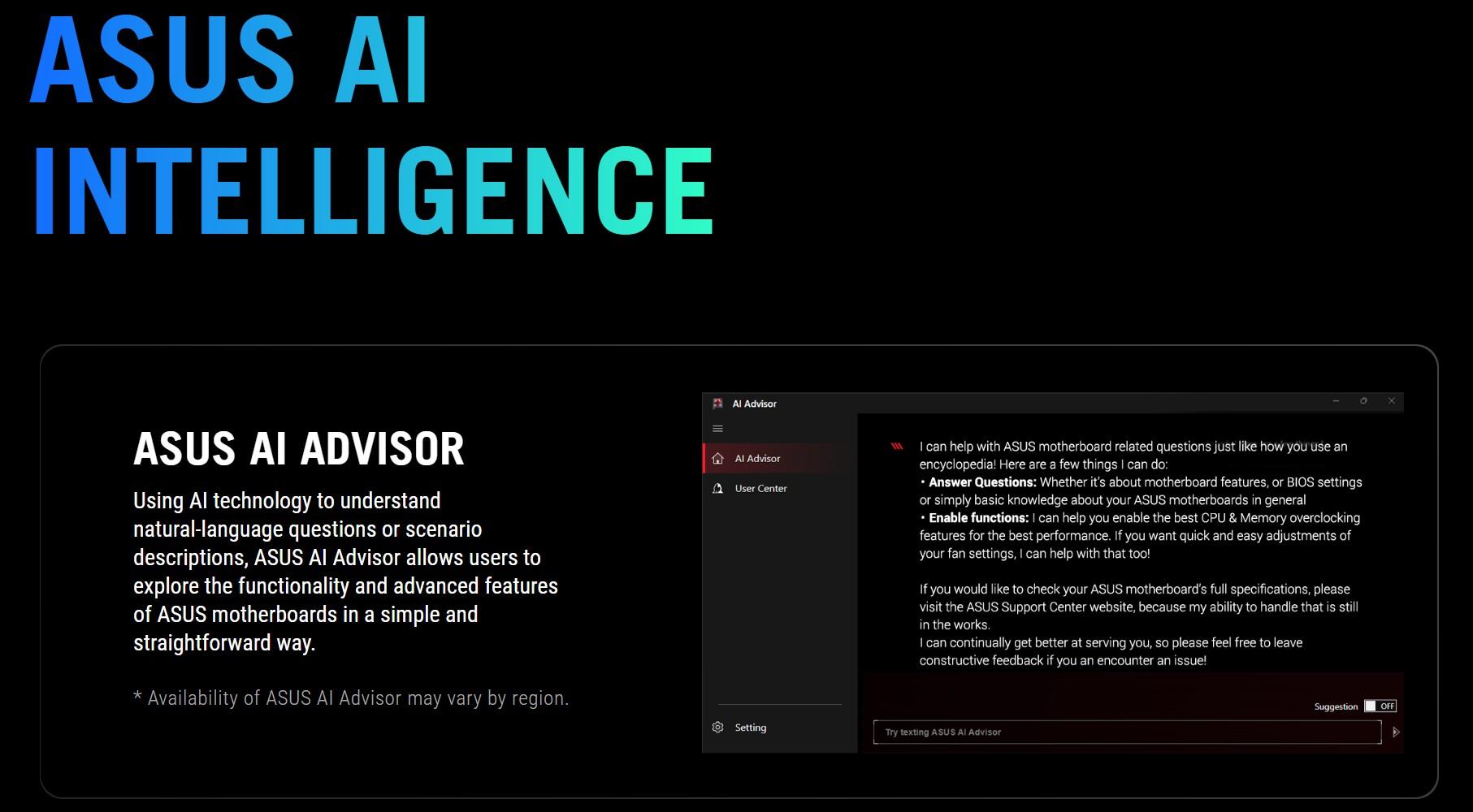

AI функции: Включва AI Overclocking, AI Cooling II и AI Networking II за оптимизирана производителност и лесна персонализация.
Удобство за сглобяване: С функции като PCIe Slot Q-Release и предварително монтирани I/O щитове, сглобяването е лесно.

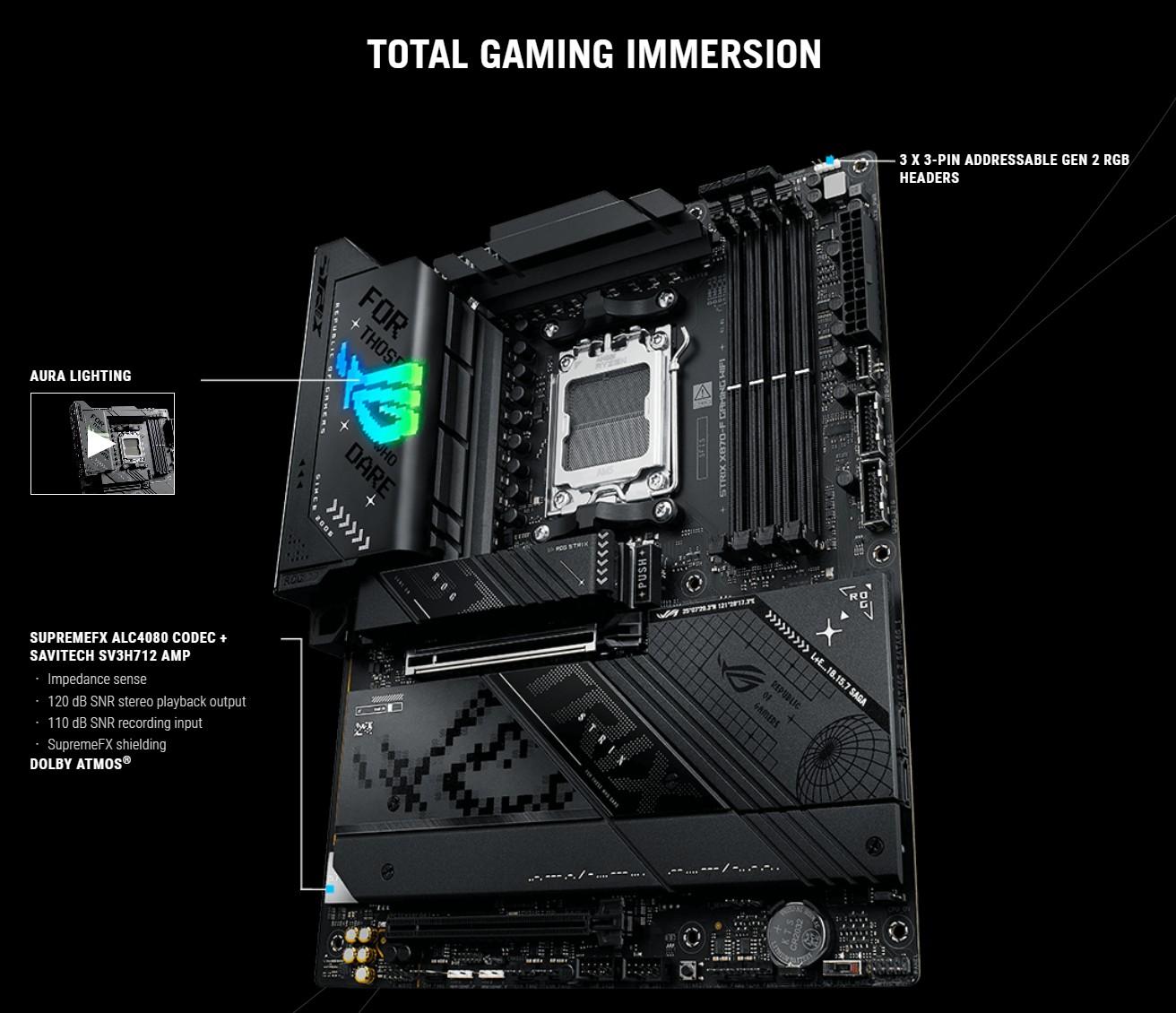

Гейминг изживяване: С Aura Sync RGB осветление и висококачествено аудио за по-добро потапяне в играта.

Specifications

Model	ROG STRIX X870-F GAMING WIFI
CPU	AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list.
Chipset	AMD X870

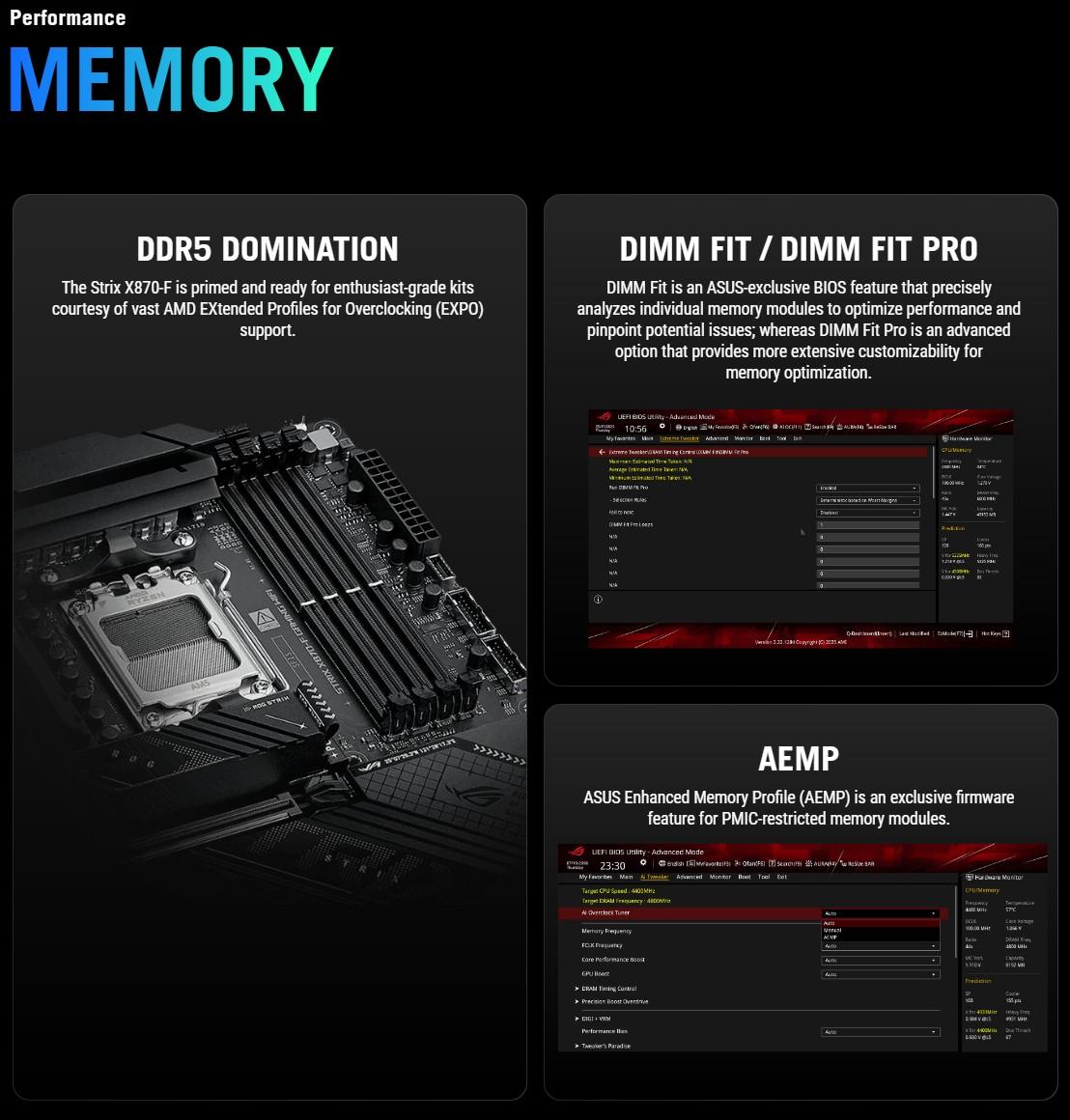

Memory	4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort 1 x HDMI port* 2 x USB4 (40Gbps) ports support USB Type-C display outputs**** * Please refer to AMD CPU specifications. Supports max. 8K@30Hz as specified in DisplayPort 1.4. * Supports 4K@60Hz as specified in HDMI 2.1. **Supports max. 4K@60Hz as specified in DisplayPort 1.4a ** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD X870 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage	Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen 9000 & 7000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)** AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)* M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 2 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU. M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only. * M.2_3 shares bandwidth with PCIEX16(G4). When M.2_3 is occupied with SSD device, PCIEX16(G4) will be disabled. **** M.2_2 will be disabled when using AMD Ryzen 8000 Series Desktop Processors.
Ethernet	1 x Intel 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate. Bluetooth v5.4* Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details. * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 12 ports) 2 x USB4 (40Gbps) ports(2 x USB Type-C with DP Alt mode)* 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C with up to 30W PD Fast-charge)** 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 20Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A ** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

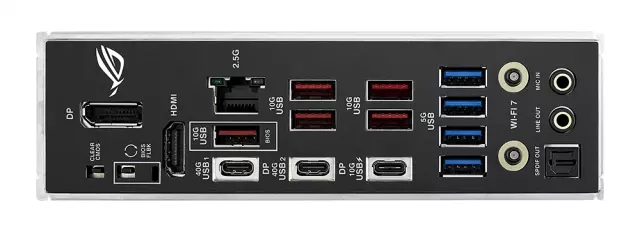

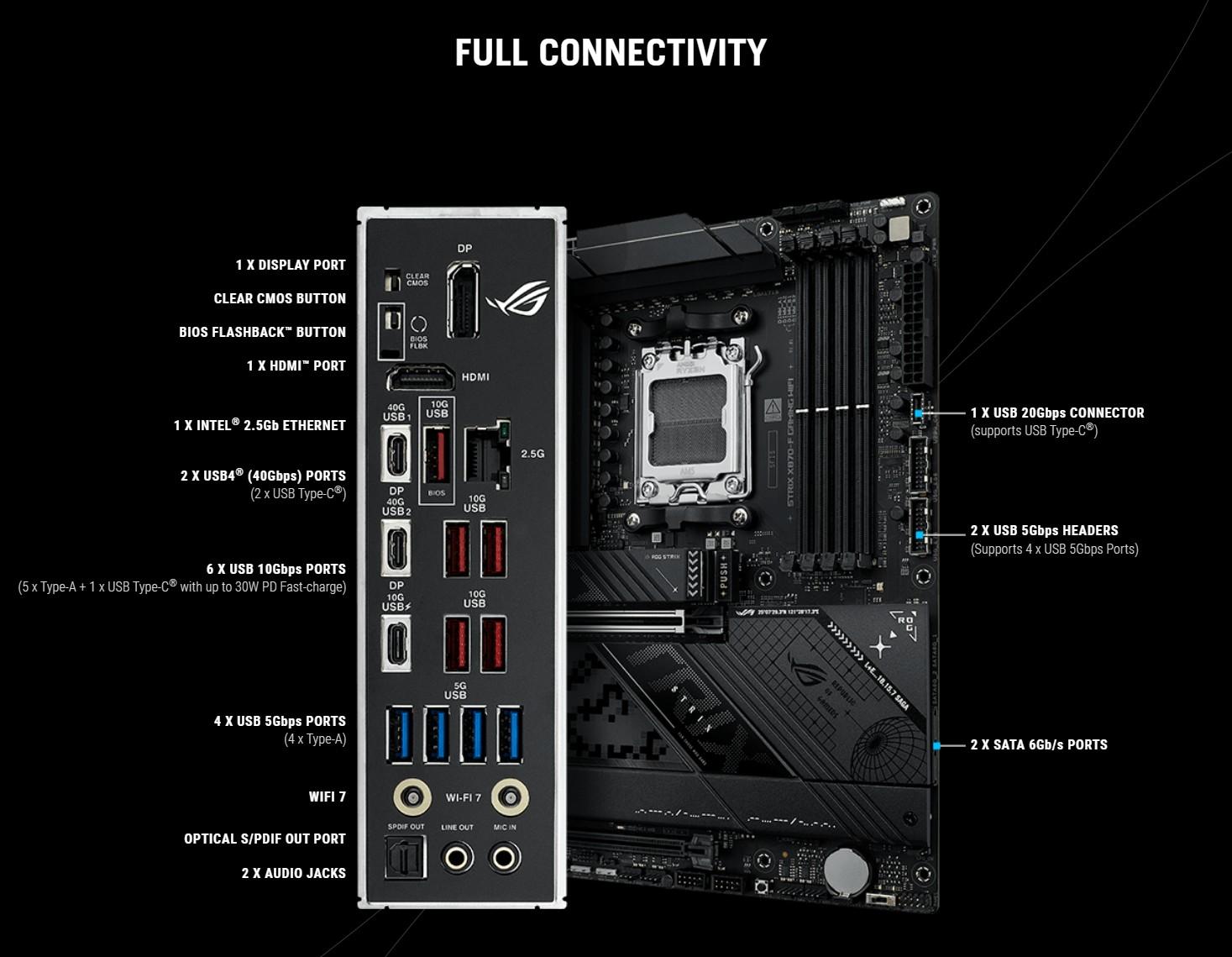

Back Panel I/O Ports	2 x USB4 (40Gbps) ports (2 x USB Type-C with DP Alt mode) 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C with up to 30W PD Fast-charge)** 4 x USB 5Gbps ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet 2 x Audio jacks  1 x Optical S/PDIF out port 1 x BIOS FlashBack button  1 x Clear CMOS button

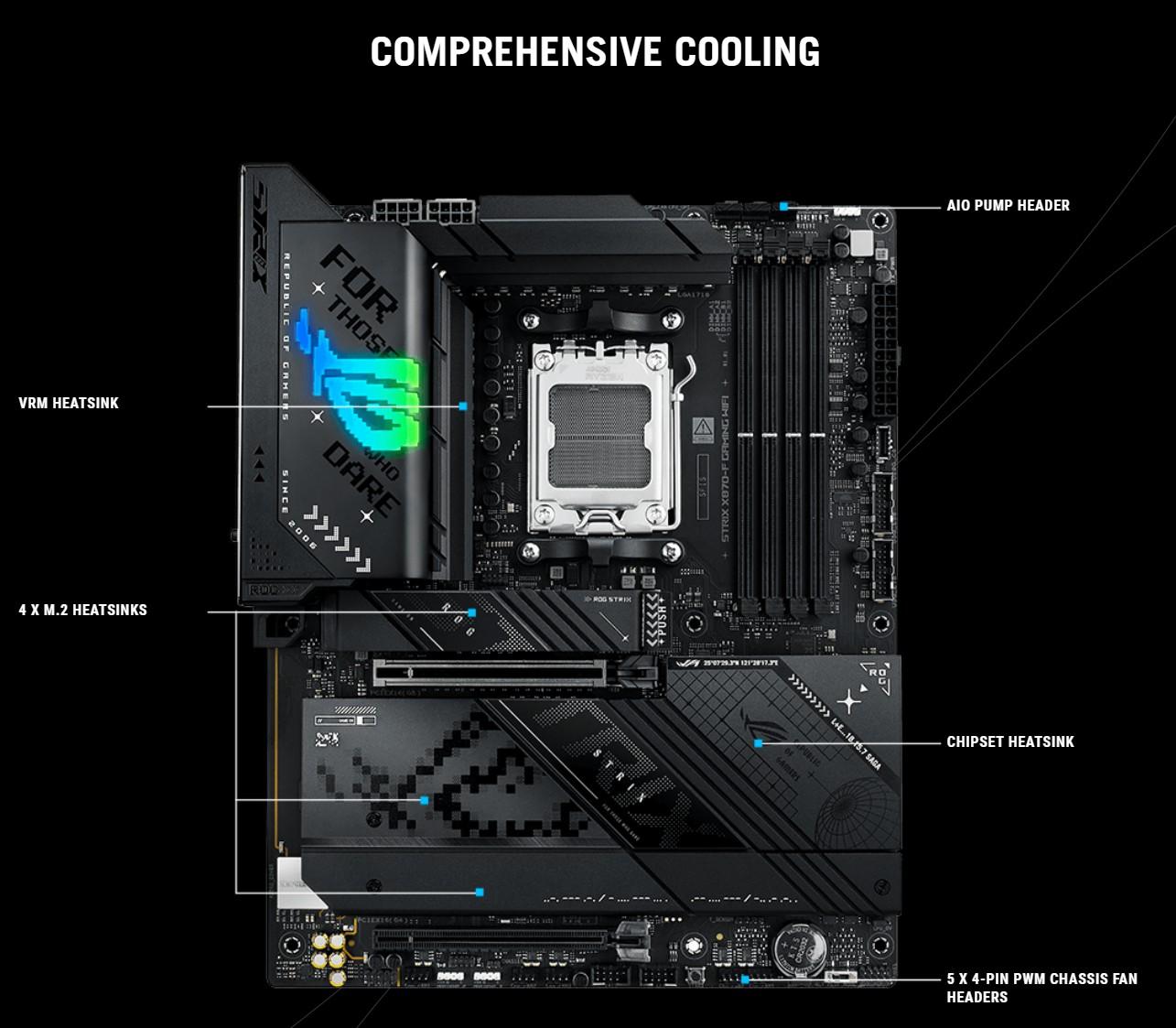

Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Alteration PCIe mode switch 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
Special Features	Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 headers
Software Features	ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO - Power Saving ASUS Driver Hub ASUS GlideX USB Wattage Watcher TurboV Core Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey Dynamic OC Switcher FlexKey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 22110 Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x M.2 Q-Slide package 1 x ROG key chain 1 x ROG Strix stickers 4 x M.2 rubber packages Documentation 1 x Quick start guide
Operating System	Windows 11
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
