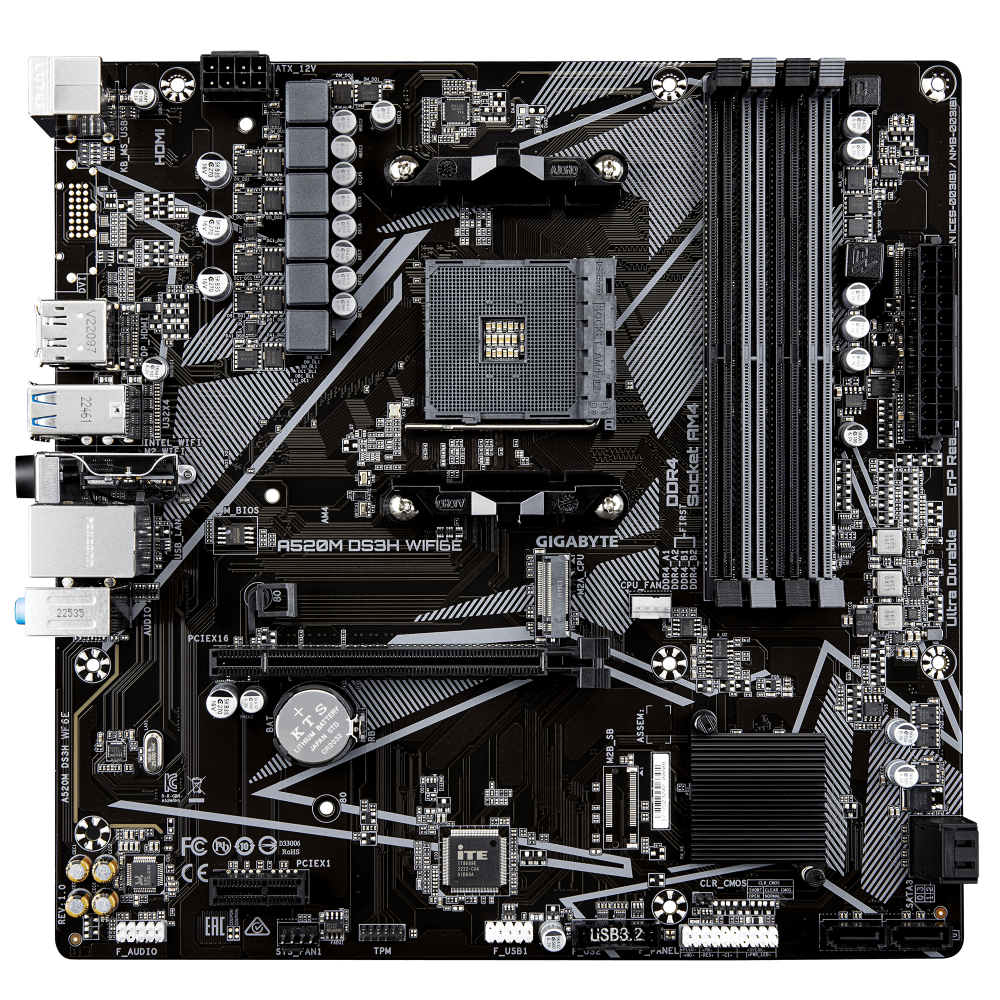

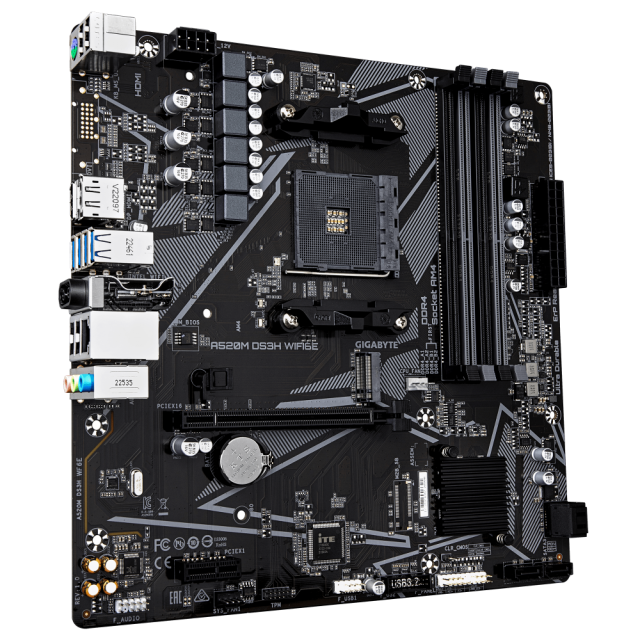

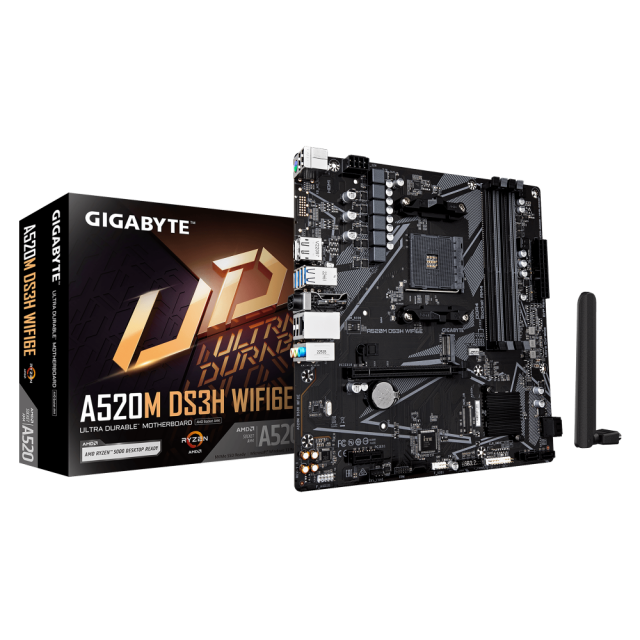

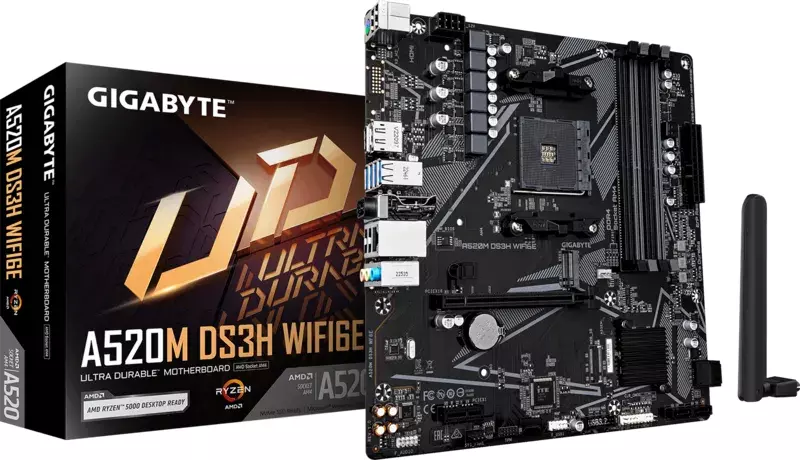

GIGABYTE A520M DS3H WIFI6E

Name: GIGABYTE A520M DS3H WIFI6E
Brand: GIGABYTE
SKU: GA-MB-A520M-DS3H-WF6E
Price: 84.19 EUR
Availability: InStock

Дънна платка GIGABYTE A520M DS3H WiFi 6E, Socket AM4

Арт. номер: GA-MB-A520M-DS3H-WF6E

наличен

Виж наличност

Склад Шереметя

Запитване за GIGABYTE A520M DS3H WIFI6E

безплатна доставка

на поръчки над 100 EUR

Технически характеристики

Гаранция	36 месеца
Сокет	AMD AM4
Форм Фактор	Micro ATX
Чипсет	AMD A520
Брой слотове за памет	4
Капацитет на RAM	до 128 GB
Честота на памет	до 4733 MT/s
RGB Подсветка	Не
Поддържана памет	DDR4
Вграден Wi-Fi	Да

Свързани продукти

GIGABYTE H610M D3W

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel H610

Брой слотове за памет: 2

Капацитет на RAM: до 128 GB

GIGABYTE B550M K

Сокет: AMD AM4

Форм Фактор: Micro ATX

Чипсет: AMD B550

Брой слотове за памет: 4

Капацитет на RAM: до 128 GB

GIGABYTE A620M H

Сокет: AMD AM5

Форм Фактор: Micro ATX

Чипсет: AMD A620

Брой слотове за памет: 2

Капацитет на RAM: до 96 GB

GIGABYTE H610M D3H WIFI DDR4

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel H610

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

GIGABYTE B760M H DDR4

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel B760

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

GIGABYTE H610M S2H V2

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel H610

Брой слотове за памет: 2

Капацитет на RAM: до 96 GB

GIGABYTE H810M K

Сокет: Intel 1851

Форм Фактор: Micro ATX

Чипсет: Intel H810

Брой слотове за памет: 2

Капацитет на RAM: до 128 GB

GIGABYTE B550M DS3H R2

Сокет: AMD AM4

Форм Фактор: Micro ATX

Чипсет: AMD B550

Брой слотове за памет: 4

Капацитет на RAM: до 128 GB

GIGABYTE H610M K V2

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel H610

Брой слотове за памет: 2

Капацитет на RAM: до 128 GB

GIGABYTE H610M H V2

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel H610

Брой слотове за памет: 2

Капацитет на RAM: до 96 GB

GIGABYTE H610M S2H V3 DDR4

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel H610

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

GIGABYTE B760M E

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel B760

Брой слотове за памет: 2

Капацитет на RAM: до 128 GB

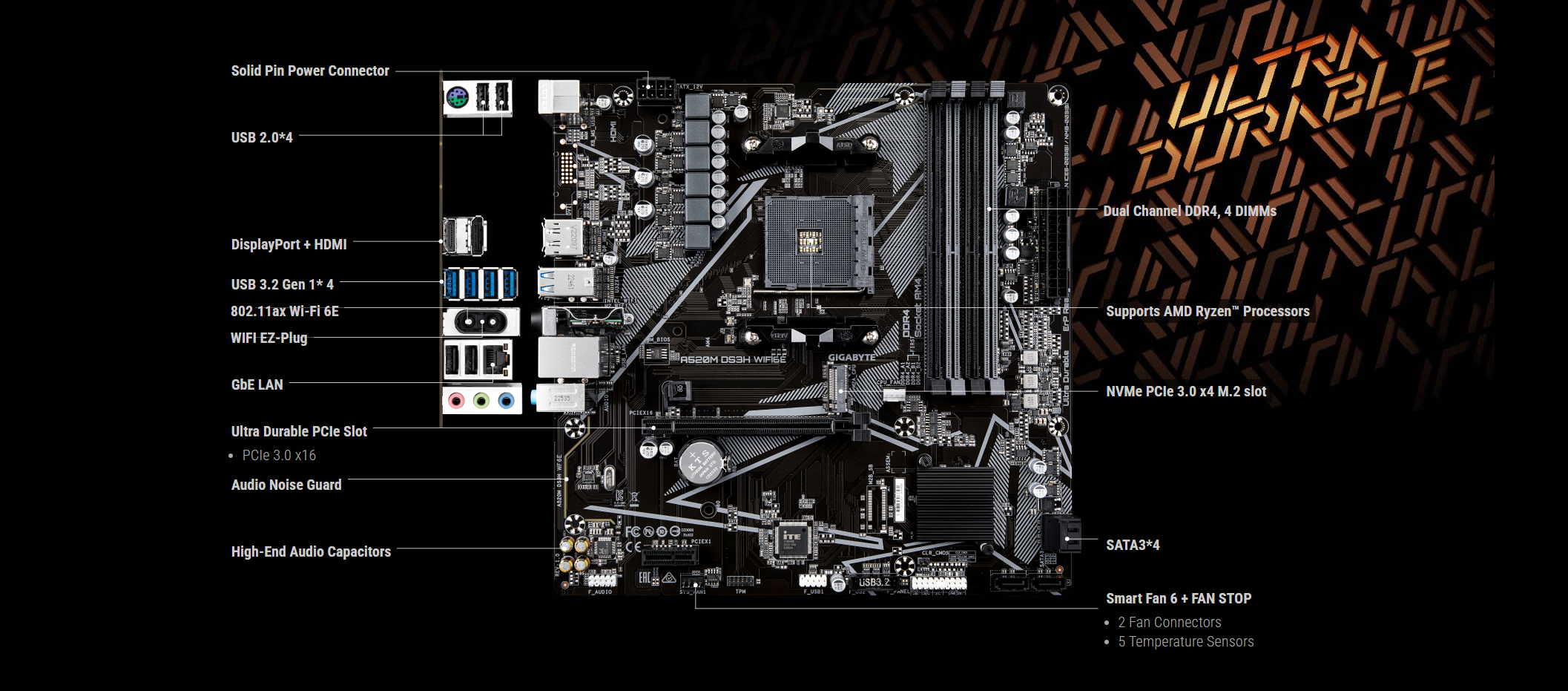

AMD A520 Ultra Durable Motherboard with Digital VRM Solution,WIFI EZ-Plug, Wi-Fi 6E 802.11ax, GbE LAN, NVMe PCIe 3.0 x4 M.2, Smart Fan 6 with FAN STOP

Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
Ultra Durable PCIe 3.0 x16 Slot
NVMe PCIe 3.0 x4 M.2 Connectors
High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
Fast Networks: GbE LAN & Wi-Fi 6E 802.11ax
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
Rear DisplayPort and HDMI for Multi-display Support
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Anti-Sulfur Resistors Design

Specifications

CPU	AMD Socket AM4, support for: AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 3000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Chipset	AMD A520
Memory	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. (Graphics specifications may vary depending on CPU support.) Maximum shared memory of 16 GB
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module	MediaTek Wi-Fi 6E MT7902 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details.
Expansion Slots	1 x PCI Express x16 slot, integrated in the CPU: - Supporting PCIe 3.0 x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. 1 x PCI Express x1 slot, integrated in the Chipset: - Supporting PCIe 3.0 x1 mode
Storage Interface	1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: - Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: - Supporting for RAID 0, RAID 1, and RAID 10
USB	CPU: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_Smodule only) 1 x Clear CMOS jumper

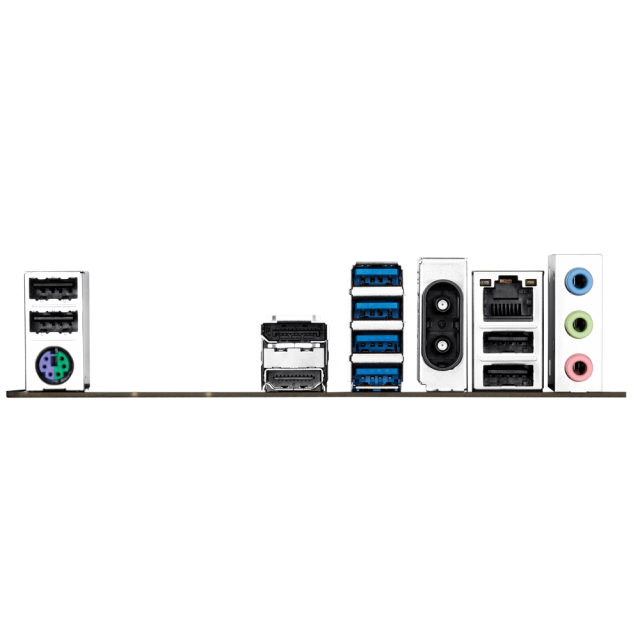

Back Panel Connectors	1 x PS/2 keyboard/mouse port 1 x DisplayPort (Note ) 1 x HDMI port (Note ) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (1T1R) (Note ) Actual support may vary by CPU.
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. - @BIOS - EasyTune - Smart Backup - System Information Viewer Support for Q-Flash
Bundled Software	Norton Internet Security (OEM version)
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
