GIGABYTE H610M S2H V2

Дънна платка GIGABYTE H610M S2H V2, socket 1700, 2xDDR5, Micro ATX

Арт. номер: GA-MB-H610M-S2H-V2-D5

на път

Запитване за GIGABYTE H610M S2H V2

безплатна доставка

на поръчки над 199 лв.

Технически характеристики

Гаранция	36 месеца
Сокет	Intel 1700
Форм Фактор	Micro ATX
Чипсет	Intel H610
Брой слотове за памет	2
Капацитет на RAM	до 96 GB
Честота на памет	до 5600 MT/s
RGB Подсветка	Не
Поддържана памет	DDR5
Вграден Wi-Fi	Не

Свързани продукти

GIGABYTE H610M K V2

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel H610

Брой слотове за памет: 2

Капацитет на RAM: до 128 GB

GIGABYTE H610M H V2

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel H610

Брой слотове за памет: 2

Капацитет на RAM: до 96 GB

GIGABYTE H610M S2H V3 DDR4

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel H610

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

GIGABYTE B550M K

Сокет: AMD AM4

Форм Фактор: Micro ATX

Чипсет: AMD B550

Брой слотове за памет: 4

Капацитет на RAM: до 128 GB

GIGABYTE A620M H

Сокет: AMD AM5

Форм Фактор: Micro ATX

Чипсет: AMD A620

Брой слотове за памет: 2

Капацитет на RAM: до 96 GB

GIGABYTE B450M H

Сокет: AMD AM4

Форм Фактор: Micro ATX

Чипсет: AMD B450

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

GIGABYTE H610M H V3 DDR4

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel H610

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

GIGABYTE A520M DS3H

Сокет: AMD AM4

Форм Фактор: Micro ATX

Чипсет: AMD A520

Брой слотове за памет: 4

Капацитет на RAM: до 128 GB

GIGABYTE B550M DS3H

Сокет: AMD AM4

Форм Фактор: Micro ATX

Чипсет: AMD B550

Брой слотове за памет: 4

Капацитет на RAM: до 128 GB

GIGABYTE A520M S2H

Сокет: AMD AM4

Форм Фактор: Micro ATX

Чипсет: AMD A520

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

GIGABYTE H510M S2H V3

Сокет: Intel 1200

Форм Фактор: Micro ATX

Чипсет: Intel H510

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

GIGABYTE B760M H DDR4

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel B760

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

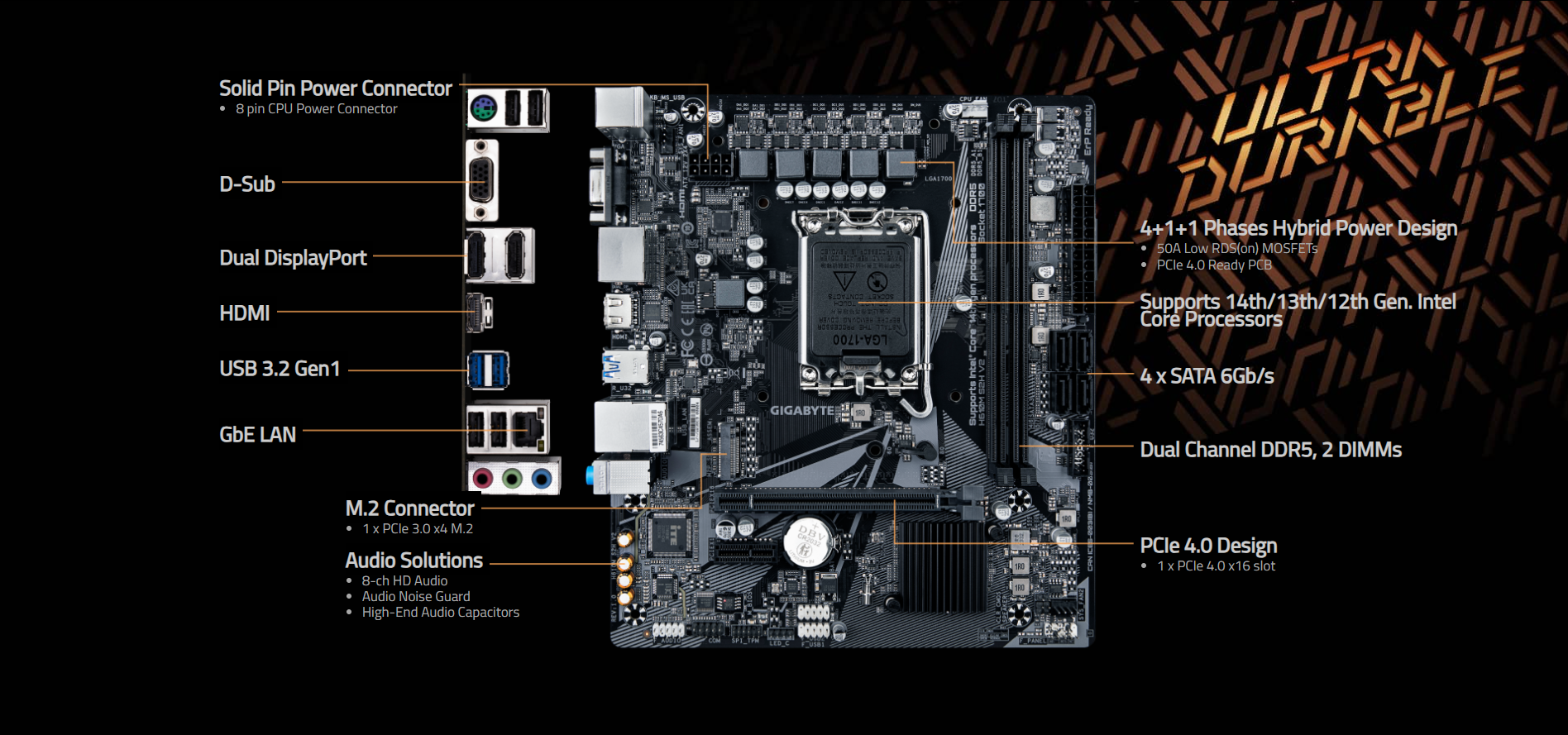

Дънна платка GIGABYTE H610M S2H V2

Supports Intel Core 14th/ 13th /12th processors
Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
4+1+1 Hybrid Digital VRM Design
GbE LAN with Bandwidth Management
NVMe PCIe 3.0 x4 M.2
2*DisplayPort / HDMI / D-Sub Ports for Multiple Display
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design

Specifications

CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU * Please refer to "CPU Support List" for more information.
Chipset	Intel H610 Express Chipset
Memory	14th and 13th Generation Intel Core i9/i7 Pocessors: - Support for DDR5 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: - Support for DDR5 4800/4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. - 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Expansion Slots	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface	Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) - 4 x SATA 6Gb/s connectors
USB	Chipset: - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x chassis intrusion header
Back Panel Connectors	1 x PS/2 keyboard/mouse port 1 x D-Sub port 2 x DisplayPort 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. - @BIOS - EasyTune - Smart Backup - System Information Viewer Support for Q-Flash
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 22.3cm x 19.6cm
