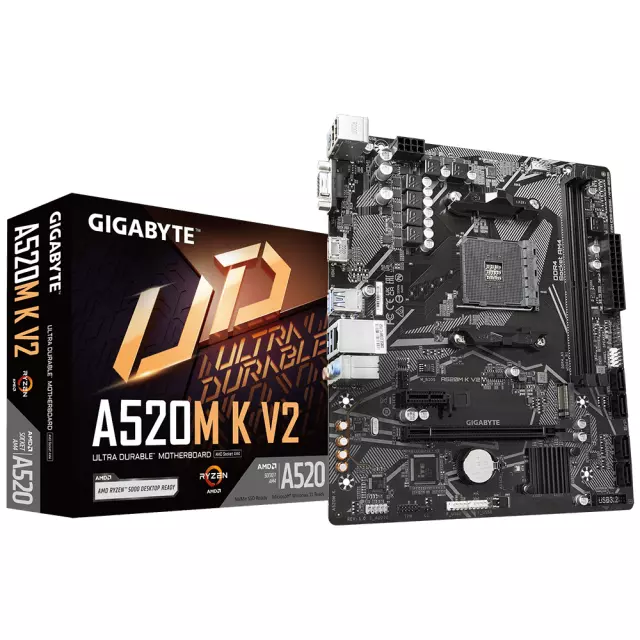

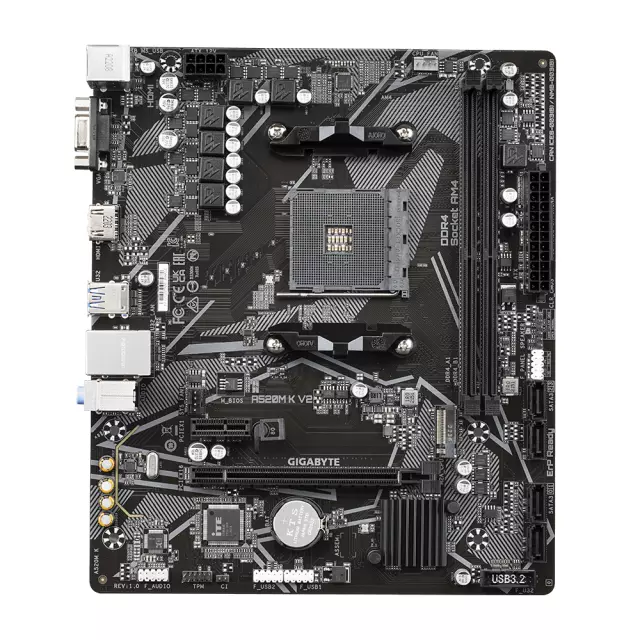

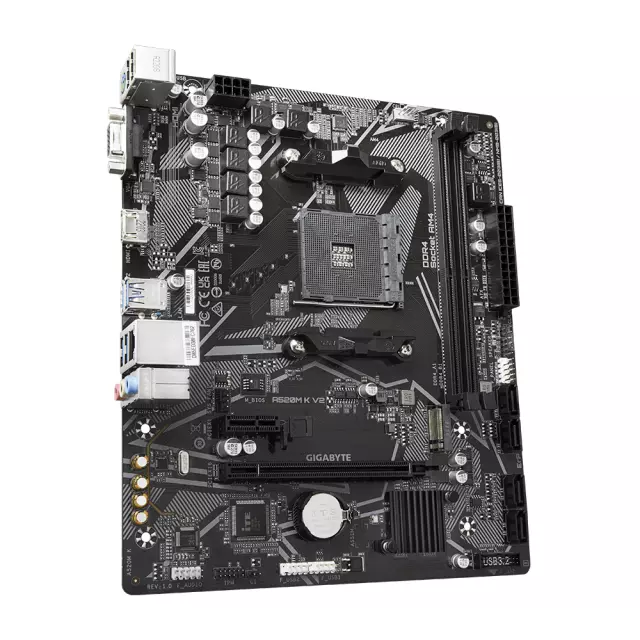

Gigabyte A520M K V2

Дънна платка GIGABYTE A520M K V2, Socket AM4, mATX, 2xDDR4, M.2 NVMe

Арт. номер: GA-MB-A520M-K-V2

на път

Запитване за Gigabyte A520M K V2

безплатна доставка

на поръчки над 199 лв.

Технически характеристики

Гаранция	36 месеца
Сокет	AMD AM4
Форм Фактор	Micro ATX
Чипсет	AMD A520
Брой слотове за памет	2
Капацитет на RAM	до 64 GB
Честота на памет	до 5100 MT/s
RGB Подсветка	Не
Поддържана памет	DDR4
Вграден Wi-Fi	Не

Свързани продукти

GIGABYTE H410M-H

Сокет: Intel 1200

Форм Фактор: Micro ATX

Чипсет: Intel H410

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

GIGABYTE H510M S2H V3

Сокет: Intel 1200

Форм Фактор: Micro ATX

Чипсет: Intel H510

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

GIGABYTE A520M S2H

Сокет: AMD AM4

Форм Фактор: Micro ATX

Чипсет: AMD A520

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

GIGABYTE A520M DS3H

Сокет: AMD AM4

Форм Фактор: Micro ATX

Чипсет: AMD A520

Брой слотове за памет: 4

Капацитет на RAM: до 128 GB

GIGABYTE H610M H V3 DDR4

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel H610

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

GIGABYTE B450M H

Сокет: AMD AM4

Форм Фактор: Micro ATX

Чипсет: AMD B450

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

GIGABYTE H610M S2H V3 DDR4

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel H610

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

GIGABYTE H610M H V2

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel H610

Брой слотове за памет: 2

Капацитет на RAM: до 96 GB

GIGABYTE H610M K V2

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel H610

Брой слотове за памет: 2

Капацитет на RAM: до 128 GB

GIGABYTE H610M S2H V2

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel H610

Брой слотове за памет: 2

Капацитет на RAM: до 96 GB

GIGABYTE B550M K

Сокет: AMD AM4

Форм Фактор: Micro ATX

Чипсет: AMD B550

Брой слотове за памет: 4

Капацитет на RAM: до 128 GB

GIGABYTE A620M H

Сокет: AMD AM5

Форм Фактор: Micro ATX

Чипсет: AMD A620

Брой слотове за памет: 2

Капацитет на RAM: до 96 GB

Дънна платка Gigabyte A520M K V2

Поддържа процесори AMD Ryzen 5000 серия / Ryzen 5000 G серия / Ryzen 4000 G серия и Ryzen 3000 серия
Двуканална небуферирана памет ECC/ Non-ECC тип DDR4, 2 слота DIMM
PCIe Gen3 x4 M.2 с поддръжка на режими PCIe NVMe & SATA
GbE LAN чип с управление на пропуксвателната способност
8-канално HD аудио с висококачествени аудио кондензатори
Smart Fan 5 поддържа многобройни температурни датчици, хибридни вентилаторни конектори с функция FAN STOP
GIGABYTE APP Center, опростена и лесна употреба

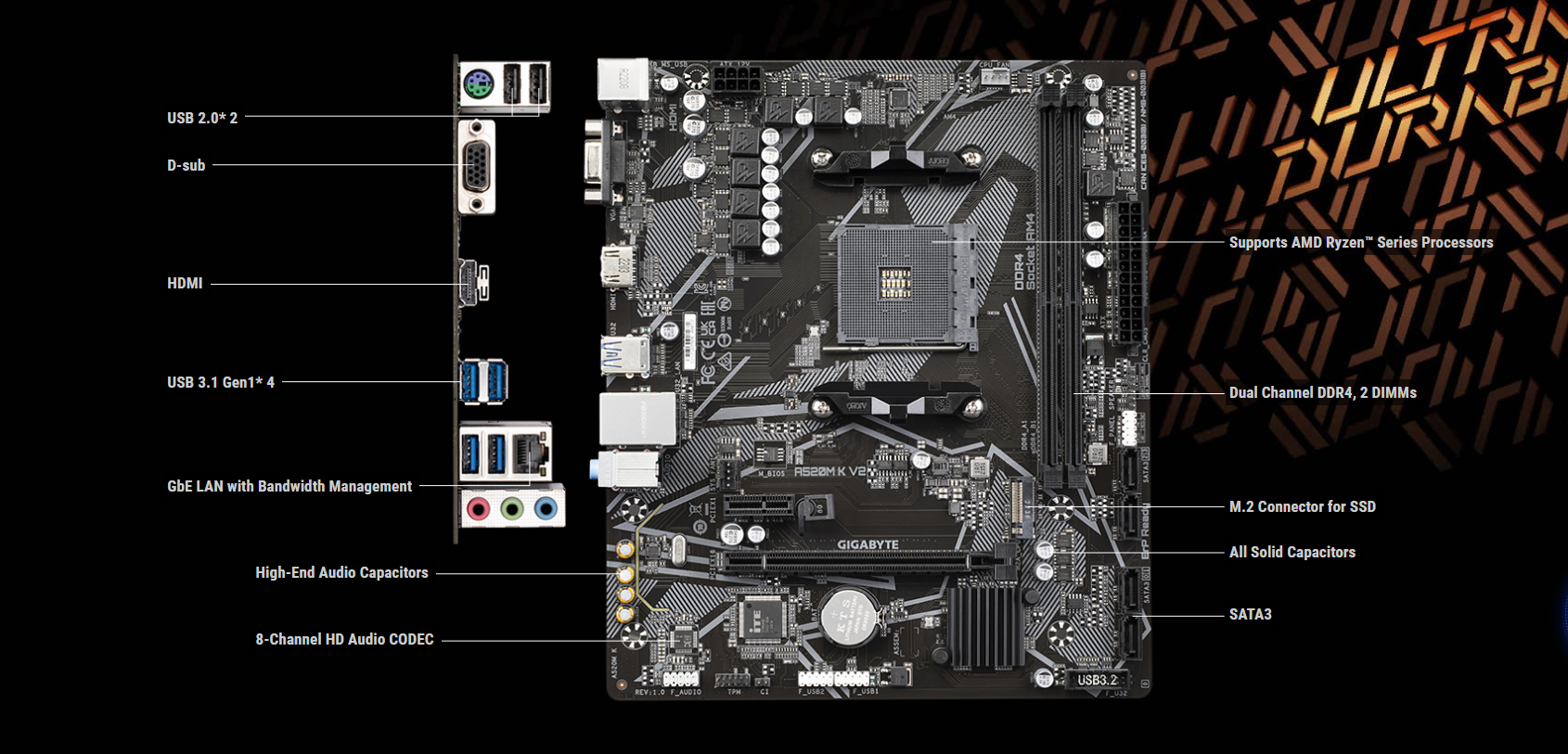

Spec Overview

CONNECTIVITY

NVMe PCIe Gen 3 x4 2280 M.2 Connector

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

*Actual support may vary by CPU.

GbE LAN with Bandwidth Management

GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in

crowded LAN environments.

COOLING

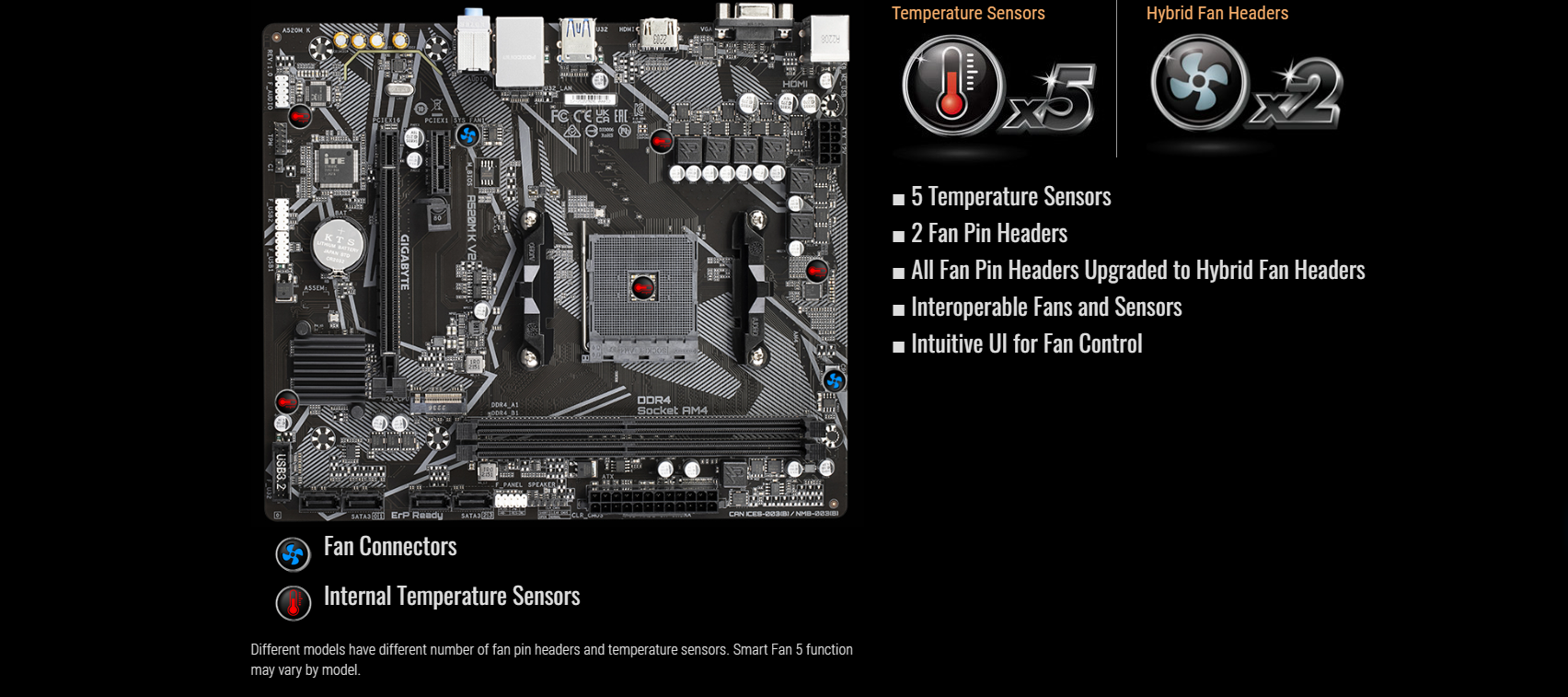

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

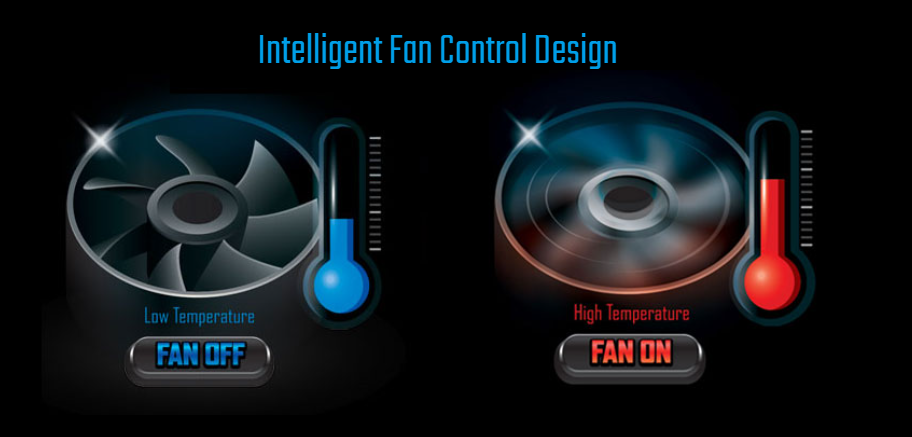

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

Hybrid Fan Pin Headers

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.
• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage preferences.
For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

AUDIO

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

ULTRA DURABLE

GIGABYTE Patented Double Locking Bracket

GIGABYTE EXCELLENCE

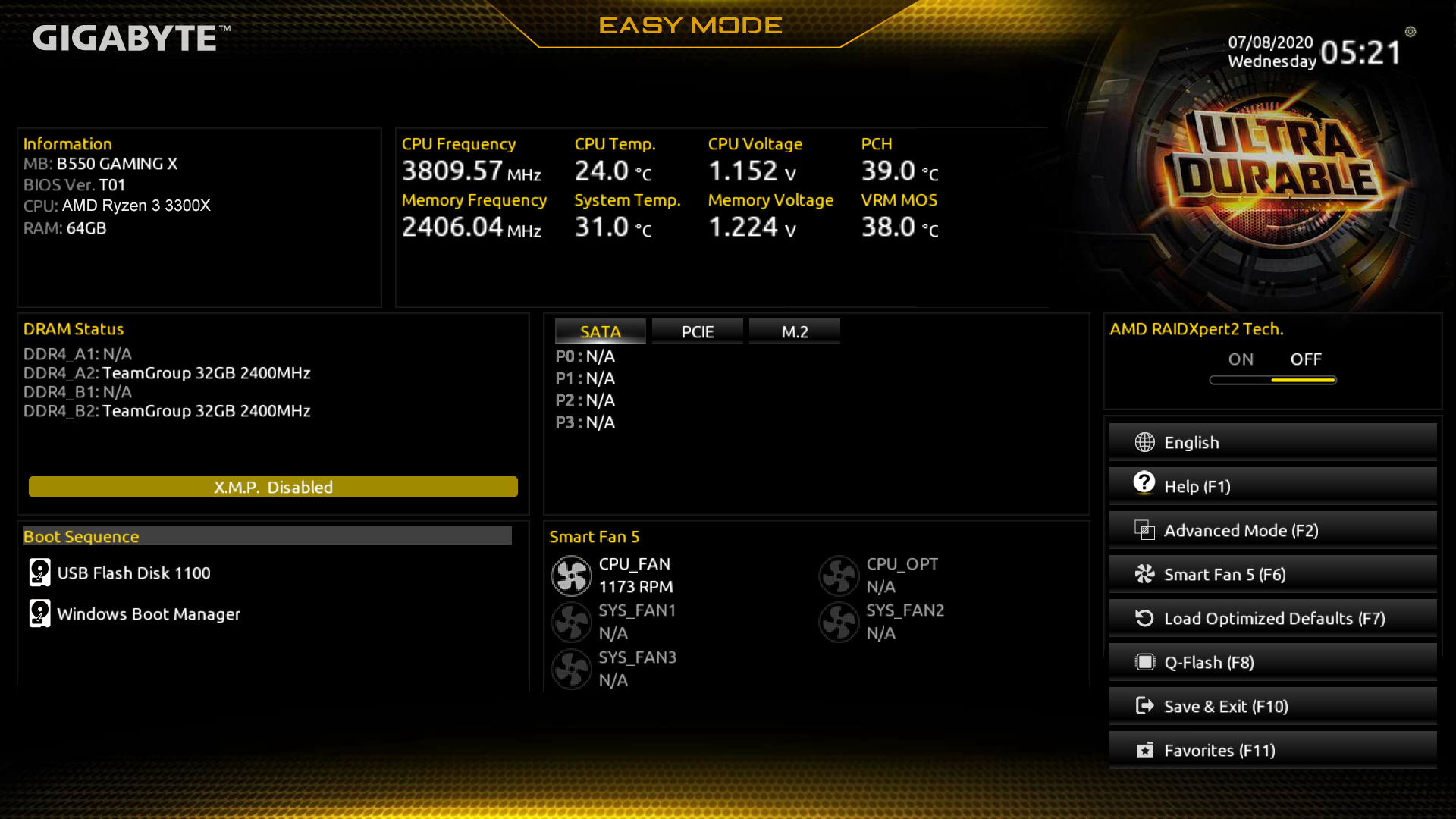

Refreshed BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
* Photos are for reference only. Product features may vary by model.

APP CENTER

GIGABYTE APP CENTER is an useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with latest utilities and drivers version.

EasyTune

GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

@BIOS

The GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.

System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

Specifications

CPU	AMD Socket AM4, support for: AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors (Please refer "CPU Support List" for more information.)	Back Panel Connectors	1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Chipset	AMD A520	I/O Controller	iTE I/O Controller Chip
Memory	2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)	H/W Monitoring	Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
Onboard Graphics	Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB	BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.	Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
LAN	Realtek GbE LAN chip (1 Gbps/100 Mbps)	Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Expansion Slots	CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1	Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Storage Interface	CPU: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10	Form Factor	Micro ATX Form Factor; 23.3cm x 19.8cm
USB	CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)	Remark	Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header
