Начало Гейминг хардуер Дънни платки GIGABYTE H510M S2H V3

GIGABYTE H510M S2H V3

Дънна платка GIGABYTE H510M-S2H V3, socket 1200, Micro ATX

Арт. номер: GA-MB-H510M-S2H-V3

не е в наличност

Запитване за GIGABYTE H510M S2H V3

безплатна доставка

на поръчки над 199 лв.

Технически характеристики

Гаранция	36 месеца
Сокет	Intel 1200
Форм Фактор	Micro ATX
Чипсет	Intel H510
Брой слотове за памет	2
Капацитет на RAM	до 64 GB
Честота на памет	до 3200 MT/s
RGB Подсветка	Не
Поддържана памет	DDR4
Вграден Wi-Fi	Не

Свързани продукти

GIGABYTE A520M S2H

Сокет: AMD AM4

Форм Фактор: Micro ATX

Чипсет: AMD A520

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

GIGABYTE H410M-H

Сокет: Intel 1200

Форм Фактор: Micro ATX

Чипсет: Intel H410

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

GIGABYTE A520M DS3H

Сокет: AMD AM4

Форм Фактор: Micro ATX

Чипсет: AMD A520

Брой слотове за памет: 4

Капацитет на RAM: до 128 GB

Gigabyte A520M K V2

Сокет: AMD AM4

Форм Фактор: Micro ATX

Чипсет: AMD A520

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

GIGABYTE H610M H V3 DDR4

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel H610

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

GIGABYTE B450M H

Сокет: AMD AM4

Форм Фактор: Micro ATX

Чипсет: AMD B450

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

GIGABYTE H610M S2H V3 DDR4

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel H610

Брой слотове за памет: 2

Капацитет на RAM: до 64 GB

GIGABYTE H610M H V2

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel H610

Брой слотове за памет: 2

Капацитет на RAM: до 96 GB

GIGABYTE H610M K V2

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel H610

Брой слотове за памет: 2

Капацитет на RAM: до 128 GB

GIGABYTE H610M S2H V2

Сокет: Intel 1700

Форм Фактор: Micro ATX

Чипсет: Intel H610

Брой слотове за памет: 2

Капацитет на RAM: до 96 GB

GIGABYTE B550M K

Сокет: AMD AM4

Форм Фактор: Micro ATX

Чипсет: AMD B550

Брой слотове за памет: 4

Капацитет на RAM: до 128 GB

GIGABYTE A620M H

Сокет: AMD AM5

Форм Фактор: Micro ATX

Чипсет: AMD A620

Брой слотове за памет: 2

Капацитет на RAM: до 96 GB

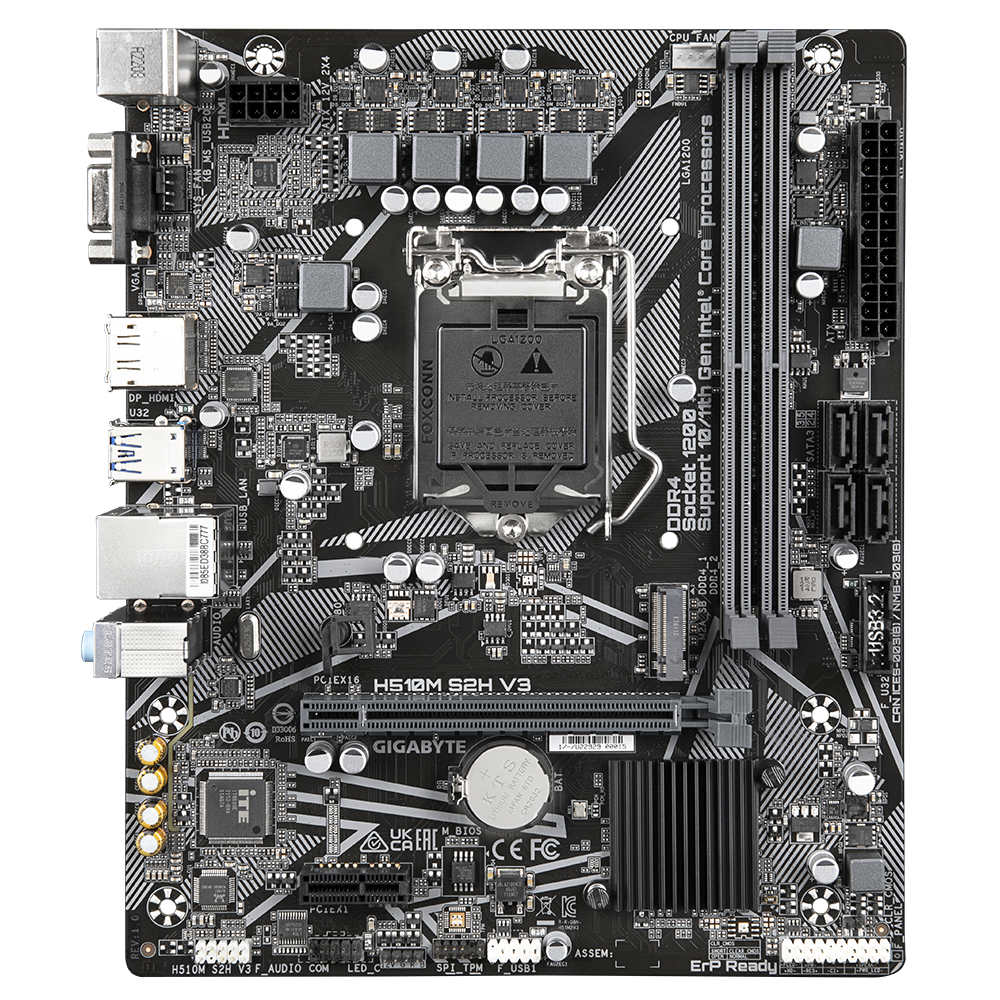

Дънна платка GIGABYTE H510M-S2H V3, socket 1200, Micro ATX

Supports 11th/10th Gen Intel Core Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
8-Channel HD Audio with High Quality Audio Capacitors
NVMe PCIe Gen3 x4 2280 M.2 Connector
GbE LAN with Bandwidth Management
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design

CONNECTIVITY

GbE LAN with Bandwidth Management

GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

NVMe PCIe Gen3 x4 2280 M.2 Connector

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

* Photos are for reference only.

COOLING

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Temperature Sensors

Hybrid Fan Headers

■ 4 Temperature Sensors
■ 2 Fan Pin Headers
■ All Fan Pin Headers Upgraded to Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Intuitive UI for Fan Control

Fan / Water Pump Connectors

Internal Temperature Sensors

Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.

Intelligent Fan Control Design

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

Hybrid Fan Pin Headers

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.
• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage preferences.
For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

AUDIO

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

* Photos are for reference only.

ULTRA DURABLE

GIGABYTE Patented Double Locking Bracket

The Industry's Leading Surge Protection

GIGABYTE motherboards also feature special anti-surge IC that protect your motherboard, helping to en

sure that your PC is equipped to deal with any potentially irregular electrical spikes.

Humidity Protection Glass Fabric PCB

There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.

High Temperature Protection Lower RDS(on) MOSFETs Design

GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual

heat dissipation. This all amounts to tangible energy savings which are beneficial for

both end-users and the environment without impacting system performance.

Refreshed BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

* Photos are for reference only. Product features may vary by model.

APP CENTER

GIGABYTE APP CENTER is an useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with latest utilities and drivers version.

EasyTune

GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

@BIOS

The GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.

System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

Specifications

CPU	LGA1200 package: 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors L3 cache varies with CPU (Please refer to "CPU Support List" for more information.)
Chipset	Intel H510 Express Chipset
Memory	11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60Hz * Support for DisplayPort 1.2 version and HDCP 2.3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30Hz * Support for HDMI 1.4 version and HDCP 2.3. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz * The D-Sub port is only available with the 10th Generation processors. Support for up to 3 displays at the same time * Only available with the 10th Generation processors. (Graphics specifications may vary depending on CPU support.)
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots	CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface	Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices
USB	Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper
Back Panel Connectors	1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DisplayPort 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed contro * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 22.6cm x 18.5cm
